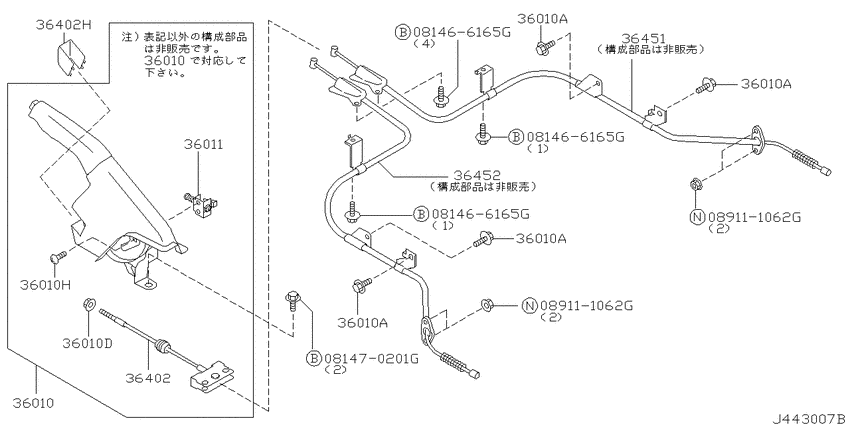

Parking brake control (2002-05-01 ~ ; 2WD.QG15DE +QG13DE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.68 |
||
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.68 |
||
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.68 |
||
|
081470201G
|
081470201G
081470201G
Bolt-hexagon
|
081470201G |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
36010
|
36010
360104M400 Device Assy-Parking Brake Control9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
360104M400 |
US $159.84 |
||
|
36010
|
36010
360109M500
Device Assy-Parking Brake Control
0009--01 ~ 0205--01; /*2WD.QG15DE +*QG13DE +*SR16VE +*QG18DD +*YD22DD |
360109M500 |
— | ||
|
36010
|
36010
54459-0M001 Bolt9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
54459-0M001 |
US $1.73 |
||
|
36010
|
36010
0122500901 NUT0205--01 ~ ; 2WD.QG15DE +QG13DE |
0122500901 |
from US $0.72 |
||
|
36010
|
36010
0145400431 SCREW9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
0145400431 |
US $1.73 |
||
|
36010A
|
36010A
54459-0M001 Bolt9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
54459-0M001 |
US $1.73 |
||
|
36010A
|
36010A
54459-0M001 Bolt9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
54459-0M001 |
US $1.73 |
||
|
36010A
|
36010A
54459-0M001 Bolt9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
54459-0M001 |
US $1.73 |
||
|
36010A
|
36010A
54459-0M001 Bolt9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
54459-0M001 |
US $1.73 |
||
|
36010D
|
36010D
0122500901 NUT0205--01 ~ ; 2WD.QG15DE +QG13DE |
0122500901 |
from US $0.72 |
||
|
36010H
|
36010H
0145400431 SCREW9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
0145400431 |
US $1.73 |
||
|
36011
|
36011
36011-4E100
SWITCH ASSY-PARKING BRAKE LAMP
9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
36011-4E100 |
— | ||
| replacement | |||||
|
36011
|
36011
360114E10A Switch Assy-Parking Brake Lamp9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
360114E10A |
from US $5.75 |
||
|
36402
|
36402
36402-4M400 Cable Assy-Parking Brake, Front9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
36402-4M400 |
US $61.06 |
||
|
36402
|
36402
36317-2J010
Cap-Adjust
9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
36317-2J010 |
— | ||
|
36402H
|
36402H
36317-2J010
Cap-Adjust
9810--01 ~ 9909--01; "2WD.QG15DE +QG13DE +SR16VE +QG18DD |
36317-2J010 |
— | ||
|
36451
|
36451
36530-4M400 Cable Assy-Brake, Rear Rh9810--01 ~ 9909--01; 2WD.QG15DE +QG13DE +QG18DD |
36530-4M400 |
US $52.99 |
||
|
36452
|
36452
36531-4M400 Cable Assy-Brake, Rear Lh9810--01 ~ 9909--01; 2WD.QG15DE +QG13DE +QG18DD |
36531-4M400 |
US $52.99 |
||
