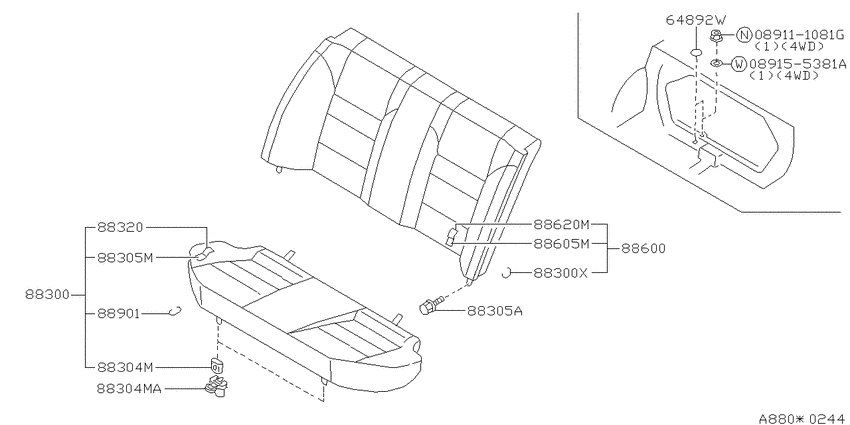

Rear seat (2002-05-01 ~ ; アームレスト 無し タイプ; S) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089155381A
|
089155381A
089155381A Washer-Plain |
089155381A |
US $1.90 |
||
|
64892W
|
64892W
64891W5000 Plug-Rubber9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
64891W5000 |
from US $0.80 |
||
|
88300
|
88300
88300-4M400 Cushion Assy-Rear Seat9810--01 ~ 9909--01; S.2WD.QG15DE.S/S +S.QG18DD; [D105] |
88300-4M400 |
US $1,057.75 |
||
|
88300
|
88300
88300-4M401 Cushion Assy-Rear Seat9810--01 ~ 9909--01; S.2WD.QG15DE.S/S +S.QG18DD; [D105] |
88300-4M401 |
US $1,057.75 |
||
|
88300
|
88300
88300-4M420 Cushion Assy-Rear Seat9912--01 ~ 0205--01; *S.2WD.QG15DE.S/S +*S.YD22DD.S/S; [D105] |
88300-4M420 |
US $1,057.75 |
||
|
88300
|
88300
88300-4M421 Cushion Assy-Rear Seat9912--01 ~ 0205--01; *S.2WD.QG15DE.S/S +*S.YD22DD.S/S; [D105] |
88300-4M421 |
US $1,057.75 |
||
|
88300
|
88300
88300-4M621 Cushion Assy-Rear Seat0009--01 ~ 0205--01; +*S.2WD.QG15DE.S/S +*S.QG18DD +*S.YD22DD.S/S; [D105] |
88300-4M621 |
US $1,057.75 |
||
|
88300
|
88300
88300-6M720 Cushion Assy-Rear Seat0205--01 ~ ; *S.2WD.S/S; [D105] |
88300-6M720 |
US $715.08 |
||
|
88300
|
88300
88300-8N420 Cushion Assy-Rear Seat0205--01 ~ ; S.2WD.S/S; [D105] |
88300-8N420 |
US $1,356.53 |
||
|
88300
|
88300
88300-8N421 Cushion Assy-Rear Seat0205--01 ~ ; S.2WD.S/S; [D105] |
88300-8N421 |
US $1,356.53 |
||
|
88300
|
88300
87615-55Y00 Bolt-Special9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
87615-55Y00 |
US $2.45 |
||
|
88300
|
88300
8690132200 Clip9810--01 ~ 9909--01; S |
8690132200 |
from US $0.22 |
||
|
88300X
|
88300X
8690132200 Clip9810--01 ~ 9909--01; S |
8690132200 |
from US $0.22 |
||
|
88304M
|
88304M
88304-0M001 Hook-Cushion, Rear Seat9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
88304-0M001 |
US $5.81 |
||
|
88304M
|
88304M
88304-0M000 Hook-Cushion, Rear Seat9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
88304-0M000 |
from US $5.81 |
||
|
88304MA
|
88304MA
88304-0M000 Hook-Cushion, Rear Seat9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
88304-0M000 |
from US $5.81 |
||
|
88305A
|
88305A
01466-00061 SCREW9810--01 ~ 9812--01; S |
01466-00061 |
US $1.73 |
||
|
88305A
|
88305A
01466-00101 SCREW9812--01 ~ 9909--01; S |
01466-00101 |
US $1.73 |
||
|
88305A
|
88305A
01466-00061 SCREW9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
01466-00061 |
US $1.73 |
||
|
88305M
|
88305M
88305-4M400 Pad & Frame Assy-Cushion, Rear Seat9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
88305-4M400 |
US $812.78 |
||
|
88320
|
88320
88320-4M400 Trim Assy-Rear Seat Cushion9810--01 ~ 9909--01; S.2WD.QG15DE.S/S +S.QG18DD; [D105] |
88320-4M400 |
US $423.38 |
||
|
88320
|
88320
88320-4M401 Trim Assy-Rear Seat Cushion9810--01 ~ 9909--01; S.2WD.QG15DE.S/S +S.QG18DD; [D105] |
88320-4M401 |
US $423.38 |
||
|
88320
|
88320
88320-4M420 Trim Assy-Rear Seat Cushion9912--01 ~ 0205--01; *S.2WD.QG15DE.S/S +*S.YD22DD.S/S; [D105] |
88320-4M420 |
US $423.38 |
||
|
88320
|
88320
88320-4M421 Trim Assy-Rear Seat Cushion9912--01 ~ 0205--01; *S.2WD.QG15DE.S/S +*S.YD22DD.S/S; [D105] |
88320-4M421 |
US $423.38 |
||
|
88320
|
88320
88320-4M621 Trim Assy-Rear Seat Cushion0009--01 ~ 0205--01; +*S.2WD.QG15DE.S/S +*S.QG18DD +*S.YD22DD.S/S; [D105] |
88320-4M621 |
US $423.38 |
||
|
88320
|
88320
88320-8N420 Trim Assy-Rear Seat Cushion0205--01 ~ ; S.2WD.S/S; [D105] |
88320-8N420 |
US $545.16 |
||
|
88320
|
88320
88320-8N421 Trim Assy-Rear Seat Cushion0205--01 ~ ; S.2WD.S/S; [D105] |
88320-8N421 |
US $545.16 |
||
|
88600
|
88600
88600-4M460 Back Assy-Rear Seat9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD; [D105] |
88600-4M460 |
US $1,304.14 |
||
|
88600
|
88600
88600-4M461 Back Assy-Rear Seat9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD; [D105] |
88600-4M461 |
US $1,304.14 |
||
|
88600
|
88600
88600-4M480 Back Assy-Rear Seat9912--01 ~ 0205--01; *S.(QG15DE+YD22DD).S/S; [D105] |
88600-4M480 |
US $1,304.14 |
||
|
88600
|
88600
88600-4M481 Back Assy-Rear Seat9912--01 ~ 0205--01; *S.(QG15DE+YD22DD).S/S; [D105] |
88600-4M481 |
US $1,304.14 |
||
|
88600
|
88600
88600-4M681 Back Assy-Rear Seat0009--01 ~ 0205--01; !*S.(QG15DE+YD22DD).S/S +*S.QG18DD; [D105] |
88600-4M681 |
US $1,304.14 |
||
|
88600
|
88600
88600-6M781 Back Assy-Rear Seat0205--01 ~ ; *S.2WD.S/S; [D105] |
88600-6M781 |
US $715.08 |
||
|
88600
|
88600
88600-8N410 Back Assy-Rear Seat0205--01 ~ ; *S.2WD.S/S; [D105] |
88600-8N410 |
US $715.08 |
||
|
88600
|
88600
88600-8N480 Back Assy-Rear Seat0205--01 ~ ; S.S/S; [D105] |
88600-8N480 |
US $1,582 |
||
|
88600
|
88600
88600-8N481 Back Assy-Rear Seat0205--01 ~ ; S.S/S; [D105] |
88600-8N481 |
US $1,582 |
||
|
88605M
|
88605M
88605-4M460 Pad & Frame Assy-Back, Rear Seat9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
88605-4M460 |
US $814.20 |
||
|
88620M
|
88620M
88620-4M460 Trim Assy-Rear Seat Back9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD; [D105] |
88620-4M460 |
US $423.38 |
||
|
88620M
|
88620M
88620-4M461 Trim Assy-Rear Seat Back9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD; [D105] |
88620-4M461 |
US $423.38 |
||
|
88620M
|
88620M
88620-4M480 Trim Assy-Rear Seat Back9912--01 ~ 0205--01; *S.(QG15DE+YD22DD).S/S; [D105] |
88620-4M480 |
US $423.38 |
||
|
88620M
|
88620M
88620-4M481 Trim Assy-Rear Seat Back9912--01 ~ 0205--01; *S.(QG15DE+YD22DD).S/S; [D105] |
88620-4M481 |
US $423.38 |
||
|
88620M
|
88620M
88620-4M681 Trim Assy-Rear Seat Back0009--01 ~ 0205--01; !*S.(QG15DE+YD22DD).S/S +*S.QG18DD; [D105] |
88620-4M681 |
US $423.38 |
||
|
88620M
|
88620M
88620-8N480 Trim Assy-Rear Seat Back0205--01 ~ ; S.S/S; [D105] |
88620-8N480 |
US $545.16 |
||
|
88620M
|
88620M
88620-8N481 Trim Assy-Rear Seat Back0205--01 ~ ; S.S/S; [D105] |
88620-8N481 |
US $545.16 |
||
|
88901
|
88901
8690132200 Clip9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
8690132200 |
from US $0.22 |
