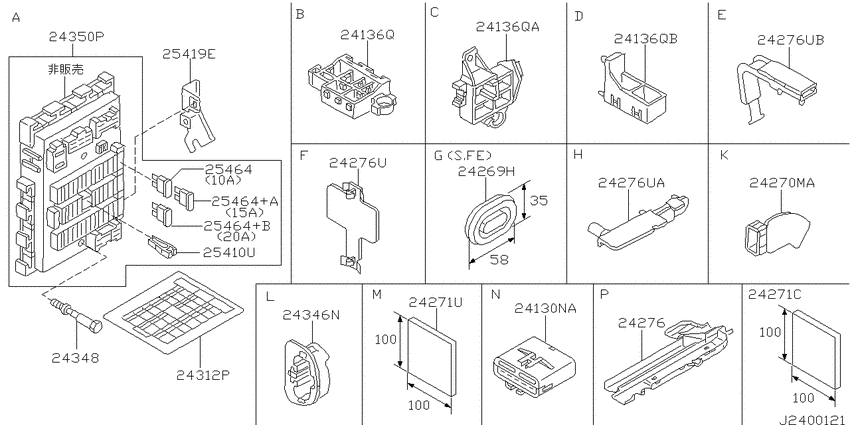

Wiring (1998-10-01 ~ 1999-09-01; ボディ フィッティング; S.(QG13DE+QG15DE)) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24130NA
|
24130NA
24335-79901 Diode9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24335-79901 |
US $17.71 |
||
|
24130NA
|
24130NA
24335-C9903 Diode0009--01 ~ 0205--01; *S.QG15DE.S/S |
24335-C9903 |
US $17.71 |
||
|
24136Q
|
24136Q
24346-4M401 Bracket Assy-Connector9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24346-4M401 |
US $42.77 |
||
|
24136Q
|
24136Q
243464M402 Bracket Assy-Connector9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
243464M402 |
US $25.20 |
||
|
24136Q
|
24136Q
24346-4M403 Bracket Assy-Connector9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24346-4M403 |
US $14.11 |
||
|
24136QA
|
24136QA
243464M402 Bracket Assy-Connector9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
243464M402 |
US $25.20 |
||
|
24136QB
|
24136QB
24346-4M403 Bracket Assy-Connector9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24346-4M403 |
US $14.11 |
||
|
24270MA
|
24270MA
24270-4M410 Guard-Harness9810--01 ~ 9909--01; S.QG15DE.S/S +S.EX/S; ﾐｷﾞｶﾞﾜ |
24270-4M410 |
US $18.43 |
||
|
24270MA
|
24270MA
24270-4M411 Guard-Harness9810--01 ~ 9909--01; S.QG15DE.S/S +S.EX/S; ﾋﾀﾞﾘ |
24270-4M411 |
US $18.43 |
||
|
24271C
|
24271C
24271-N7100
Protector-Flat Wire
9909--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24271-N7100 |
— | ||
| replacement | |||||
|
24271C
|
24271C
B4271U0100 Spacer9909--01 ~ 0205--01; S.(QG13DE+QG15DE) |
B4271U0100 |
from US $3.68 |
||
|
24276
|
24276
24270-4M404 Protector-Harness9902--01 ~ 9909--01; *S.2WD.S/S.AT.F4 |
24270-4M404 |
US $9.50 |
||
|
24276
|
24276
242704M400 Protector-Harness0310--01 ~ ; S |
242704M400 |
US $7.20 |
||
|
24276
|
24276
24270-4M401 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M401 |
US $12.96 |
||
|
24276
|
24276
242704M400 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
242704M400 |
US $7.20 |
||
|
24276
|
24276
24270-4M413 Protector-Harness9909--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M413 |
US $6.91 |
||
|
24276
|
24276
24270-4M412 Protector-Harness9909--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M412 |
US $5.47 |
||
|
24276
|
24276
24275-0E000 PROTECTOR-HARNESS9810--01 ~ 9909--01; S.QG15DE.S/S +S.EX/S |
24275-0E000 |
US $5.18 |
||
|
24276
|
24276
24270-4M405 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M405 |
US $13.68 |
||
|
24276
|
24276
24270-4M406 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M406 |
US $12.53 |
||
|
24276U
|
24276U
24275-0E000 PROTECTOR-HARNESS9810--01 ~ 9909--01; S.QG15DE.S/S +S.EX/S |
24275-0E000 |
US $5.18 |
||
|
24276U
|
24276U
24270-4M405 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M405 |
US $13.68 |
||
|
24276U
|
24276U
24270-4M406 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M406 |
US $12.53 |
||
|
24276UA
|
24276UA
24270-4M405 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M405 |
US $13.68 |
||
|
24276UB
|
24276UB
24270-4M406 Protector-Harness9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24270-4M406 |
US $12.53 |
||
|
24312P
|
24312P
24313-4M400 Label-Fuse Block9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24313-4M400 |
US $5.47 |
||
|
24312P
|
24312P
243138N000 Label-Fuse Block0205--01 ~ ; S |
243138N000 |
US $5.47 |
||
|
24346N
|
24346N
24346-4M404 Bracket-Connector9810--01 ~ 9909--01; S.QG15DE.S/S +S.EX/S |
24346-4M404 |
US $9.43 |
||
|
24348
|
24348
24348-0N060 Washer-Junction9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24348-0N060 |
US $3.46 |
||
|
24350P
|
24350P
24350-79910 Block-Junction9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24350-79910 |
US $141.55 |
||
|
24350P
|
24350P
24350-8N000 Block-Junction0205--01 ~ ; *S.2WD.S/S |
24350-8N000 |
US $141.55 |
||
|
25410U
|
25410U
24321-79910 Puller-Fuse9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24321-79910 |
US $3.75 |
||
|
25419E
|
25419E
24317-4M400 Bracket-Fuse Block9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24317-4M400 |
US $5.04 |
||
|
25464
|
25464
24319C9910 Fuse9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0205--01 ~ ; *S.2WD.S/S.AT.F4; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse0205--01 ~ ; *S.2WD.S/S.AT.F4; 20A |
24319C9920 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24319C9920 |
from US $0.86 |
||
|
25464+A
|
25464+A
24319C9915 Fuse9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24319C9915 |
from US $0.86 |
||
|
25464+B
|
25464+B
24319C9920 Fuse9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24319C9920 |
from US $0.86 |
||
