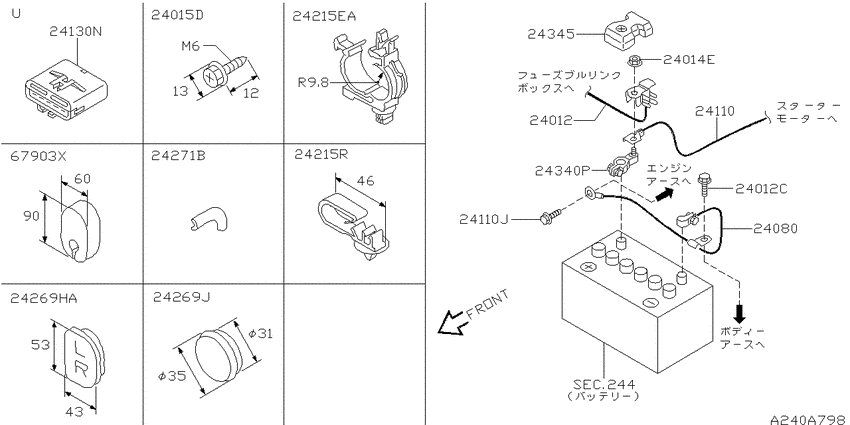

Wiring (1998-10-01 ~ 1999-09-01; 'ボディ フィッティング & バッテリー周り; S.(QG13DE+QG15DE)) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-4M400 Harness Assy-Engine Room9810--01 ~ 9912--01; S.2WD.QG15DE.AT.F4 |
24012-4M400 |
US $1,373.52 |
||
|
24012
|
24012
24012-4M401 Harness Assy-Engine Room9810--01 ~ 9909--01; *S.2WD.S/S.AT.F4 |
24012-4M401 |
US $1,373.52 |
||
|
24012
|
24012
24012-6M000 Harness Assy-Engine Room9912--01 ~ 0205--01; S.2WD.QG15DE.AT.F4 |
24012-6M000 |
US $1,373.52 |
||
|
24012
|
24012
24012-6M001 Harness Assy-Engine Room9909--01 ~ 0001--01; *S.2WD.QG15DE.(EX/S+S/S).AT.F4 |
24012-6M001 |
US $1,304.14 |
||
|
24012
|
24012
24012-6M065 Harness Assy-Engine Room9912--01 ~ 0205--01; *S.2WD.QG15DE.S/S.AT.F4 |
24012-6M065 |
US $1,304.14 |
||
|
24012
|
24012
24012-8N005 Harness Assy-Engine Room0205--01 ~ 0302--01; S.2WD.QG15DE.AT.F4 |
24012-8N005 |
US $1,373.52 |
||
|
24012
|
24012
24012-8N006 Harness Assy-Engine Room0205--01 ~ 0304--01; *S.2WD.QG15DE.AT.F4 |
24012-8N006 |
US $1,373.52 |
||
|
24012
|
24012
24012-8N015 Harness Assy-Engine Room0302--01 ~ 0310--01; S.2WD.QG15DE.AT.F4 |
24012-8N015 |
US $1,373.52 |
||
|
24012
|
24012
24012-8N016 Harness Assy-Engine Room0304--01 ~ 0310--01; *S.2WD.QG15DE.AT.F4 |
24012-8N016 |
US $1,373.52 |
||
|
24012
|
24012
240128N065 Harness Assy-Engine Room0310--01 ~ ; S.2WD.QG15DE.AT.F4 |
240128N065 |
US $1,373.52 |
||
|
24012
|
24012
24012-8N066 Harness Assy-Engine Room0310--01 ~ ; *S.2WD.QG15DE.AT.F4 |
24012-8N066 |
US $1,373.52 |
||
|
24012
|
24012
24012-9M500 Harness Assy-Engine Room0009--01 ~ 0205--01; *S.2WD.QG15DE.AT.F4 |
24012-9M500 |
US $1,373.52 |
||
|
24012
|
24012
24012-9M501 Harness Assy-Engine Room0009--01 ~ 0205--01; *S.2WD.QG15DE.(EX/S+S/S).AT.F4 |
24012-9M501 |
US $1,373.52 |
||
|
24012
|
24012
0145600031 SCREW0310--01 ~ ; *S.(EX/S+S/S) |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
01466-00371 SCREW9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
01466-00371 |
US $1.73 |
||
|
24012
|
24012
0145600411 SCREW9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
0145600411 |
US $1.67 |
||
|
24014E
|
24014E
0122100381 NUT9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
0122100381 |
from US $5.37 |
||
|
24015D
|
24015D
01456-00641 SCREW9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
01456-00641 |
US $0.86 |
||
|
24080
|
24080
24080-4M400 Cable Assy-Battery Earth9810--01 ~ 0205--01; S.2WD.QG15DE +S.QG13DE |
24080-4M400 |
US $52.13 |
||
|
24080
|
24080
24080-4M401 Cable Assy-Battery Earth9810--01 ~ 0205--01; *S.2WD.QG15DE +*S.QG13DE |
24080-4M401 |
US $62.50 |
||
|
24110
|
24110
24110-4M400 Cable Assy-Battery To Starter Motor9810--01 ~ 0205--01; "S.2WD.QG15DE.AT.F4 +S.QG13DE.AT.F4 |
24110-4M400 |
US $80.93 |
||
|
24110
|
24110
24110-4M401 Cable Assy-Battery To Starter Motor9810--01 ~ 0205--01; $*S.2WD.QG15DE.AT.F4 +*S.QG13DE.AT.F4 |
24110-4M401 |
US $97.06 |
||
|
24110
|
24110
01121-03151 BOLT9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
01121-03151 |
US $2.74 |
||
|
24110J
|
24110J
01121-03151 BOLT9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
01121-03151 |
US $2.74 |
||
|
24130N
|
24130N
24335C9900 Diode9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24335C9900 |
US $17.60 |
||
|
24130N
|
24130N
24335-C9902 Diode0009--01 ~ 0205--01; $*S.QG13DE.EX/S +*S.QG15DE.(EX/S+S/S) |
24335-C9902 |
US $17.71 |
||
|
24130N
|
24130N
24335-79901 Diode9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24335-79901 |
US $17.71 |
||
|
24130N
|
24130N
24335-C9903 Diode0009--01 ~ 0205--01; *S.QG15DE.S/S |
24335-C9903 |
US $17.71 |
||
|
24215EA
|
24215EA
24210-4M400 Clip-Wiring Harness9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24210-4M400 |
US $3.88 |
||
|
24215R
|
24215R
24225-3J101 Clip-Wiring Harness9810--01 ~ 9909--01; S.2WD.QG15DE +S.QG13DE |
24225-3J101 |
US $4.99 |
||
|
24271B
|
24271B
24299-45V00 Protector-Harness9810--01 ~ 9909--01; S.(QG13DE+QG15DE) |
24299-45V00 |
US $7.92 |
||
|
24340P
|
24340P
243407F003 Terminal Assy-Battery9810--01 ~ 0205--01; *S.(QG13DE+QG15DE) |
243407F003 |
from US $8.78 |
||
|
24340P
|
24340P
243407F004 Terminal Assy-Battery9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
243407F004 |
US $8.78 |
||
|
24345
|
24345
24345-AD003 Cover-Connector9810--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24345-AD003 |
US $18.02 |
||
|
24345
|
24345
24345-58S60 Cover-Connector9909--01 ~ 0205--01; S.(QG13DE+QG15DE) |
24345-58S60 |
US $17.86 |
||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
67903X
|
67903X
67903-4M401 Insulator9810--01 ~ 9907--01; S.(QG13DE+QG15DE) |
67903-4M401 |
US $37.30 |
||
|
67903X
|
67903X
67903-4M402 Insulator9907--01 ~ 9909--01; S.(QG13DE+QG15DE) |
67903-4M402 |
US $37.30 |
||
