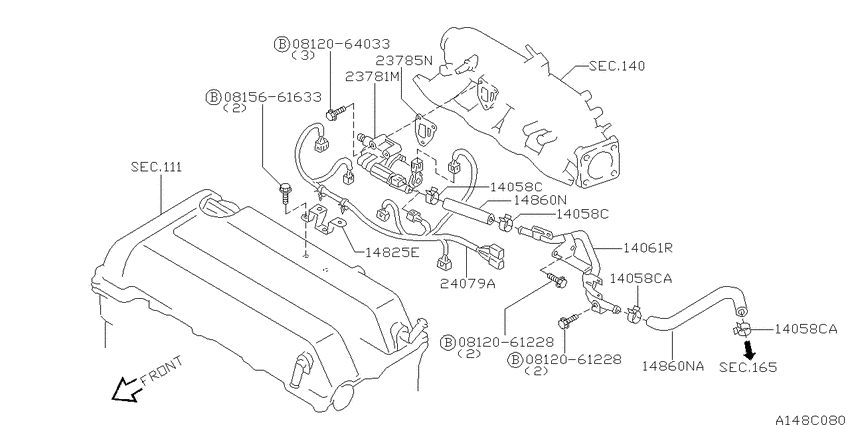

Secondary air system (1998-10-01 ~ 2002-05-01; SR16VE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2002
- Sales region
- Japan
- Engine
- SR16VE
- drive
- 2WD
- transmission
- MT
- grade
- VZR
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812064033
|
0812064033
08120-64033
Bolt-hexagon
|
08120-64033 |
— | ||
|
0815661633
|
0815661633
0815661633 Bolt-hexagon |
0815661633 |
US $0.74 |
||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
9810--01 ~ 0205--01; SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A9810--01 ~ 0205--01; SR16VE |
16439V500B |
from US $2.50 |
||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
9810--01 ~ 0205--01; SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A9810--01 ~ 0205--01; SR16VE |
16439V500B |
from US $2.50 |
||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
9810--01 ~ 0205--01; SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A9810--01 ~ 0205--01; SR16VE |
16439V500B |
from US $2.50 |
||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
9810--01 ~ 0205--01; SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A9810--01 ~ 0205--01; SR16VE |
16439V500B |
from US $2.50 |
||
|
14058CA
|
14058CA
16439-V5000
Clamp-Hose A
9810--01 ~ 0205--01; SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
14058CA
|
14058CA
16439V500B Clamp-Hose A9810--01 ~ 0205--01; SR16VE |
16439V500B |
from US $2.50 |
||
|
14058CA
|
14058CA
16439-V5000
Clamp-Hose A
9810--01 ~ 0205--01; SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
14058CA
|
14058CA
16439V500B Clamp-Hose A9810--01 ~ 0205--01; SR16VE |
16439V500B |
from US $2.50 |
||
|
14061R
|
14061R
14061-6M000 Pipe-Air9810--01 ~ 0205--01; SR16VE |
14061-6M000 |
US $63.65 |
||
|
14825E
|
14825E
24239-1N510 Clip-Harness9810--01 ~ 0205--01; SR16VE |
24239-1N510 |
US $9.50 |
||
|
14860N
|
14860N
14099-78J05 Hose-Air9810--01 ~ 0205--01; SR16VE |
14099-78J05 |
US $41.62 |
||
| replacement | |||||
|
14860N
|
14860N
1409954C03 Hose-Air9810--01 ~ 0205--01; SR16VE |
1409954C03 |
US $18.43 |
||
|
14860N
|
14860N
14099-6M000 Hose-Air9810--01 ~ 0205--01; SR16VE |
14099-6M000 |
US $41.62 |
||
|
14860NA
|
14860NA
14099-6M000 Hose-Air9810--01 ~ 0205--01; SR16VE |
14099-6M000 |
US $41.62 |
||
|
165
|
Air cleaner
165
|
||||
|
165
|
Air cleaner
165
|
||||
|
23781M
|
23781M
23781-2J220 Iacv-Aac Valve9810--01 ~ 0205--01; SR16VE |
23781-2J220 |
US $267.84 |
||
|
23785N
|
23785N
237852J200 Iacv-Aac Valve Gasket9810--01 ~ 0205--01; SR16VE |
237852J200 |
from US $4.18 |
||
|
24079A
|
24079A
24079-6M000 Harness-Engine Sub9810--01 ~ 0205--01; SR16VE |
24079-6M000 |
US $352.58 |
||
