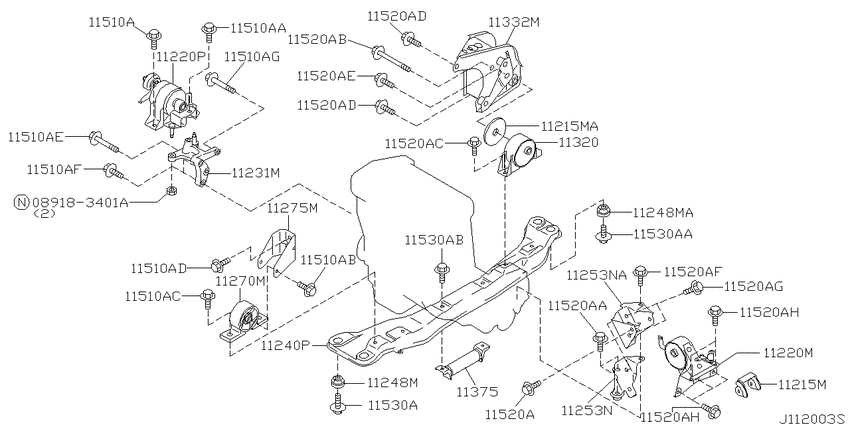

Engine & transmission mounting (1999-09-01 ~ 2002-05-01; QG18DD) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2002
- Sales region
- Japan
- Engine
- QG18DD
- drive
- 2WD
- transmission
- AT.CVT
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.74 |
||
|
11215M
|
11215M
11215-5U005 Stopper-Engine Mounting9810--01 ~ 9906--01; QG18DD |
11215-5U005 |
US $11.66 |
||
|
11215M
|
11215M
11215-5U006 Stopper-Engine Mounting9906--01 ~ 0205--01; QG18DD |
11215-5U006 |
US $10.51 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9810--01 ~ 0205--01; QG18DD |
1121550A00 |
US $11.38 |
||
|
11215MA
|
11215MA
1121550A00 Stopper-Engine Mounting9810--01 ~ 0205--01; QG18DD |
1121550A00 |
US $11.38 |
||
|
11220M
|
11220M
11220-4U700 Insulator Assy-Engine Mounting, Front Lh9810--01 ~ 0205--01; QG18DD |
11220-4U700 |
US $79.20 |
||
|
11220P
|
11220P
11210-4M700 Insulator-Engine Mounting, Rh9810--01 ~ 0006--01; QG18DD |
11210-4M700 |
US $184.32 |
||
|
11220P
|
11220P
11210-6N000
Insulator-Engine Mounting, Rh
0006--01 ~ 0205--01; QG18DD |
11210-6N000 |
— | ||
| replacement | |||||
|
11220P
|
11220P
112106N00A Insulator-Engine Mounting, Front0006--01 ~ 0205--01; QG18DD |
112106N00A |
US $75.68 |
||
|
11231M
|
11231M
11231-4M400 Bracket-Engine Mounting9810--01 ~ 0205--01; QG18DD |
11231-4M400 |
US $62.93 |
||
|
11240P
|
11240P
112404M400 Member Assy-Engine Mounting9810--01 ~ 0205--01; QG18DD |
112404M400 |
US $128.30 |
||
|
11248M
|
11248M
112484M400 Pad-Engine Mounting Member9810--01 ~ 0205--01; QG18DD |
112484M400 |
from US $7.31 |
||
|
11248M
|
11248M
112484M410 Pad-Engine Mounting Member9810--01 ~ 0205--01; QG18DD |
112484M410 |
from US $7.31 |
||
|
11248MA
|
11248MA
112484M410 Pad-Engine Mounting Member9810--01 ~ 0205--01; QG18DD |
112484M410 |
from US $7.31 |
||
|
11253N
|
11253N
112535U001 Bracket-Engine Mounting, Lh9810--01 ~ 0205--01; QG18DD |
112535U001 |
US $102.24 |
||
|
11253N
|
11253N
11253-4M705 Bracket-Engine Mounting, Lh9810--01 ~ 0205--01; QG18DD |
11253-4M705 |
US $123.55 |
||
|
11253NA
|
11253NA
11253-4M705 Bracket-Engine Mounting, Lh9810--01 ~ 0205--01; QG18DD |
11253-4M705 |
US $123.55 |
||
|
11270M
|
11270M
112704M400
Insulator Assy-Engine Mounting, Front
9810--01 ~ 0205--01; QG18DD |
112704M400 |
— | ||
| replacement | |||||
|
11270M
|
11270M
11270-95F0A Insulator Assy-Engine Mounting, Front9810--01 ~ 0205--01; QG18DD |
11270-95F0A |
US $68.75 |
||
|
11275M
|
11275M
112744M400 Bracket-Engine Mounting Block, Front9810--01 ~ 0205--01; QG18DD |
112744M400 |
US $28.22 |
||
|
11320
|
11320
113204M400 Insulator-Engine Mounting, Rear9810--01 ~ 0205--01; QG18DD |
113204M400 |
US $69.31 |
||
|
11332M
|
11332M
113324M700 Bracket-Engine Mounting, Rear0012--01 ~ 0205--01; QG18DD |
113324M700 |
US $80.64 |
||
|
11332M
|
11332M
11332-4M701 Bracket-Engine Mounting, Rear9810--01 ~ 0012--01; QG18DD |
11332-4M701 |
US $106.85 |
||
|
11375
|
11375
11375-4M410 Damper Assy-Dynamic9810--01 ~ 9911--01; QG18DD |
11375-4M410 |
US $37.15 |
||
|
11375
|
11375
11375-4M411 Damper Assy-Dynamic9911--01 ~ 0205--01; QG18DD |
11375-4M411 |
US $33.70 |
||
|
11510A
|
11510A
11298-4M417 Bolt9810--01 ~ 0008--01; QG18DD |
11298-4M417 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M419 Bolt0008--01 ~ 0205--01; QG18DD |
11298-4M419 |
from US $1.98 |
||
|
11510A
|
11510A
01125-03311 BOLT9810--01 ~ 0205--01; QG18DD |
01125-03311 |
US $3.46 |
||
|
11510A
|
11510A
112984M420 Bolt9810--01 ~ 0205--01; QG18DD |
112984M420 |
US $3.46 |
||
|
11510A
|
11510A
112984M418 Bolt9810--01 ~ 0205--01; QG18DD |
112984M418 |
US $3.46 |
||
|
11510A
|
11510A
112984M407 Bolt9810--01 ~ 0205--01; QG18DD |
112984M407 |
from US $2.02 |
||
|
11510A
|
11510A
11298-4M405 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M405 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M406 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M406 |
US $4.03 |
||
|
11510A
|
11510A
01125-03211 BOLT9810--01 ~ 0205--01; QG18DD |
01125-03211 |
US $3.31 |
||
|
11510AA
|
11510AA
01125-03311 BOLT9810--01 ~ 0205--01; QG18DD |
01125-03311 |
US $3.46 |
||
|
11510AB
|
11510AB
112984M420 Bolt9810--01 ~ 0205--01; QG18DD |
112984M420 |
US $3.46 |
||
|
11510AC
|
11510AC
112984M418 Bolt9810--01 ~ 0205--01; QG18DD |
112984M418 |
US $3.46 |
||
|
11510AD
|
11510AD
112984M407 Bolt9810--01 ~ 0205--01; QG18DD |
112984M407 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-4M405 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M405 |
US $3.46 |
||
|
11510AF
|
11510AF
11298-4M406 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M406 |
US $4.03 |
||
|
11510AG
|
11510AG
01125-03211 BOLT9810--01 ~ 0205--01; QG18DD |
01125-03211 |
US $3.31 |
||
|
11520A
|
11520A
11298-4U700 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4U700 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M406 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M406 |
US $4.03 |
||
|
11520A
|
11520A
112984M420 Bolt9810--01 ~ 0205--01; QG18DD |
112984M420 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M419 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M419 |
from US $1.98 |
||
|
11520A
|
11520A
11298-4M410 Bolt9810--01 ~ 0001--01; QG18DD |
11298-4M410 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M421 Bolt0001--01 ~ 0205--01; QG18DD |
11298-4M421 |
US $3.46 |
||
|
11520A
|
11520A
112982J209 Bolt9810--01 ~ 0205--01; QG18DD |
112982J209 |
US $3.26 |
||
|
11520A
|
11520A
11298-4M411 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M411 |
from US $1.92 |
||
|
11520A
|
11520A
11298-4M411 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M411 |
from US $1.92 |
||
|
11520A
|
11520A
11298-5U000 Bolt9810--01 ~ 0102--01; QG18DD |
11298-5U000 |
US $3.46 |
||
|
11520A
|
11520A
112985V500 Bolt0102--01 ~ 0205--01; QG18DD |
112985V500 |
US $3.46 |
||
|
11520AA
|
11520AA
11298-4M406 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M406 |
US $4.03 |
||
|
11520AB
|
11520AB
112984M420 Bolt9810--01 ~ 0205--01; QG18DD |
112984M420 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-4M419 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M419 |
from US $1.98 |
||
|
11520AD
|
11520AD
11298-4M410 Bolt9810--01 ~ 0001--01; QG18DD |
11298-4M410 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-4M421 Bolt0001--01 ~ 0205--01; QG18DD |
11298-4M421 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-4M410 Bolt9810--01 ~ 0001--01; QG18DD |
11298-4M410 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-4M421 Bolt0001--01 ~ 0205--01; QG18DD |
11298-4M421 |
US $3.46 |
||
|
11520AE
|
11520AE
112982J209 Bolt9810--01 ~ 0205--01; QG18DD |
112982J209 |
US $3.26 |
||
|
11520AF
|
11520AF
11298-4M411 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M411 |
from US $1.92 |
||
|
11520AG
|
11520AG
11298-4M411 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M411 |
from US $1.92 |
||
|
11520AH
|
11520AH
11298-5U000 Bolt9810--01 ~ 0102--01; QG18DD |
11298-5U000 |
US $3.46 |
||
|
11520AH
|
11520AH
112985V500 Bolt0102--01 ~ 0205--01; QG18DD |
112985V500 |
US $3.46 |
||
|
11520AH
|
11520AH
11298-5U000 Bolt9810--01 ~ 0102--01; QG18DD |
11298-5U000 |
US $3.46 |
||
|
11520AH
|
11520AH
112985V500 Bolt0102--01 ~ 0205--01; QG18DD |
112985V500 |
US $3.46 |
||
|
11530A
|
11530A
112984M413 Bolt9810--01 ~ 0205--01; QG18DD |
112984M413 |
US $4.03 |
||
|
11530A
|
11530A
112982J221 Bolt9810--01 ~ 0205--01; QG18DD |
112982J221 |
from US $1.67 |
||
|
11530A
|
11530A
11298-4M419 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M419 |
from US $1.98 |
||
|
11530AA
|
11530AA
112982J221 Bolt9810--01 ~ 0205--01; QG18DD |
112982J221 |
from US $1.67 |
||
|
11530AB
|
11530AB
11298-4M419 Bolt9810--01 ~ 0205--01; QG18DD |
11298-4M419 |
from US $1.98 |
||
