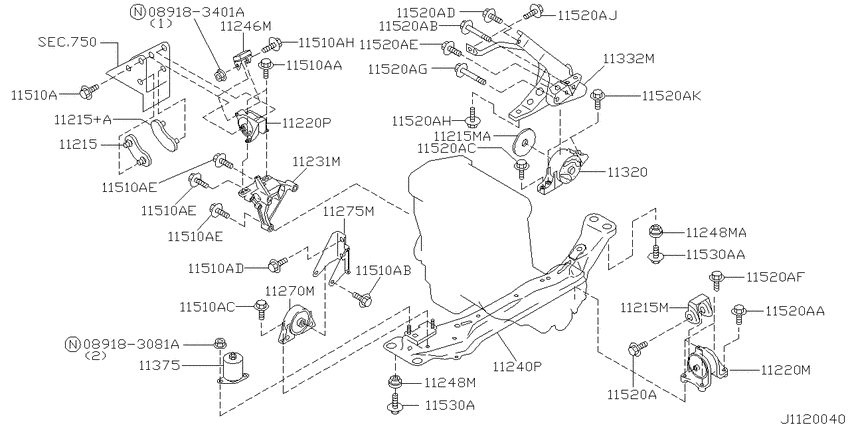

Engine & transmission mounting (1999-09-01 ~ 2002-05-01; YD22DD.MT) Diagram Nissan SUNNY/LUCHINO
- Year
- 1999 - 2002
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 2WD
- transmission
- MT
- grade
- FE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.74 |
||
|
11215
|
11215
11215-5V000 Stopper-Engine Mounting9909--01 ~ 0102--01; YD22DD.MT |
11215-5V000 |
US $11.23 |
||
|
11215
|
11215
11215-WD000 Stopper-Engine Mounting0102--01 ~ 0205--01; YD22DD.MT |
11215-WD000 |
US $13.54 |
||
|
11215
|
11215
11215WD010 Stopper-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
11215WD010 |
US $12.53 |
||
|
11215
|
11215
112150L700 Stopper-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
112150L700 |
US $8.64 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
1121550A00 |
US $11.38 |
||
|
11215+A
|
11215+A
11215WD010 Stopper-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
11215WD010 |
US $12.53 |
||
|
11215M
|
11215M
112150L700 Stopper-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
112150L700 |
US $8.64 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
1121550A00 |
US $11.38 |
||
|
11215MA
|
11215MA
1121550A00 Stopper-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
1121550A00 |
US $11.38 |
||
|
11220M
|
11220M
11220-5M305 Insulator Assy-Engine Mounting, Front Lh0102--01 ~ 0110--01; YD22DD.MT |
11220-5M305 |
from US $142.89 |
||
|
11220M
|
11220M
11220-5M306 Insulator Assy-Engine Mounting, Front Lh0110--01 ~ 0205--01; YD22DD.MT |
11220-5M306 |
US $240.48 |
||
|
11220M
|
11220M
11220-WD000 Insulator Assy-Engine Mounting, Front Lh9909--01 ~ 0102--01; YD22DD.MT |
11220-WD000 |
US $184.32 |
||
|
11220P
|
11220P
11210-5M305 Insulator-Engine Mounting, Rh9909--01 ~ 0205--01; YD22DD.MT |
11210-5M305 |
US $240.48 |
||
|
11231M
|
11231M
11231-4N100 Bracket-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
11231-4N100 |
US $99.65 |
||
|
11240P
|
11240P
11240-5M305 Member Assy-Engine Mounting9909--01 ~ 0205--01; YD22DD.MT |
11240-5M305 |
US $184.32 |
||
|
11246M
|
11246M
11246-AD200 Damper Assy-Mass9909--01 ~ 0205--01; YD22DD.MT |
11246-AD200 |
US $34.13 |
||
|
11248M
|
11248M
112485M300 Pad-Engine Mounting Member9909--01 ~ 0205--01; YD22DD.MT |
112485M300 |
US $7.91 |
||
|
11248M
|
11248M
112484M410 Pad-Engine Mounting Member9909--01 ~ 0205--01; YD22DD.MT |
112484M410 |
from US $7.31 |
||
|
11248MA
|
11248MA
112484M410 Pad-Engine Mounting Member9909--01 ~ 0205--01; YD22DD.MT |
112484M410 |
from US $7.31 |
||
|
11270M
|
11270M
112702J210 Insulator Assy-Engine Mounting, Front9909--01 ~ 0110--01; YD22DD.MT |
112702J210 |
US $103.25 |
||
|
11270M
|
11270M
112705U010 Insulator Assy-Engine Mounting, Front0110--01 ~ 0205--01; YD22DD.MT |
112705U010 |
US $85.39 |
||
|
11275M
|
11275M
11274-5M300 Bracket-Engine Mounting Block, Front9909--01 ~ 0205--01; YD22DD.MT |
11274-5M300 |
US $34.13 |
||
|
11320
|
11320
11320-5M300 Insulator-Engine Mounting, Rear9909--01 ~ 0205--01; YD22DD.MT |
11320-5M300 |
US $79.20 |
||
|
11332M
|
11332M
11332-5M300 Bracket-Engine Mounting, Rear9909--01 ~ 0205--01; YD22DD.MT |
11332-5M300 |
US $162.72 |
||
|
11375
|
11375
11375-5M300 Damper Assy-Dynamic9909--01 ~ 0205--01; YD22DD.MT |
11375-5M300 |
US $48.67 |
||
|
11510A
|
11510A
11298-2J200 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-2J200 |
US $3.46 |
||
|
11510A
|
11510A
112982J202 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J202 |
US $3.46 |
||
|
11510A
|
11510A
112984M420 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112984M420 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J207 Bolt9909--01 ~ 0110--01; YD22DD.MT |
11298-2J207 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M419 Bolt0110--01 ~ 0205--01; YD22DD.MT |
11298-4M419 |
from US $1.98 |
||
|
11510A
|
11510A
112982J206 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J206 |
from US $1.92 |
||
|
11510A
|
11510A
11298-AD200 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11510A
|
11510A
11298-5V103 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-5V103 |
US $3.46 |
||
|
11510AA
|
11510AA
112982J202 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J202 |
US $3.46 |
||
|
11510AB
|
11510AB
112984M420 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112984M420 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-2J207 Bolt9909--01 ~ 0110--01; YD22DD.MT |
11298-2J207 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-4M419 Bolt0110--01 ~ 0205--01; YD22DD.MT |
11298-4M419 |
from US $1.98 |
||
|
11510AD
|
11510AD
112982J206 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J206 |
from US $1.92 |
||
|
11510AE
|
11510AE
11298-AD200 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-AD200 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-AD200 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11510AH
|
11510AH
11298-5V103 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-5V103 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M500 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-4M500 |
US $8.06 |
||
|
11520A
|
11520A
11298-4M411 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-4M411 |
from US $1.92 |
||
|
11520A
|
11520A
112984M420 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112984M420 |
US $3.46 |
||
|
11520A
|
11520A
11298-6M001 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-6M001 |
US $3.46 |
||
|
11520A
|
11520A
11298-5M311 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-5M311 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M410 Bolt9909--01 ~ 0001--01; YD22DD.MT |
11298-4M410 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M421 Bolt0001--01 ~ 0205--01; YD22DD.MT |
11298-4M421 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M412 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-4M412 |
US $3.46 |
||
|
11520A
|
11520A
112985M310 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112985M310 |
US $3.46 |
||
|
11520A
|
11520A
112982J202 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J202 |
US $3.46 |
||
|
11520A
|
11520A
112984M407 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112984M407 |
from US $2.02 |
||
|
11520A
|
11520A
11298-6M002 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-6M002 |
US $3.46 |
||
|
11520AA
|
11520AA
11298-4M411 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-4M411 |
from US $1.92 |
||
|
11520AB
|
11520AB
112984M420 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112984M420 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-6M001 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-6M001 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-5M311 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-5M311 |
US $3.46 |
||
|
11520AE
|
11520AE
11298-4M410 Bolt9909--01 ~ 0001--01; YD22DD.MT |
11298-4M410 |
US $3.46 |
||
|
11520AE
|
11520AE
11298-4M421 Bolt0001--01 ~ 0205--01; YD22DD.MT |
11298-4M421 |
US $3.46 |
||
|
11520AF
|
11520AF
11298-4M412 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-4M412 |
US $3.46 |
||
|
11520AG
|
11520AG
112985M310 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112985M310 |
US $3.46 |
||
|
11520AH
|
11520AH
112982J202 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J202 |
US $3.46 |
||
|
11520AJ
|
11520AJ
112984M407 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112984M407 |
from US $2.02 |
||
|
11520AK
|
11520AK
11298-6M002 Bolt9909--01 ~ 0205--01; YD22DD.MT |
11298-6M002 |
US $3.46 |
||
|
11530A
|
11530A
112984M413 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112984M413 |
US $4.03 |
||
|
11530A
|
11530A
112982J221 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J221 |
from US $1.67 |
||
|
11530AA
|
11530AA
112982J221 Bolt9909--01 ~ 0205--01; YD22DD.MT |
112982J221 |
from US $1.67 |
