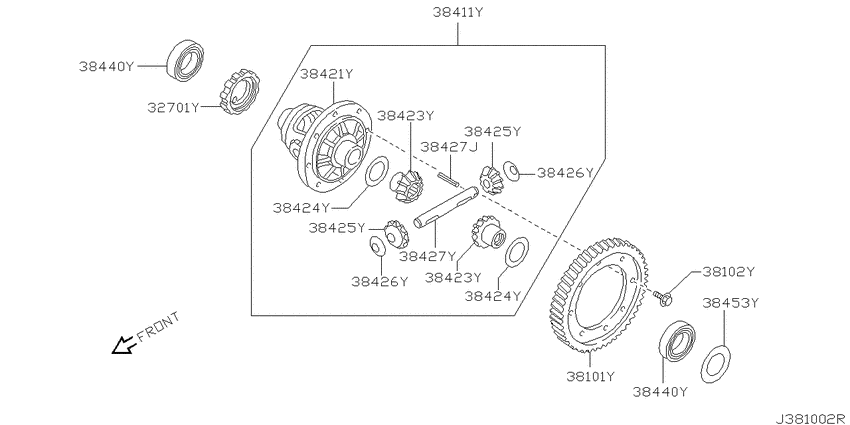

Front final drive (1999-09-01 ~ 2002-05-01; YD22DD.MT) Diagram Nissan SUNNY/LUCHINO
- Year
- 1999 - 2002
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 2WD
- transmission
- MT
- grade
- FE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-03E01 GEAR-DRIVE,SPEEDOMETER9909--01 ~ 0205--01; YD22DD.MT |
32701-03E01 |
US $22.46 |
||
|
38101Y
|
38101Y
38101-0E907 Gear-Final Drive9909--01 ~ 0205--01; YD22DD.MT |
38101-0E907 |
US $184.32 |
||
|
38102Y
|
38102Y
38102N3100 Bolt-Drive Gear9909--01 ~ 0205--01; YD22DD.MT |
38102N3100 |
US $4.16 |
||
|
38411Y
|
38411Y
38411-16E02 CASE COMPL-DIFFERENTIAL9909--01 ~ 0205--01; YD22DD.MT |
38411-16E02 |
US $1,224.84 |
||
|
38421Y
|
38421Y
38421-16E01 CASE-DIFFERENTIAL9909--01 ~ 0205--01; YD22DD.MT |
38421-16E01 |
US $587.64 |
||
|
38423Y
|
38423Y
38423-03E01 GEAR-SIDE9909--01 ~ 0205--01; YD22DD.MT |
38423-03E01 |
US $158.40 |
||
|
38423Y
|
38423Y
38423-03E01 GEAR-SIDE9909--01 ~ 0205--01; YD22DD.MT |
38423-03E01 |
US $158.40 |
||
|
38424Y
|
38424Y
38424-E3020 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3020 |
from US $3.03 |
||
|
38424Y
|
38424Y
38424-E3021 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3021 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3022 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3022 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3023 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3023 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3020 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3020 |
from US $3.03 |
||
|
38424Y
|
38424Y
38424-E3021 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3021 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3022 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3022 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3023 Washer-Thrust, Side Gear9909--01 ~ 0205--01; YD22DD.MT; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-E3023 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-03E01 PINION-MATE9909--01 ~ 0205--01; YD22DD.MT |
38425-03E01 |
US $42.48 |
||
|
38425Y
|
38425Y
38425-03E01 PINION-MATE9909--01 ~ 0205--01; YD22DD.MT |
38425-03E01 |
US $42.48 |
||
|
38426Y
|
38426Y
38426-03E01 WASHER-THRUST,PINION MATE9909--01 ~ 0205--01; YD22DD.MT |
38426-03E01 |
US $2.45 |
||
|
38426Y
|
38426Y
38426-03E01 WASHER-THRUST,PINION MATE9909--01 ~ 0205--01; YD22DD.MT |
38426-03E01 |
US $2.45 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9909--01 ~ 0205--01; YD22DD.MT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-16E02 SHAFT-PINION MATE9909--01 ~ 0205--01; YD22DD.MT |
38427-16E02 |
US $76.46 |
||
|
38440Y
|
38440Y
38440-0E900 Bearing-Differential Side9909--01 ~ 0205--01; YD22DD.MT |
38440-0E900 |
US $55.58 |
||
|
38440Y
|
38440Y
38440-0E900 Bearing-Differential Side9909--01 ~ 0205--01; YD22DD.MT |
38440-0E900 |
US $55.58 |
||
|
38453Y
|
38453Y
38453-96E00 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.40,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E00 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E01 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.44,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E01 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E02 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.48,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E02 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E03 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.52 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E03 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E04 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.56 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E04 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E05 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E05 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E06 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.64 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E06 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E07 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.68 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E07 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E08 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.72 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E08 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E09 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.76 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E09 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E10 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E10 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E11 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E11 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E12 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=0.88 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E12 |
US $5.47 |
||
|
38453Y
|
38453Y
38453-96E13 SHIM-ADJUST,SIDE BEARING9909--01 ~ 0205--01; YD22DD.MT; T=1.20 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453-96E13 |
US $5.47 |
