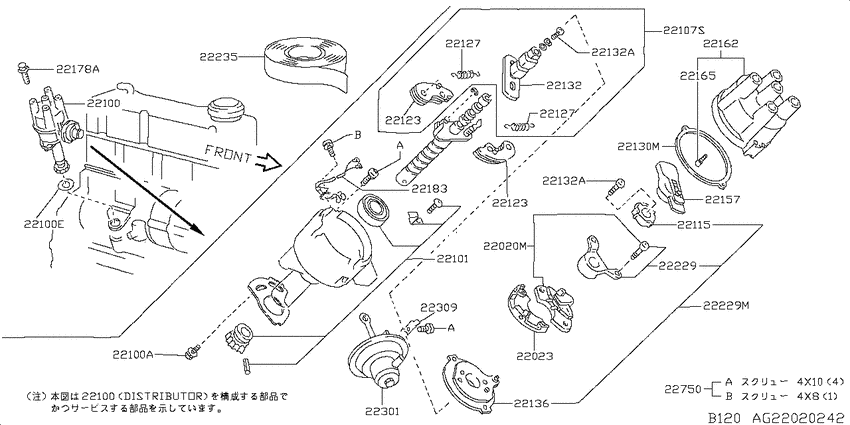

Distributor (1989-10-01 ~ ; A12S) Diagram Nissan SUNNY TRUCK
- Year
- 1975 - 2012
- Sales region
- Japan
- Engine
- A12S
- transmission
- MT
- grade
- DX
- body type
- SB
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22020M
|
22020M
22020G5111 Transistor Ignition Unit8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22020G5111 |
US $290.28 |
||
|
22023
|
22023
22023-G5110 Unit-Setter8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22023-G5110 |
US $27.22 |
||
|
22100
|
22100
2210095W10 ﾃﾞｲｽﾄﾘﾋﾞﾕ-ﾀassy8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2210095W10 |
US $579.14 |
||
|
22100
|
22100
22100-G1610 ﾃﾞｲｽﾄﾘﾋﾞﾕ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-7510--01 ~ 7907--01; A12S; ﾐﾂﾋﾞｼ |
22100-G1610 |
US $205.92 |
||
|
22100
|
22100
22100-G1910
Distributor Assy
8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22100-G1910 |
— | ||
|
22100
|
22100
22100-W8511
Distributor Assy
7908--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22100-W8511 |
— | ||
|
22100
|
22100
22201-22010 Screw7510--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22201-22010 |
US $1.73 |
||
|
22100
|
22100
2218071200 Seal-O Ring7510--01 ~ ; A12S |
2218071200 |
from US $3.76 |
||
|
22100A
|
22100A
22201-22010 Screw7510--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22201-22010 |
US $1.73 |
||
|
22100E
|
22100E
2218071200 Seal-O Ring7510--01 ~ ; A12S |
2218071200 |
from US $3.76 |
||
|
22101
|
22101
22101-95W10 ﾊｳｼﾞﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾃﾞｲｽﾄﾘﾋﾞﾕ-ﾀ-8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22101-95W10 |
US $145.44 |
||
|
22107S
|
22107S
22107-95W10 ｶﾞﾊﾞﾅ- ｾﾂﾄ,ﾃﾞｲｽﾄﾘﾋﾞﾕ-ﾀ-8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22107-95W10 |
US $123.84 |
||
|
22115
|
22115
22115-95W10 ｼｸﾞﾅﾙ ﾛ-ﾀ- ｱﾂｾﾝﾌﾞﾘｰ8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22115-95W10 |
US $33.26 |
||
|
22123
|
22123
22109-52H60 Weight-Governor8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22109-52H60 |
US $8.50 |
||
|
22123
|
22123
22109-W7010 Weight-Governor8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22109-W7010 |
US $9.50 |
||
|
22123
|
22123
22123-14610 Weight-Governor7510--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22123-14610 |
US $9.94 |
||
|
22123
|
22123
22147-32210 Ring-Snap7510--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22147-32210 |
US $0.86 |
||
|
22123
|
22123
22109-52H60 Weight-Governor8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22109-52H60 |
US $8.50 |
||
|
22123
|
22123
22109-W7010 Weight-Governor8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22109-W7010 |
US $9.50 |
||
|
22123
|
22123
22123-14610 Weight-Governor7510--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22123-14610 |
US $9.94 |
||
|
22123
|
22123
22147-32210 Ring-Snap7510--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22147-32210 |
US $0.86 |
||
|
22127
|
22127
22110-05H10 Spring-Governor8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22110-05H10 |
US $5.18 |
||
|
22127
|
22127
22110-95W10 ｽﾌﾟﾘﾝｸﾞ,ｶﾞﾊﾞﾅ-8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22110-95W10 |
US $12.24 |
||
|
22127
|
22127
22127-A8910 Spring-Governor7510--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22127-A8910 |
US $4.46 |
||
|
22127
|
22127
22110-05H10 Spring-Governor8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22110-05H10 |
US $5.18 |
||
|
22127
|
22127
22110-95W10 ｽﾌﾟﾘﾝｸﾞ,ｶﾞﾊﾞﾅ-8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22110-95W10 |
US $12.24 |
||
|
22127
|
22127
22127-A8910 Spring-Governor7510--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22127-A8910 |
US $4.46 |
||
|
22130M
|
22130M
22185-95W10 Packing8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22185-95W10 |
US $8.06 |
||
|
22132
|
22132
22132-05H10 Cam Set8602--01 ~ 8812--01; A12S; ﾐﾂﾋﾞｼ |
22132-05H10 |
US $38.74 |
||
|
22132
|
22132
22132-25G10 Cam Set8812--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22132-25G10 |
US $30.67 |
||
|
22132
|
22132
22132-71311 Cam Set7510--01 ~ 8109--01; A12S; ﾐﾂﾋﾞｼ |
22132-71311 |
US $23.18 |
||
|
22132
|
22132
22132-95W10 ｶﾑ ｾﾂﾄ8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22132-95W10 |
US $56.45 |
||
|
22132
|
22132
22132-H7870 Cam Set8110--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22132-H7870 |
US $33.12 |
||
|
22132
|
22132
22104-14615 Screw7510--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22104-14615 |
US $0.86 |
||
|
22132A
|
22132A
22104-14615 Screw7510--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22104-14615 |
US $0.86 |
||
|
22132A
|
22132A
22104-14615 Screw7510--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22104-14615 |
US $0.86 |
||
|
22136
|
22136
22136-05M10 Plate Assy-Breaker8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22136-05M10 |
US $31.54 |
||
|
22136
|
22136
22136-73415 Plate Assy-Breaker7510--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22136-73415 |
US $28.66 |
||
|
22136
|
22136
22136-77A11 Plate Assy-Breaker8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22136-77A11 |
US $35.86 |
||
|
22157
|
22157
2215710B10 Rotor-Head8812--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
2215710B10 |
US $16.85 |
||
|
22157
|
22157
22157-18010
Rotor-Head
7510--01 ~ 8503--01; A12S; ﾐﾂﾋﾞｼ |
22157-18010 |
— | ||
| replacement | |||||
|
22157
|
22157
2215718011 Rotor-Head7510--01 ~ 8503--01; A12S; ﾐﾂﾋﾞｼ |
2215718011 |
US $12.33 |
||
|
22157
|
22157
2215718011 Rotor-Head8504--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
2215718011 |
US $12.33 |
||
|
22157
|
22157
2215723G15 Rotor-Head8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2215723G15 |
US $24.67 |
||
|
22157
|
22157
22157-R9007 Rotor-Head8602--01 ~ 8812--01; A12S; ﾐﾂﾋﾞｼ |
22157-R9007 |
US $20.02 |
||
|
22162
|
22162
22162-25G10 Cap Assy-Distributor8602--01 ~ 8702--01; A12S; ﾐﾂﾋﾞｼ |
22162-25G10 |
US $59.47 |
||
|
22162
|
22162
2216225G11 Cap Assy-Distributor8702--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
2216225G11 |
US $59.47 |
||
|
22162
|
22162
22162-71311 Cap Assy-Distributor7510--01 ~ 8503--01; A12S; ﾐﾂﾋﾞｼ |
22162-71311 |
US $58.32 |
||
|
22162
|
22162
22162-71312 Cap Assy-Distributor8504--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22162-71312 |
US $121.83 |
||
|
22162
|
22162
2216278A10 Cap Assy-Distributor8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2216278A10 |
US $62.92 |
||
|
22165
|
22165
22165-32210 Point Assy-Carbon7510--01 ~ 8109--01; A12S; ﾐﾂﾋﾞｼ |
22165-32210 |
US $4.03 |
||
|
22165
|
22165
22165-M5610 Point Assy-Carbon8110--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22165-M5610 |
US $4.30 |
||
|
22178A
|
22178A
01436-00211 SCREW8910--01 ~ ; A12S |
01436-00211 |
US $1.73 |
||
|
22183
|
22183
22182-10B10 Wire Assy-Lead8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22182-10B10 |
US $4.61 |
||
|
22183
|
22183
22183-71311
Wire Assy-Lead
7510--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22183-71311 |
— | ||
|
22183
|
22183
22183-95W10 ﾜｲﾔ ｱﾂｾﾝﾌﾞﾘ-,ﾘ-ﾄﾞ8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22183-95W10 |
US $21.74 |
||
|
22229
|
22229
22229-77A11 Pick Up Kit8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22229-77A11 |
US $47.95 |
||
|
22229
|
22229
22229-95W10 ｼｸﾞﾅﾙ ｾﾂﾄ8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22229-95W10 |
US $194.40 |
||
|
22229M
|
22229M
22229-95W10 ｼｸﾞﾅﾙ ｾﾂﾄ8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22229-95W10 |
US $194.40 |
||
|
22235
|
22235
B2235-U7410
Tape-Seal, Distributor
7510--01 ~ ; A12S |
B2235-U7410 |
— | ||
| replacement | |||||
|
22235
|
22235
22235-U7400 Tape-Seal, Distributor7510--01 ~ ; A12S |
22235-U7400 |
from US $0.50 |
||
|
22301
|
22301
22301-95W10 ｺﾝﾄﾛ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞｷﾕ-ﾑ8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22301-95W10 |
US $111.60 |
||
|
22301
|
22301
22301-G1610 ｺﾝﾄﾛ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞｷﾕ-ﾑ7510--01 ~ 7907--01; A12S; ﾐﾂﾋﾞｼ |
22301-G1610 |
US $37.30 |
||
|
22301
|
22301
22301-G1910 Controller Assy-Vacuum8602--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22301-G1910 |
US $36.14 |
||
|
22301
|
22301
22301-W8511 ｺﾝﾄﾛ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞｷﾕ-ﾑ7908--01 ~ 8602--01; A12S; ﾐﾂﾋﾞｼ |
22301-W8511 |
US $37.30 |
||
|
22301
|
22301
22195-71311 Ring-Snap8110--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22195-71311 |
US $0.86 |
||
|
22309
|
22309
22309-H5010 Terminal-Earth8110--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22309-H5010 |
US $2.74 |
||
|
22750
|
22750
22750-M0110 Screw Kit7510--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22750-M0110 |
US $9.02 |
||
