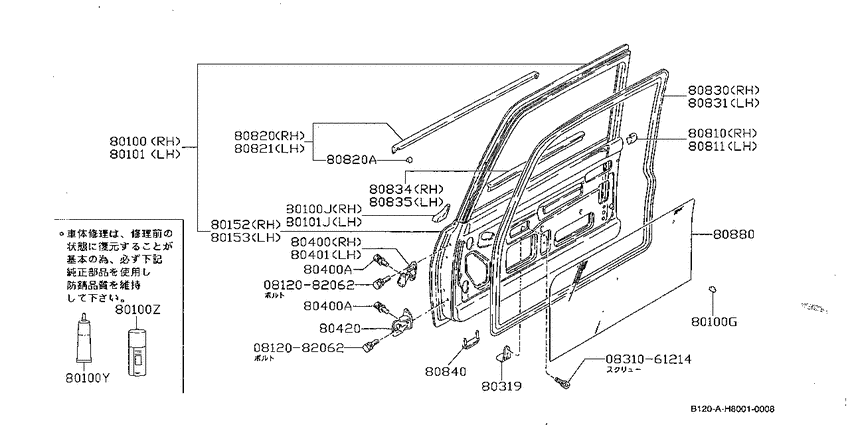

Front door panel (1975-10-01 ~ ; ALL) Diagram Nissan SUNNY TRUCK
- Year
- 1975 - 2012
- Sales region
- Japan
- Engine
- A12S
- transmission
- MT
- grade
- DX
- body type
- SB
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812082062
|
0812082062
08120-82062
Bolt-hexagon
|
08120-82062 |
— | ||
| replacement | |||||
|
0812082062
|
0812082062
08120-8201B
Bolt-hexagon
|
08120-8201B |
— | ||
|
0812082062
|
0812082062
08120-82062
Bolt-hexagon
|
08120-82062 |
— | ||
| replacement | |||||
|
0812082062
|
0812082062
08120-8201B
Bolt-hexagon
|
08120-8201B |
— | ||
|
0831061214
|
0831061214
08310-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61214 |
— | ||
|
80100
|
80100
80102-G1200
ﾄﾞｱ,ﾌﾛﾝﾄ rh
8910--01 ~ ; SB +LB |
80102-G1200 |
— | ||
|
80100
|
80100
80102-G1900
ﾄﾞｱ,ﾌﾛﾝﾄ rh
8105--01 ~ 8910--01; ALL |
80102-G1900 |
— | ||
|
80100
|
80100
80102-H1000
ﾄﾞｱ,ﾌﾛﾝﾄ rh
7510--01 ~ 8104--01; ALL |
80102-H1000 |
— | ||
|
80100
|
80100
80832-H1000
ﾊﾞﾝﾊﾟ- ﾗﾊﾞ-,ﾄﾞｱ b
7510--01 ~ 8910--01; ALL |
80832-H1000 |
— | ||
|
80100
|
80100
80834-H1000
ｽﾍﾟ-ｻ-,ﾌﾛﾝﾄ ﾄﾞｱ rh
7510--01 ~ 8910--01; ALL |
80834-H1000 |
— | ||
|
80100
|
80100
KA360-16570
Paint Sealer
7510--01 ~ ; SB +LB; [K504] |
KA360-16570 |
— | ||
|
80100
|
80100
KA390-18090
Metal Keep Wax
7510--01 ~ ; SB +LB; [K504] |
KA390-18090 |
— | ||
|
80100G
|
80100G
80832-H1000
ﾊﾞﾝﾊﾟ- ﾗﾊﾞ-,ﾄﾞｱ b
7510--01 ~ 8910--01; ALL |
80832-H1000 |
— | ||
|
80100J
|
80100J
80834-H1000
ｽﾍﾟ-ｻ-,ﾌﾛﾝﾄ ﾄﾞｱ rh
7510--01 ~ 8910--01; ALL |
80834-H1000 |
— | ||
|
80100Y
|
80100Y
KA360-16570
Paint Sealer
7510--01 ~ ; SB +LB; [K504] |
KA360-16570 |
— | ||
|
80100Z
|
80100Z
KA390-18090
Metal Keep Wax
7510--01 ~ ; SB +LB; [K504] |
KA390-18090 |
— | ||
|
80101
|
80101
80103-G1200
ﾄﾞｱ,ﾌﾛﾝﾄ lh
8910--01 ~ ; SB +LB |
80103-G1200 |
— | ||
|
80101
|
80101
80103-G1900
ﾄﾞｱ,ﾌﾛﾝﾄ lh
8105--01 ~ 8910--01; ALL |
80103-G1900 |
— | ||
|
80101
|
80101
80103-H1000
ﾄﾞｱ,ﾌﾛﾝﾄ lh
7510--01 ~ 8104--01; ALL |
80103-H1000 |
— | ||
|
80101
|
80101
80835-H1000
ｽﾍﾟ-ｻ-,ﾌﾛﾝﾄ ﾄﾞｱ lh
7510--01 ~ 8910--01; ALL |
80835-H1000 |
— | ||
|
80101J
|
80101J
80835-H1000
ｽﾍﾟ-ｻ-,ﾌﾛﾝﾄ ﾄﾞｱ lh
7510--01 ~ 8910--01; ALL |
80835-H1000 |
— | ||
|
80152
|
80152
80152-G1200
ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- rh
8910--01 ~ ; SB +LB |
80152-G1200 |
— | ||
|
80153
|
80153
80153-G1200
ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- lh
8910--01 ~ ; SB +LB |
80153-G1200 |
— | ||
|
80319
|
80319
80860-H1000
ｽﾄﾂﾊﾟ- ｱﾂｾﾝﾌﾞﾘ-,ｶﾞﾗｽ ﾛｱ
7510--01 ~ 8910--01; ALL |
80860-H1000 |
— | ||
|
80400
|
80400
80400-H7000
ﾋﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱﾂﾊﾟ- rh
7510--01 ~ 8910--01; ALL |
80400-H7000 |
— | ||
|
80400
|
80400
01121-00031
ﾎﾞﾙﾄ
7510--01 ~ 8910--01; ALL |
01121-00031 |
— | ||
|
80400A
|
80400A
01121-00031
ﾎﾞﾙﾄ
7510--01 ~ 8910--01; ALL |
01121-00031 |
— | ||
|
80400A
|
80400A
01121-00031
ﾎﾞﾙﾄ
7510--01 ~ 8910--01; ALL |
01121-00031 |
— | ||
|
80401
|
80401
80401H7000
Fr ﾄﾞｱ ﾋﾝｼﾞ lh
7510--01 ~ 8910--01; ALL |
80401H7000 |
— | ||
|
80420
|
80420
80402-H1001
ﾋﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾛｱ rh
7510--01 ~ 8910--01; ALL |
80402-H1001 |
— | ||
|
80810
|
80810
80886H1000
Fr ﾄﾞｱ ｶﾊﾞ- rh
7510--01 ~ 8910--01; ALL |
80886H1000 |
— | ||
|
80811
|
80811
80887H1000
Fr ﾄﾞｱ ｶﾊﾞ- lh
7510--01 ~ 8910--01; ALL |
80887H1000 |
— | ||
|
80820
|
80820
80820-G1000
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
7510--01 ~ 8910--01; ALL |
80820-G1000 |
— | ||
|
80820
|
80820
80825-H1000 ｸﾘﾂﾌﾟ7510--01 ~ 8910--01; ALL |
80825-H1000 |
US $5.12 |
||
|
80820A
|
80820A
80825-H1000 ｸﾘﾂﾌﾟ7510--01 ~ 8910--01; ALL |
80825-H1000 |
US $5.12 |
||
|
80821
|
80821
80821-G1000
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
7510--01 ~ 8910--01; ALL |
80821-G1000 |
— | ||
|
80830
|
80830
80830-G1900
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ rh
8910--01 ~ ; SB +LB |
80830-G1900 |
— | ||
|
80830
|
80830
80830-H1001
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ rh
7510--01 ~ 8910--01; ALL |
80830-H1001 |
— | ||
|
80831
|
80831
80831-G1900
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ lh
8910--01 ~ ; SB +LB |
80831-G1900 |
— | ||
|
80831
|
80831
80831-H1001
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ lh
7510--01 ~ 8910--01; ALL |
80831-H1001 |
— | ||
|
80834
|
80834
80836-H1000
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ rh
7510--01 ~ 8910--01; ALL |
80836-H1000 |
— | ||
|
80835
|
80835
80837-H1000
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh
7510--01 ~ 8910--01; ALL |
80837-H1000 |
— | ||
|
80840
|
80840
80840-21001 ｶﾊﾞ-,ﾎ-ﾙ7510--01 ~ 8503--01; ALL |
80840-21001 |
US $2.16 |
||
|
80880
|
80880
80804-G1900
ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ ﾄﾞｱ
8103--01 ~ 8104--01; ALL |
80804-G1900 |
— | ||
|
80880
|
80880
80804-G1901
ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ ﾄﾞｱ
8105--01 ~ 8910--01; ALL |
80804-G1901 |
— | ||
|
80880
|
80880
80804-H1000
ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ ﾄﾞｱ
7510--01 ~ 8102--01; ALL |
80804-H1000 |
— | ||
