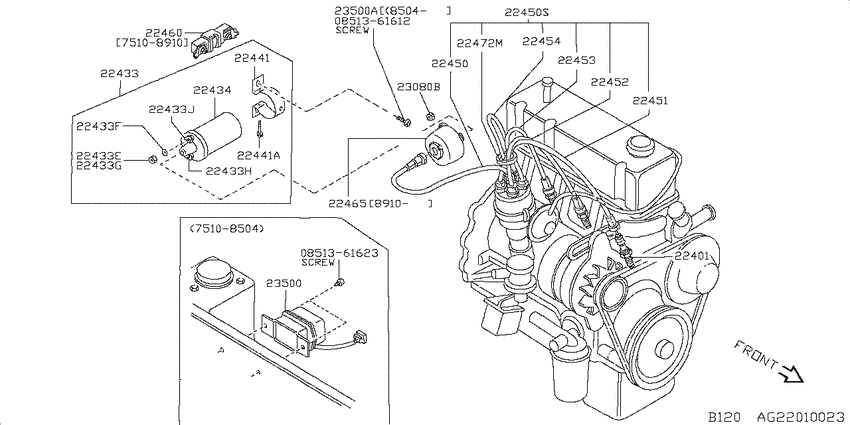

Ignition System (1975-10-01 ~ ; A12S) Diagram Nissan SUNNY TRUCK
- Year
- 1975 - 2012
- Sales region
- Japan
- Engine
- A12S
- transmission
- MT
- grade
- DX
- body type
- SB
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851361612
|
0851361612
08513-61612
Bolt
|
08513-61612 |
— | ||
|
0851361623
|
0851361623
08513-61623
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-61623 |
— | ||
|
22401
|
22401
22401-16C79 Plug-Spark8110--01 ~ ; A12S; N9YC |
22401-16C79 |
US $5.90 |
||
|
22401
|
22401
22401-75504 Plug-Spark7510--01 ~ 7801--01; A12S; BP4E[B512] |
22401-75504 |
US $5.90 |
||
|
22401
|
22401
22401-A4605 Plug-Spark7802--01 ~ 8503--01; A12S; BP5ES[B512] |
22401-A4605 |
US $5.90 |
||
|
22401
|
22401
22401-A4616 Plug-Spark7510--01 ~ 8503--01; A12S; BP6ES[B512] |
22401-A4616 |
US $5.90 |
||
|
22401
|
22401
22401-A4617 Plug-Spark7510--01 ~ 8503--01; A12S; BP7ES[B512] |
22401-A4617 |
US $5.90 |
||
|
22401
|
22401
22401P8314 Plug-Spark8910--01 ~ ; *A12S; BPR4ES-11[B512] |
22401P8314 |
US $5.15 |
||
|
22401
|
22401
22401P8316 Plug-Spark8910--01 ~ ; *A12S; BPR6ES-11[B512] |
22401P8316 |
US $6.48 |
||
|
22401
|
22401
22401-P8317 Plug-Spark8910--01 ~ ; *A12S; BPR7ES-11[B512] |
22401-P8317 |
US $6.48 |
||
|
22401
|
22401
22401-S2000 Plug-Spark7510--01 ~ 8503--01; A12S; BPR5ES[B512] |
22401-S2000 |
US $6.48 |
||
|
22401
|
22401
22401-S2100 Plug-Spark7510--01 ~ 7801--01; A12S; BPR6ES[B512] |
22401-S2100 |
US $6.48 |
||
|
22401
|
22401
22401-W8914 Plug-Spark8110--01 ~ 8503--01; A12S; BP4ES[B512] |
22401-W8914 |
from US $2.11 |
||
|
22401
|
22401
22401W8915 Plug-Spark8110--01 ~ ; A12S; BP5ES[B512] |
22401W8915 |
US $4.68 |
||
|
22401
|
22401
22401-W8916 Plug-Spark8110--01 ~ 8503--01; A12S; BP6ES[B512] |
22401-W8916 |
from US $2.18 |
||
|
22401
|
22401
22401-W8917 Plug-Spark8110--01 ~ 8503--01; A12S; BP7ES[B512] |
22401-W8917 |
US $5.90 |
||
|
22401
|
22401
B2401-89900 ﾌﾟﾗｸﾞ,ｽﾊﾟ-ｸ7510--01 ~ 7801--01; A12S; BP5EV[B512] |
B2401-89900 |
US $14.40 |
||
|
22401
|
22401
B2401-89901 ﾌﾟﾗｸﾞ,ｽﾊﾟ-ｸ7510--01 ~ 7801--01; A12S; BP6EV[B512] |
B2401-89901 |
US $14.40 |
||
|
22433
|
22433
22433-52A60
Coil Assy-Ignition
8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22433-52A60 |
— | ||
| replacement | |||||
|
22433
|
22433
B2D33-52A10 ignition coil8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
B2D33-52A10 |
US $177.14 |
||
|
22433
|
22433
22433-U3100 Coil Assy-Ignition7510--01 ~ 8910--01; A12S; ﾋﾀﾁ |
22433-U3100 |
US $122.40 |
||
|
22433
|
22433
22433U3110 Coil Assy-Ignition7510--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22433U3110 |
US $142.77 |
||
|
22433
|
22433
22433-U3140 Coil Assy-Ignition8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22433-U3140 |
US $122.40 |
||
|
22433
|
22433
22464-H7310 Nut8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22464-H7310 |
US $0.86 |
||
|
22433
|
22433
22466-N7110 Washer-Spring8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22466-N7110 |
US $0.86 |
||
|
22433
|
22433
22464-50A60 Nut-Ignition Coil8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22464-50A60 |
US $3.02 |
||
|
22433
|
22433
22464-N7110 Nut8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22433
|
22433
22464-Q4940 Nut8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22464-Q4940 |
US $2.45 |
||
|
22433
|
22433
22471-U3110 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22471-U3110 |
US $0.86 |
||
|
22433
|
22433
22471-U3140 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22471-U3140 |
US $6.19 |
||
|
22433
|
22433
22471-U3111 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22471-U3111 |
US $0.86 |
||
|
22433
|
22433
22471-U3141 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22471-U3141 |
US $3.46 |
||
|
22433E
|
22433E
22464-H7310 Nut8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22464-H7310 |
US $0.86 |
||
|
22433F
|
22433F
22466-N7110 Washer-Spring8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22466-N7110 |
US $0.86 |
||
|
22433G
|
22433G
22464-50A60 Nut-Ignition Coil8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22464-50A60 |
US $3.02 |
||
|
22433G
|
22433G
22464-N7110 Nut8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22433G
|
22433G
22464-Q4940 Nut8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22464-Q4940 |
US $2.45 |
||
|
22433H
|
22433H
22471-U3110 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22471-U3110 |
US $0.86 |
||
|
22433H
|
22433H
22471-U3140 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22471-U3140 |
US $6.19 |
||
|
22433J
|
22433J
22471-U3111 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22471-U3111 |
US $0.86 |
||
|
22433J
|
22433J
22471-U3141 Terminal-Ignition Coil8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22471-U3141 |
US $3.46 |
||
|
22434
|
22434
2246252A60
Coil-Ignition
8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2246252A60 |
— | ||
|
22434
|
22434
22462-U3110 Coil-Ignition8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22462-U3110 |
US $122.40 |
||
|
22434
|
22434
22462-U3140 Coil-Ignition8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22462-U3140 |
US $122.40 |
||
|
22441
|
22441
22441-50A60 Band8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22441-50A60 |
US $8.35 |
||
|
22441
|
22441
22441-N8710 Band8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22441-N8710 |
US $4.85 |
||
|
22441
|
22441
22441-Q4940 Band8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22441-Q4940 |
US $6.91 |
||
|
22441
|
22441
2246750A60 Screw8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2246750A60 |
US $4.18 |
||
|
22441
|
22441
22467-N7110 Screw8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22467-N7110 |
US $2.45 |
||
|
22441
|
22441
22467-Q4940 Screw8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22467-Q4940 |
US $3.46 |
||
|
22441A
|
22441A
2246750A60 Screw8910--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2246750A60 |
US $4.18 |
||
|
22441A
|
22441A
22467-N7110 Screw8504--01 ~ 8910--01; A12S; ﾊﾝｼﾝ |
22467-N7110 |
US $2.45 |
||
|
22441A
|
22441A
22467-Q4940 Screw8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ |
22467-Q4940 |
US $3.46 |
||
|
22450
|
22450
22450-Y4000 Cable Assy-Ignition Coil To Distributor7510--01 ~ ; A12S; ﾔｻﾞｷ |
22450-Y4000 |
US $11.09 |
||
|
22450
|
22450
22450-Y4410 ｹ-ﾌﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ｺｲﾙ ﾂ- ﾃﾞｲｽﾄﾘﾋﾞﾕ-ﾀ-7510--01 ~ ; A12S; ｽﾐﾄﾓ |
22450-Y4410 |
US $17.28 |
||
|
22450
|
22450
22450G1625 Cable Set-High Tension7510--01 ~ ; A12S |
22450G1625 |
US $59.18 |
||
|
22450S
|
22450S
22450G1625 Cable Set-High Tension7510--01 ~ ; A12S |
22450G1625 |
US $59.18 |
||
|
22451
|
22451
22451H5000 Cable Assy-High Tension, No 17510--01 ~ ; A12S; ﾔｻﾞｷ |
22451H5000 |
US $10.80 |
||
|
22451
|
22451
22451-H5010 Cable Assy-High Tension, No 17510--01 ~ ; A12S; ｽﾐﾄﾓ |
22451-H5010 |
US $10.80 |
||
|
22452
|
22452
22452H5000 Cable Assy-High Tension, No 27510--01 ~ ; A12S; ﾔｻﾞｷ |
22452H5000 |
US $10.80 |
||
|
22452
|
22452
22452-H5010 Cable Assy-High Tension, No 27510--01 ~ ; A12S; ｽﾐﾄﾓ |
22452-H5010 |
US $10.80 |
||
|
22453
|
22453
22453H5000 Cable Assy-High Tension, No 37510--01 ~ ; A12S; ﾔｻﾞｷ |
22453H5000 |
US $11.38 |
||
|
22453
|
22453
22453-H5010 Cable Assy-High Tension, No 37510--01 ~ ; A12S; ｽﾐﾄﾓ |
22453-H5010 |
US $11.38 |
||
|
22454
|
22454
22454-H5000 Cable Assy-High Tension, No 47510--01 ~ ; A12S; ﾔｻﾞｷ |
22454-H5000 |
US $11.52 |
||
|
22454
|
22454
22454-H5010 Cable Assy-High Tension, No 47510--01 ~ ; A12S; ｽﾐﾄﾓ |
22454-H5010 |
US $11.52 |
||
|
22460
|
22460
22460-14606
Resistor-Ignition Coil
7510--01 ~ 8910--01; A12S; ﾋﾀﾁ ｾﾝﾀｸ ｼﾖｳ |
22460-14606 |
— | ||
| replacement | |||||
|
22460
|
22460
22460-14615 Resistor-Ignition Coil7510--01 ~ 8910--01; A12S; ﾋﾀﾁ ｾﾝﾀｸ ｼﾖｳ |
22460-14615 |
from US $10.08 |
||
|
22460
|
22460
22460-14615 Resistor-Ignition Coil7510--01 ~ 8910--01; A12S; ﾊﾝｼﾝ ｾﾝﾀｸ ｼﾖｳ |
22460-14615 |
from US $10.08 |
||
|
22460
|
22460
22460-14645 Resistor-Ignition Coil8504--01 ~ 8910--01; A12S; ﾐﾂﾋﾞｼ ｾﾝﾀｸ ｼﾖｳ |
22460-14645 |
US $9.50 |
||
|
22465
|
22465
22465W1000 Protector-Ignition Coil8910--01 ~ ; A12S |
22465W1000 |
US $12.20 |
||
|
22472M
|
22472M
22431-10560 Clamp-High Tension Cable7510--01 ~ ; A12S |
22431-10560 |
US $4.46 |
||
|
23080B
|
23080B
0122100111 NUT8910--01 ~ ; A12S |
0122100111 |
US $1.93 |
||
|
23500
|
23500
23500-29912 Regulator-Voltage7510--01 ~ 8503--01; A12S; ﾐﾂﾋﾞｼ |
23500-29912 |
US $126.43 |
||
|
23500
|
23500
23500-29913 Regulator-Voltage8503--01 ~ 8504--01; A12S; ﾐﾂﾋﾞｼ |
23500-29913 |
US $139.25 |
||
|
23500
|
23500
01461-00041 SCREW8910--01 ~ ; A12S |
01461-00041 |
US $1.73 |
||
|
23500
|
23500
01461-00231 SCREW8504--01 ~ 8910--01; A12S; ｾﾝﾀｸ ｼﾖｳ |
01461-00231 |
US $1.73 |
||
|
23500A
|
23500A
01461-00041 SCREW8910--01 ~ ; A12S |
01461-00041 |
US $1.73 |
||
|
23500A
|
23500A
01461-00231 SCREW8504--01 ~ 8910--01; A12S; ｾﾝﾀｸ ｼﾖｳ |
01461-00231 |
US $1.73 |
||
