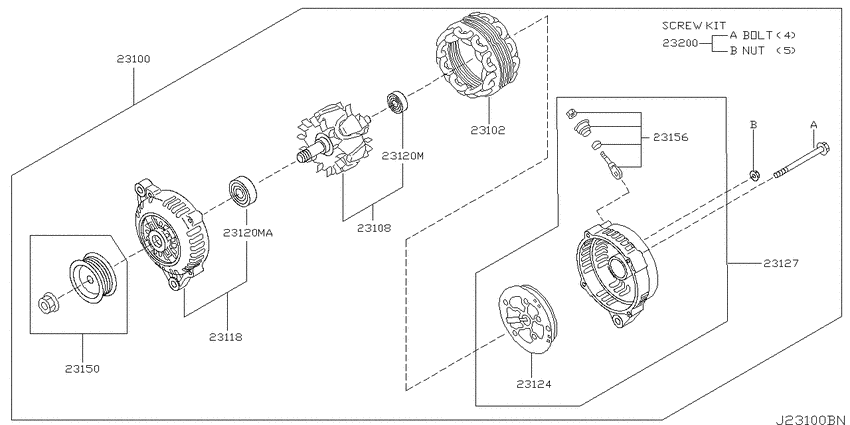

Alternator (2003-02-01 ~ 2005-12-01; VQ35DE) Diagram Nissan TEANA
- Year
- 2003 - 2005
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MCVT
- grade
- JK
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-9Y500 Alternator Assy0302--01 ~ 0307--01; VQ35DE; ﾋﾀﾁ |
23100-9Y500 |
US $1,306.97 |
||
|
23100
|
23100
23100-CN100 Alternator Assy0307--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23100-CN100 |
US $1,188.02 |
||
|
23100
|
23100
0122100381 NUT0302--01 ~ 0512--01; VQ35DE |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-AU401 Stator Assy0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23102-AU401 |
US $317.18 |
||
|
23108
|
23108
23108-9Y500 Rotor Assy0302--01 ~ 0312--01; VQ35DE; ﾋﾀﾁ |
23108-9Y500 |
US $346.92 |
||
|
23108
|
23108
23108-CN101 Rotor Assy0312--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23108-CN101 |
US $346.92 |
||
|
23118
|
23118
23118-9Y500 Cover Assy-Front0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23118-9Y500 |
US $111.17 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-5Y700 Rectifier Assy0302--01 ~ 0304--01; VQ35DE; ﾋﾀﾁ |
23124-5Y700 |
US $681.10 |
||
|
23124
|
23124
23124-9Y500 Rectifier Assy0304--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23124-9Y500 |
US $472.94 |
||
|
23127
|
23127
23127-5Y700 Cover Assy-Rear0302--01 ~ 0304--01; VQ35DE; ﾋﾀﾁ |
23127-5Y700 |
US $907.66 |
||
|
23127
|
23127
23127-9Y500 Cover Assy-Rear0304--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23127-9Y500 |
US $512.59 |
||
|
23150
|
23150
23150-40U00 Pulley Assy0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23150-40U00 |
from US $92.16 |
||
|
23156
|
23156
23156-65F00 Terminal Assy-B0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23156-65F00 |
from US $8.33 |
||
|
23200
|
23200
23200-0M000 Screw Set0302--01 ~ 0512--01; VQ35DE; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
