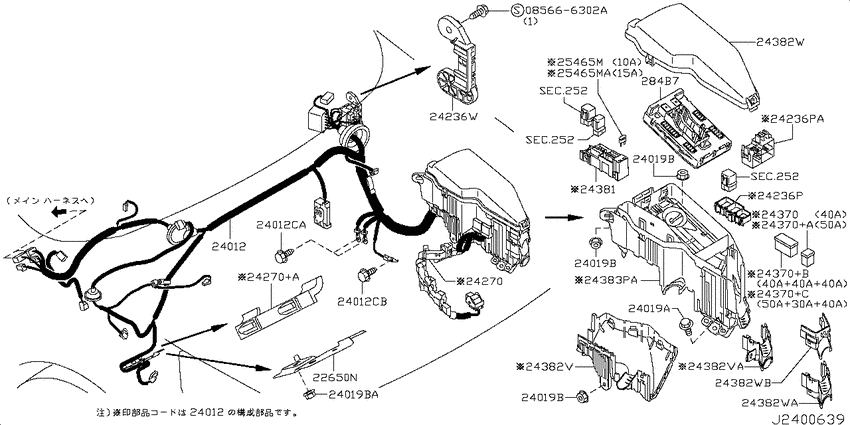

Wiring (2008-06-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; SED.VQ25DE) Diagram Nissan TEANA
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- VQ25DE
- drive
- 2WD
- transmission
- CVT
- grade
- XL/4
- body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085666302A
|
085666302A
085666302A
SCREWTAPPING
|
085666302A |
— | ||
|
22650N
|
22650N
22650-JN00A Bracket0806--01 ~ ; SED.VQ25DE |
22650-JN00A |
US $8.21 |
||
|
24012
|
24012
24012-JN20B Harness Assy-Engine Room0806--01 ~ ; SED.VQ25DE.(XL/4+XV) |
24012-JN20B |
US $1,904 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
24012-JN20B Harness Assy-Engine Room0806--01 ~ ; SED.VQ25DE.(XL/4+XV) |
24012-JN20B |
US $1,904 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012CA
|
24012CA
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24012CB
|
24012CB
0145600411 SCREW0806--01 ~ ; SED.VQ25DE |
0145600411 |
US $1.67 |
||
|
24019A
|
24019A
01125-N6031 Bolt0806--01 ~ ; SED.VQ25DE |
01125-N6031 |
from US $1.37 |
||
|
24019A
|
24019A
01125N6011 Bolt0806--01 ~ ; SED.VQ25DE |
01125N6011 |
from US $2.21 |
||
|
24019A
|
24019A
01125N6011 Bolt0806--01 ~ ; SED.VQ25DE |
01125N6011 |
from US $2.21 |
||
|
24019B
|
24019B
01225-N6031 Nut0806--01 ~ ; SED.VQ25DE |
01225-N6031 |
from US $0.68 |
||
|
24019B
|
24019B
01225-N6031 Nut0806--01 ~ ; SED.VQ25DE |
01225-N6031 |
from US $0.68 |
||
|
24019B
|
24019B
01225-N6031 Nut0806--01 ~ ; SED.VQ25DE |
01225-N6031 |
from US $0.68 |
||
|
24019B
|
24019B
01225-N6031 Nut0806--01 ~ ; SED.VQ25DE |
01225-N6031 |
from US $0.68 |
||
|
24019B
|
24019B
01225-N6031 Nut0806--01 ~ ; SED.VQ25DE |
01225-N6031 |
from US $0.68 |
||
|
24019B
|
24019B
01225-N6031 Nut0806--01 ~ ; SED.VQ25DE |
01225-N6031 |
from US $0.68 |
||
|
24019BA
|
24019BA
01225-N6031 Nut0806--01 ~ ; SED.VQ25DE |
01225-N6031 |
from US $0.68 |
||
|
24236P
|
24236P
24346-JA11A Bracket-Connector0806--01 ~ ; SED.VQ25DE |
24346-JA11A |
US $8.64 |
||
|
24236P
|
24236P
24346-JA10B Bracket-Connector0806--01 ~ ; SED.VQ25DE |
24346-JA10B |
US $8.64 |
||
|
24236PA
|
24236PA
24346-JA10B Bracket-Connector0806--01 ~ ; SED.VQ25DE |
24346-JA10B |
US $8.64 |
||
|
24236W
|
24236W
24359-JA00A Bracket-Connector0806--01 ~ ; SED.VQ25DE |
24359-JA00A |
US $6.48 |
||
|
24270
|
24270
24272-JN00A Protector-Harness0806--01 ~ ; SED.VQ25DE |
24272-JN00A |
US $40.61 |
||
|
24270
|
24270
24272-JA10A Protector-Harness0806--01 ~ ; SED.VQ25DE |
24272-JA10A |
US $11.81 |
||
|
24270+A
|
24270+A
24272-JA10A Protector-Harness0806--01 ~ ; SED.VQ25DE |
24272-JA10A |
US $11.81 |
||
|
24370
|
24370
24370-C994A Connector Assy-Fusible Link0806--01 ~ ; SED.VQ25DE; 40A |
24370-C994A |
from US $13.10 |
||
|
24370
|
24370
24370-C995A Connector Assy-Fusible Link0806--01 ~ ; SED.VQ25DE; 50A |
24370-C995A |
US $13.10 |
||
|
24370
|
24370
24370-C991B Connector Assy-Fusible Link0806--01 ~ ; SED.VQ25DE; 40A+40A+40A |
24370-C991B |
from US $14.55 |
||
|
24370
|
24370
24370-C992B Connector Assy-Fusible Link0806--01 ~ ; SED.VQ25DE; 50A+30A+40A |
24370-C992B |
US $13.72 |
||
|
24370+A
|
24370+A
24370-C995A Connector Assy-Fusible Link0806--01 ~ ; SED.VQ25DE; 50A |
24370-C995A |
US $13.10 |
||
|
24370+B
|
24370+B
24370-C991B Connector Assy-Fusible Link0806--01 ~ ; SED.VQ25DE; 40A+40A+40A |
24370-C991B |
from US $14.55 |
||
|
24370+C
|
24370+C
24370-C992B Connector Assy-Fusible Link0806--01 ~ ; SED.VQ25DE; 50A+30A+40A |
24370-C992B |
US $13.72 |
||
|
24381
|
24381
24381-7990A Housing-Fusible Link Holder0806--01 ~ ; SED.VQ25DE |
24381-7990A |
from US $76.61 |
||
|
24382V
|
24382V
24382JA01A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382JA01A |
US $16.27 |
||
|
24382V
|
24382V
24382-JA04A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382-JA04A |
US $16.27 |
||
|
24382VA
|
24382VA
24382-JA04A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382-JA04A |
US $16.27 |
||
|
24382W
|
24382W
24382-JN00A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382-JN00A |
US $12.38 |
||
|
24382W
|
24382W
24382-JA02A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382-JA02A |
from US $12.38 |
||
|
24382W
|
24382W
24382JA03A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382JA03A |
from US $12.38 |
||
|
24382WA
|
24382WA
24382-JA02A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382-JA02A |
from US $12.38 |
||
|
24382WB
|
24382WB
24382JA03A Cover-Relay Box0806--01 ~ ; SED.VQ25DE |
24382JA03A |
from US $12.38 |
||
|
24383PA
|
24383PA
24383JA00B Housing-Relay Box0806--01 ~ ; SED.VQ25DE |
24383JA00B |
US $12.96 |
||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
25465M
|
25465M
2431989910 Fuse0806--01 ~ ; SED.VQ25DE; 10A |
2431989910 |
US $1.15 |
||
|
25465M
|
25465M
2431989915 Fuse0806--01 ~ ; SED.VQ25DE; 15A |
2431989915 |
US $1.15 |
||
|
25465MA
|
25465MA
2431989915 Fuse0806--01 ~ ; SED.VQ25DE; 15A |
2431989915 |
US $1.15 |
||
|
284B7
|
284B7
284B71AA0A Controller Unit-Ipdm Engine Room0806--01 ~ ; SED.VQ25DE |
284B71AA0A |
US $654.19 |
||
