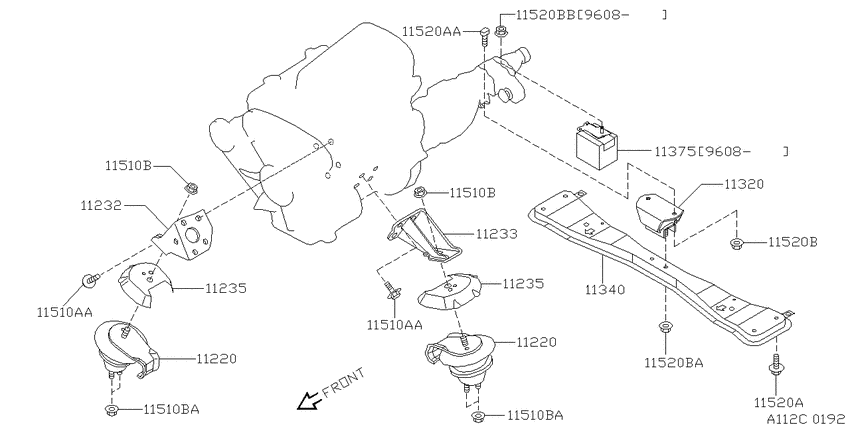

Engine & transmission mounting (1995-09-01 ~ 1997-06-01; VG33E.SEV) Diagram Nissan TERRANO
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- VG33E
- drive
- 4WD
- transmission
- AT
- grade
- SEV
- body
- W
- standart/wide body
- RB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
11220-0W000 Insulator-Engine Mounting, Front9509--01 ~ 9608--01; VG33E.SEV.AT |
11220-0W000 |
US $184.32 |
||
| replacement | |||||
|
11220
|
11220
11220-VE403 Insulator-Engine Mounting, Front9509--01 ~ 9608--01; VG33E.SEV.AT |
11220-VE403 |
US $152.64 |
||
|
11220
|
11220
11220-1W300 Insulator-Engine Mounting, Front9608--01 ~ 9706--01; VG33E.SEV.AT |
11220-1W300 |
US $203.04 |
||
| replacement | |||||
|
11220
|
11220
11220-VE403 Insulator-Engine Mounting, Front9608--01 ~ 9706--01; VG33E.SEV.AT |
11220-VE403 |
US $152.64 |
||
|
11220
|
11220
11220-0W000 Insulator-Engine Mounting, Front9509--01 ~ 9608--01; VG33E.SEV.AT |
11220-0W000 |
US $184.32 |
||
| replacement | |||||
|
11220
|
11220
11220-VE403 Insulator-Engine Mounting, Front9509--01 ~ 9608--01; VG33E.SEV.AT |
11220-VE403 |
US $152.64 |
||
|
11220
|
11220
11220-1W300 Insulator-Engine Mounting, Front9608--01 ~ 9706--01; VG33E.SEV.AT |
11220-1W300 |
US $203.04 |
||
| replacement | |||||
|
11220
|
11220
11220-VE403 Insulator-Engine Mounting, Front9608--01 ~ 9706--01; VG33E.SEV.AT |
11220-VE403 |
US $152.64 |
||
|
11232
|
11232
11232-0W000 Bracket-Engine Mounting, Rh9509--01 ~ 9706--01; VG33E.SEV.AT |
11232-0W000 |
US $82.22 |
||
|
11233
|
11233
11233-0W000 Bracket-Engine Mounting, Lh9509--01 ~ 9706--01; VG33E.SEV.AT |
11233-0W000 |
US $61.63 |
||
|
11235
|
11235
11284-0W000 Plate-Heat Shield9601--01 ~ 9706--01; VG33E.SEV.AT |
11284-0W000 |
US $8.35 |
||
|
11235
|
11235
11284-4P000 Plate-Heat Shield9509--01 ~ 9601--01; VG33E.SEV.AT |
11284-4P000 |
US $11.23 |
||
|
11235
|
11235
11284-0W000 Plate-Heat Shield9601--01 ~ 9706--01; VG33E.SEV.AT |
11284-0W000 |
US $8.35 |
||
|
11235
|
11235
11284-4P000 Plate-Heat Shield9509--01 ~ 9601--01; VG33E.SEV.AT |
11284-4P000 |
US $11.23 |
||
|
11320
|
11320
11320-0W100 Insulator-Engine Mounting, Rear9509--01 ~ 9608--01; VG33E.SEV.AT |
11320-0W100 |
US $121.15 |
||
|
11320
|
11320
11320-1W410 Insulator-Engine Mounting, Rear9608--01 ~ 9706--01; VG33E.SEV.AT |
11320-1W410 |
US $87.12 |
||
|
11340
|
11340
11330-0W002 Member Assy-Engine Mounting, Rear9509--01 ~ 9608--01; VG33E.SEV.AT |
11330-0W002 |
US $220.32 |
||
|
11340
|
11340
11330-1W400 Member Assy-Engine Mounting, Rear9608--01 ~ 9706--01; VG33E.SEV.AT |
11330-1W400 |
US $184.32 |
||
|
11375
|
11375
11375-1W400 Damper Assy-Dynamic9608--01 ~ 9706--01; VG33E.SEV.AT |
11375-1W400 |
US $114.34 |
||
|
11510AA
|
11510AA
0112503041 BOLT9509--01 ~ 9706--01; VG33E.SEV.AT |
0112503041 |
US $3.46 |
||
|
11510AA
|
11510AA
0112503041 BOLT9509--01 ~ 9706--01; VG33E.SEV.AT |
0112503041 |
US $3.46 |
||
|
11510B
|
11510B
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11510B
|
11510B
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11510B
|
11510B
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11510B
|
11510B
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11510BA
|
11510BA
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11510BA
|
11510BA
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11520A
|
11520A
11298-0W000 Bolt9509--01 ~ 9706--01; VG33E.SEV.AT |
11298-0W000 |
US $3.46 |
||
|
11520A
|
11520A
11393-0W000 Bolt9509--01 ~ 9706--01; VG33E.SEV.AT |
11393-0W000 |
US $3.46 |
||
|
11520AA
|
11520AA
11393-0W000 Bolt9509--01 ~ 9706--01; VG33E.SEV.AT |
11393-0W000 |
US $3.46 |
||
|
11520B
|
11520B
0122500202 NUT9509--01 ~ 9706--01; VG33E.SEV.AT |
0122500202 |
US $1.93 |
||
|
11520B
|
11520B
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11520B
|
11520B
11258D0101 Nut9608--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11520BA
|
11520BA
11258D0101 Nut9509--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
|
11520BB
|
11520BB
11258D0101 Nut9608--01 ~ 9706--01; VG33E.SEV.AT |
11258D0101 |
from US $2.41 |
||
