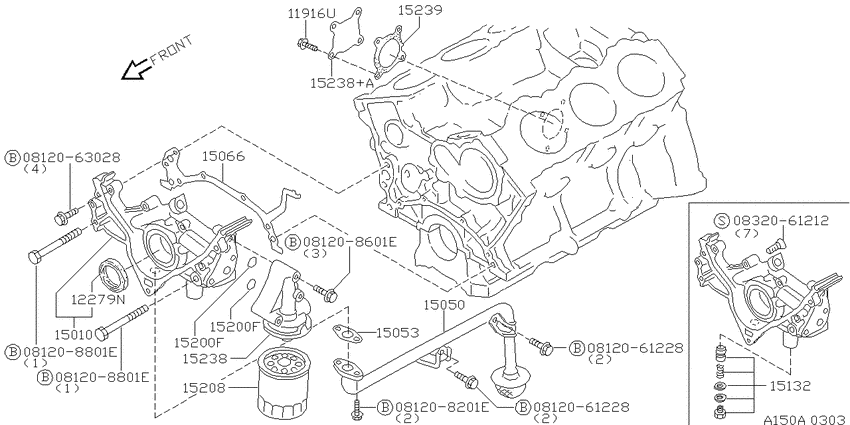

Lubricating system (1995-09-01 ~ 1997-06-01; VG33E) Diagram Nissan TERRANO
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- VG33E
- drive
- 4WD
- transmission
- AT
- grade
- SEV
- body
- W
- standart/wide body
- RB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812063028
|
0812063028
08120-63028
Bolt-hexagon
|
08120-63028 |
— | ||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208601E
|
081208601E
08120-8601E
Bolt-hexagon
|
08120-8601E |
— | ||
|
081208801E
|
081208801E
08120-8801E
Bolt-hexagon
|
08120-8801E |
— | ||
|
081208801E
|
081208801E
08120-8801E
Bolt-hexagon
|
08120-8801E |
— | ||
|
0832061212
|
0832061212
08320-61212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-61212 |
— | ||
|
11916U
|
11916U
11916-0B000 Bolt-Engine Slinger9509--01 ~ 9706--01; VG33E |
11916-0B000 |
US $3.46 |
||
|
12279N
|
12279N
13510-10Y00
Seal-Oil, Camshaft
9509--01 ~ 9706--01; VG33E; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼｮｳｶ |
13510-10Y00 |
— | ||
| replacement | |||||
|
12279N
|
12279N
1351010Y10 Seal-Oil, Crankshaft Front9509--01 ~ 9706--01; VG33E; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼｮｳｶ |
1351010Y10 |
US $6.51 |
||
|
12279N
|
12279N
1351010Y10 Seal-Oil, Crankshaft Front9509--01 ~ 9706--01; VG33E; NDK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1351010Y10 |
US $6.51 |
||
|
15010
|
15010
15010-0W001 Pump Assy-Oil9509--01 ~ 9706--01; VG33E |
15010-0W001 |
US $280.80 |
||
|
15050
|
15050
15050-0W000 Strainer Assy-Oil9509--01 ~ 9706--01; VG33E |
15050-0W000 |
US $65.98 |
||
|
15053
|
15053
150531E400 Gasket-Oil Strainer9509--01 ~ 9706--01; VG33E |
150531E400 |
from US $1.65 |
||
|
15066
|
15066
15066-0W000 Gasket-Oil Pump To Cylinder Block9509--01 ~ 9706--01; VG33E |
15066-0W000 |
US $4.18 |
||
|
15132
|
15132
15132-V5001 Valve Assy-Oil Regulator9509--01 ~ 9706--01; VG33E |
15132-V5001 |
US $7.35 |
||
|
15200F
|
15200F
15066-77A00
Seal-O Ring
9509--01 ~ 9706--01; VG33E |
15066-77A00 |
— | ||
| replacement | |||||
|
15200F
|
15200F
150664J600 Seal-O Ring9509--01 ~ 9706--01; VG33E |
150664J600 |
US $6.51 |
||
|
15200F
|
15200F
15066-77A00
Seal-O Ring
9509--01 ~ 9706--01; VG33E |
15066-77A00 |
— | ||
| replacement | |||||
|
15200F
|
15200F
150664J600 Seal-O Ring9509--01 ~ 9706--01; VG33E |
150664J600 |
US $6.51 |
||
|
15208
|
15208
AY100NS006 Filter Assy-Oil9509--01 ~ 9706--01; VG33E |
AY100NS006 |
US $12.09 |
||
|
15238
|
15238
15238-0W001 Bracket-Oil Filter9509--01 ~ 9706--01; VG33E |
15238-0W001 |
US $95.18 |
||
|
15238
|
15238
15238-0B010 Bracket-Oil Filter9509--01 ~ 9706--01; VG33E |
15238-0B010 |
US $91.01 |
||
|
15238+A
|
15238+A
15238-0B010 Bracket-Oil Filter9509--01 ~ 9706--01; VG33E |
15238-0B010 |
US $91.01 |
||
|
15239
|
15239
15239-0W000 Gasket-Oil Filter To Cylinder Block9605--01 ~ 9706--01; VG33E |
15239-0W000 |
US $5.18 |
||
|
15239
|
15239
1523989E00 GASKET-OIL FILTER TO CYLINDER BLOCK9509--01 ~ 9605--01; VG33E |
1523989E00 |
US $5.04 |
||
