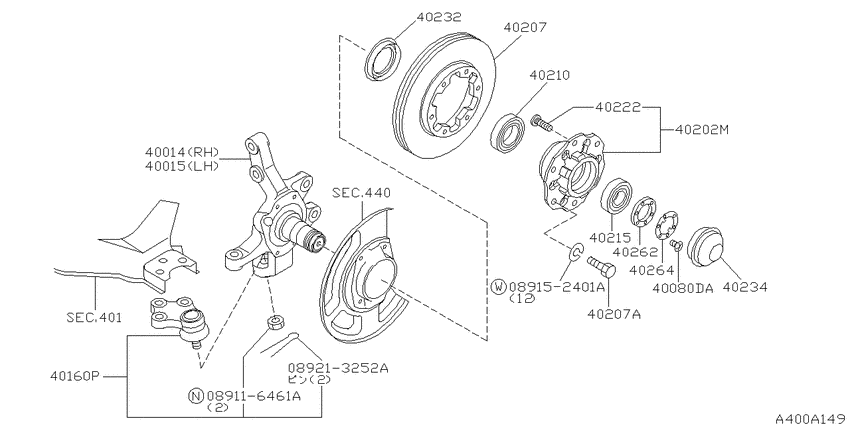

Front axle (1999-02-01 ~ 2001-10-01; 2WD.VG33E) Diagram Nissan TERRANO
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- VG33E
- drive
- 2WD
- transmission
- AT
- grade
- XE
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089116461A
|
089116461A
08911-6461A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6461A |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
40014
|
40014
40014-1W012 Spindle-Knuckle, Rh9902--01 ~ 9909--01; WB.2WD.VG33E |
40014-1W012 |
US $286.03 |
||
|
40015
|
40015
40015-1W012 Spindle-Knuckle, Lh9902--01 ~ 9909--01; WB.2WD.VG33E |
40015-1W012 |
US $286.03 |
||
|
40080DA
|
40080DA
0141400051 SCREW9902--01 ~ 9909--01; WB.2WD.VG33E |
0141400051 |
from US $0.67 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
40160P
|
40160P
40160-0W025
Joint Assy-Ball, Lower
9902--01 ~ 9909--01; WB.2WD.VG33E |
40160-0W025 |
— | ||
| replacement | |||||
|
40160P
|
40160P
D01600W025 JOINT ASSY9902--01 ~ 9909--01; WB.2WD.VG33E |
D01600W025 |
from US $68.76 |
||
|
40202M
|
40202M
40202-1W093 Hub Assy-Road Wheel, Front9902--01 ~ 9909--01; WB.2WD.VG33E |
40202-1W093 |
US $512.82 |
||
|
40202M
|
40202M
402021W094 Hub Assy-Road Wheel, Front9909--01 ~ 0110--01; 2WD.VG33E |
402021W094 |
US $606.05 |
||
|
40207
|
40207
40206-1W600 Rotor-Disc Brake, Front9902--01 ~ 9909--01; WB.2WD.VG33E |
40206-1W600 |
US $165.60 |
||
|
40207
|
40207
0112500411 BOLT-ROTOR9902--01 ~ 9909--01; WB.2WD.VG33E |
0112500411 |
from US $0.98 |
||
|
40207A
|
40207A
0112500411 BOLT-ROTOR9902--01 ~ 9909--01; WB.2WD.VG33E |
0112500411 |
from US $0.98 |
||
|
40210
|
40210
402102S600 Bearing Assy-Front Wheel9902--01 ~ 9909--01; WB.2WD.VG33E |
402102S600 |
US $43.98 |
||
|
40215
|
40215
402152S600 Bearing Assy-Front Wheel9902--01 ~ 9909--01; WB.2WD.VG33E |
402152S600 |
US $33.92 |
||
|
40222
|
40222
4022222001 Bolt-Hub9902--01 ~ 9909--01; WB.2WD.VG33E |
4022222001 |
from US $1.31 |
||
|
40232
|
40232
4023231G00 Seal-Grease, Front Hub9902--01 ~ 9909--01; WB.2WD.VG33E |
4023231G00 |
from US $8.11 |
||
|
40234
|
40234
40234-79G00 Cap-Hub, Front Wheel9902--01 ~ 9909--01; WB.2WD.VG33E |
40234-79G00 |
US $10.80 |
||
| replacement | |||||
|
40234
|
40234
4023479G6C Cap-Hub, Front Wheel9902--01 ~ 9909--01; WB.2WD.VG33E |
4023479G6C |
US $10.80 |
||
|
40262
|
40262
4026292G00 Nut-Lock, Front Wheel Bearing9902--01 ~ 9909--01; WB.2WD.VG33E |
4026292G00 |
from US $11.82 |
||
|
40264
|
40264
4026492G00 Washer-Front Wheel Bearing9902--01 ~ 9909--01; WB.2WD.VG33E |
4026492G00 |
from US $6.94 |
||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
