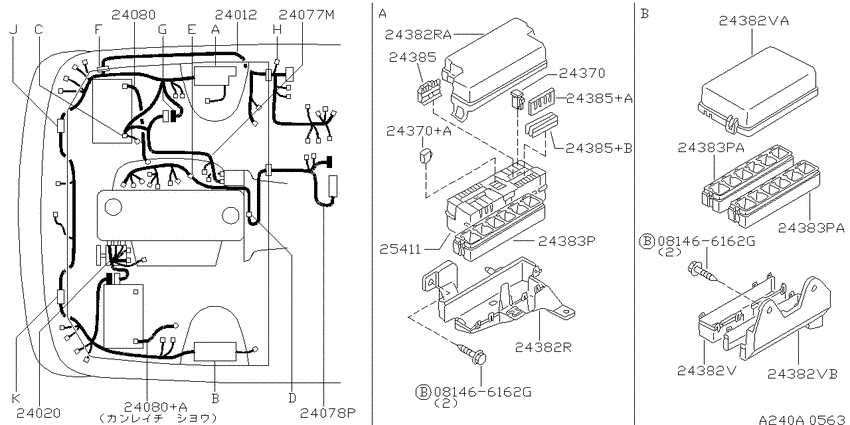

Wiring (1997-06-01 ~ 1999-02-01; エンジン ルーム; W.TD27TI) Diagram Nissan TERRANO
- Year
- 1995 - 1999
- Sales region
- Japan
- Engine
- TD27TI
- drive
- 4WD
- transmission
- AT
- grade
- SEV
- body
- W
- standart/wide body
- RB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
24012
|
24012
24012-0W710 Harness Assy-Engine Room9509--01 ~ 9608--01; *W.TD27TI.SEV.AT +*W.TD27TI.SE; ﾚｽ ｵﾌﾟｼﾖﾝ ｼﾖｳ |
24012-0W710 |
US $1,442 |
||
|
24012
|
24012
24012-0W712 Harness Assy-Engine Room9509--01 ~ 9608--01; *W.TD27TI.SEV.AT +*W.TD27TI.SE; ｱｼﾞﾔｽﾀﾌﾞﾙ ｼﾖﾂｸ ﾂｷ |
24012-0W712 |
US $1,442 |
||
|
24012
|
24012
24012-0W713 Harness Assy-Engine Room9509--01 ~ 9608--01; #*W.TD27TI.SEV.AT *+W.TD27TI.(SE+LE); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24012-0W713 |
US $1,442 |
||
|
24012
|
24012
24012-1W510 Harness Assy-Engine Room9608--01 ~ 9706--01; W.TD27TI.SEV.AT +W.TD27TI.SE |
24012-1W510 |
US $1,442 |
||
|
24012
|
24012
24012-1W512 Harness Assy-Engine Room9608--01 ~ 9706--01; *W.TD27TI.SEV.AT; ｷ-ﾚｽ ｴﾝﾄﾘ- ｼﾖｳ |
24012-1W512 |
US $1,442 |
||
|
24012
|
24012
24012-1W513 Harness Assy-Engine Room9608--01 ~ 9706--01; *W.TD27TI.SEV.AT +*W.TD27TI.SE; ｱﾝﾁｽｷﾂﾄﾞ+ｴｱﾊﾞﾂｸﾞ ｼﾖｳ |
24012-1W513 |
US $1,442 |
||
|
24012
|
24012
24012-1W514 Harness Assy-Engine Room9608--01 ~ 9706--01; *W.TD27TI.SEV.AT +*W.TD27TI.SE; ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ ｼﾖｳ |
24012-1W514 |
US $1,442 |
||
|
24012
|
24012
24012-1W515 Harness Assy-Engine Room9608--01 ~ 9706--01; *W.TD27TI.SEV.AT +*W.TD27TI.SE; $ｱｼﾞﾔｽﾀﾌﾞﾙ ｼﾖﾂｸｼﾖｳ+ ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ ｼﾖｳ |
24012-1W515 |
US $1,442 |
||
|
24012
|
24012
24012-1W516 Harness Assy-Engine Room9608--01 ~ 9706--01; #*W.TD27TI.SEV.AT +*W.TD27TI.(SE+LE); ABS+ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ |
24012-1W516 |
US $1,442 |
||
|
24012
|
24012
24012-1W704 Harness Assy-Engine Room9706--01 ~ 9902--01; W.SEV.AT |
24012-1W704 |
US $1,442 |
||
|
24012
|
24012
24012-1W705 Harness Assy-Engine Room9706--01 ~ 9902--01; *W.SEV.AT; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24012-1W705 |
US $1,442 |
||
|
24012
|
24012
24012-1W706 Harness Assy-Engine Room9706--01 ~ 9902--01; *W.TD27TI.SE +*W.SEV.AT; ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ ｼﾖｳ |
24012-1W706 |
US $1,442 |
||
|
24012
|
24012
24012-1W707 Harness Assy-Engine Room9706--01 ~ 9902--01; *W.TD27TI.SE +*W.SEV.AT; ｱﾝﾁｽｷﾂﾄﾞ+ｷｾﾉﾝﾗﾝﾌﾟｼﾖｳ |
24012-1W707 |
US $1,442 |
||
|
24012
|
24012
0145600031 SCREW9509--01 ~ 9608--01; W.TD27TI; ｴﾝｼﾞﾝﾙ-ﾑ |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
0145600031 SCREW9608--01 ~ 9706--01; W.TD27TI |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
0145600411 SCREW9509--01 ~ 9608--01; W.TD27TI; ﾊﾞﾂﾃﾘ-ｹ-ﾌﾞﾙ |
0145600411 |
US $1.67 |
||
|
24012
|
24012
01281-00601
GROMMET-SCREW
9509--01 ~ 9608--01; W.TD27TI |
01281-00601 |
— | ||
| replacement | |||||
|
24012
|
24012
0128101231 GROMMET-SCREW9509--01 ~ 9608--01; W.TD27TI |
0128101231 |
from US $2.24 |
||
|
24020
|
24020
24076-0W700 Harness Assy-Alternator9509--01 ~ 9608--01; W.TD27TI |
24076-0W700 |
US $78.48 |
||
|
24020
|
24020
24076-0W701 Harness Assy-Alternator9509--01 ~ 9608--01; *W.TD27TI; ｶﾝﾚｲﾁ ｼﾖｳ |
24076-0W701 |
US $78.48 |
||
|
24077M
|
24077M
24077-0W700 Harness Assy-Engine9509--01 ~ 9608--01; W.TD27TI |
24077-0W700 |
US $233.28 |
||
|
24077M
|
24077M
24077-0W701 Harness Assy-Engine9509--01 ~ 9608--01; *W.TD27TI; ｶﾝﾚｲﾁ ｼﾖｳ |
24077-0W701 |
US $233.28 |
||
|
24077M
|
24077M
24077-1W701 Harness Assy-Engine9712--01 ~ 9902--01; *W.TD27TI; ｶﾝﾚｲﾁ ｼﾖｳ |
24077-1W701 |
US $233.28 |
||
|
24078P
|
24078P
24078-0W710 Harness-Engine Control9509--01 ~ 9608--01; !W.TD27TI.SEV.AT +W.TD27TI.(SE+LE) |
24078-0W710 |
US $873.67 |
||
|
24078P
|
24078P
24078-1W410 Harness-Engine Control9608--01 ~ 9706--01; !W.TD27TI.SEV.AT +W.TD27TI.(SE+LE) |
24078-1W410 |
US $726.41 |
||
|
24080
|
24080
240800W700 Cable Assy-Battery Earth9509--01 ~ 9608--01; W.TD27TI |
240800W700 |
US $69.84 |
||
|
24080
|
24080
24080-1W500 Cable Assy-Battery Earth9608--01 ~ 9706--01; W.TD27TI |
24080-1W500 |
US $64.66 |
||
|
24080
|
24080
24080-0W701 Cable Assy-Battery Earth9509--01 ~ 9608--01; *W.TD27TI; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-0W701 |
US $69.84 |
||
|
24080
|
24080
24080-1W501 Cable Assy-Battery Earth9608--01 ~ 9706--01; *W.TD27TI; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-1W501 |
US $64.66 |
||
|
24080+A
|
24080+A
24080-0W701 Cable Assy-Battery Earth9509--01 ~ 9608--01; *W.TD27TI; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-0W701 |
US $69.84 |
||
|
24080+A
|
24080+A
24080-1W501 Cable Assy-Battery Earth9608--01 ~ 9706--01; *W.TD27TI; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-1W501 |
US $64.66 |
||
|
24370
|
24370
24370-C9920 Connector Assy-Fusible Link9509--01 ~ 9608--01; W.TD27TI; 40A |
24370-C9920 |
US $13.10 |
||
|
24370
|
24370
24370C9980 Connector Assy-Fusible Link9509--01 ~ 9706--01; W.TD27TI; 80A |
24370C9980 |
from US $14.29 |
||
|
24370
|
24370
24370-79907
ｺﾈｸﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾋﾕ-ｼﾞﾌﾞﾙ ﾘﾝｸ
9706--01 ~ 9902--01; W.TD27TI; 100A |
24370-79907 |
— | ||
|
24370
|
24370
2437079910 Connector Assy-Fusible Link9509--01 ~ 9706--01; W.TD27TI; 100A |
2437079910 |
from US $13.10 |
||
|
24370+A
|
24370+A
24370-79907
ｺﾈｸﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾋﾕ-ｼﾞﾌﾞﾙ ﾘﾝｸ
9706--01 ~ 9902--01; W.TD27TI; 100A |
24370-79907 |
— | ||
|
24370+A
|
24370+A
2437079910 Connector Assy-Fusible Link9509--01 ~ 9706--01; W.TD27TI; 100A |
2437079910 |
from US $13.10 |
||
|
24382R
|
24382R
24382-0W800 Cover-Fusible Link Holder9509--01 ~ 9706--01; W.TD27TI |
24382-0W800 |
US $14.54 |
||
|
24382R
|
24382R
24382-0W001
Cover-Fusible Link Holder
9509--01 ~ 9706--01; W.TD27TI |
24382-0W001 |
— | ||
|
24382RA
|
24382RA
24382-0W001
Cover-Fusible Link Holder
9509--01 ~ 9706--01; W.TD27TI |
24382-0W001 |
— | ||
|
24382V
|
24382V
24382-0W015 Cover-Relay Box9509--01 ~ 9706--01; W.TD27TI |
24382-0W015 |
US $27.22 |
||
|
24382V
|
24382V
24382-1W510 Cover-Relay Box9608--01 ~ 9706--01; *W.TD27TI; ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ ｼﾖｳ |
24382-1W510 |
US $27.07 |
||
|
24382V
|
24382V
24382-0W012 Cover-Relay Box9509--01 ~ 9608--01; W.TD27TI |
24382-0W012 |
US $27.07 |
||
|
24382V
|
24382V
24382-1W500 Cover-Relay Box9608--01 ~ 9706--01; *W.TD27TI; ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ ｼﾖｳ |
24382-1W500 |
US $22.75 |
||
|
24382V
|
24382V
24382-1W512 Cover-Relay Box9608--01 ~ 9706--01; W.TD27TI |
24382-1W512 |
US $24.91 |
||
|
24382V
|
24382V
24382-0W010 Cover-Relay Box9509--01 ~ 9608--01; W.TD27TI |
24382-0W010 |
US $27.22 |
||
|
24382VA
|
24382VA
24382-0W012 Cover-Relay Box9509--01 ~ 9608--01; W.TD27TI |
24382-0W012 |
US $27.07 |
||
|
24382VA
|
24382VA
24382-1W500 Cover-Relay Box9608--01 ~ 9706--01; *W.TD27TI; ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ ｼﾖｳ |
24382-1W500 |
US $22.75 |
||
|
24382VA
|
24382VA
24382-1W512 Cover-Relay Box9608--01 ~ 9706--01; W.TD27TI |
24382-1W512 |
US $24.91 |
||
|
24382VB
|
24382VB
24382-0W010 Cover-Relay Box9509--01 ~ 9608--01; W.TD27TI |
24382-0W010 |
US $27.22 |
||
|
24383P
|
24383P
24383-0W000 Housing-Relay Box9509--01 ~ 9608--01; W.TD27TI |
24383-0W000 |
US $12.96 |
||
|
24383P
|
24383P
24383-51E01 HOUSING-RELAY BOX9706--01 ~ 9902--01; W.TD27TI |
24383-51E01 |
US $13.39 |
||
|
24383P
|
24383P
24383-51E01 HOUSING-RELAY BOX9509--01 ~ 9706--01; W.TD27TI |
24383-51E01 |
US $13.39 |
||
|
24383PA
|
24383PA
24383-51E01 HOUSING-RELAY BOX9509--01 ~ 9706--01; W.TD27TI |
24383-51E01 |
US $13.39 |
||
|
24383PA
|
24383PA
24383-51E01 HOUSING-RELAY BOX9509--01 ~ 9706--01; W.TD27TI |
24383-51E01 |
US $13.39 |
||
|
24385
|
24385
24385-3J100 Retainer-Fusible Link Holder9608--01 ~ 9706--01; W.TD27TI |
24385-3J100 |
US $4.18 |
||
|
24385
|
24385
24385-31U05 Retainer-Fusible Link Holder9608--01 ~ 9706--01; W.TD27TI |
24385-31U05 |
US $5.04 |
||
|
24385
|
24385
24385-8E005 RETAINER-FUSIBLE LINK HOLDER9706--01 ~ 9902--01; W.TD27TI |
24385-8E005 |
US $4.18 |
||
|
24385
|
24385
24385-31U10 Retainer-Fusible Link Holder9608--01 ~ 9706--01; W.TD27TI |
24385-31U10 |
US $5.04 |
||
|
24385+A
|
24385+A
24385-31U05 Retainer-Fusible Link Holder9608--01 ~ 9706--01; W.TD27TI |
24385-31U05 |
US $5.04 |
||
|
24385+A
|
24385+A
24385-8E005 RETAINER-FUSIBLE LINK HOLDER9706--01 ~ 9902--01; W.TD27TI |
24385-8E005 |
US $4.18 |
||
|
24385+B
|
24385+B
24385-31U10 Retainer-Fusible Link Holder9608--01 ~ 9706--01; W.TD27TI |
24385-31U10 |
US $5.04 |
||
|
25411
|
25411
24380-3J100 Holder-Fusible Link9608--01 ~ 9706--01; W.TD27TI |
24380-3J100 |
US $48.67 |
||
|
25411
|
25411
24380-8E000 HOLDER-FUSIBLE LINK9509--01 ~ 9608--01; W.TD27TI |
24380-8E000 |
US $40.32 |
||
