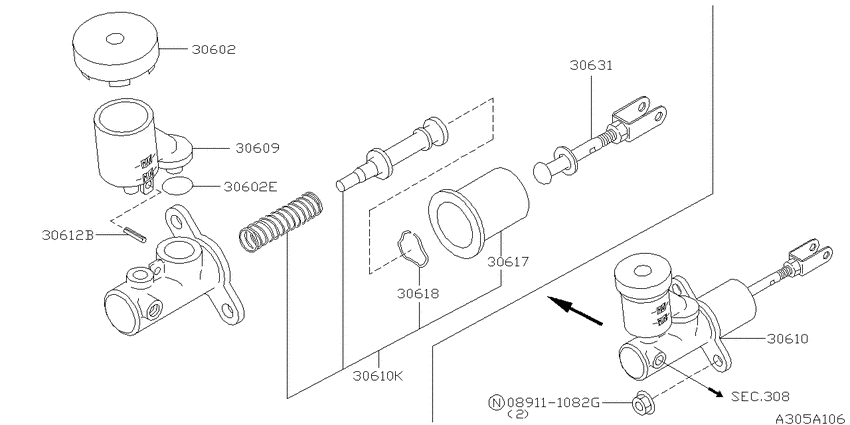

Clutch master cylinder (1995-09-01 ~ 1999-02-01; TD27TI.MT) Diagram Nissan TERRANO
- Year
- 1995 - 1999
- Sales region
- Japan
- Engine
- TD27TI
- drive
- 4WD
- transmission
- MT
- grade
- SEV
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
30602
|
30602
460203S501 Cap Assy-Reservoir9608--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
460203S501 |
from US $11.79 |
||
|
30602
|
30602
46020N6000 Cap Assy-Reservoir9509--01 ~ 9608--01; TD27TI.MT; ﾅﾌﾞｺ |
46020N6000 |
US $11.51 |
||
|
30602
|
30602
3064421U00 Seal-O Ring, Reservoir Cap9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
3064421U00 |
US $2.91 |
||
|
30602E
|
30602E
3064421U00 Seal-O Ring, Reservoir Cap9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
3064421U00 |
US $2.91 |
||
|
30609
|
30609
30617-21U00 Reservoir-Oil, Clutch9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
30617-21U00 |
US $11.51 |
||
|
30610
|
30610
30610-0W050 Cylinder Assy-Clutch Master9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ 15.87(5/8) |
30610-0W050 |
US $233.28 |
||
| replacement | |||||
|
30610
|
30610
30610-0W001
Cylinder Assy-Clutch Master
9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ 15.87(5/8) |
30610-0W001 |
— | ||
|
30610
|
30610
30611-21U25
Piston Kit-Clutch Master Cylinder
9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ 15.87(5/8) |
30611-21U25 |
— | ||
| replacement | |||||
|
30610
|
30610
30611AA025 Piston Kit-Clutch Master Cylinder9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ 15.87(5/8) |
30611AA025 |
from US $18.72 |
||
|
30610K
|
30610K
30611-21U25
Piston Kit-Clutch Master Cylinder
9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ 15.87(5/8) |
30611-21U25 |
— | ||
| replacement | |||||
|
30610K
|
30610K
30611AA025 Piston Kit-Clutch Master Cylinder9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ 15.87(5/8) |
30611AA025 |
from US $18.72 |
||
|
30612B
|
30612B
30655-21U00 Cap9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
30655-21U00 |
US $4.18 |
||
|
30617
|
30617
30618-15R00 Cover-Dust9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
30618-15R00 |
US $5.90 |
||
|
30618
|
30618
4607027260 Ring-Stopper9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
4607027260 |
US $1.58 |
||
|
30631
|
30631
30631-0W000 Rod Assy-Push9509--01 ~ 9902--01; TD27TI.MT; ﾅﾌﾞｺ |
30631-0W000 |
US $14.54 |
||
|
