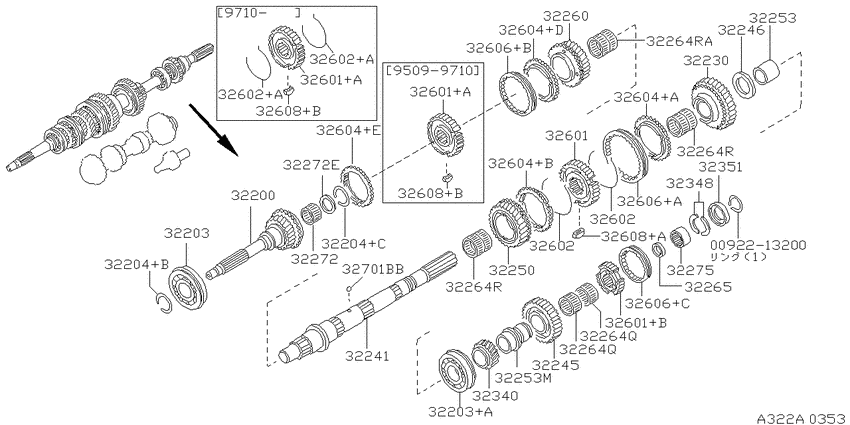

Transmission gear (1995-09-01 ~ 1999-02-01; メイン ギヤ(FS5R30A); MT) Diagram Nissan TERRANO
- Year
- 1995 - 1999
- Sales region
- Japan
- Engine
- TD27TI
- drive
- 4WD
- transmission
- MT
- grade
- SEV
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092213200
|
0092213200
00922-13200 RING SNAP |
00922-13200 |
US $4.85 |
||
|
32200
|
32200
32201-0W100 Gear Assy-Main Drive9509--01 ~ 9710--01; MT |
32201-0W100 |
US $148.32 |
||
|
32200
|
32200
32201-0W120 Gear Assy-Main Drive9710--01 ~ 9902--01; MT |
32201-0W120 |
US $148.32 |
||
|
32203
|
32203
32203-C8006 Bearing-Main Drive9509--01 ~ 9604--01; MT |
32203-C8006 |
US $45.79 |
||
|
32203
|
32203
32203C8017 Bearing-Main Drive9604--01 ~ 9902--01; MT |
32203C8017 |
US $37.23 |
||
|
32203
|
32203
32203-C8006 Bearing-Main Drive9509--01 ~ 9604--01; MT |
32203-C8006 |
US $45.79 |
||
|
32203
|
32203
32203C8017 Bearing-Main Drive9604--01 ~ 9902--01; MT |
32203C8017 |
US $37.23 |
||
|
32203+A
|
32203+A
32203-C8006 Bearing-Main Drive9509--01 ~ 9604--01; MT |
32203-C8006 |
US $45.79 |
||
|
32203+A
|
32203+A
32203C8017 Bearing-Main Drive9604--01 ~ 9902--01; MT |
32203C8017 |
US $37.23 |
||
|
32204+B
|
32204+B
32204-01G60 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=1.89 |
32204-01G60 |
from US $4.85 |
||
|
32204+B
|
32204+B
32204-01G61 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=1.95 |
32204-01G61 |
US $4.85 |
||
|
32204+B
|
32204+B
32204-01G62 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=1.99 |
32204-01G62 |
US $4.85 |
||
|
32204+B
|
32204+B
32204-01G63 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.03 |
32204-01G63 |
US $4.85 |
||
|
32204+B
|
32204+B
32204-01G64 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.07 |
32204-01G64 |
US $4.85 |
||
|
32204+B
|
32204+B
32204-01G65 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.11 |
32204-01G65 |
US $4.85 |
||
|
32204+C
|
32204+C
32204-01G62 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=1.99 |
32204-01G62 |
US $4.85 |
||
|
32204+C
|
32204+C
32204-01G63 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.03 |
32204-01G63 |
US $4.85 |
||
|
32204+C
|
32204+C
32204-01G64 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.07 |
32204-01G64 |
US $4.85 |
||
|
32204+C
|
32204+C
32204-01G65 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.11 |
32204-01G65 |
US $4.85 |
||
|
32204+C
|
32204+C
32204-01G66 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.15 |
32204-01G66 |
US $4.85 |
||
|
32204+C
|
32204+C
32204-01G67 Ring-Snap9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.19 |
32204-01G67 |
US $4.85 |
||
|
32230
|
32230
32230-05U06
Gear Assy-1St
9509--01 ~ 9804--01; MT |
32230-05U06 |
— | ||
| replacements | |||||
|
32230
|
32230
32230-05U60 Gear Assy-1St9509--01 ~ 9804--01; MT |
32230-05U60 |
US $162.17 |
||
|
32230
|
32230
32212-AA304 Gear-Counter9509--01 ~ 9804--01; MT |
32212-AA304 |
US $253.67 |
||
|
32230
|
32230
32230-05U60 Gear Assy-1St9804--01 ~ 9902--01; MT |
32230-05U60 |
US $162.17 |
||
|
32241
|
32241
32241-31G60 Shaft-Main9509--01 ~ 9902--01; MT |
32241-31G60 |
US $291.70 |
||
|
32245
|
32245
32245-30P20
Gear-Reverse, Main Shaft
9509--01 ~ 9705--01; MT |
32245-30P20 |
— | ||
|
32245
|
32245
32245-30P60 Gear-Reverse, Main Shaft9705--01 ~ 9902--01; MT |
32245-30P60 |
US $129.59 |
||
|
32246
|
32246
32246-01G00 Washer-Thrust9509--01 ~ 9705--01; MT |
32246-01G00 |
US $10.95 |
||
|
32246
|
32246
32246-0W000 Washer-Thrust9705--01 ~ 9902--01; MT |
32246-0W000 |
US $10.95 |
||
|
32250
|
32250
32251-30P04
Gear Assy-2Nd
9509--01 ~ 9710--01; MT |
32251-30P04 |
— | ||
| replacements | |||||
|
32250
|
32250
32251-30P14 Gear Assy-2Nd9509--01 ~ 9710--01; MT |
32251-30P14 |
US $114.07 |
||
|
32250
|
32250
32606-30P1A Sleeve-Coupling9509--01 ~ 9710--01; MT |
32606-30P1A |
from US $65.98 |
||
|
32250
|
32250
32604-30P60 Ring-Baulk9509--01 ~ 9710--01; MT |
32604-30P60 |
from US $46.85 |
||
|
32250
|
32250
32251-30P14 Gear Assy-2Nd9710--01 ~ 9902--01; MT |
32251-30P14 |
US $114.07 |
||
|
32253
|
32253
3225301G01 Bush-1St Gear9509--01 ~ 9902--01; MT |
3225301G01 |
US $13.54 |
||
|
32253
|
32253
32247-01G00 Bush-Main Shaft Reverse Gear9509--01 ~ 9902--01; MT |
32247-01G00 |
US $71.57 |
||
|
32253M
|
32253M
32247-01G00 Bush-Main Shaft Reverse Gear9509--01 ~ 9902--01; MT |
32247-01G00 |
US $71.57 |
||
|
32260
|
32260
32261-05U04 Gear Assy-3Rd9509--01 ~ 9710--01; MT |
32261-05U04 |
US $118.51 |
||
|
32260
|
32260
32261-05U14 Gear Assy-3Rd9710--01 ~ 9902--01; MT |
32261-05U14 |
US $118.51 |
||
|
32264Q
|
32264Q
3224801G00 Bearing-Needle9509--01 ~ 9902--01; MT |
3224801G00 |
from US $6.97 |
||
|
32264Q
|
32264Q
3224801G00 Bearing-Needle9509--01 ~ 9902--01; MT |
3224801G00 |
from US $6.97 |
||
|
32264R
|
32264R
3226401G00 Bearing-Needle, Main Shaft9509--01 ~ 9902--01; MT; 1ST & 2ND |
3226401G00 |
US $16.99 |
||
|
32264R
|
32264R
32264-21P00
Bearing-Needle, Main Shaft
9509--01 ~ 9902--01; MT; 3RD |
32264-21P00 |
— | ||
| replacement | |||||
|
32264R
|
32264R
32264-21P0A Bearing-Needle, Main Shaft9509--01 ~ 9902--01; MT; 3RD |
32264-21P0A |
from US $12.91 |
||
|
32264R
|
32264R
3226401G00 Bearing-Needle, Main Shaft9509--01 ~ 9902--01; MT; 1ST & 2ND |
3226401G00 |
US $16.99 |
||
|
32264R
|
32264R
32264-21P00
Bearing-Needle, Main Shaft
9509--01 ~ 9902--01; MT; 3RD |
32264-21P00 |
— | ||
| replacement | |||||
|
32264R
|
32264R
32264-21P0A Bearing-Needle, Main Shaft9509--01 ~ 9902--01; MT; 3RD |
32264-21P0A |
from US $12.91 |
||
|
32264RA
|
32264RA
32264-21P00
Bearing-Needle, Main Shaft
9509--01 ~ 9902--01; MT; 3RD |
32264-21P00 |
— | ||
| replacement | |||||
|
32264RA
|
32264RA
32264-21P0A Bearing-Needle, Main Shaft9509--01 ~ 9902--01; MT; 3RD |
32264-21P0A |
from US $12.91 |
||
|
32265
|
32265
32620-01G00 Spacer-Main Shaft9509--01 ~ 9902--01; MT; ﾘﾊﾞｰｽ |
32620-01G00 |
US $7.20 |
||
|
32272
|
32272
32272-01G00 Bearing-Pilot, Main9509--01 ~ 9902--01; MT |
32272-01G00 |
from US $7.05 |
||
|
32272
|
32272
322210W000 Spacer-Pilot Bearing9702--01 ~ 9902--01; MT |
322210W000 |
US $4.18 |
||
|
32272
|
32272
32275-01G00 Spacer-Pilot Bearing9509--01 ~ 9702--01; MT |
32275-01G00 |
US $4.03 |
||
|
32272E
|
32272E
322210W000 Spacer-Pilot Bearing9702--01 ~ 9902--01; MT |
322210W000 |
US $4.18 |
||
|
32272E
|
32272E
32275-01G00 Spacer-Pilot Bearing9509--01 ~ 9702--01; MT |
32275-01G00 |
US $4.03 |
||
|
32275
|
32275
3220331G00 Bearing-Main Shaft9509--01 ~ 9902--01; MT |
3220331G00 |
from US $10.39 |
||
|
32340
|
32340
32341-30P04 Gear Assy-Overdrive9509--01 ~ 9902--01; MT |
32341-30P04 |
US $185.75 |
||
|
32348
|
32348
32348-01G00 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.70 |
32348-01G00 |
US $5.42 |
||
|
32348
|
32348
32348-01G01 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.77 |
32348-01G01 |
US $5.96 |
||
|
32348
|
32348
32348-01G02 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.84 |
32348-01G02 |
US $5.96 |
||
|
32348
|
32348
32348-01G03 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.91 |
32348-01G03 |
US $5.96 |
||
|
32348
|
32348
32348-01G04 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.98 |
32348-01G04 |
US $5.96 |
||
|
32348
|
32348
32348-01G05 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.05 |
32348-01G05 |
US $5.96 |
||
|
32348
|
32348
3234801G06 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.12 |
3234801G06 |
US $5.96 |
||
|
32348
|
32348
32348-01G07 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.19 |
32348-01G07 |
US $5.96 |
||
|
32348
|
32348
3234801G08 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.26 |
3234801G08 |
US $5.96 |
||
|
32348
|
32348
32348-01G09 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.33 |
32348-01G09 |
US $5.96 |
||
|
32348
|
32348
3234801G10 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.40 |
3234801G10 |
US $5.96 |
||
|
32348
|
32348
3234801G11 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.47 |
3234801G11 |
from US $4.35 |
||
|
32348
|
32348
32348-01G12 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.54 |
32348-01G12 |
US $5.96 |
||
|
32348
|
32348
32348-01G13 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.61 |
32348-01G13 |
US $5.96 |
||
|
32348
|
32348
32348-01G14 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=3.68 |
32348-01G14 |
US $5.96 |
||
|
32348
|
32348
32348-01G15 Ring-C, Main Shaft9509--01 ~ 9902--01; MT; ｾﾝﾀｸ T=2.63 |
32348-01G15 |
US $5.96 |
||
|
32351
|
32351
32350-21U00 Holder-C Ring9704--01 ~ 9902--01; MT |
32350-21U00 |
US $7.06 |
||
|
32351
|
32351
32351-01G00 Holder-C Ring9509--01 ~ 9704--01; MT |
32351-01G00 |
US $6.91 |
||
|
32601
|
32601
3260130P00 Hub-Synchronizer9509--01 ~ 9902--01; MT; 1ST & 2ND |
3260130P00 |
US $54.89 |
||
|
32601
|
32601
32605-30P01
Hub-Synchronizer
9509--01 ~ 9710--01; MT; 3RD & 4TH |
32605-30P01 |
— | ||
| replacement | |||||
|
32601
|
32601
32605-30P11 Hub-Synchronizer9509--01 ~ 9710--01; MT; 3RD & 4TH |
32605-30P11 |
from US $71.52 |
||
|
32601
|
32601
32605-30P11 Hub-Synchronizer9710--01 ~ 9902--01; MT |
32605-30P11 |
from US $71.52 |
||
|
32601
|
32601
32258-01G10 Hub-Synchronizer9509--01 ~ 9902--01; MT; ﾘﾊﾞｰｽ |
32258-01G10 |
US $45.05 |
||
|
32601+A
|
32601+A
32605-30P01
Hub-Synchronizer
9509--01 ~ 9710--01; MT; 3RD & 4TH |
32605-30P01 |
— | ||
| replacement | |||||
|
32601+A
|
32601+A
32605-30P11 Hub-Synchronizer9509--01 ~ 9710--01; MT; 3RD & 4TH |
32605-30P11 |
from US $71.52 |
||
|
32601+A
|
32601+A
32605-30P11 Hub-Synchronizer9710--01 ~ 9902--01; MT |
32605-30P11 |
from US $71.52 |
||
|
32601+A
|
32601+A
32605-30P01
Hub-Synchronizer
9509--01 ~ 9710--01; MT; 3RD & 4TH |
32605-30P01 |
— | ||
| replacement | |||||
|
32601+A
|
32601+A
32605-30P11 Hub-Synchronizer9509--01 ~ 9710--01; MT; 3RD & 4TH |
32605-30P11 |
from US $71.52 |
||
|
32601+A
|
32601+A
32605-30P11 Hub-Synchronizer9710--01 ~ 9902--01; MT |
32605-30P11 |
from US $71.52 |
||
|
32601+B
|
32601+B
32258-01G10 Hub-Synchronizer9509--01 ~ 9902--01; MT; ﾘﾊﾞｰｽ |
32258-01G10 |
US $45.05 |
||
|
32602
|
32602
32603-23P00 Spring-Shifting Insert9509--01 ~ 9902--01; MT; 1ST & 2ND |
32603-23P00 |
from US $4.03 |
||
|
32602
|
32602
32603-30P00 Spring-Shifting Insert9710--01 ~ 9902--01; MT |
32603-30P00 |
from US $4.03 |
||
|
32602
|
32602
32603-33G01 Spring-Shifting Insert, 4Wd9509--01 ~ 9608--01; )*TD27TI.MT +*TD27TI.SEV.AT +*VG33E.SEV.AT; ｵ-ﾄﾌﾘ-ﾗﾝﾆﾝｸﾞﾊﾌﾞ ｼﾖｳ |
32603-33G01 |
US $2.45 |
||
|
32602
|
32602
32603-23P00 Spring-Shifting Insert9509--01 ~ 9902--01; MT; 1ST & 2ND |
32603-23P00 |
from US $4.03 |
||
|
32602
|
32602
32603-30P00 Spring-Shifting Insert9710--01 ~ 9902--01; MT |
32603-30P00 |
from US $4.03 |
||
|
32602
|
32602
32603-33G01 Spring-Shifting Insert, 4Wd9509--01 ~ 9608--01; )*TD27TI.MT +*TD27TI.SEV.AT +*VG33E.SEV.AT; ｵ-ﾄﾌﾘ-ﾗﾝﾆﾝｸﾞﾊﾌﾞ ｼﾖｳ |
32603-33G01 |
US $2.45 |
||
|
32602+A
|
32602+A
32603-30P00 Spring-Shifting Insert9710--01 ~ 9902--01; MT |
32603-30P00 |
from US $4.03 |
||
|
32602+A
|
32602+A
32603-30P00 Spring-Shifting Insert9710--01 ~ 9902--01; MT |
32603-30P00 |
from US $4.03 |
||
|
32604+A
|
32604+A
32604-23P60 Ring-Baulk9509--01 ~ 9902--01; MT; 1ST |
32604-23P60 |
from US $47.88 |
||
|
32604+B
|
32604+B
32604-30P20 Ring-Baulk9509--01 ~ 9902--01; MT; 2ND |
32604-30P20 |
US $81.09 |
||
|
32604+D
|
32604+D
32604-30P21 Ring-Baulk9509--01 ~ 9710--01; MT; 3RD |
32604-30P21 |
from US $85.64 |
||
|
32604+D
|
32604+D
32604-30P61 Ring-Baulk9710--01 ~ 9902--01; MT |
32604-30P61 |
from US $44.55 |
||
|
32604+E
|
32604+E
3260440P21 Ring-Baulk9509--01 ~ 9710--01; MT; 4TH |
3260440P21 |
from US $34.08 |
||
|
32604+E
|
32604+E
32604-40P61 Ring-Baulk9710--01 ~ 9902--01; MT |
32604-40P61 |
from US $44.77 |
||
|
32606+A
|
32606+A
32606-30P00
Sleeve-Coupling
9509--01 ~ 9710--01; MT; 1ST & 2ND |
32606-30P00 |
— | ||
| replacements | |||||
|
32606+A
|
32606+A
32606-30P1A Sleeve-Coupling9509--01 ~ 9710--01; MT; 1ST & 2ND |
32606-30P1A |
from US $65.98 |
||
|
32606+A
|
32606+A
32251-30P14 Gear Assy-2Nd9509--01 ~ 9710--01; MT; 1ST & 2ND |
32251-30P14 |
US $114.07 |
||
|
32606+A
|
32606+A
32604-30P60 Ring-Baulk9509--01 ~ 9710--01; MT; 1ST & 2ND |
32604-30P60 |
from US $46.85 |
||
|
32606+A
|
32606+A
32606-30P10
Sleeve-Coupling
9710--01 ~ 9902--01; MT |
32606-30P10 |
— | ||
| replacement | |||||
|
32606+A
|
32606+A
32606-30P1A Sleeve-Coupling9710--01 ~ 9902--01; MT |
32606-30P1A |
from US $65.98 |
||
|
32606+B
|
32606+B
32611-30P00
Sleeve-Coupling
9509--01 ~ 9710--01; MT; 3RD & 4TH |
32611-30P00 |
— | ||
|
32606+B
|
32606+B
32611-30P10
Sleeve-Coupling
9710--01 ~ 9805--01; MT |
32611-30P10 |
— | ||
|
32606+B
|
32606+B
32611AA510
Sleeve-Coupling
9805--01 ~ 9902--01; MT |
32611AA510 |
— | ||
| replacement | |||||
|
32606+B
|
32606+B
32611-AA51A Sleeve-Coupling9805--01 ~ 9902--01; MT |
32611-AA51A |
from US $65.98 |
||
|
32606+C
|
32606+C
32618-30P00 Sleeve-Coupling9509--01 ~ 9902--01; MT; ﾘﾊﾞｰｽ |
32618-30P00 |
US $28.14 |
||
|
32608+A
|
32608+A
32609-23P00 Insert-Shifting9509--01 ~ 9902--01; MT; 1ST & 2ND |
32609-23P00 |
from US $1.87 |
||
|
32608+B
|
32608+B
32609-30P00 Insert-Shifting9710--01 ~ 9805--01; MT |
32609-30P00 |
from US $4.30 |
||
|
32608+B
|
32608+B
3260970L15 Insert-Shifting9805--01 ~ 9902--01; MT |
3260970L15 |
from US $4.03 |
||
|
32608+B
|
32608+B
3260970L20 Insert-Shifting9509--01 ~ 9710--01; MT; 3RD & 4TH |
3260970L20 |
from US $2.64 |
||
|
32608+B
|
32608+B
32609-30P00 Insert-Shifting9710--01 ~ 9805--01; MT |
32609-30P00 |
from US $4.30 |
||
|
32608+B
|
32608+B
3260970L15 Insert-Shifting9805--01 ~ 9902--01; MT |
3260970L15 |
from US $4.03 |
||
|
32608+B
|
32608+B
3260970L20 Insert-Shifting9509--01 ~ 9710--01; MT; 3RD & 4TH |
3260970L20 |
from US $2.64 |
||
|
32701BB
|
32701BB
3272014600 Ball-Steel9509--01 ~ 9902--01; MT |
3272014600 |
from US $0.41 |
||
