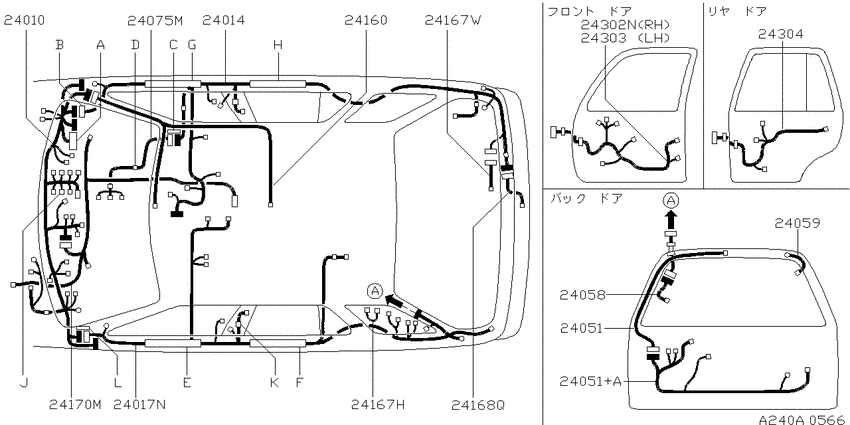

Wiring (1995-09-01 ~ 1997-06-01; ボディー; W.TD27TI) Diagram Nissan TERRANO
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- TD27TI
- drive
- 4WD
- transmission
- AT
- grade
- LE
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-0W714 Harness Assy-Main9509--01 ~ 9608--01; W.TD27TI.LE |
24010-0W714 |
US $2,926 |
||
|
24010
|
24010
24010-0W715 Harness Assy-Main9509--01 ~ 9608--01; *W.TD27TI.(SE+LE); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24010-0W715 |
US $2,926 |
||
|
24010
|
24010
24010-1W515 Harness Assy-Main9608--01 ~ 9706--01; *W.TD27TI.(SE+LE); ｶﾞﾗｽｻﾝﾙ-ﾌ ｼﾖｳ |
24010-1W515 |
US $2,408 |
||
|
24010
|
24010
24010-1W517 Harness Assy-Main9608--01 ~ 9706--01; *W.TD27TI.(SE+LE); TV&ﾅﾋ+ﾈﾂｾﾝｲﾘﾄﾞｱﾐﾗ- |
24010-1W517 |
US $2,408 |
||
|
24010
|
24010
24010-1W580 Harness Assy-Main9608--01 ~ 9706--01; W.TD27TI.LE |
24010-1W580 |
US $2,926 |
||
|
24014
|
24014
24014-0W718 Harness Assy-Body9509--01 ~ 9608--01; W.TD27TI.LE |
24014-0W718 |
US $579.14 |
||
|
24014
|
24014
24014-0W719 Harness Assy-Body9509--01 ~ 9608--01; *W.TD27TI.(SE+LE); ｱｼﾞﾔｽﾀﾌﾞﾙ ｼﾖﾂｸ+ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24014-0W719 |
US $579.14 |
||
|
24014
|
24014
24014-1W519 Harness Assy-Body9608--01 ~ 9706--01; *W.TD27TI.(SE+LE); ABS ｼﾖｳ |
24014-1W519 |
US $482.86 |
||
|
24014
|
24014
24014-1W579 Harness Assy-Body9608--01 ~ 9706--01; W.TD27TI.(SE+LE) |
24014-1W579 |
US $579.14 |
||
|
24017N
|
24017N
24015-0W702 Harness-Body, Lh9509--01 ~ 9706--01; W.TD27TI.LE |
24015-0W702 |
US $531 |
||
|
24017N
|
24017N
24015-0W703 Harness-Body, Lh9509--01 ~ 9608--01; *W.TD27TI; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24015-0W703 |
US $531 |
||
|
24017N
|
24017N
24015-0W704 Harness-Body, Lh9509--01 ~ 9608--01; *W.TD27TI; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ |
24015-0W704 |
US $635.78 |
||
|
24017N
|
24017N
24015-0W705 Harness-Body, Lh9509--01 ~ 9608--01; *W.TD27TI; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ+ｱﾝﾁｽｷﾂﾄ |
24015-0W705 |
US $635.78 |
||
|
24017N
|
24017N
24015-1W502 Harness-Body, Lh9608--01 ~ 9706--01; *W.TD27TI.LE; ｶﾝﾚｲﾁ ｼﾖｳ |
24015-1W502 |
US $531 |
||
|
24017N
|
24017N
24015-1W503 Harness-Body, Lh9608--01 ~ 9706--01; *W.TD27TI; ｱﾝﾁｽｷﾂﾄﾞ+ﾜｲﾊﾟ-ﾃﾞｱｲｻ |
24015-1W503 |
US $531 |
||
|
24017N
|
24017N
24015-1W504 Harness-Body, Lh9608--01 ~ 9706--01; *W.TD27TI; ｶﾝﾚｲﾁ+TVﾅﾋﾞｹﾞ-ｼﾖﾝ |
24015-1W504 |
US $531 |
||
|
24017N
|
24017N
24015-1W505 Harness-Body, Lh9608--01 ~ 9706--01; *W.TD27TI; ｶﾝﾚｲﾁ+ TVﾅﾋﾞ+ABS+ﾜｲﾊﾟ-ﾃﾞｱｲｻ |
24015-1W505 |
US $531 |
||
|
24017N
|
24017N
24015-1W514 Harness-Body, Lh9608--01 ~ 9706--01; *W.TD27TI; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ |
24015-1W514 |
US $531 |
||
|
24017N
|
24017N
24015-1W515 Harness-Body, Lh9608--01 ~ 9706--01; *W.TD27TI; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ+ｱﾝﾁｽｷﾂﾄ |
24015-1W515 |
US $531 |
||
|
24051
|
24051
24051-0W700 Harness-Back Door9509--01 ~ 9706--01; W.TD27TI |
24051-0W700 |
US $169.92 |
||
|
24051
|
24051
24052-0W701 Harness-Back Door9509--01 ~ 9706--01; W.TD27TI.LE |
24052-0W701 |
US $169.92 |
||
|
24051+A
|
24051+A
24052-0W701 Harness-Back Door9509--01 ~ 9706--01; W.TD27TI.LE |
24052-0W701 |
US $169.92 |
||
|
24058
|
24058
24058-0W010 Harness-Defogger, Rear9509--01 ~ 9706--01; W.TD27TI |
24058-0W010 |
US $47.81 |
||
|
24059
|
24059
24059-0W010 Harness-Defogger, Earth9509--01 ~ 9706--01; W.TD27TI |
24059-0W010 |
US $12.24 |
||
|
24075M
|
24075M
24077-0W760 Harness-Engine, Sub9509--01 ~ 9608--01; W.TD27TI.(SE+LE) |
24077-0W760 |
US $275.04 |
||
|
24160
|
24160
24160-0W003 Harness Assy-Room Lamp9509--01 ~ 9706--01; W.TD27TI.LE |
24160-0W003 |
US $134.64 |
||
|
24160
|
24160
24160-0W004 Harness Assy-Room Lamp9509--01 ~ 9706--01; *W.TD27TI.LE; ｶﾞﾗｽｻﾝﾙ-ﾌ ｼﾖｳ |
24160-0W004 |
US $113.04 |
||
|
24167H
|
24167H
24167-0W710
Harness-Sub
9509--01 ~ 9608--01; *W.TD27TI; AVｼｽﾃﾑ ﾖｳ TV&ﾅﾋﾞｹﾞｰｼﾖﾝ[A608] |
24167-0W710 |
— | ||
|
24167H
|
24167H
24167-0W711 Harness-Sub9608--01 ~ 9706--01; *W.TD27TI; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ[A608] |
24167-0W711 |
US $67.39 |
||
|
24167W
|
24167W
24167-0W000 Harness-Sub9509--01 ~ 9608--01; W.TD27TI |
24167-0W000 |
US $27.50 |
||
|
24168Q
|
24168Q
24167-0W001 Harness-Sub9509--01 ~ 9706--01; W.TD27TI.LE |
24167-0W001 |
US $102.24 |
||
|
24170M
|
24170M
24170-0W700 Harness-Air Bag, Room9509--01 ~ 9706--01; *W.TD27TI; ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ ｼﾖｳ |
24170-0W700 |
US $365.33 |
||
|
24302N
|
24302N
24124-0W702 Harness Assy-Door, Front9509--01 ~ 9608--01; W.TD27TI.LE |
24124-0W702 |
US $270.72 |
||
|
24303
|
24303
24125-0W701 Harness Assy-Door, Front9509--01 ~ 9706--01; W.TD27TI |
24125-0W701 |
US $249.12 |
||
|
24303
|
24303
24125-0W702 Harness Assy-Door, Front9509--01 ~ 9706--01; *W.TD27TI; ﾈﾂｾﾝ ｲﾘ ﾄﾞｱ ﾐﾗ- |
24125-0W702 |
US $270.72 |
||
|
24304
|
24304
24126-0W001 Harness Assy-Door, Rear9509--01 ~ 9706--01; W.TD27TI |
24126-0W001 |
US $164.16 |
