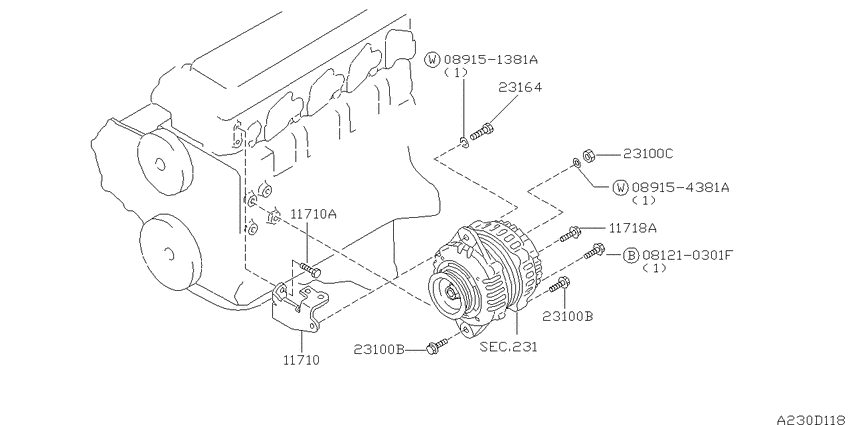

Alternator fitting (1999-02-01 ~ ; ZD30DDTI) Diagram Nissan TERRANO
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD
- transmission
- AT
- grade
- XE
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210301F
|
081210301F
081210301F
Bolt-hexagon
|
081210301F |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
11710
|
11710
117102W201 Bracket-Alternator9902--01 ~ ; ZD30DDTI |
117102W201 |
US $24.34 |
||
|
11710
|
11710
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
11710A
|
11710A
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
11718A
|
11718A
01121-05851 BOLT9902--01 ~ ; ZD30DDTI |
01121-05851 |
US $3.75 |
||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
23100B
|
23100B
0112510304 BOLT9902--01 ~ ; ZD30DDTI |
0112510304 |
US $7.49 |
||
|
23100B
|
23100B
0112510304 BOLT9902--01 ~ ; ZD30DDTI |
0112510304 |
US $7.49 |
||
|
23100C
|
23100C
0122100381 NUT9902--01 ~ ; ZD30DDTI |
0122100381 |
US $7.91 |
||
|
23164
|
23164
11716-6T000 Bolt-Setting9902--01 ~ ; ZD30DDTI |
11716-6T000 |
US $2.88 |
||
