Component List TERRANO
Control unit (1999-02-01 ~ 1999-09-01; &プッシュタイプ(マニュアルタイプ); 0W.RB +W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE +W.2WD)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0851330812	0851330812 08513-30812 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ	08513-30812	—
27130	27130 27500-2W100 Control Assy 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27500-2W100	US $828.36
27130	27130 27510-2W100 Control Assy 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27510-2W100	US $497.02
27130	27130 0145100581 SCREW 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	0145100581	from US $1.67
27130	27130 0145100581 SCREW 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	0145100581	from US $1.67
27130A	27130A 0145100581 SCREW 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	0145100581	from US $1.67
27140	27140 2766070E00 SWITCH-FAN 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	2766070E00	from US $35.28
27145N	27145N 27542-2W100 Cable-Temperature Control 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27542-2W100	US $6.34
27148	27148 27560-8E010 KNOB-CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27560-8E010	US $7.78
27148	27148 27560-8E500 Knob-Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27560-8E500	US $6.34
27148	27148 27560-8E000 KNOB-CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27560-8E000	US $7.78
27148+A	27148+A 27560-8E000 KNOB-CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27560-8E000	US $7.78
27512	27512 27512-8E000 AMPLIFIER-CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27512-8E000	US $187.20
27519M	27519M 27519-8E000 CASE-CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27519-8E000	US $17.71
27519M	27519M 27519-8E501 Case-Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27519-8E501	US $83.52
27545	27545 275458E100 LAMP ASSY-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	275458E100	US $6.60
27545	27545 275458E110 LAMP ASSY-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	275458E110	US $6.34
27545	27545 275450N002 Lamp Assy-Heater Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	275450N002	from US $6.60
27545	27545 27545-2W100 Lamp Assy-Heater Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27545-2W100	US $6.34
27545+A	27545+A 275458E110 LAMP ASSY-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	275458E110	US $6.34
27545+A	27545+A 275458E110 LAMP ASSY-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	275458E110	US $6.34
27555	27555 27555-50J05 Lens-Heater Control 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27555-50J05	US $22.32
27555	27555 27555-8E500 Lens-Heater Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27555-8E500	US $1.87
27555	27555 27555-8E000 LENS-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27555-8E000	US $5.90
27555	27555 27555-8E505 Lens-Heater Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27555-8E505	US $6.05
27555	27555 27555-8E010 LENS-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27555-8E010	US $1.73
27555	27555 27555-8E510 Lens-Heater Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27555-8E510	US $3.60
27555	27555 27555-8E011 LENS-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27555-8E011	US $5.90
27555+A	27555+A 27555-8E000 LENS-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27555-8E000	US $5.90
27555+A	27555+A 27555-8E505 Lens-Heater Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27555-8E505	US $6.05
27555+B	27555+B 27555-8E010 LENS-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27555-8E010	US $1.73
27555+B	27555+B 27555-8E510 Lens-Heater Control 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27555-8E510	US $3.60
27555+C	27555+C 27555-8E011 LENS-HEATER CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27555-8E011	US $5.90
27561	27561 27568-8E000 BUTTON-AIR CONDITIONER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27568-8E000	US $6.34
27561	27561 27568-8E500 Button-Air Conditioner 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27568-8E500	US $5.18
27561	27561 27568-8E010 BUTTON-AIR CONDITIONER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27568-8E010	US $2.02
27561	27561 275A0-8E000 Button-Air Conditioner 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	275A0-8E000	US $6.34
27561	27561 27562-65E10 BUTTON-VENTILATOR 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27562-65E10	US $6.77
27561	27561 27562-8E500 Button-Ventilator 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27562-8E500	US $6.34
27561	27561 27562-8E000 BUTTON-VENTILATOR 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27562-8E000	US $6.34
27561	27561 27562-8E505 Button-Ventilator 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27562-8E505	US $6.91
27561	27561 27563-8E000 BUTTON-BILEVEL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27563-8E000	US $6.34
27561	27561 27564-8E000 BUTTON-FOOT 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27564-8E000	US $6.34
27561	27561 27565-8E000 BUTTON-DEFROSTER FOOT 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27565-8E000	US $6.34
27561	27561 27566-8E000 BUTTON-DEFROSTER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27566-8E000	US $6.34
27561	27561 27566-8E500 Button-Defroster 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27566-8E500	US $6.34
27561	27561 275A1-8E000 Button-Fan 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	275A1-8E000	US $6.34
27561	27561 27567-8E000 BUTTON-RECIRC 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27567-8E000	US $6.34
27561	27561 27567-8E510 Button-Recirc 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27567-8E510	US $6.19
27561	27561 27567-8E500 Button-Recirc 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27567-8E500	US $6.19
27561	27561 27567-8E505 Button-Recirc 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27567-8E505	US $1.73
27561	27561 27561-8E000 BUTTON-AUTO AIR CONDITIONER 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27561-8E000	US $2.45
27561	27561 27561-8E005 BUTTON-AUTO AIR CONDITIONER 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27561-8E005	US $6.34
27561+A	27561+A 27568-8E010 BUTTON-AIR CONDITIONER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27568-8E010	US $2.02
27561+A	27561+A 275A0-8E000 Button-Air Conditioner 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	275A0-8E000	US $6.34
27561M	27561M 27562-65E10 BUTTON-VENTILATOR 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27562-65E10	US $6.77
27561M	27561M 27562-8E500 Button-Ventilator 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27562-8E500	US $6.34
27561M	27561M 27562-8E000 BUTTON-VENTILATOR 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27562-8E000	US $6.34
27561M	27561M 27562-8E505 Button-Ventilator 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27562-8E505	US $6.91
27561MA	27561MA 27562-8E000 BUTTON-VENTILATOR 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27562-8E000	US $6.34
27561MA	27561MA 27562-8E505 Button-Ventilator 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27562-8E505	US $6.91
27561N	27561N 27563-8E000 BUTTON-BILEVEL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27563-8E000	US $6.34
27561P	27561P 27564-8E000 BUTTON-FOOT 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27564-8E000	US $6.34
27561Q	27561Q 27565-8E000 BUTTON-DEFROSTER FOOT 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27565-8E000	US $6.34
27561R	27561R 27566-8E000 BUTTON-DEFROSTER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27566-8E000	US $6.34
27561R	27561R 27566-8E500 Button-Defroster 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27566-8E500	US $6.34
27561U	27561U 27567-8E000 BUTTON-RECIRC 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27567-8E000	US $6.34
27561U	27561U 27567-8E510 Button-Recirc 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27567-8E510	US $6.19
27561U	27561U 27567-8E500 Button-Recirc 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27567-8E500	US $6.19
27561U	27561U 27567-8E505 Button-Recirc 9910--01 ~ 0110--01; %W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE	27567-8E505	US $1.73
27572	27572 27572-8E000 PANEL-FINISHER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27572-8E000	US $6.34
27572	27572 27572-8E001 PANEL-FINISHER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27572-8E001	US $6.34
27572+A	27572+A 27572-8E001 PANEL-FINISHER 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27572-8E001	US $6.34
27654Q	27654Q 27527-65E00 LEVER-TEMP CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27527-65E00	US $6.19
27654Q	27654Q 27527-65E10 LEVER-TEMP CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27527-65E10	US $5.76
27654QA	27654QA 27527-65E10 LEVER-TEMP CONTROL 9902--01 ~ 9909--01; W.(RB.4WD+WB.2WD) +W.WB.4WD.XE	27527-65E10	US $5.76

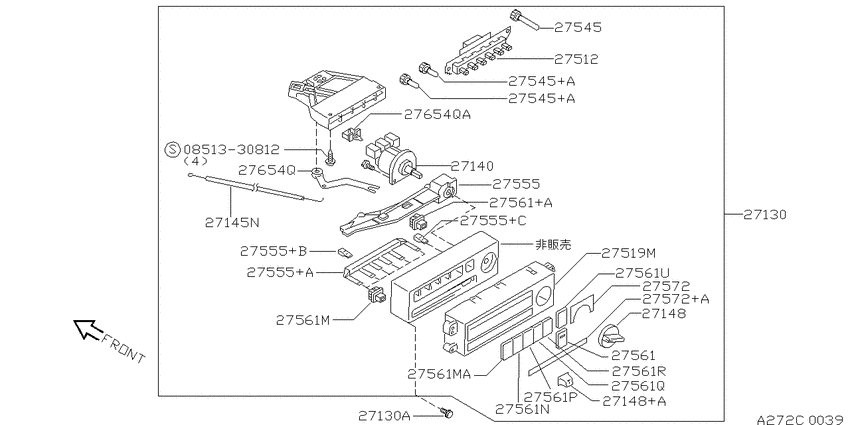

Control unit (1999-02-01 ~ 1999-09-01; &プッシュタイプ(マニュアルタイプ); 0W.RB +W.WB.4WD.VG33E.XE +W.WB.ZD30DDTI.XE +W.2WD) Diagram Nissan TERRANO Japan 7811020-620726
