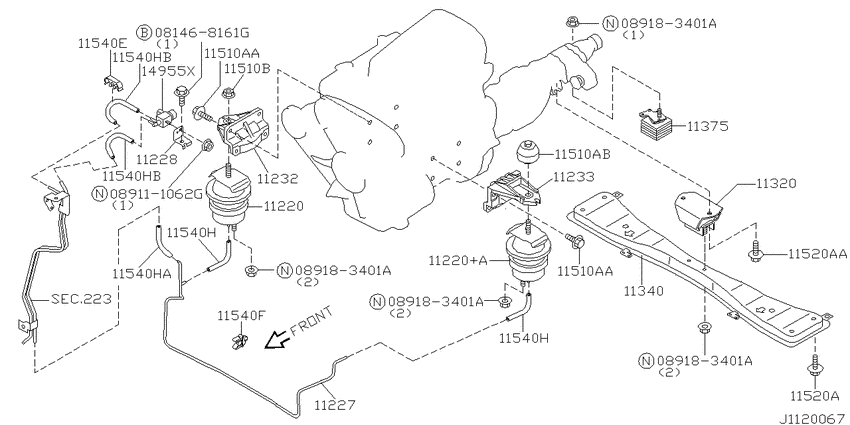

Engine & transmission mounting (1999-09-01 ~ 2001-10-01; ZD30DDTI) Diagram Nissan TERRANO
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD
- transmission
- AT
- grade
- XE
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.63 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
11220
|
11220
11210-2W200 Insulator-Engine Mounting, Front9902--01 ~ ; ZD30DDTI |
11210-2W200 |
US $236.16 |
||
|
11220
|
11220
11220-2W200 Insulator-Engine Mounting, Front9902--01 ~ ; ZD30DDTI |
11220-2W200 |
US $275.83 |
||
|
11220+A
|
11220+A
11220-2W200 Insulator-Engine Mounting, Front9902--01 ~ ; ZD30DDTI |
11220-2W200 |
US $275.83 |
||
|
11227
|
11227
11227-2W200 Tube-Vacuum9902--01 ~ ; ZD30DDTI |
11227-2W200 |
US $28.66 |
||
|
11228
|
11228
11228-2W200 Bracket-Solenoid Valve9902--01 ~ ; ZD30DDTI |
11228-2W200 |
US $8.93 |
||
|
11232
|
11232
11232-2W200 Bracket-Engine Mounting, Rh9902--01 ~ ; ZD30DDTI |
11232-2W200 |
US $81.94 |
||
|
11233
|
11233
11233-2W200 Bracket-Engine Mounting, Lh9902--01 ~ ; ZD30DDTI |
11233-2W200 |
US $81.94 |
||
|
11320
|
11320
11320-2W200 Insulator-Engine Mounting, Rear9902--01 ~ ; ZD30DDTI |
11320-2W200 |
from US $76.76 |
||
|
11340
|
11340
11330-2W200 Member Assy-Engine Mounting, Rear9902--01 ~ ; ZD30DDTI |
11330-2W200 |
US $187.20 |
||
|
11375
|
11375
113751W410 Damper Assy-Dynamic9902--01 ~ ; ZD30DDTI |
113751W410 |
US $126.14 |
||
|
11510AA
|
11510AA
112982J206 Bolt9902--01 ~ ; ZD30DDTI |
112982J206 |
from US $1.76 |
||
|
11510AA
|
11510AA
112982J206 Bolt9902--01 ~ ; ZD30DDTI |
112982J206 |
from US $1.76 |
||
|
11510AB
|
11510AB
11298-2W201 Bolt9902--01 ~ ; ZD30DDTI |
11298-2W201 |
US $3.46 |
||
|
11510B
|
11510B
0122500202 NUT9902--01 ~ 0110--01; ZD30DDTI |
0122500202 |
US $1.93 |
||
|
11510B
|
11510B
11258D0101 Nut9902--01 ~ 9909--01; ZD30DDTI |
11258D0101 |
from US $2.41 |
||
|
11520A
|
11520A
11298-0W000 Bolt9902--01 ~ ; ZD30DDTI |
11298-0W000 |
US $3.46 |
||
|
11520A
|
11520A
11393-1W400 Bolt9902--01 ~ ; ZD30DDTI |
11393-1W400 |
US $3.46 |
||
|
11520AA
|
11520AA
11393-1W400 Bolt9902--01 ~ ; ZD30DDTI |
11393-1W400 |
US $3.46 |
||
|
11540E
|
11540E
24220-75F10 Clamp-Hose, B9902--01 ~ ; ZD30DDTI |
24220-75F10 |
US $3.74 |
||
|
11540F
|
11540F
4627117V00 Clamp9902--01 ~ ; ZD30DDTI |
4627117V00 |
US $0.86 |
||
|
11540H
|
11540H
02187-31303
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=130 S/#B2318-N3301 |
02187-31303 |
— | ||
|
11540H
|
11540H
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540H
|
11540H
02187-32003
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=200 S/#B2318-N3301 |
02187-32003 |
— | ||
|
11540H
|
11540H
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540H
|
11540H
02187-31303
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=130 S/#B2318-N3301 |
02187-31303 |
— | ||
|
11540H
|
11540H
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540H
|
11540H
02187-31303
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=130 S/#B2318-N3301 |
02187-31303 |
— | ||
|
11540H
|
11540H
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540H
|
11540H
02187-32003
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=200 S/#B2318-N3301 |
02187-32003 |
— | ||
|
11540H
|
11540H
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540H
|
11540H
02187-31303
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=130 S/#B2318-N3301 |
02187-31303 |
— | ||
|
11540H
|
11540H
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540HA
|
11540HA
02187-32003
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=200 S/#B2318-N3301 |
02187-32003 |
— | ||
|
11540HA
|
11540HA
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540HB
|
11540HB
02187-31303
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=130 S/#B2318-N3301 |
02187-31303 |
— | ||
|
11540HB
|
11540HB
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
11540HB
|
11540HB
02187-31303
HOSE-VACUUM CONTROL
9902--01 ~ 0110--01; ZD30DDTI; L=130 S/#B2318-N3301 |
02187-31303 |
— | ||
|
11540HB
|
11540HB
B2318N3301 Hose-Vacuum Control9902--01 ~ 9909--01; ZD30DDTI; L=5000 ｶﾂﾄｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
14955X
|
14955X
14955-2H800 Valve Assy-Solenoid9902--01 ~ ; ZD30DDTI |
14955-2H800 |
US $131.04 |
