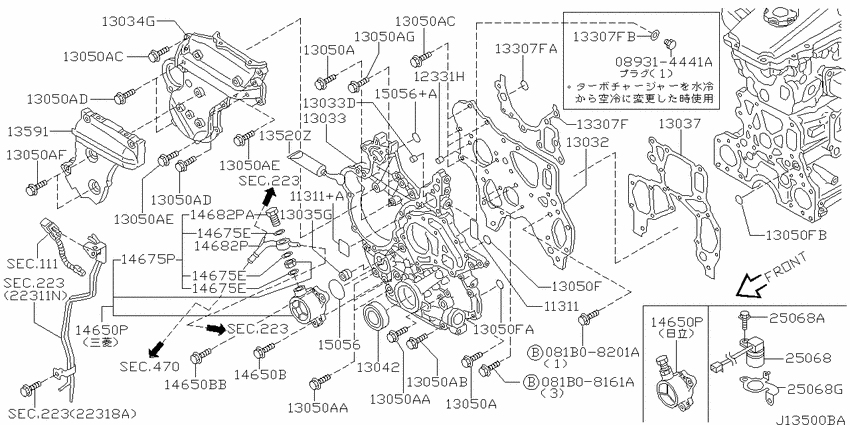

Front cover & fitting (2001-11-01 ~ ; ZD30DDTI) Diagram Nissan TERRANO
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD
- transmission
- AT
- grade
- XE
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B08161A
|
081B08161A
081B0-8161A BOLTHEX |
081B0-8161A |
US $0.78 |
||
|
081B08201A
|
081B08201A
081B08201A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081B08201A |
— | ||
|
089314441A
|
089314441A
089314441A
PLUGTHREAD
|
089314441A |
— | ||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
11311
|
11311
144652W200 Gasket9902--01 ~ ; ZD30DDTI |
144652W200 |
from US $3.66 |
||
|
11311
|
11311
144652W201 Gasket9902--01 ~ ; ZD30DDTI |
144652W201 |
from US $3.70 |
||
|
11311+A
|
11311+A
144652W201 Gasket9902--01 ~ ; ZD30DDTI |
144652W201 |
from US $3.70 |
||
|
12331H
|
12331H
01522-05124 PIN9902--01 ~ ; ZD30DDTI |
01522-05124 |
US $2.88 |
||
|
13032
|
13032
13032-2W203
Plate-Front
9902--01 ~ 0103--01; ZD30DDTI |
13032-2W203 |
— | ||
|
13032
|
13032
13032-2W204 Plate-Front0103--01 ~ ; ZD30DDTI |
13032-2W204 |
US $202.37 |
||
|
13033
|
13033
13033-2W202 Case Assy-Gear9909--01 ~ 0103--01; ZD30DDTI |
13033-2W202 |
US $549.41 |
||
|
13033
|
13033
13033-2W203 Case Assy-Gear9902--01 ~ 9909--01; ZD30DDTI |
13033-2W203 |
US $409.22 |
||
|
13033
|
13033
13034-2W204
Case Assy-Gear
0103--01 ~ ; ZD30DDTI |
13034-2W204 |
— | ||
|
13033
|
13033
11022A0200 Pin-Dowel9902--01 ~ ; ZD30DDTI |
11022A0200 |
US $1.87 |
||
|
13033D
|
13033D
11022A0200 Pin-Dowel9902--01 ~ ; ZD30DDTI |
11022A0200 |
US $1.87 |
||
|
13034G
|
13034G
13036-2W203 Cover-Case9902--01 ~ ; ZD30DDTI |
13036-2W203 |
US $111.60 |
||
|
13035G
|
13035G
01642-03074 PLUG-BLIND0110--01 ~ ; ZD30DDTI |
01642-03074 |
US $6.34 |
||
|
13037
|
13037
13037-2W201
Gasket-Plate
9902--01 ~ 0206--01; ZD30DDTI |
13037-2W201 |
— | ||
| replacement | |||||
|
13037
|
13037
13037DB001 Gasket-Plate9902--01 ~ 0206--01; ZD30DDTI |
13037DB001 |
from US $18.78 |
||
|
13037
|
13037
13037-2W202 Gasket-Plate0206--01 ~ ; ZD30DDTI |
13037-2W202 |
US $18.43 |
||
|
13042
|
13042
13510-2W200 Seal-Oil, Crankshaft Front9902--01 ~ 0003--01; ZD30DDTI |
13510-2W200 |
US $15.26 |
||
|
13042
|
13042
135102W201 Seal-Oil, Crankshaft Front0003--01 ~ ; ZD30DDTI |
135102W201 |
from US $10.17 |
||
|
13050A
|
13050A
0112508304 BOLT-BELT TENSIONER9902--01 ~ 9909--01; ZD30DDTI |
0112508304 |
US $2.88 |
||
|
13050A
|
13050A
01125-08504 BOLT9902--01 ~ ; ZD30DDTI |
01125-08504 |
US $2.88 |
||
|
13050A
|
13050A
0112508804 BOLT9902--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
13050A
|
13050A
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050A
|
13050A
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050A
|
13050A
01125-08604 BOLT9902--01 ~ ; ZD30DDTI |
01125-08604 |
US $2.88 |
||
|
13050A
|
13050A
01125-08504 BOLT9902--01 ~ ; ZD30DDTI |
01125-08504 |
US $2.88 |
||
|
13050A
|
13050A
01125-08254 BOLT9909--01 ~ ; ZD30DDTI |
01125-08254 |
US $3.75 |
||
|
13050A
|
13050A
0112508304 BOLT-BELT TENSIONER9902--01 ~ 9909--01; ZD30DDTI |
0112508304 |
US $2.88 |
||
|
13050A
|
13050A
01125-08504 BOLT9902--01 ~ ; ZD30DDTI |
01125-08504 |
US $2.88 |
||
|
13050A
|
13050A
0112508804 BOLT9902--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
13050A
|
13050A
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050A
|
13050A
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050A
|
13050A
01125-08604 BOLT9902--01 ~ ; ZD30DDTI |
01125-08604 |
US $2.88 |
||
|
13050A
|
13050A
01125-08504 BOLT9902--01 ~ ; ZD30DDTI |
01125-08504 |
US $2.88 |
||
|
13050A
|
13050A
01125-08254 BOLT9909--01 ~ ; ZD30DDTI |
01125-08254 |
US $3.75 |
||
|
13050AA
|
13050AA
01125-08504 BOLT9902--01 ~ ; ZD30DDTI |
01125-08504 |
US $2.88 |
||
|
13050AA
|
13050AA
01125-08504 BOLT9902--01 ~ ; ZD30DDTI |
01125-08504 |
US $2.88 |
||
|
13050AB
|
13050AB
0112508804 BOLT9902--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
13050AC
|
13050AC
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050AC
|
13050AC
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050AD
|
13050AD
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050AD
|
13050AD
0112508204 BOLT9902--01 ~ ; ZD30DDTI |
0112508204 |
US $6.19 |
||
|
13050AE
|
13050AE
01125-08604 BOLT9902--01 ~ ; ZD30DDTI |
01125-08604 |
US $2.88 |
||
|
13050AE
|
13050AE
01125-08604 BOLT9902--01 ~ ; ZD30DDTI |
01125-08604 |
US $2.88 |
||
|
13050AF
|
13050AF
01125-08504 BOLT9902--01 ~ ; ZD30DDTI |
01125-08504 |
US $2.88 |
||
|
13050AG
|
13050AG
01125-08254 BOLT9909--01 ~ ; ZD30DDTI |
01125-08254 |
US $3.75 |
||
|
13050F
|
13050F
2133402N00 Seal-O Ring9902--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
13050F
|
13050F
213342W200 Seal-O Ring9902--01 ~ ; ZD30DDTI |
213342W200 |
US $6.09 |
||
|
13050F
|
13050F
2133402N00 Seal-O Ring9902--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
13050FA
|
13050FA
213342W200 Seal-O Ring9902--01 ~ ; ZD30DDTI |
213342W200 |
US $6.09 |
||
|
13050FB
|
13050FB
2133402N00 Seal-O Ring9902--01 ~ ; ZD30DDTI |
2133402N00 |
from US $7.49 |
||
|
13307F
|
13307F
110722W203
Gasket
9902--01 ~ ; ZD30DDTI |
110722W203 |
— | ||
| replacement | |||||
|
13307F
|
13307F
11072-MA70B Gasket9902--01 ~ ; ZD30DDTI |
11072-MA70B |
from US $8.33 |
||
|
13307F
|
13307F
1679410G01 Gasket0110--01 ~ ; ZD30DDTI |
1679410G01 |
US $8.18 |
||
|
13307F
|
13307F
1679410G01 Gasket0111--01 ~ ; ZD30DDTI |
1679410G01 |
US $8.18 |
||
|
13307FA
|
13307FA
1679410G01 Gasket0110--01 ~ ; ZD30DDTI |
1679410G01 |
US $8.18 |
||
|
13307FB
|
13307FB
1679410G01 Gasket0111--01 ~ ; ZD30DDTI |
1679410G01 |
US $8.18 |
||
|
13520Z
|
13520Z
KA76015000
Gasket-Liquid
9902--01 ~ ; ZD30DDTI; [K504] |
KA76015000 |
— | ||
|
13591
|
13591
13591-2W203 Cover Assy-Chain Case9902--01 ~ ; ZD30DDTI |
13591-2W203 |
US $58.75 |
||
|
14650B
|
14650B
0112508304 BOLT-BELT TENSIONER9902--01 ~ 0110--01; ZD30DDTI |
0112508304 |
US $2.88 |
||
|
14650B
|
14650B
01125-08124 BOLT9902--01 ~ 0110--01; ZD30DDTI |
01125-08124 |
US $5.27 |
||
|
14650B
|
14650B
0112508804 BOLT0110--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
14650BB
|
14650BB
0112508804 BOLT0110--01 ~ ; ZD30DDTI |
0112508804 |
US $3.31 |
||
|
14650P
|
14650P
146502W202 Pump Assy-Vacuum9902--01 ~ 9909--01; ZD30DDTI |
146502W202 |
US $784.46 |
||
|
14650P
|
14650P
14650-2W20A Pump Assy-Vacuum0411--01 ~ ; ZD30DDTI; ﾋﾀﾁ |
14650-2W20A |
US $784.46 |
||
|
14650P
|
14650P
14650-VW200 Pump Assy-Vacuum0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
14650-VW200 |
US $784.46 |
||
|
14650P
|
14650P
146502W202 Pump Assy-Vacuum9902--01 ~ 9909--01; ZD30DDTI |
146502W202 |
US $784.46 |
||
|
14650P
|
14650P
14650-2W20A Pump Assy-Vacuum0411--01 ~ ; ZD30DDTI; ﾋﾀﾁ |
14650-2W20A |
US $784.46 |
||
|
14650P
|
14650P
14650-VW200 Pump Assy-Vacuum0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
14650-VW200 |
US $784.46 |
||
|
14675E
|
14675E
14686-04D01 Washer0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
14686-04D01 |
US $1.01 |
||
|
14675E
|
14675E
14686-04D01 Washer0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
14686-04D01 |
US $1.01 |
||
|
14675E
|
14675E
14686-04D01 Washer0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
14686-04D01 |
US $1.01 |
||
|
14675P
|
14675P
1467504D01 Valve0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
1467504D01 |
US $51.70 |
||
|
14682P
|
14682P
14682-2W201 Connector-Vacuum Pump9902--01 ~ 9909--01; ZD30DDTI |
14682-2W201 |
US $38.16 |
||
|
14682P
|
14682P
14682-2W202 Connector-Vacuum Pump9909--01 ~ 0212--01; ZD30DDTI; ﾋﾀﾁ |
14682-2W202 |
US $34.56 |
||
|
14682P
|
14682P
14682-2W203 Connector-Vacuum Pump0212--01 ~ ; ZD30DDTI; ﾋﾀﾁ |
14682-2W203 |
US $31.68 |
||
|
14682P
|
14682P
14680-04D01 Connector-Vacuum Pump0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
14680-04D01 |
US $19.27 |
||
|
14682PA
|
14682PA
14680-04D01 Connector-Vacuum Pump0110--01 ~ ; ZD30DDTI; ﾐﾂﾋﾞｼ |
14680-04D01 |
US $19.27 |
||
|
15056
|
15056
15056-2W201 Seal-O Ring9902--01 ~ 9909--01; ZD30DDTI |
15056-2W201 |
US $3.02 |
||
|
15056
|
15056
150562W203 Seal-O Ring9909--01 ~ ; ZD30DDTI; $ｶﾞｲｹｲ=54.1 ﾐﾘ ｶﾗ 54.4 ﾐﾘ, ﾊﾊﾞ=2.4 ﾐﾘ |
150562W203 |
from US $2.52 |
||
|
15056
|
15056
150562W202 Seal-O Ring9902--01 ~ 9909--01; ZD30DDTI |
150562W202 |
from US $1.38 |
||
|
15056+A
|
15056+A
150562W202 Seal-O Ring9902--01 ~ 9909--01; ZD30DDTI |
150562W202 |
from US $1.38 |
||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
25068
|
25068
25977-2W200 Sensor Unit9902--01 ~ ; ZD30DDTI |
25977-2W200 |
US $175.68 |
||
|
25068
|
25068
01125-08124 BOLT9902--01 ~ 0007--01; ZD30DDTI |
01125-08124 |
US $5.27 |
||
|
25068
|
25068
01125-08164 BOLT-BALANCE SHAFT0007--01 ~ ; ZD30DDTI |
01125-08164 |
US $2.02 |
||
|
25068
|
25068
23735-2W201 Braket-Sensor9902--01 ~ ; ZD30DDTI |
23735-2W201 |
US $12.67 |
||
|
25068A
|
25068A
01125-08124 BOLT9902--01 ~ 0007--01; ZD30DDTI |
01125-08124 |
US $5.27 |
||
|
25068A
|
25068A
01125-08164 BOLT-BALANCE SHAFT0007--01 ~ ; ZD30DDTI |
01125-08164 |
US $2.02 |
||
|
25068G
|
25068G
23735-2W201 Braket-Sensor9902--01 ~ ; ZD30DDTI |
23735-2W201 |
US $12.67 |
||
|
470
|
Brake servo & servo control
470
|
||||
|
470
|
Brake servo & servo control
470
|
||||
|
470
|
Brake servo & servo control
470
|
||||
