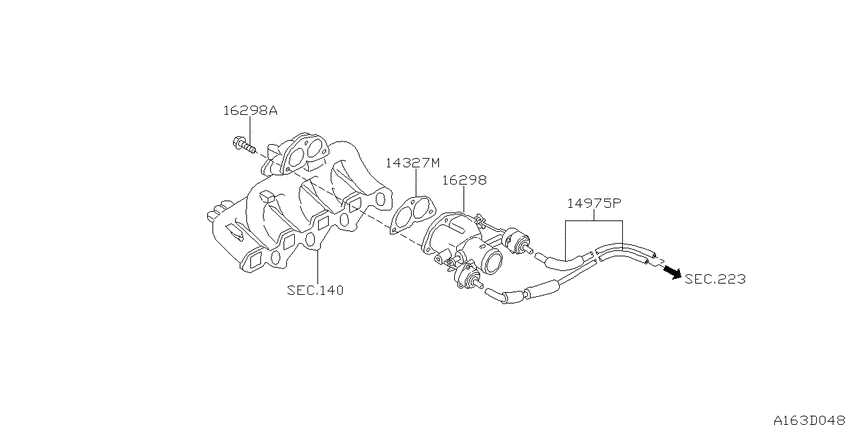

Throttle chamber (1999-02-01 ~ ; ZD30DDTI) Diagram Nissan TERRANO
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD
- transmission
- AT
- grade
- XE
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
14327M
|
14327M
143272W201 Gasket-Venturi9902--01 ~ ; ZD30DDTI |
143272W201 |
from US $9.79 |
||
|
14975P
|
14975P
14975-2W211 Hose-Valve To Diaphragm9902--01 ~ ; ZD30DDTI |
14975-2W211 |
US $69.98 |
||
|
16298
|
16298
16118-2W203 Throttle Body9902--01 ~ 0011--01; ZD30DDTI |
16118-2W203 |
US $805.70 |
||
|
16298
|
16298
16118-VC100 Throttle Body0011--01 ~ ; ZD30DDTI |
16118-VC100 |
US $603.22 |
||
|
16298
|
16298
01125-08254 BOLT9902--01 ~ ; ZD30DDTI |
01125-08254 |
US $3.75 |
||
|
16298A
|
16298A
01125-08254 BOLT9902--01 ~ ; ZD30DDTI |
01125-08254 |
US $3.75 |
||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
