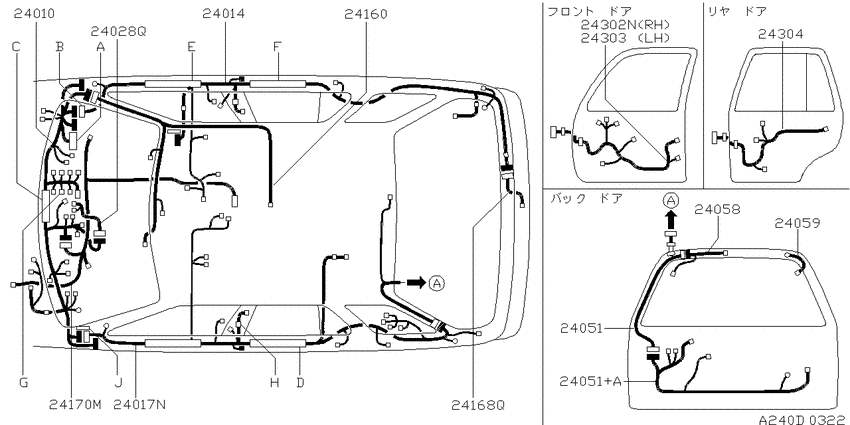

Wiring (1999-02-01 ~ ; ボディー; W.ZD30DDTI) Diagram Nissan TERRANO
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD
- transmission
- AT
- grade
- XE
- body
- W
- standart/wide body
- WB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-2W200
Harness Assy-Main
9910--01 ~ 0011--01; *W.WB.ZD30DDTI.XE |
24010-2W200 |
— | ||
|
24010
|
24010
24010-2W201
Harness Assy-Main
9910--01 ~ 0007--01; *W.WB.ZD30DDTI.XE |
24010-2W201 |
— | ||
|
24010
|
24010
24010-2W202 Harness Assy-Main9902--01 ~ 9909--01; 'W.RB.4WD.ZD30DDTI +W.WB.4WD.ZD30DDTI.XE |
24010-2W202 |
US $2,646 |
||
|
24010
|
24010
24010-2W203 Harness Assy-Main9902--01 ~ 9909--01; )*W.RB.4WD.ZD30DDTI +*W.WB.4WD.ZD30DDTI.XE; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ |
24010-2W203 |
US $2,646 |
||
|
24010
|
24010
24010-2W400
Harness Assy-Main
0011--01 ~ ; *W.WB.ZD30DDTI.XE |
24010-2W400 |
— | ||
|
24010
|
24010
24010-2W401
Harness Assy-Main
0007--01 ~ ; *W.WB.ZD30DDTI.XE |
24010-2W401 |
— | ||
|
24010
|
24010
24010-2W402 Harness Assy-Main0007--01 ~ ; W.RB.ZD30DDTI +W.WB.ZD30DDTI.XE |
24010-2W402 |
US $2,926 |
||
|
24010
|
24010
24010-2W403 Harness Assy-Main0007--01 ~ ; !*W.RB.ZD30DDTI +*W.WB.ZD30DDTI.XE |
24010-2W403 |
US $2,926 |
||
|
24014
|
24014
24014-2W200
Harness Assy-Body
9902--01 ~ 0007--01; W.ZD30DDTI |
24014-2W200 |
— | ||
|
24014
|
24014
24014-2W210
Harness Assy-Body
9902--01 ~ 9909--01; *W.ZD30DDTI; ｻｲﾄﾞｴｱﾊﾞｯｸﾞｼﾖｳ |
24014-2W210 |
— | ||
|
24014
|
24014
24014-2W400
Harness Assy-Body
0007--01 ~ ; W.ZD30DDTI |
24014-2W400 |
— | ||
|
24014
|
24014
24014-2W410
Harness Assy-Body
0007--01 ~ ; *W.ZD30DDTI |
24014-2W410 |
— | ||
|
24017N
|
24017N
24015-2W200
Harness-Body, Lh
9902--01 ~ 0007--01; W.ZD30DDTI |
24015-2W200 |
— | ||
|
24017N
|
24017N
24015-2W201
Harness-Body, Lh
9902--01 ~ 9909--01; *W.ZD30DDTI; ｶﾝﾚｲﾁ ｼﾖｳ |
24015-2W201 |
— | ||
|
24017N
|
24017N
24015-2W202
Harness-Body, Lh
9902--01 ~ 9909--01; *W.ZD30DDTI; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ |
24015-2W202 |
— | ||
|
24017N
|
24017N
24015-2W203
Harness-Body, Lh
9902--01 ~ 9909--01; *W.ZD30DDTI; ｶﾝﾚｲﾁ + TV&ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼﾖｳ |
24015-2W203 |
— | ||
|
24017N
|
24017N
24015-2W210
Harness-Body, Lh
9902--01 ~ 9909--01; *W.ZD30DDTI; ｻｲﾄﾞｴｱﾊﾞｯｸﾞｼﾖｳ |
24015-2W210 |
— | ||
|
24017N
|
24017N
24015-2W211
Harness-Body, Lh
9902--01 ~ 9909--01; *W.ZD30DDTI; ｶﾝﾚｲﾁ + ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ ｼﾖｳ |
24015-2W211 |
— | ||
|
24017N
|
24017N
24015-2W212
Harness-Body, Lh
9902--01 ~ 9909--01; *W.ZD30DDTI; TV&ﾅﾋﾞｹﾞ-ｼﾖﾝ + ｻｲﾄﾞｴ ｱﾊﾞﾂｸﾞ ｼﾖｳ |
24015-2W212 |
— | ||
|
24017N
|
24017N
24015-2W213
Harness-Body, Lh
9902--01 ~ 9909--01; *W.ZD30DDTI; 'ｶﾝﾚｲﾁ + TV&ﾅﾋﾞｹﾞ-ｼﾖﾝ + ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ ｼﾖｳ |
24015-2W213 |
— | ||
|
24017N
|
24017N
24015-2W400
Harness-Body, Lh
0007--01 ~ ; W.ZD30DDTI |
24015-2W400 |
— | ||
|
24017N
|
24017N
24015-2W401
Harness-Body, Lh
0007--01 ~ ; *W.ZD30DDTI |
24015-2W401 |
— | ||
|
24017N
|
24017N
24015-2W402
Harness-Body, Lh
0007--01 ~ ; *W.ZD30DDTI |
24015-2W402 |
— | ||
|
24017N
|
24017N
24015-2W403
Harness-Body, Lh
0007--01 ~ ; *W.ZD30DDTI |
24015-2W403 |
— | ||
|
24017N
|
24017N
24015-2W410
Harness-Body, Lh
0110--01 ~ ; *W.ZD30DDTI |
24015-2W410 |
— | ||
|
24017N
|
24017N
24015-2W411
Harness-Body, Lh
0110--01 ~ ; *W.ZD30DDTI |
24015-2W411 |
— | ||
|
24017N
|
24017N
24015-2W412
Harness-Body, Lh
0110--01 ~ ; *W.ZD30DDTI |
24015-2W412 |
— | ||
|
24017N
|
24017N
24015-2W413
Harness-Body, Lh
0110--01 ~ ; *W.ZD30DDTI |
24015-2W413 |
— | ||
|
24028Q
|
24028Q
24168-2W100 Harness-Sub9902--01 ~ 9909--01; *W.ZD30DDTI; TV&ﾅﾋﾞｹﾞｰｼﾖﾝ |
24168-2W100 |
US $141.84 |
||
|
24051
|
24051
24051-2W100 Harness-Back Door9902--01 ~ ; W.ZD30DDTI |
24051-2W100 |
US $172.80 |
||
|
24051
|
24051
24052-2W100 Harness-Back Door9902--01 ~ ; W.ZD30DDTI |
24052-2W100 |
US $205.92 |
||
|
24051
|
24051
24052-2W102 Harness-Back Door9902--01 ~ 9909--01; *W.ZD30DDTI; ﾊｲﾒﾝｷﾔﾘｱ ｼﾖｳ |
24052-2W102 |
US $172.80 |
||
|
24051+A
|
24051+A
24052-2W100 Harness-Back Door9902--01 ~ ; W.ZD30DDTI |
24052-2W100 |
US $205.92 |
||
|
24051+A
|
24051+A
24052-2W102 Harness-Back Door9902--01 ~ 9909--01; *W.ZD30DDTI; ﾊｲﾒﾝｷﾔﾘｱ ｼﾖｳ |
24052-2W102 |
US $172.80 |
||
|
24058
|
24058
24058-0W010 Harness-Defogger, Rear9902--01 ~ ; W.ZD30DDTI |
24058-0W010 |
US $47.81 |
||
|
24059
|
24059
24059-0W010 Harness-Defogger, Earth9902--01 ~ ; W.ZD30DDTI |
24059-0W010 |
US $12.24 |
||
|
24160
|
24160
24160-0W000 Harness Assy-Room Lamp9902--01 ~ 9909--01; 'W.RB.4WD.ZD30DDTI +W.WB.4WD.ZD30DDTI.XE |
24160-0W000 |
US $134.64 |
||
|
24160
|
24160
24160-0W002 Harness Assy-Room Lamp9902--01 ~ 9909--01; )*W.RB.4WD.ZD30DDTI +*W.WB.4WD.ZD30DDTI.XE; ｶﾞﾗｽ ｻﾝﾙｰﾌｼﾖｳ |
24160-0W002 |
US $113.04 |
||
|
24160
|
24160
24160-0W003 Harness Assy-Room Lamp9909--01 ~ ; !*W.RB.ZD30DDTI +*W.WB.ZD30DDTI.XE |
24160-0W003 |
US $134.64 |
||
|
24160
|
24160
24160-0W004 Harness Assy-Room Lamp9909--01 ~ ; !*W.RB.ZD30DDTI +*W.WB.ZD30DDTI.XE |
24160-0W004 |
US $113.04 |
||
|
24168Q
|
24168Q
24167-0W001 Harness-Sub9902--01 ~ 9909--01; *W.ZD30DDTI; ﾊｲﾒﾝｷﾔﾘｱ ｼﾖｳ |
24167-0W001 |
US $102.24 |
||
|
24170M
|
24170M
24170-2W100 Harness-Air Bag, Room9902--01 ~ 0007--01; W.ZD30DDTI |
24170-2W100 |
US $400.73 |
||
|
24170M
|
24170M
24170-2W300 Harness-Air Bag, Room0007--01 ~ ; W.ZD30DDTI |
24170-2W300 |
US $366.74 |
||
|
24302N
|
24302N
24124-2W100 Harness Assy-Door, Front9902--01 ~ 0011--01; W.ZD30DDTI |
24124-2W100 |
US $294.53 |
||
|
24302N
|
24302N
24124-2W101 Harness Assy-Door, Front9902--01 ~ 9909--01; *W.ZD30DDTI; ﾘﾓｺﾝ ｴﾝﾄﾘｰ ｼﾖｳ |
24124-2W101 |
US $294.53 |
||
|
24302N
|
24302N
24124-2W110 Harness Assy-Door, Front0011--01 ~ 0205--01; W.ZD30DDTI |
24124-2W110 |
US $275.04 |
||
|
24302N
|
24302N
24124-2W111 Harness Assy-Door, Front0011--01 ~ 0205--01; *W.ZD30DDTI |
24124-2W111 |
US $275.04 |
||
|
24302N
|
24302N
24124-2W120 Harness Assy-Door, Front0205--01 ~ ; W.ZD30DDTI |
24124-2W120 |
US $320.02 |
||
|
24302N
|
24302N
24124-2W121 Harness Assy-Door, Front0205--01 ~ ; *W.ZD30DDTI |
24124-2W121 |
US $275.04 |
||
|
24303
|
24303
24125-2W101 Harness Assy-Door, Front9902--01 ~ 0011--01; W.ZD30DDTI |
24125-2W101 |
US $294.53 |
||
|
24303
|
24303
24125-2W102 Harness Assy-Door, Front9902--01 ~ 9909--01; *W.ZD30DDTI; ｶﾝﾚｲﾁ ｼﾖｳ |
24125-2W102 |
US $294.53 |
||
|
24303
|
24303
24125-2W111 Harness Assy-Door, Front0011--01 ~ ; W.ZD30DDTI |
24125-2W111 |
US $275.04 |
||
|
24303
|
24303
24125-2W112 Harness Assy-Door, Front0011--01 ~ ; *W.ZD30DDTI |
24125-2W112 |
US $275.04 |
||
|
24304
|
24304
24126-2W100 Harness Assy-Door, Rear9902--01 ~ ; W.ZD30DDTI |
24126-2W100 |
US $165.60 |
