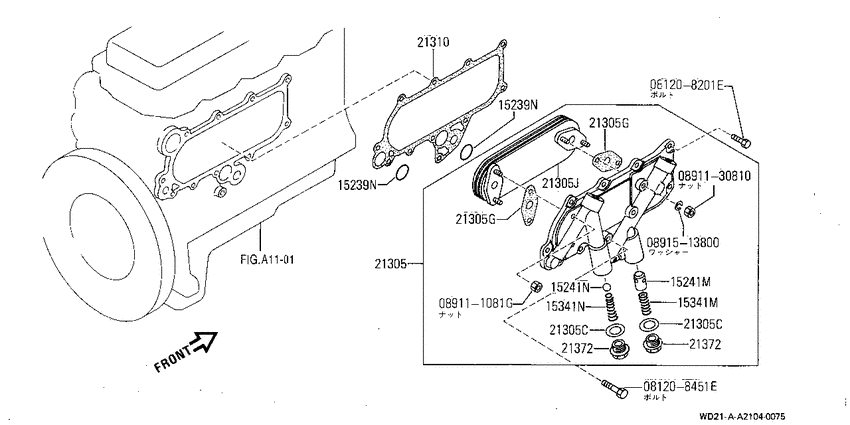

engine Oil cooler (1988-11-01 ~ ; TD27T) Diagram Nissan TERRANO
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- TD27T
- drive
- 4WD
- transmission
- AT
- grade
- SE/W
- body
- W/4D
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
15239N
|
15239N
2133402N00 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
2133402N00 |
from US $7.49 |
||
|
15239N
|
15239N
2133402N00 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
2133402N00 |
from US $7.49 |
||
|
15241M
|
15241M
15280-90001 Valve Assy-Relief, Oil Cooler8811--01 ~ 8910--01; TD27T |
15280-90001 |
US $26.47 |
||
|
15241N
|
15241N
15300-76200 Valve Assy-Relief, Oil Cooler8811--01 ~ 8910--01; TD27T |
15300-76200 |
US $2.03 |
||
|
15341M
|
15341M
15243-31N00 Spring-Valve, Oil Cooler8811--01 ~ 8910--01; TD27T |
15243-31N00 |
US $3.06 |
||
|
15341N
|
15341N
15341-T9000 Spring-Valve, Oil Cooler8811--01 ~ 8910--01; TD27T |
15341-T9000 |
US $4.32 |
||
|
21305
|
21305
21305-31N00 Cooler Assy-Oil8811--01 ~ ; TD27T |
21305-31N00 |
US $598.97 |
||
|
21305
|
21305
15304-61501 Gasket-Oil Filter8811--01 ~ 8910--01; TD27T |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
21305
|
21305
15304-Y1400
Gasket-oil filter
8811--01 ~ 8910--01; TD27T |
15304-Y1400 |
— | ||
|
21305
|
21305
2133405D03 Seal-0 Ring9310--01 ~ ; TD27T |
2133405D03 |
from US $5.46 |
||
|
21305
|
21305
21334-06J00 Packing8811--01 ~ 9310--01; TD27T |
21334-06J00 |
US $9.22 |
||
|
21305
|
21305
21355-31N00 Element-Oil Cooler8811--01 ~ 9411--01; TD27T |
21355-31N00 |
US $180 |
||
|
21305
|
21305
21355-31N01 Element-Oil Cooler9411--01 ~ ; W/4D.TD27T |
21355-31N01 |
US $134.06 |
||
|
21305C
|
21305C
15304-61501 Gasket-Oil Filter8811--01 ~ 8910--01; TD27T |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
21305C
|
21305C
15304-Y1400
Gasket-oil filter
8811--01 ~ 8910--01; TD27T |
15304-Y1400 |
— | ||
|
21305C
|
21305C
15304-61501 Gasket-Oil Filter8811--01 ~ 8910--01; TD27T |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
21305C
|
21305C
15304-Y1400
Gasket-oil filter
8811--01 ~ 8910--01; TD27T |
15304-Y1400 |
— | ||
|
21305G
|
21305G
2133405D03 Seal-0 Ring9310--01 ~ ; TD27T |
2133405D03 |
from US $5.46 |
||
|
21305G
|
21305G
21334-06J00 Packing8811--01 ~ 9310--01; TD27T |
21334-06J00 |
US $9.22 |
||
|
21305G
|
21305G
2133405D03 Seal-0 Ring9310--01 ~ ; TD27T |
2133405D03 |
from US $5.46 |
||
|
21305G
|
21305G
21334-06J00 Packing8811--01 ~ 9310--01; TD27T |
21334-06J00 |
US $9.22 |
||
|
21305J
|
21305J
21355-31N00 Element-Oil Cooler8811--01 ~ 9411--01; TD27T |
21355-31N00 |
US $180 |
||
|
21305J
|
21305J
21355-31N01 Element-Oil Cooler9411--01 ~ ; W/4D.TD27T |
21355-31N01 |
US $134.06 |
||
|
21310
|
21310
2130434N00 Gasket9004--01 ~ 9301--01; TD27 +TD27T; |
2130434N00 |
US $34.42 |
||
|
21310
|
21310
21304-43G02 Gasket8811--01 ~ 8910--01; TD27T; |
21304-43G02 |
US $5.33 |
||
|
21372
|
21372
15303-61503 Plug-Oil Cooler8811--01 ~ 8910--01; TD27T |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
21372
|
21372
15134-6150A Plug-Oil Cooler8811--01 ~ 8910--01; TD27T |
15134-6150A |
US $12.10 |
||
|
21372
|
21372
15303-61503 Plug-Oil Cooler8811--01 ~ 8910--01; TD27T |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
21372
|
21372
15134-6150A Plug-Oil Cooler8811--01 ~ 8910--01; TD27T |
15134-6150A |
US $12.10 |
||
