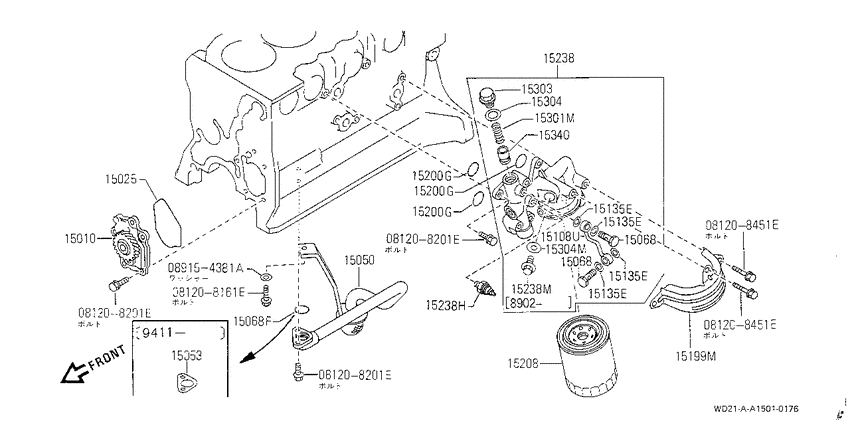

Lubricating system (1988-11-01 ~ ; TD27T) Diagram Nissan TERRANO
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- TD27T
- drive
- 4WD
- transmission
- AT
- grade
- SE/W
- body
- W/4D
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
15010
|
15010
15010-43G04 Pump Assy-Oil8811--01 ~ 8910--01; TD27T; |
15010-43G04 |
US $243.36 |
||
|
15010
|
15010
15010-43G05 Pump Assy-Oil9411--01 ~ ; W/4D.TD27T |
15010-43G05 |
US $243.36 |
||
|
15025
|
15025
1502543G01 Gasket-Oil Pump To Cylinder Block8811--01 ~ 8910--01; TD27T; |
1502543G01 |
US $9.30 |
||
|
15050
|
15050
15050-80G00 Strainer Assy-Oil8811--01 ~ 9112--01; TD27T |
15050-80G00 |
US $47.66 |
||
|
15050
|
15050
15050-80G01 Strainer Assy-Oil9411--01 ~ ; TD27T |
15050-80G01 |
US $79.06 |
||
|
15053
|
15053
1505380G00 Gasket-Oil Strainer9411--01 ~ ; TD27T |
1505380G00 |
US $5.68 |
||
|
15068
|
15068
01619-00364 CONNECTOR-OIL8811--01 ~ ; TD27T |
01619-00364 |
US $2.45 |
||
|
15068
|
15068
15053-43G01 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
15053-43G01 |
US $2.45 |
||
|
15068
|
15068
01619-00364 CONNECTOR-OIL8811--01 ~ ; TD27T |
01619-00364 |
US $2.45 |
||
|
15068
|
15068
15053-43G01 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
15053-43G01 |
US $2.45 |
||
|
15068F
|
15068F
15053-43G01 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
15053-43G01 |
US $2.45 |
||
|
15108U
|
15108U
15108-80G00 Tube Assy-Oil8811--01 ~ ; TD27T |
15108-80G00 |
US $29.09 |
||
|
15135E
|
15135E
01351-10104 WASHER8811--01 ~ 8910--01; TD27T |
01351-10104 |
US $1.73 |
||
|
15135E
|
15135E
15226-80G00 Gasket8910--01 ~ ; TD27T |
15226-80G00 |
US $4.18 |
||
|
15135E
|
15135E
01351-10104 WASHER8811--01 ~ 8910--01; TD27T |
01351-10104 |
US $1.73 |
||
|
15135E
|
15135E
15226-80G00 Gasket8910--01 ~ ; TD27T |
15226-80G00 |
US $4.18 |
||
|
15135E
|
15135E
01351-10104 WASHER8811--01 ~ 8910--01; TD27T |
01351-10104 |
US $1.73 |
||
|
15135E
|
15135E
15226-80G00 Gasket8910--01 ~ ; TD27T |
15226-80G00 |
US $4.18 |
||
|
15135E
|
15135E
01351-10104 WASHER8811--01 ~ 8910--01; TD27T |
01351-10104 |
US $1.73 |
||
|
15135E
|
15135E
15226-80G00 Gasket8910--01 ~ ; TD27T |
15226-80G00 |
US $4.18 |
||
|
15199M
|
15199M
15199-31N00
Plate-Heat Shield
8811--01 ~ ; TD27T |
15199-31N00 |
— | ||
| replacement | |||||
|
15199M
|
15199M
15199-31N0A Heat Shield Plate8811--01 ~ ; TD27T |
15199-31N0A |
US $17.32 |
||
|
15200G
|
15200G
2133402N00 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
2133402N00 |
from US $7.49 |
||
|
15200G
|
15200G
2133402N00 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
2133402N00 |
from US $7.49 |
||
|
15200G
|
15200G
2133402N00 Seal-O Ring8811--01 ~ 8910--01; TD27T; |
2133402N00 |
from US $7.49 |
||
|
15208
|
15208
AY100NS012 Filter Assy-Oil8811--01 ~ 9104--01; TD27T |
AY100NS012 |
US $32.38 |
||
|
15208
|
15208
15213-43G00 Stud-Oil Filter8811--01 ~ 8910--01; TD27T |
15213-43G00 |
US $12.67 |
||
|
15238
|
15238
15238-31N02 Bracket-Oil Filter9411--01 ~ ; W/4D.TD27T |
15238-31N02 |
US $528.17 |
||
|
15238
|
15238
15238-80G01 Bracket-Oil Filter8811--01 ~ 8906--01; TD27T |
15238-80G01 |
US $480.02 |
||
|
15238
|
15238
15238-80G02 Bracket-Oil Filter8906--01 ~ 9411--01; TD27T |
15238-80G02 |
US $403.56 |
||
|
15238
|
15238
25240-10G00 Switch Assy-Oil Pressure8811--01 ~ 9310--01; *TD27T; ｶﾝﾚｲﾁ ｼﾖｳ |
25240-10G00 |
US $34.27 |
||
|
15238
|
15238
15233-31N02 Adapter Assy-Oil Filter8906--01 ~ 9411--01; TD27T |
15233-31N02 |
US $14.98 |
||
|
15238
|
15238
15233-31N03 Adapter Assy-Oil Filter9411--01 ~ ; TD27T |
15233-31N03 |
US $12.82 |
||
|
15238H
|
15238H
25240-10G00 Switch Assy-Oil Pressure8811--01 ~ 9310--01; *TD27T; ｶﾝﾚｲﾁ ｼﾖｳ |
25240-10G00 |
US $34.27 |
||
|
15238M
|
15238M
15233-31N02 Adapter Assy-Oil Filter8906--01 ~ 9411--01; TD27T |
15233-31N02 |
US $14.98 |
||
|
15238M
|
15238M
15233-31N03 Adapter Assy-Oil Filter9411--01 ~ ; TD27T |
15233-31N03 |
US $12.82 |
||
|
15301M
|
15301M
15133-06J01 Spring-Oil Regulator8811--01 ~ 9301--01; TD27+TD27T |
15133-06J01 |
US $2.49 |
||
|
15303
|
15303
15134-43G01 Plug-Oil Cooler8811--01 ~ 8910--01; TD27T |
15134-43G01 |
US $8.78 |
||
|
15304
|
15304
054121800P Washer-Lock8811--01 ~ 8910--01; TD27T |
054121800P |
US $2.02 |
||
|
15304
|
15304
15226-31N00 Washer8910--01 ~ 9411--01; TD27T |
15226-31N00 |
US $2.45 |
||
|
15304
|
15304
15226-80G10 Washer9411--01 ~ ; TD27T |
15226-80G10 |
US $3.02 |
||
|
15304M
|
15304M
15226-31N00 Washer8910--01 ~ 9411--01; TD27T |
15226-31N00 |
US $2.45 |
||
|
15304M
|
15304M
15226-80G10 Washer9411--01 ~ ; TD27T |
15226-80G10 |
US $3.02 |
||
|
15340
|
15340
1513243G01 Valve Assy-Relief, Oil Cooler8811--01 ~ 8910--01; TD27T |
1513243G01 |
US $11.51 |
||
