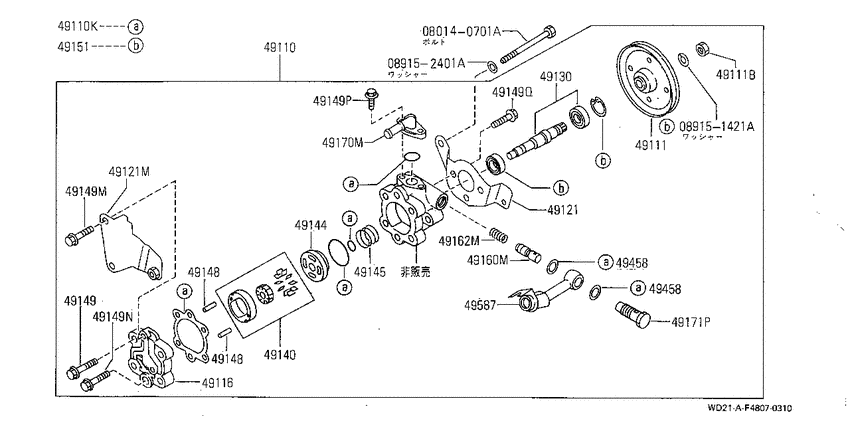

power steering control (1993-01-01 ~ ; ポンプ本体; (W/2D+W/4D)･TD27T) Diagram Nissan TERRANO
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- TD27T
- drive
- 4WD
- transmission
- AT
- grade
- SE/W
- body
- W/4D
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080140701A
|
080140701A
08014-0701A
Bolt-hexagon
|
08014-0701A |
— | ||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
49110
|
49110
49110-44G00 Pump Assy-Power Steering8608--01 ~ 8708--01; ALL |
49110-44G00 |
US $1,362.19 |
||
|
49110
|
49110
49110-65G10
Pump Assy-Power Steering
9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49110-65G10 |
— | ||
|
49110
|
49110
49110-80G00 Pump Assy-Power Steering8811--01 ~ 8910--01; TD27T |
49110-80G00 |
US $1,652 |
||
|
49110
|
49110
49110-80G10 Pump Assy-Power Steering8910--01 ~ 9108--01; (W/2D+W/4D).TD27T |
49110-80G10 |
US $1,652 |
||
|
49110
|
49110
49110-80G11 Pump Assy-Power Steering9108--01 ~ 9301--01; (W/2D+W/4D).TD27T |
49110-80G11 |
US $1,652 |
||
|
49110
|
49110
4959150L27 Seal Kit-Power Steering Pump8608--01 ~ 8708--01; ALL |
4959150L27 |
US $15.25 |
||
|
49110K
|
49110K
4959150L27 Seal Kit-Power Steering Pump8608--01 ~ 8708--01; ALL |
4959150L27 |
US $15.25 |
||
|
49111
|
49111
49132-43G00 Pulley-Power Steering Pump8608--01 ~ 8708--01; ALL |
49132-43G00 |
US $85.68 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump8608--01 ~ 8708--01; ALL |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump8608--01 ~ 8708--01; ALL |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump8608--01 ~ 8708--01; ALL |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump8608--01 ~ 8708--01; ALL |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-51E00 COVER-REAR,POWER STEERING PUMP9301--01 ~ 9411--01; (W/2D+W/4D).TD27T; |
49116-51E00 |
US $33.70 |
||
|
49121
|
49121
49121-44G00 Bracket Assy-Power Steering Pump8708--01 ~ 9301--01; V +(W/2D+W/4D).TD27T |
49121-44G00 |
US $45.79 |
||
|
49121
|
49121
49122-80G00 Bracket Assy-Power Steering Pump8811--01 ~ 8910--01; TD27T |
49122-80G00 |
US $67.39 |
||
|
49121
|
49121
49122-80G10 Bracket Assy-Power Steering Pump8910--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49122-80G10 |
US $80.50 |
||
|
49121M
|
49121M
49122-80G00 Bracket Assy-Power Steering Pump8811--01 ~ 8910--01; TD27T |
49122-80G00 |
US $67.39 |
||
|
49121M
|
49121M
49122-80G10 Bracket Assy-Power Steering Pump8910--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49122-80G10 |
US $80.50 |
||
|
49130
|
49130
49130-29C00 Shaft-Drive, Power Steering Pump9301--01 ~ 9402--01; W/2D +W/4D; |
49130-29C00 |
US $45.05 |
||
|
49140
|
49140
49140-15V00 Rotor & Camring Set-Power Steering Pump9301--01 ~ 9411--01; W/2D +W/4D; |
49140-15V00 |
from US $116.21 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump9301--01 ~ 9411--01; W/2D +W/4D; |
49144-15V00 |
US $31.68 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate9301--01 ~ 9411--01; W/2D +W/4D; |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9301--01 ~ 9411--01; W/2D +W/4D; |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9301--01 ~ 9411--01; W/2D +W/4D; |
49148-15V00 |
US $2.49 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump9301--01 ~ 9411--01; W/2D +W/4D; |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49164-15C10 Bolt-Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49164-15C10 |
US $2.59 |
||
| replacement | |||||
|
49149
|
49149
49164-0E00A Bolt-Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49164-0E00A |
from US $2.88 |
||
|
49149
|
49149
49149-57J00 Bolt-Bracket, Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49149-57J00 |
US $3.46 |
||
|
49149
|
49149
49164-F6600 Bolt9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49164-F6600 |
US $2.45 |
||
|
49149
|
49149
49149-15V00 Bolt-Bracket, Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49149-15V00 |
US $6.19 |
||
|
49149M
|
49149M
49164-15C10 Bolt-Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49164-15C10 |
US $2.59 |
||
| replacement | |||||
|
49149M
|
49149M
49164-0E00A Bolt-Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49164-0E00A |
from US $2.88 |
||
|
49149N
|
49149N
49149-57J00 Bolt-Bracket, Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49149-57J00 |
US $3.46 |
||
|
49149P
|
49149P
49164-F6600 Bolt9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49164-F6600 |
US $2.45 |
||
|
49149Q
|
49149Q
49149-15V00 Bolt-Bracket, Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49149-15V00 |
US $6.19 |
||
|
49151
|
49151
4911950L25 Seal Set-Drive Shaft8608--01 ~ 8708--01; ALL |
4911950L25 |
from US $10.69 |
||
|
49160M
|
49160M
49165-F6400 Valve Assy-Flow Control9301--01 ~ 9411--01; W/2D +W/4D; |
49165-F6400 |
US $44.50 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve9301--01 ~ 9411--01; W/2D +W/4D; |
4916719V00 |
US $10.94 |
||
|
49170M
|
49170M
49580-55S00 Pipe Kit-Suction, Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49580-55S00 |
US $18.02 |
||
| replacement | |||||
|
49170M
|
49170M
D9580-55S00
Pipe kit-suction,power steering pump
9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
D9580-55S00 |
— | ||
|
49171P
|
49171P
49170-30C00 Joint-Outlet, Power Steering Pump9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49170-30C00 |
US $66.82 |
||
|
49458
|
49458
4958926E00 WASHER-COPPER8910--01 ~ 9301--01; V +(W/2D+W/4D).TD27T |
4958926E00 |
from US $4.63 |
||
|
49458
|
49458
4958926E00 WASHER-COPPER8910--01 ~ 9301--01; V +(W/2D+W/4D).TD27T |
4958926E00 |
from US $4.63 |
||
|
49587
|
49587
49172-80G00 Joint-Outlet, Power Steering Pump8910--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49172-80G00 |
US $72.43 |
||
