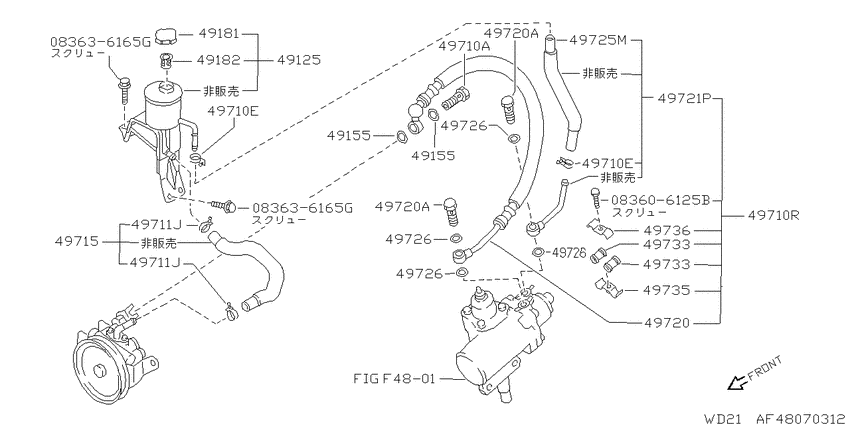

power steering control (1993-01-01 ~ ; パイピング; (W/2D+W/4D)･TD27T) Diagram Nissan TERRANO
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- TD27T
- drive
- 4WD
- transmission
- AT
- grade
- SE/W
- body
- W/4D
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083606125B
|
083606125B
083606125B Screw |
083606125B |
US $1.73 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
49125
|
49125
49115-07G00 Tank Assy-Reservoir8608--01 ~ 8708--01; ALL |
49115-07G00 |
US $187.20 |
||
|
49125
|
49125
49180-50G10 Tank Assy-Reservoir8811--01 ~ 8910--01; TD27T +VG30 |
49180-50G10 |
US $267.84 |
||
|
49155
|
49155
49589-R8200 Washer-Copper8608--01 ~ 8610--01; ALL |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49155
|
49155
49726Y0100 Washer-Copper8608--01 ~ 8610--01; ALL |
49726Y0100 |
from US $1.72 |
||
|
49155
|
49155
49726Y0100 Washer-Copper8610--01 ~ 8910--01; ALL |
49726Y0100 |
from US $1.72 |
||
|
49155
|
49155
49589-R8200 Washer-Copper8608--01 ~ 8610--01; ALL |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49155
|
49155
49726Y0100 Washer-Copper8608--01 ~ 8610--01; ALL |
49726Y0100 |
from US $1.72 |
||
|
49155
|
49155
49726Y0100 Washer-Copper8610--01 ~ 8910--01; ALL |
49726Y0100 |
from US $1.72 |
||
|
49181
|
49181
49181W1705 Cap Assy-Pump8811--01 ~ 8910--01; ALL; |
49181W1705 |
from US $14.42 |
||
|
49181
|
49181
49181-W1710 Cap Assy-Pump8708--01 ~ 8811--01; ALL |
49181-W1710 |
US $27.07 |
||
|
49182
|
49182
49182-42L00 Filter Assy-Pump9301--01 ~ 9411--01; W/2D +W/4D |
49182-42L00 |
US $5.55 |
||
|
49710A
|
49710A
0161900011 BOLT8610--01 ~ 8910--01; ALL |
0161900011 |
from US $3.74 |
||
|
49710A
|
49710A
49590-R8200 Bolt-Connector8608--01 ~ 8610--01; ALL |
49590-R8200 |
US $13.39 |
||
|
49710E
|
49710E
0155500691 CLAMP9301--01 ~ 9411--01; W/2D +W/4D |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP9301--01 ~ 9411--01; W/2D +W/4D |
0155500691 |
from US $2.11 |
||
|
49710R
|
49710R
49710-65G15 Hose & Tube Set-Power Steering9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49710-65G15 |
US $457.37 |
||
|
49711J
|
49711J
49729-2J016
Clamp
8608--01 ~ 8910--01; ALL |
49729-2J016 |
— | ||
| replacement | |||||
|
49711J
|
49711J
497292J01B Clamp8608--01 ~ 8910--01; ALL |
497292J01B |
from US $1.96 |
||
|
49711J
|
49711J
49729-2J016
Clamp
8608--01 ~ 8910--01; ALL |
49729-2J016 |
— | ||
| replacement | |||||
|
49711J
|
49711J
497292J01B Clamp8608--01 ~ 8910--01; ALL |
497292J01B |
from US $1.96 |
||
|
49715
|
49715
49717-43G01 Hose-Pump To Reservoir Tank8608--01 ~ 8708--01; ALL |
49717-43G01 |
US $84.38 |
||
|
49715
|
49715
49717-80G00 Hose-Pump To Reservoir Tank8811--01 ~ 8910--01; TD27T |
49717-80G00 |
US $78.34 |
||
|
49720
|
49720
4972044G00 Hose Assy-Pressure, Power Steering8608--01 ~ 8708--01; ALL |
4972044G00 |
US $237.60 |
||
|
49720
|
49720
49720-65G15 Hose Assy-Pressure, Power Steering9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49720-65G15 |
US $331.34 |
||
|
49720
|
49720
49720-80G00 Hose Assy-Pressure, Power Steering8811--01 ~ 8910--01; TD27T |
49720-80G00 |
US $283.68 |
||
|
49720
|
49720
49738-30P00 Bolt9301--01 ~ 9310--01; W/2D +W/4D |
49738-30P00 |
US $5.18 |
||
|
49720
|
49720
49738-V5000 Bolt-Connector9310--01 ~ 9411--01; W/2D +W/4D |
49738-V5000 |
US $5.47 |
||
| replacement | |||||
|
49720
|
49720
49738V500A Bolt9310--01 ~ 9411--01; W/2D +W/4D |
49738V500A |
US $5.33 |
||
|
49720A
|
49720A
49738-30P00 Bolt9301--01 ~ 9310--01; W/2D +W/4D |
49738-30P00 |
US $5.18 |
||
|
49720A
|
49720A
49738-V5000 Bolt-Connector9310--01 ~ 9411--01; W/2D +W/4D |
49738-V5000 |
US $5.47 |
||
| replacement | |||||
|
49720A
|
49720A
49738V500A Bolt9310--01 ~ 9411--01; W/2D +W/4D |
49738V500A |
US $5.33 |
||
|
49720A
|
49720A
49738-30P00 Bolt9301--01 ~ 9310--01; W/2D +W/4D |
49738-30P00 |
US $5.18 |
||
|
49720A
|
49720A
49738-V5000 Bolt-Connector9310--01 ~ 9411--01; W/2D +W/4D |
49738-V5000 |
US $5.47 |
||
| replacement | |||||
|
49720A
|
49720A
49738V500A Bolt9310--01 ~ 9411--01; W/2D +W/4D |
49738V500A |
US $5.33 |
||
|
49721P
|
49721P
49721-65G16 Hose & Tube Assy-Return, Power Steering9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49721-65G16 |
US $59.76 |
||
|
49725M
|
49725M
49725-65G16 Hose-Return, Power Steering9301--01 ~ 9411--01; (W/2D+W/4D).TD27T |
49725-65G16 |
US $33 |
||
|
49726
|
49726
4972650W00 Seal-O Ring9301--01 ~ 9411--01; W/2D +W/4D |
4972650W00 |
from US $1.94 |
||
|
49726
|
49726
4972650W00 Seal-O Ring9301--01 ~ 9411--01; W/2D +W/4D |
4972650W00 |
from US $1.94 |
||
|
49726
|
49726
4972650W00 Seal-O Ring9301--01 ~ 9411--01; W/2D +W/4D |
4972650W00 |
from US $1.94 |
||
|
49733
|
49733
49733-63G15 Insulator9301--01 ~ 9411--01; W/2D +W/4D |
49733-63G15 |
from US $7.20 |
||
|
49733
|
49733
49733-63G15 Insulator9301--01 ~ 9411--01; W/2D +W/4D |
49733-63G15 |
from US $7.20 |
||
|
49735
|
49735
49736-24G10 Clip-Power Steering Tube9301--01 ~ 9411--01; W/2D +W/4D |
49736-24G10 |
US $12.38 |
||
| replacement | |||||
|
49735
|
49735
49736-24G1A
Bracket-Power Steering
9301--01 ~ 9411--01; W/2D +W/4D |
49736-24G1A |
— | ||
|
49736
|
49736
49736-24G00 Clip-Power Steering Tube9301--01 ~ 9411--01; W/2D +W/4D |
49736-24G00 |
US $7.06 |
||
| replacement | |||||
|
49736
|
49736
49736-24G0A Clamp9301--01 ~ 9411--01; W/2D +W/4D |
49736-24G0A |
US $7.20 |
||
|
49736
|
49736
49736-35G00 Clip-Power Steering Tube8608--01 ~ 8910--01; ALL |
49736-35G00 |
US $9.79 |
||
