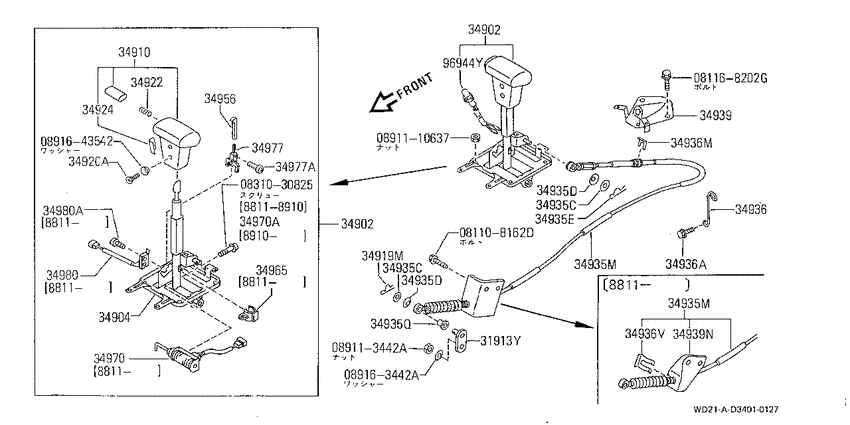

Transmission control & linkage (1988-11-01 ~ ; TD27T.AT) Diagram Nissan TERRANO
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- TD27T
- drive
- 4WD
- transmission
- AT
- grade
- SE/W
- body
- W/4D
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108162D
|
081108162D
08110-8162D
Bolt-hexagon
|
08110-8162D |
— | ||
|
081168202G
|
081168202G
08116-8202G
Bolt-hexagon
|
08116-8202G |
— | ||
|
0831030825
|
0831030825
0831030825
Screw-machine
|
0831030825 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089113442A
|
089113442A
08911-3442A
NUTHEX
|
08911-3442A |
— | ||
|
089163442A
|
089163442A
08916-3442A
WASHERTOOTH
|
08916-3442A |
— | ||
|
0891643542
|
0891643542
0891643542
ﾜﾂｼﾔ-,ﾂ-ｽ
|
0891643542 |
— | ||
|
31913Y
|
31913Y
31913-30G00 Lever-Select Range8811--01 ~ 9310--01; AT |
31913-30G00 |
US $17.71 |
||
|
31913Y
|
31913Y
31913-30G05 Lever-Select Range9310--01 ~ 9411--01; AT |
31913-30G05 |
US $12.24 |
||
|
34902
|
34902
34901-50G60 Device Assy-Transmission Control8811--01 ~ 8910--01; (TD27T+VG30).AT |
34901-50G60 |
US $715.08 |
||
|
34902
|
34902
34901-55G00 Device Assy-Transmission Control9301--01 ~ 9310--01; AT |
34901-55G00 |
US $722.16 |
||
|
34902
|
34902
34901-55G05 Device Assy-Transmission Control9310--01 ~ 9411--01; AT |
34901-55G05 |
US $661.27 |
||
|
34902
|
34902
34901-55G15 Device Assy-Transmission Control9310--01 ~ 9411--01; *AT; ﾎﾝｶﾞﾜ ﾉﾌﾞ |
34901-55G15 |
US $804.29 |
||
|
34902
|
34902
34901-80G60 Device Assy-Transmission Control8910--01 ~ 9101--01; (TD27T+VG30E).AT |
34901-80G60 |
US $715.08 |
||
|
34902
|
34902
34901-80G61 Device Assy-Transmission Control9101--01 ~ 9301--01; (TD27T+VG30E).AT |
34901-80G61 |
US $600.38 |
||
|
34902
|
34902
34901-50G60 Device Assy-Transmission Control8811--01 ~ 8910--01; (TD27T+VG30).AT |
34901-50G60 |
US $715.08 |
||
|
34902
|
34902
34901-55G00 Device Assy-Transmission Control9301--01 ~ 9310--01; AT |
34901-55G00 |
US $722.16 |
||
|
34902
|
34902
34901-55G05 Device Assy-Transmission Control9310--01 ~ 9411--01; AT |
34901-55G05 |
US $661.27 |
||
|
34902
|
34902
34901-55G15 Device Assy-Transmission Control9310--01 ~ 9411--01; *AT; ﾎﾝｶﾞﾜ ﾉﾌﾞ |
34901-55G15 |
US $804.29 |
||
|
34902
|
34902
34901-80G60 Device Assy-Transmission Control8910--01 ~ 9101--01; (TD27T+VG30E).AT |
34901-80G60 |
US $715.08 |
||
|
34902
|
34902
34901-80G61 Device Assy-Transmission Control9101--01 ~ 9301--01; (TD27T+VG30E).AT |
34901-80G61 |
US $600.38 |
||
|
34904
|
34904
34904-50G60 Bracket Compl-Control Lever8811--01 ~ 8910--01; (TD27T+VG30).AT |
34904-50G60 |
US $463.03 |
||
|
34904
|
34904
34904-55G05 Bracket Compl-Control Lever9310--01 ~ 9411--01; AT |
34904-55G05 |
US $427.63 |
||
|
34904
|
34904
34904-80G60 Bracket Compl-Control Lever8910--01 ~ 9101--01; (TD27T+VG30E).AT |
34904-80G60 |
US $463.03 |
||
|
34904
|
34904
34904-80G61 Bracket Compl-Control Lever9101--01 ~ 9310--01; (TD27T+VG30E).AT |
34904-80G61 |
US $463.03 |
||
|
34910
|
34910
34910-50G60 Knob Assy-Control Lever, Auto8811--01 ~ 8910--01; (TD27T+VG30).AT |
34910-50G60 |
US $177.12 |
||
|
34910
|
34910
34910-55G05 Knob Assy-Control Lever, Auto9310--01 ~ 9411--01; AT |
34910-55G05 |
US $84.53 |
||
|
34910
|
34910
34910-55G15 Knob Assy-Control Lever, Auto9310--01 ~ 9411--01; *AT; ﾎﾝｶﾞﾜ |
34910-55G15 |
US $218.88 |
||
|
34910
|
34910
34910-80G60 Knob Assy-Control Lever, Auto8910--01 ~ 9310--01; (TD27T+VG30E).AT |
34910-80G60 |
US $178.56 |
||
|
34919M
|
34919M
0153200022 PIN9108--01 ~ 9411--01; (TD27T+VG30E).AT |
0153200022 |
US $1.73 |
||
|
34920A
|
34920A
0141300051 SCREW8811--01 ~ 9411--01; AT |
0141300051 |
from US $0.37 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button8811--01 ~ 9411--01; AT |
3492201P00 |
from US $1.81 |
||
|
34924
|
34924
34924-50G00 Mask-Switch Hole8811--01 ~ 9310--01; AT |
34924-50G00 |
US $9.07 |
||
|
34935C
|
34935C
36522-68200
Washer-Plain
8811--01 ~ 9411--01; AT |
36522-68200 |
— | ||
| replacement | |||||
|
34935C
|
34935C
365226820A Washer8811--01 ~ 9411--01; AT |
365226820A |
from US $1.07 |
||
|
34935C
|
34935C
36522-68200
Washer-Plain
8811--01 ~ 9411--01; AT |
36522-68200 |
— | ||
| replacement | |||||
|
34935C
|
34935C
365226820A Washer8811--01 ~ 9411--01; AT |
365226820A |
from US $1.07 |
||
|
34935D
|
34935D
34419-04100
Washer-Lock
8811--01 ~ 9411--01; AT |
34419-04100 |
— | ||
| replacement | |||||
|
34935D
|
34935D
344190410A Washer8811--01 ~ 9411--01; AT |
344190410A |
US $2.91 |
||
|
34935D
|
34935D
34419-04100
Washer-Lock
8811--01 ~ 9411--01; AT |
34419-04100 |
— | ||
| replacement | |||||
|
34935D
|
34935D
344190410A Washer8811--01 ~ 9411--01; AT |
344190410A |
US $2.91 |
||
|
34935E
|
34935E
0153200031 PIN8811--01 ~ 9411--01; AT |
0153200031 |
US $2.45 |
||
| replacement | |||||
|
34935E
|
34935E
009231081A PINSNAP8811--01 ~ 9411--01; AT |
009231081A |
from US $0.52 |
||
|
34935M
|
34935M
34935-30G10 Rod-Selector8811--01 ~ 9411--01; AT |
34935-30G10 |
US $192.96 |
||
| replacement | |||||
|
34935M
|
34935M
34935-30G1A
Cable assy-control
8811--01 ~ 9411--01; AT |
34935-30G1A |
— | ||
|
34935M
|
34935M
34935-30G10 Rod-Selector8811--01 ~ 9411--01; AT |
34935-30G10 |
US $192.96 |
||
| replacement | |||||
|
34935M
|
34935M
34935-30G1A
Cable assy-control
8811--01 ~ 9411--01; AT |
34935-30G1A |
— | ||
|
34935Q
|
34935Q
3440701E00 BUSH8811--01 ~ 9411--01; AT |
3440701E00 |
US $4.18 |
||
|
34936
|
34936
34939-42G10 Clamp-Cable8811--01 ~ 9411--01; AT |
34939-42G10 |
US $14.11 |
||
|
34936
|
34936
01466-00171 SCREW8811--01 ~ 9411--01; AT |
01466-00171 |
US $2.21 |
||
|
34936
|
34936
36406-42G00 Plate-Lock, Cable8811--01 ~ 9411--01; AT |
36406-42G00 |
US $5.04 |
||
|
34936
|
34936
36406-42G00 Plate-Lock, Cable8811--01 ~ 9411--01; AT |
36406-42G00 |
US $5.04 |
||
|
34936
|
34936
36406-P0100 Plate-Cable Lock9507--01 ~ ; W/4D.AT |
36406-P0100 |
US $1.58 |
||
|
34936A
|
34936A
01466-00171 SCREW8811--01 ~ 9411--01; AT |
01466-00171 |
US $2.21 |
||
|
34936M
|
34936M
36406-42G00 Plate-Lock, Cable8811--01 ~ 9411--01; AT |
36406-42G00 |
US $5.04 |
||
|
34936V
|
34936V
36406-42G00 Plate-Lock, Cable8811--01 ~ 9411--01; AT |
36406-42G00 |
US $5.04 |
||
|
34936V
|
34936V
36406-P0100 Plate-Cable Lock9507--01 ~ ; W/4D.AT |
36406-P0100 |
US $1.58 |
||
|
34939
|
34939
34939-42G01 Bracket-Cable Mounting8811--01 ~ 8910--01; (TD27T+VG30).AT |
34939-42G01 |
US $15.70 |
||
|
34939
|
34939
34939-56G00 Bracket-Cable Mounting9201--01 ~ 9411--01; AT |
34939-56G00 |
US $16.70 |
||
|
34939
|
34939
34939-30G05 Bracket-Cable Mounting8811--01 ~ 9411--01; AT |
34939-30G05 |
US $18.14 |
||
|
34939N
|
34939N
34939-30G05 Bracket-Cable Mounting8811--01 ~ 9411--01; AT |
34939-30G05 |
US $18.14 |
||
|
34956
|
34956
34956-80G00 Knob-Release Lever9112--01 ~ 9411--01; AT; |
34956-80G00 |
US $6.48 |
||
|
34956
|
34956
34956-80G60 Knob-Release Lever8910--01 ~ 9112--01; (TD27T+VG30E).AT |
34956-80G60 |
US $5.90 |
||
|
34965
|
34965
34965-50G60
Bush-Stopper
8811--01 ~ 8910--01; (TD27T+VG30).AT |
34965-50G60 |
— | ||
|
34965
|
34965
34965-55G05 Bush-Stopper9310--01 ~ 9411--01; AT |
34965-55G05 |
US $6.48 |
||
|
34965
|
34965
34965-80G60 Bush-Stopper8910--01 ~ 9310--01; (TD27T+VG30E).AT |
34965-80G60 |
US $3.74 |
||
|
34970
|
34970
34970-50G60 Solenoid Assy-Select Lock8811--01 ~ 8910--01; (TD27T+VG30).AT |
34970-50G60 |
US $109.58 |
||
|
34970
|
34970
3497080G60 Solenoid Assy-Select Lock8910--01 ~ 9411--01; AT |
3497080G60 |
US $101.52 |
||
|
34970
|
34970
34925-71L10 Screw8910--01 ~ 9411--01; AT |
34925-71L10 |
US $3.31 |
||
|
34970A
|
34970A
34925-71L10 Screw8910--01 ~ 9411--01; AT |
34925-71L10 |
US $3.31 |
||
|
34977
|
34977
34977-68E60 BRACKET ASSY-RELEASE LEVER9310--01 ~ 9411--01; AT |
34977-68E60 |
US $5.33 |
||
|
34977
|
34977
34977-77A20 Bracket Assy-Release Lever8910--01 ~ 9310--01; AT |
34977-77A20 |
US $5.90 |
||
|
34977
|
34977
34925-77A20 Bolt8910--01 ~ 9411--01; AT |
34925-77A20 |
US $3.31 |
||
|
34977A
|
34977A
34925-77A20 Bolt8910--01 ~ 9411--01; AT |
34925-77A20 |
US $3.31 |
||
|
34980
|
34980
34980-50G60 Park Position Switch8811--01 ~ 8910--01; (TD27T+VG30).AT |
34980-50G60 |
US $73.15 |
||
|
34980
|
34980
34980-80G60 Park Position Switch8910--01 ~ 9411--01; AT |
34980-80G60 |
US $67.68 |
||
|
34980
|
34980
34925-64J00 Screw9112--01 ~ 9411--01; AT |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34980
|
34980
34925-EB30A Screw9112--01 ~ 9411--01; AT |
34925-EB30A |
US $1.73 |
||
|
34980
|
34980
34925-71L11 Screw8910--01 ~ 9112--01; (TD27T+VG30E).AT |
34925-71L11 |
US $3.31 |
||
|
34980
|
34980
C4973-36F10 Screw8811--01 ~ 8910--01; (TD27T+VG30).AT |
C4973-36F10 |
US $3.60 |
||
|
34980A
|
34980A
34925-64J00 Screw9112--01 ~ 9411--01; AT |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34980A
|
34980A
34925-EB30A Screw9112--01 ~ 9411--01; AT |
34925-EB30A |
US $1.73 |
||
|
34980A
|
34980A
34925-71L11 Screw8910--01 ~ 9112--01; (TD27T+VG30E).AT |
34925-71L11 |
US $3.31 |
||
|
34980A
|
34980A
C4973-36F10 Screw8811--01 ~ 8910--01; (TD27T+VG30).AT |
C4973-36F10 |
US $3.60 |
||
|
96944Y
|
96944Y
96942-30G10 ﾊﾞﾙﾌﾞ,ｲﾝｼﾞｹ-ﾀ-8910--01 ~ 9411--01; AT |
96942-30G10 |
US $10.22 |
||
