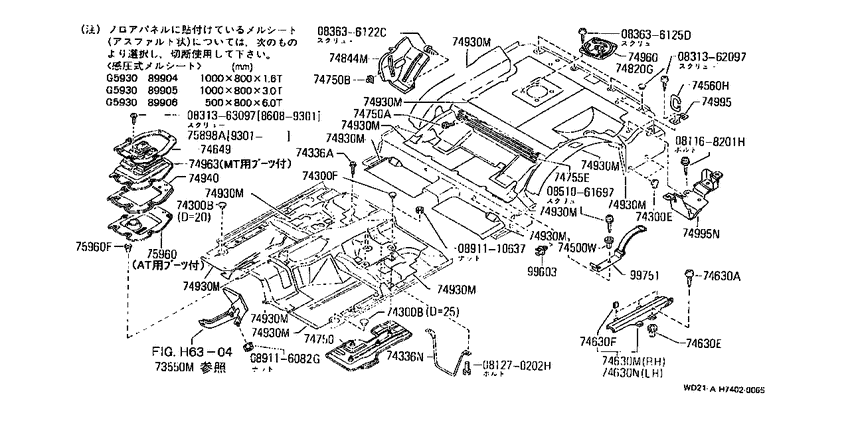

Floor fitting (1986-08-01 ~ ; ALL) Diagram Nissan TERRANO
- Year
- 1986 - 1993
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- transmission
- MT
- grade
- DX
- body
- V/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081168201H
|
081168201H
08116-8201H
Bolt-hexagon
|
08116-8201H |
— | ||
|
081270202H
|
081270202H
08127-0202H
Bolt-hexagon
|
08127-0202H |
— | ||
|
0831362097
|
0831362097
08313-62097
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-62097 |
— | ||
|
0831363097
|
0831363097
08313-63097
Болт
|
08313-63097 |
— | ||
|
083636122C
|
083636122C
08363-6122C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6122C |
— | ||
|
083636125D
|
083636125D
083636125D
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636125D |
— | ||
|
0851061697
|
0851061697
08510-61697
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-61697 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089116082G
|
089116082G
08911-6082G NUTHEX |
08911-6082G |
from US $1.26 |
||
|
74300B
|
74300B
062122000P Grommet8608--01 ~ 9301--01; ALL; D=20 |
062122000P |
US $3.46 |
||
|
74300B
|
74300B
062122500P Plug-Front Floor8608--01 ~ 9411--01; ALL; D=25 |
062122500P |
US $2.45 |
||
|
74300B
|
74300B
062122000P Grommet8608--01 ~ 9301--01; ALL; D=20 |
062122000P |
US $3.46 |
||
|
74300B
|
74300B
062122500P Plug-Front Floor8608--01 ~ 9411--01; ALL; D=25 |
062122500P |
US $2.45 |
||
|
74300E
|
74300E
7481601E10 PLUG-FRONT FLOOR8608--01 ~ 9411--01; ALL; ﾌﾛｱ ﾐｽﾞﾇｷ ﾌﾟﾗｸﾞ |
7481601E10 |
from US $7.35 |
||
|
74300F
|
74300F
67874-10600 Plug8608--01 ~ 9301--01; ALL |
67874-10600 |
US $0.86 |
||
|
74336A
|
74336A
01121-01341 BOLT8608--01 ~ 9411--01; ALL |
01121-01341 |
US $3.46 |
||
|
74336N
|
74336N
74860-41G00 Stay-Seat Belt Anchor8608--01 ~ 9411--01; ALL |
74860-41G00 |
US $27.79 |
||
|
74500W
|
74500W
01281-00601
GROMMET-SCREW
8608--01 ~ 9411--01; ALL |
01281-00601 |
— | ||
| replacement | |||||
|
74500W
|
74500W
0128101231 GROMMET-SCREW8608--01 ~ 9411--01; ALL |
0128101231 |
from US $2.24 |
||
|
74560H
|
74560H
74932R8005
Hook Assy-Rope
8608--01 ~ 9411--01; ALL |
74932R8005 |
— | ||
| replacement | |||||
|
74560H
|
74560H
74932R800E HOOK ASSYROPE8608--01 ~ 9411--01; ALL |
74932R800E |
from US $11.66 |
||
|
74630E
|
74630E
01281-00601
GROMMET-SCREW
8910--01 ~ 9411--01; ALL; |
01281-00601 |
— | ||
| replacement | |||||
|
74630E
|
74630E
0128101231 GROMMET-SCREW8910--01 ~ 9411--01; ALL; |
0128101231 |
from US $2.24 |
||
|
74649
|
74649
74815-31G00 Retainer-Boot Control Lever8608--01 ~ 9310--01; MT; |
74815-31G00 |
US $19.01 |
||
| replacement | |||||
|
74649
|
74649
74815-31G0A
Plate-transmission hole
8608--01 ~ 9310--01; MT; |
74815-31G0A |
— | ||
|
74750
|
74750
74750-41G00 Insulator Assy-Heat, Front Floor8608--01 ~ 8910--01; TD27 |
74750-41G00 |
US $210.24 |
||
|
74750
|
74750
01121-01341 BOLT8608--01 ~ 9301--01; ALL |
01121-01341 |
US $3.46 |
||
|
74750
|
74750
01241-00391 NUT-ARM SET8608--01 ~ 9411--01; ALL |
01241-00391 |
US $1.73 |
||
|
74750A
|
74750A
01121-01341 BOLT8608--01 ~ 9301--01; ALL |
01121-01341 |
US $3.46 |
||
|
74750B
|
74750B
01241-00391 NUT-ARM SET8608--01 ~ 9411--01; ALL |
01241-00391 |
US $1.73 |
||
|
74755E
|
74755E
74892-44G00
Spacer-Heat Insulator
8608--01 ~ 9301--01; TD27 |
74892-44G00 |
— | ||
|
74820G
|
74820G
0165800441 PLUG-FRONT FLOOR8608--01 ~ 9010--01; ALL; D=48 |
0165800441 |
US $4.30 |
||
|
74820G
|
74820G
01658-01131 PLUG9010--01 ~ 9301--01; V +W/2D +W/4D; D=8.5 |
01658-01131 |
from US $1.15 |
||
|
74820G
|
74820G
80895-R8000 Cover-Hole8608--01 ~ ; ALL; D=60 |
80895-R8000 |
US $1.73 |
||
|
74844M
|
74844M
74890-41G00 Protector Assy-Fuel Hose8608--01 ~ 9411--01; ALL |
74890-41G00 |
US $14.69 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74930M
|
74930M
G593089905 Insulator-Fusible8608--01 ~ ; ALL |
G593089905 |
from US $81.63 |
||
|
74940
|
74940
74810-31G00
Cover-Inspection Hole
8608--01 ~ 9310--01; MT |
74810-31G00 |
— | ||
| replacement | |||||
|
74940
|
74940
74810-31G0A Cover-Inspection Hole8608--01 ~ 9310--01; MT |
74810-31G0A |
US $49.32 |
||
|
74960
|
74960
74830-49L00
Cover-Inspection Hole
8608--01 ~ 9411--01; ALL |
74830-49L00 |
— | ||
|
74963
|
74963
74963-31G00
Boot-Rubber, Control Lever
8608--01 ~ 9301--01; MT; (K) |
74963-31G00 |
— | ||
| replacement | |||||
|
74963
|
74963
G4963-31G00 Boot-rubber,control lever8608--01 ~ 9301--01; MT; (K) |
G4963-31G00 |
US $150.79 |
||
|
74963
|
74963
74963-31G01 Boot-Rubber, Control Lever8608--01 ~ 9310--01; MT; (B) |
74963-31G01 |
US $126 |
||
| replacement | |||||
|
74963
|
74963
G4963-31G00 Boot-rubber,control lever8608--01 ~ 9310--01; MT; (B) |
G4963-31G00 |
US $150.79 |
||
|
74963
|
74963
74963-31G02
Boot-Rubber, Control Lever
8608--01 ~ 9310--01; MT; (R) |
74963-31G02 |
— | ||
| replacement | |||||
|
74963
|
74963
G4963-31G02 Boot-rubber,control lever8608--01 ~ 9310--01; MT; (R) |
G4963-31G02 |
US $191.29 |
||
|
74963
|
74963
74963-56G00 Boot-Rubber, Control Lever9301--01 ~ 9411--01; MT; (K) |
74963-56G00 |
US $126 |
||
|
74995
|
74995
7489541G00 Bracket-Rope Hook8608--01 ~ 9411--01; ALL |
7489541G00 |
from US $6.16 |
||
|
74995
|
74995
74870-41G00 Bracket Assy-Jack & Tool Case8608--01 ~ 8709--01; ALL |
74870-41G00 |
US $39.60 |
||
|
74995
|
74995
74870-41G10 Bracket Assy-Jack & Tool Case8709--01 ~ 9010--01; ALL |
74870-41G10 |
US $39.60 |
||
|
74995N
|
74995N
74870-41G00 Bracket Assy-Jack & Tool Case8608--01 ~ 8709--01; ALL |
74870-41G00 |
US $39.60 |
||
|
74995N
|
74995N
74870-41G10 Bracket Assy-Jack & Tool Case8709--01 ~ 9010--01; ALL |
74870-41G10 |
US $39.60 |
||
|
75960
|
75960
74967-41G00 Insulator-Transmission Hole8608--01 ~ 9411--01; MT; 284X325 |
74967-41G00 |
US $78.34 |
||
|
75960
|
75960
01281-00112
GROMMET-SCREW
8608--01 ~ 8708--01; ALL |
01281-00112 |
— | ||
| replacement | |||||
|
75960
|
75960
0128101231 GROMMET-SCREW8608--01 ~ 8708--01; ALL |
0128101231 |
from US $2.24 |
||
|
75960
|
75960
01281-00601
GROMMET-SCREW
8708--01 ~ 9411--01; ALL |
01281-00601 |
— | ||
| replacement | |||||
|
75960
|
75960
0128101231 GROMMET-SCREW8708--01 ~ 9411--01; ALL |
0128101231 |
from US $2.24 |
||
|
75960E
|
75960E
01281-00112
GROMMET-SCREW
8608--01 ~ 8708--01; ALL |
01281-00112 |
— | ||
| replacement | |||||
|
75960E
|
75960E
0128101231 GROMMET-SCREW8608--01 ~ 8708--01; ALL |
0128101231 |
from US $2.24 |
||
|
75960E
|
75960E
01281-00601
GROMMET-SCREW
8708--01 ~ 9411--01; ALL |
01281-00601 |
— | ||
| replacement | |||||
|
75960E
|
75960E
0128101231 GROMMET-SCREW8708--01 ~ 9411--01; ALL |
0128101231 |
from US $2.24 |
||
|
99603
|
99603
74826-41G00 CLAMPJACKHAND8608--01 ~ 9411--01; ALL |
74826-41G00 |
US $6.91 |
||
|
99751
|
99751
99651-41G00
ｸﾗﾝﾌﾟ,ﾂ-ﾙ ﾊﾞﾂｸﾞ
8608--01 ~ 9010--01; V |
99651-41G00 |
— | ||
