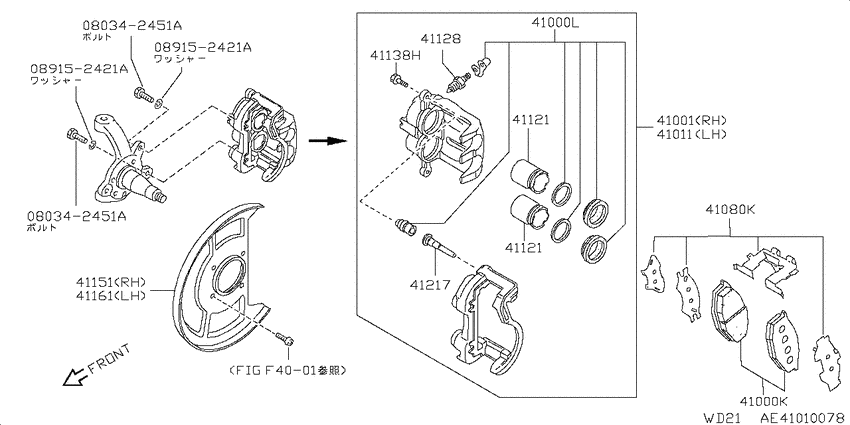

Front brake (1986-08-01 ~ ; ALL) Diagram Nissan TERRANO
- Year
- 1986 - 1993
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- transmission
- MT
- grade
- DX
- body
- V/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080342451A
|
080342451A
08034-2451A
Bolt-hexagon
|
08034-2451A |
— | ||
| replacement | |||||
|
080342451A
|
080342451A
08044-2451A Bolt-hexagon |
08044-2451A |
US $2 |
||
|
080342451A
|
080342451A
08034-2451A
Bolt-hexagon
|
08034-2451A |
— | ||
| replacement | |||||
|
080342451A
|
080342451A
08044-2451A Bolt-hexagon |
08044-2451A |
US $2 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
41060-V6794
Pad Kit-Disc Brake
8608--01 ~ 8708--01; V; 1 ﾀﾞｲﾌﾞﾝ ｾﾂﾄ |
41060-V6794 |
— | ||
|
41000K
|
41000K
AY040NS918 Pad Kit-Disc Brake8708--01 ~ 9301--01; V.TD27; ｼﾑｶﾊﾞ- ﾂｷ 1 ﾀﾞｲﾌﾞﾝ ｾﾂﾄ |
AY040NS918 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS030 Seal Kit-Disc Brake8608--01 ~ 8708--01; ALL |
AY600NS030 |
US $62.34 |
||
|
41001
|
41001
41001-09W00 Caliper Assy-Front Rh, W/o Pads Or Shims8906--01 ~ 9301--01; TD27 |
41001-09W00 |
US $318.60 |
||
| replacement | |||||
|
41001
|
41001
41001-09W0B Caliper assy-front rh,w/o pads or shims8906--01 ~ 9301--01; TD27 |
41001-09W0B |
US $296.02 |
||
|
41001
|
41001
41001-09W91 Caliper Assy-Front Rh, W/o Pads Or Shims8608--01 ~ 8708--01; ALL |
41001-09W91 |
US $318.60 |
||
| replacement | |||||
|
41001
|
41001
41001-09W0B Caliper assy-front rh,w/o pads or shims8608--01 ~ 8708--01; ALL |
41001-09W0B |
US $296.02 |
||
|
41011
|
41011
41011-09W90
Caliper Assy-Front Lh, W/o Pads Or Shims
8906--01 ~ 9301--01; TD27 |
41011-09W90 |
— | ||
|
41011
|
41011
41011-09W91 Caliper Assy-Front Lh, W/o Pads Or Shims8608--01 ~ 8708--01; ALL |
41011-09W91 |
US $528.17 |
||
| replacement | |||||
|
41011
|
41011
41011-09W0B
Caliper assy-front lh,w/o pads or shims
8608--01 ~ 8708--01; ALL |
41011-09W0B |
— | ||
|
41080K
|
41080K
41080-09W28 Hardware Kit-Front Disc Brake Pad8608--01 ~ 8708--01; ALL |
41080-09W28 |
US $78.34 |
||
| replacement | |||||
|
41080K
|
41080K
41080-09W29
Hardware Kit-Front Disc Brake Pad
8608--01 ~ 8708--01; ALL |
41080-09W29 |
— | ||
|
41080K
|
41080K
41080-41L27 Hardware Kit-Front Disc Brake Pad8708--01 ~ 9301--01; TD27 |
41080-41L27 |
US $63.79 |
||
|
41121
|
41121
4112109W10 Piston-Cylinder8608--01 ~ 8708--01; ALL |
4112109W10 |
US $67.91 |
||
|
41121
|
41121
4112109W10 Piston-Cylinder8608--01 ~ 8708--01; ALL |
4112109W10 |
US $67.91 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
8608--01 ~ 8708--01; ALL |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder8608--01 ~ 8708--01; ALL |
4112880Z0A |
US $7.35 |
||
|
41138H
|
41138H
41136-V5000 Pin-Bolt8608--01 ~ 8708--01; ALL |
41136-V5000 |
US $1.87 |
||
|
41151
|
41151
41150-35G00 Plate-Baffle, Rh8608--01 ~ 8708--01; ALL |
41150-35G00 |
US $28.94 |
||
|
41161
|
41161
41160-35G00 Plate-Baffle, Lh8608--01 ~ 8708--01; ALL |
41160-35G00 |
US $28.94 |
||
|
41217
|
41217
4113909W00 Pin8608--01 ~ 8708--01; ALL |
4113909W00 |
from US $4.57 |
||
