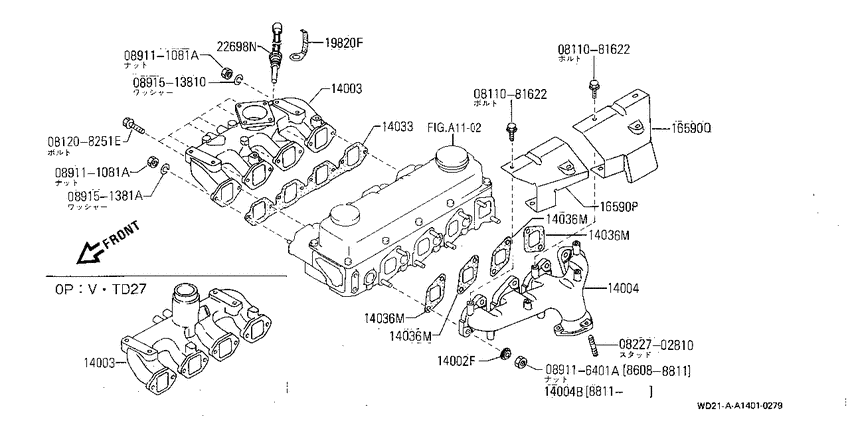

Manifold (1986-08-01 ~ 1993-01-01; TD27) Diagram Nissan TERRANO
- Year
- 1986 - 1993
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- transmission
- MT
- grade
- DX
- body
- V/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811081622
|
0811081622
08110-81622
Bolt-hexagon
|
08110-81622 |
— | ||
|
0811081622
|
0811081622
08110-81622
Bolt-hexagon
|
08110-81622 |
— | ||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
0822702810
|
0822702810
0822702810
STUD
|
0822702810 |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089116401A
|
089116401A
089116401A Nut-Stopper, Alternator |
089116401A |
from US $1.09 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.56 |
||
|
14002F
|
14002F
1403896000 Washer-Plain8608--01 ~ 8910--01; TD27 |
1403896000 |
US $7.76 |
||
|
14003
|
14003
14003-29G00 Manifold-Intake9107--01 ~ 9301--01; *V.TD27; ｶﾝﾚｲﾁ ｼﾖｳ |
14003-29G00 |
US $499.85 |
||
|
14003
|
14003
14003-43G03
Manifold-Intake
8608--01 ~ 8707--01; TD27 |
14003-43G03 |
— | ||
|
14003
|
14003
14003-43G04 Manifold-Intake8708--01 ~ 9301--01; V.TD27 |
14003-43G04 |
US $600.38 |
||
|
14003
|
14003
14003-29G00 Manifold-Intake9107--01 ~ 9301--01; *V.TD27; ｶﾝﾚｲﾁ ｼﾖｳ |
14003-29G00 |
US $499.85 |
||
|
14003
|
14003
14003-43G03
Manifold-Intake
8608--01 ~ 8707--01; TD27 |
14003-43G03 |
— | ||
|
14003
|
14003
14003-43G04 Manifold-Intake8708--01 ~ 9301--01; V.TD27 |
14003-43G04 |
US $600.38 |
||
|
14004
|
14004
1400443G01 Manifold-Exhaust8608--01 ~ 8707--01; TD27 |
1400443G01 |
US $356.83 |
||
|
14004
|
14004
01211-00014 NUT8811--01 ~ 8910--01; TD27 |
01211-00014 |
US $2.45 |
||
|
14004B
|
14004B
01211-00014 NUT8811--01 ~ 8910--01; TD27 |
01211-00014 |
US $2.45 |
||
|
14033
|
14033
1403531N00 Gasket-Intake Manifold9004--01 ~ 9301--01; V.TD27; |
1403531N00 |
from US $7.34 |
||
|
14033
|
14033
14035-43G00
Gasket-Intake Manifold
8608--01 ~ 8910--01; TD27 |
14035-43G00 |
— | ||
| replacement | |||||
|
14033
|
14033
1403531N00 Gasket-Intake Manifold8608--01 ~ 8910--01; TD27 |
1403531N00 |
from US $7.34 |
||
|
14036M
|
14036M
1403643G00 Gasket-Exhaust Manifold, A8608--01 ~ 8910--01; TD27 |
1403643G00 |
from US $4.74 |
||
|
14036M
|
14036M
1403643G00 Gasket-Exhaust Manifold, A8608--01 ~ 8910--01; TD27 |
1403643G00 |
from US $4.74 |
||
|
14036M
|
14036M
1403643G00 Gasket-Exhaust Manifold, A8608--01 ~ 8910--01; TD27 |
1403643G00 |
from US $4.74 |
||
|
14036M
|
14036M
1403643G00 Gasket-Exhaust Manifold, A8608--01 ~ 8910--01; TD27 |
1403643G00 |
from US $4.74 |
||
|
16590P
|
16590P
16590-43G01 Cover-Exhaust Manifold8608--01 ~ 8910--01; TD27 |
16590-43G01 |
US $19.44 |
||
|
16590P
|
16590P
16590-43G04 Cover-Exhaust Manifold9006--01 ~ 9301--01; TD27 |
16590-43G04 |
US $19.01 |
||
|
16590Q
|
16590Q
16590-43G02 Cover-Exhaust Manifold8608--01 ~ 8707--01; TD27 |
16590-43G02 |
US $19.44 |
||
|
16590Q
|
16590Q
16590-43G03 Cover-Exhaust Manifold8709--01 ~ 8910--01; TD27 |
16590-43G03 |
US $19.44 |
||
|
16590Q
|
16590Q
16590-43G05 Cover-Exhaust Manifold9006--01 ~ 9301--01; TD27; |
16590-43G05 |
US $19.01 |
||
|
19820F
|
19820F
24210-10G00 Clamp8708--01 ~ 8910--01; TD27 |
24210-10G00 |
US $5.47 |
||
|
22698N
|
22698N
2269810G01 Resistor-Q.g.s8608--01 ~ 8910--01; TD27 |
2269810G01 |
US $257.81 |
||
