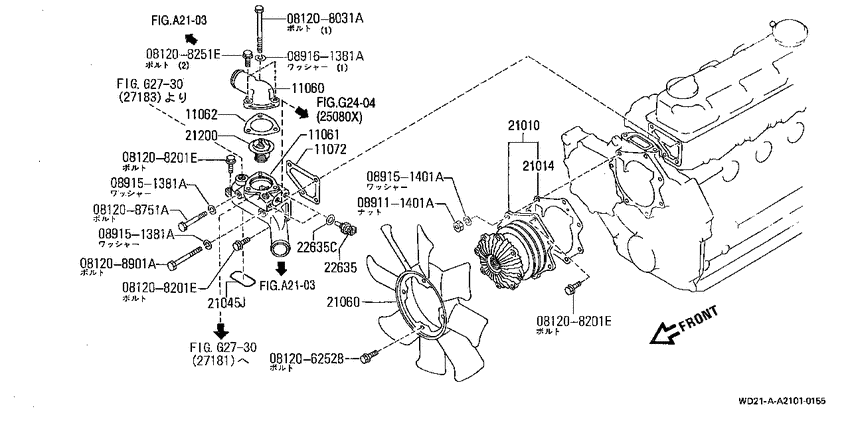

water pump & ｻ-ﾓｽﾀﾂﾄ (1986-08-01 ~ 1993-01-01; TD27) Diagram Nissan TERRANO
- Year
- 1986 - 1993
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- transmission
- MT
- grade
- DX
- body
- V/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
081208031A
|
081208031A
081208031A Bolt-hexagon |
081208031A |
from US $0.57 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
from US $0.63 |
||
|
081208751A
|
081208751A
08120-8751A
Bolt-hexagon
|
08120-8751A |
— | ||
|
081208901A
|
081208901A
081208901A Bolt-hexagon |
081208901A |
US $0.70 |
||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089161381A
|
089161381A
08916-1381A
ﾜﾂｼﾔ-,ﾂ-ｽ
|
08916-1381A |
— | ||
|
11060
|
11060
11060-43G00 Outlet-Water8608--01 ~ 8910--01; TD27 |
11060-43G00 |
from US $30.91 |
||
|
11061
|
11061
11061-43G02 Housing-Thermostat8608--01 ~ 8708--01; TD27 |
11061-43G02 |
US $468.70 |
||
|
11062
|
11062
11062-34N00
Gasket-Water Outlet
9004--01 ~ 9301--01; TD27 +TD27T |
11062-34N00 |
— | ||
| replacement | |||||
|
11062
|
11062
1106234N01 Gasket-Water Outlet9004--01 ~ 9301--01; TD27 +TD27T |
1106234N01 |
from US $2.41 |
||
|
11062
|
11062
11062-43G00 Gasket-Water Outlet8608--01 ~ 9004--01; TD27 |
11062-43G00 |
US $5.18 |
||
|
11072
|
11072
11072-34N00 Gasket-Thermostat Housing9004--01 ~ 9205--01; TD27 +TD27T |
11072-34N00 |
US $4.03 |
||
|
11072
|
11072
11072-34N01
Gasket-Thermostat Housing
9205--01 ~ 9301--01; TD27 +TD27T |
11072-34N01 |
— | ||
| replacement | |||||
|
11072
|
11072
11042-34N02
Gasket-Thermostat Housing
9205--01 ~ 9301--01; TD27 +TD27T |
11042-34N02 |
— | ||
|
11072
|
11072
11072-43G00 Gasket-Thermostat Housing8608--01 ~ 8910--01; TD27 |
11072-43G00 |
US $2.45 |
||
|
21010
|
21010
21010-43G25 Pump Assy-Water8608--01 ~ 8708--01; TD27; [B106] |
21010-43G25 |
US $471.53 |
||
|
21010
|
21010
21010-43G26 Pump Assy-Water8708--01 ~ 8910--01; TD27; [B106] |
21010-43G26 |
US $471.53 |
||
|
21010
|
21010
21010-43G28 Pump Assy-Water9004--01 ~ 9301--01; TD27; [B106] |
21010-43G28 |
US $593.30 |
||
|
21014
|
21014
21014-34N00
Gasket-Water Pump
9004--01 ~ 9301--01; TD27 +TD27T; |
21014-34N00 |
— | ||
|
21014
|
21014
21014-43G02 Gasket-Water Pump8608--01 ~ 8708--01; TD27 |
21014-43G02 |
US $11.23 |
||
|
21014
|
21014
21014-43G03 Gasket-Water Pump8708--01 ~ 8910--01; TD27 |
21014-43G03 |
US $14.83 |
||
|
21045J
|
21045J
14465-43G01 Seal-O Ring8608--01 ~ 8910--01; TD27 |
14465-43G01 |
US $7.63 |
||
|
21060
|
21060
21060-43G00 Fan-Cooling8608--01 ~ 8910--01; TD27 |
21060-43G00 |
US $76.61 |
||
|
21200
|
21200
21200-96011
Thermostat Assy
8608--01 ~ 8910--01; TD27; 82ﾟC |
21200-96011 |
— | ||
| replacement | |||||
|
21200
|
21200
2120005D02 Thermostat Assy8608--01 ~ 8910--01; TD27; 82ﾟC |
2120005D02 |
from US $19.50 |
||
|
22635
|
22635
22630-10G00 Switch Assy-Thermo Time8608--01 ~ 8708--01; TD27 |
22630-10G00 |
from US $53.43 |
||
|
22635
|
22635
01351-10124 GASKET-SENSOR8608--01 ~ 8708--01; TD27 |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
22635
|
22635
1679410G00 Gasket-Sensor8608--01 ~ 8708--01; TD27 |
1679410G00 |
from US $1.13 |
||
|
22635
|
22635
1679410G00 Gasket-Sensor9004--01 ~ 9301--01; V.TD27 |
1679410G00 |
from US $1.13 |
||
|
22635C
|
22635C
01351-10124 GASKET-SENSOR8608--01 ~ 8708--01; TD27 |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
22635C
|
22635C
1679410G00 Gasket-Sensor8608--01 ~ 8708--01; TD27 |
1679410G00 |
from US $1.13 |
||
|
22635C
|
22635C
1679410G00 Gasket-Sensor9004--01 ~ 9301--01; V.TD27 |
1679410G00 |
from US $1.13 |
||
