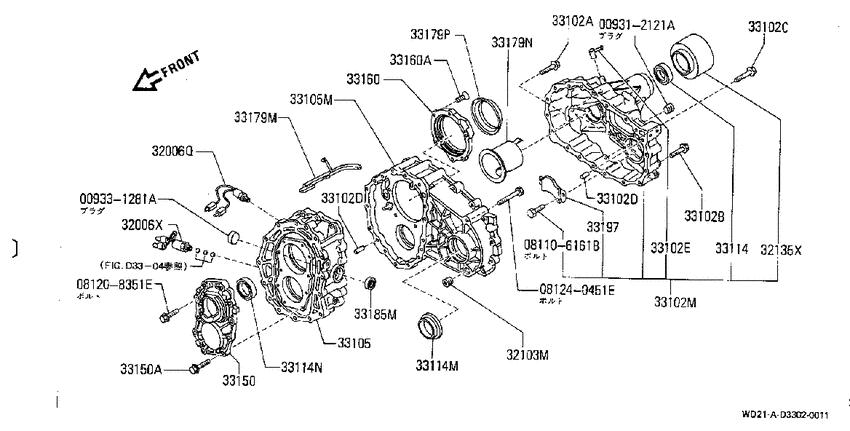

Transfer case (1986-08-01 ~ ; TX10; 4WD) Diagram Nissan TERRANO
- Year
- 1986 - 1993
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- transmission
- MT
- grade
- DX
- body
- V/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
009331281A
|
009331281A
00933-1281A Plug-Welch |
00933-1281A |
US $1.73 |
||
|
081106161B
|
081106161B
081106161B
Bolt-hexagon
|
081106161B |
— | ||
|
081208351E
|
081208351E
081208351E
Bolt-hexagon
|
081208351E |
— | ||
|
081240451E
|
081240451E
08124-0451E Bolt-hexagon |
08124-0451E |
from US $1.09 |
||
|
32006Q
|
32006Q
32005-33G01 Switch Assy-4Wd8608--01 ~ 9411--01; 4WD.MT |
32005-33G01 |
US $40.20 |
||
| replacement | |||||
|
32006Q
|
32006Q
32005-33G11 Switch Assy-4Wd8608--01 ~ 9411--01; 4WD.MT |
32005-33G11 |
US $41.33 |
||
|
32006X
|
32006X
32006-33G01
Switch Assy-Neutral, Transfer
8608--01 ~ 9411--01; 4WD.MT |
32006-33G01 |
— | ||
| replacements | |||||
|
32006X
|
32006X
32006-33G1A
Transfer Neutral Position Switch
8608--01 ~ 9411--01; 4WD.MT |
32006-33G1A |
— | ||
|
32006X
|
32006X
32006-ZD30A Switch assy8608--01 ~ 9411--01; 4WD.MT |
32006-ZD30A |
from US $27.27 |
||
|
32103M
|
32103M
32103-01A01
Plug-Drain
8608--01 ~ ; 4WD |
32103-01A01 |
— | ||
| replacements | |||||
|
32103M
|
32103M
3210301A0A
Plug-Drain
8608--01 ~ ; 4WD |
3210301A0A |
— | ||
|
32103M
|
32103M
32103-01A02 Plug-Drain8608--01 ~ ; 4WD |
32103-01A02 |
US $6.79 |
||
|
32135X
|
32135X
33141-33G01 Cover-Dust, Transfer8608--01 ~ ; 4WD |
33141-33G01 |
US $15.26 |
||
|
33102A
|
33102A
33109-33G03 Bolt8608--01 ~ ; 4WD |
33109-33G03 |
US $1.73 |
||
|
33102B
|
33102B
33109-33G00 Bolt8608--01 ~ ; 4WD |
33109-33G00 |
US $1.73 |
||
|
33102C
|
33102C
33109-33G01 Bolt8608--01 ~ ; 4WD |
33109-33G01 |
US $2.45 |
||
|
33102D
|
33102D
32105-C6901 Pin8608--01 ~ ; 4WD |
32105-C6901 |
US $4.71 |
||
|
33102D
|
33102D
32105-C6901 Pin8608--01 ~ ; 4WD |
32105-C6901 |
US $4.71 |
||
|
33102E
|
33102E
3832241G00 Breather8608--01 ~ ; 4WD |
3832241G00 |
US $11.08 |
||
|
33102M
|
33102M
33102-41G00 Case-Transfer, Rear8608--01 ~ 8910--01; 4WD |
33102-41G00 |
US $430.46 |
||
| replacement | |||||
|
33102M
|
33102M
33102-41G0A
Case-transfer,rear
8608--01 ~ 8910--01; 4WD |
33102-41G0A |
— | ||
|
33102M
|
33102M
33102-41G01 Case-Transfer, Rear8910--01 ~ 9010--01; 4WD |
33102-41G01 |
US $430.46 |
||
|
33102M
|
33102M
33102-41G02 Case-Transfer, Rear9101--01 ~ ; 4WD |
33102-41G02 |
US $430.46 |
||
| replacement | |||||
|
33102M
|
33102M
33102-41G0B
Case-Transfer, Rear
9101--01 ~ ; 4WD |
33102-41G0B |
— | ||
|
33105
|
33105
33107-33G01 Case-Transfer, Front8608--01 ~ 9411--01; 4WD |
33107-33G01 |
US $327.10 |
||
|
33105
|
33105
33107-33G10 Case-Transfer, Front9411--01 ~ ; 4WD |
33107-33G10 |
US $327.10 |
||
|
33105
|
33105
33105-33G01 Case-Transfer, Center8608--01 ~ 9411--01; 4WD |
33105-33G01 |
US $345.50 |
||
|
33105
|
33105
33105-33G10 Case-Transfer, Center9411--01 ~ ; 4WD |
33105-33G10 |
from US $330.53 |
||
|
33105M
|
33105M
33105-33G01 Case-Transfer, Center8608--01 ~ 9411--01; 4WD |
33105-33G01 |
US $345.50 |
||
|
33105M
|
33105M
33105-33G10 Case-Transfer, Center9411--01 ~ ; 4WD |
33105-33G10 |
from US $330.53 |
||
|
33114
|
33114
33140-33G02
Seal-Oil, Transfer Case
8608--01 ~ ; 4WD |
33140-33G02 |
— | ||
| replacement | |||||
|
33114
|
33114
3314233G10 Seal-Oil, Transfer Case8608--01 ~ ; 4WD |
3314233G10 |
from US $5.22 |
||
|
33114
|
33114
33216-33G00
Seal-Oil, Transfer Case
8608--01 ~ ; 4WD |
33216-33G00 |
— | ||
| replacement | |||||
|
33114
|
33114
3321633G01 Seal-Oil, Transfer Case8608--01 ~ ; 4WD |
3321633G01 |
from US $7.54 |
||
|
33114
|
33114
33111-31G00
Seal-Oil, Transfer Cover
8608--01 ~ 8910--01; TD27.4WD.MT |
33111-31G00 |
— | ||
| replacement | |||||
|
33114
|
33114
33111-ZD30A Seal-Oil, Transfer Cover8608--01 ~ 8910--01; TD27.4WD.MT |
33111-ZD30A |
from US $5.26 |
||
|
33114M
|
33114M
33216-33G00
Seal-Oil, Transfer Case
8608--01 ~ ; 4WD |
33216-33G00 |
— | ||
| replacement | |||||
|
33114M
|
33114M
3321633G01 Seal-Oil, Transfer Case8608--01 ~ ; 4WD |
3321633G01 |
from US $7.54 |
||
|
33114N
|
33114N
33111-31G00
Seal-Oil, Transfer Cover
8608--01 ~ 8910--01; TD27.4WD.MT |
33111-31G00 |
— | ||
| replacement | |||||
|
33114N
|
33114N
33111-ZD30A Seal-Oil, Transfer Cover8608--01 ~ 8910--01; TD27.4WD.MT |
33111-ZD30A |
from US $5.26 |
||
|
33150
|
33150
33117-33G01 Cover-Case, Transfer8608--01 ~ 8910--01; TD27.4WD.MT |
33117-33G01 |
from US $47.79 |
||
|
33150
|
33150
33201-33G00 Bolt-Transfer Case Cover8608--01 ~ ; 4WD |
33201-33G00 |
US $2.45 |
||
|
33150A
|
33150A
33201-33G00 Bolt-Transfer Case Cover8608--01 ~ ; 4WD |
33201-33G00 |
US $2.45 |
||
|
33160
|
33160
33160-33G00 Retainer-Bearing, Transfer8608--01 ~ 9010--01; 4WD |
33160-33G00 |
US $35.14 |
||
|
33160
|
33160
33160-33G01 Retainer-Bearing, Transfer9010--01 ~ ; 4WD; |
33160-33G01 |
US $37.15 |
||
|
33160
|
33160
33159-33G00 Screw-Bearing Retainer8608--01 ~ ; 4WD |
33159-33G00 |
US $2.45 |
||
| replacement | |||||
|
33160
|
33160
33159-33G0A
Screw-Bearing Retainer
8608--01 ~ ; 4WD |
33159-33G0A |
— | ||
|
33160A
|
33160A
33159-33G00 Screw-Bearing Retainer8608--01 ~ ; 4WD |
33159-33G00 |
US $2.45 |
||
| replacement | |||||
|
33160A
|
33160A
33159-33G0A
Screw-Bearing Retainer
8608--01 ~ ; 4WD |
33159-33G0A |
— | ||
|
33179M
|
33179M
33149-33G03 Gutter-Oil8608--01 ~ ; 4WD |
33149-33G03 |
US $6.19 |
||
|
33179N
|
33179N
33146-33G02 Cover-Oil8608--01 ~ ; 4WD |
33146-33G02 |
US $14.26 |
||
|
33179P
|
33179P
33146-33G00 Catcher-Oil8608--01 ~ ; 4WD |
33146-33G00 |
from US $11.52 |
||
|
33185M
|
33185M
33185-C6200 Seal-Oil, Shift Shaft8608--01 ~ ; 4WD |
33185-C6200 |
from US $4.47 |
||
|
33197
|
33197
33108-33G00 Plate-Baffle8608--01 ~ ; 4WD |
33108-33G00 |
US $1.73 |
||
