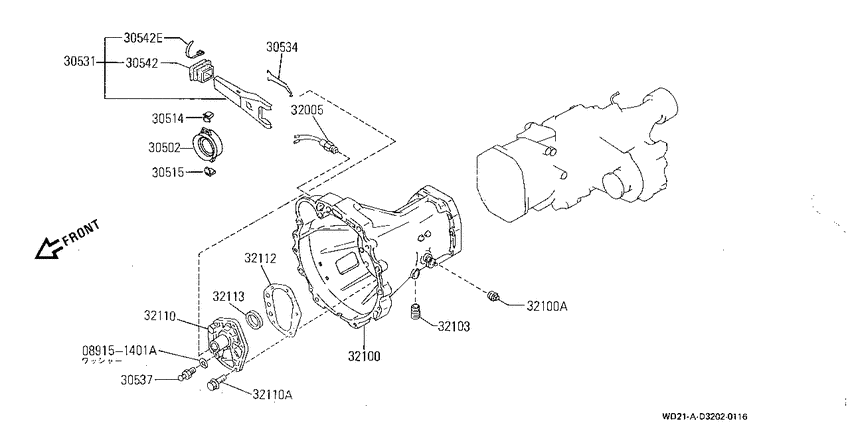

Transmission case (1986-08-01 ~ ; ケース (FS5W71C); TD27･4WD) Diagram Nissan TERRANO
- Year
- 1986 - 1993
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- transmission
- MT
- grade
- DX
- body
- V/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30502
|
30502
30502-03E20 BEARING-CLUTCH RELEASE8608--01 ~ 8911--01; TD27.MT; [B106] |
30502-03E20 |
US $81.22 |
||
| replacement | |||||
|
30502
|
30502
30502-0W720 Bearing-Clutch Release8608--01 ~ 8911--01; TD27.MT; [B106] |
30502-0W720 |
US $81.22 |
||
|
30502
|
30502
30502-28E20 BEARING-CLUTCH RELEASE8911--01 ~ 9202--01; TD27.MT; [B106] |
30502-28E20 |
US $81.22 |
||
| replacement | |||||
|
30502
|
30502
30502-0W720 Bearing-Clutch Release8911--01 ~ 9202--01; TD27.MT; [B106] |
30502-0W720 |
US $81.22 |
||
|
30502
|
30502
30502-28E21 BEARING-CLUTCH RELEASE9202--01 ~ 9301--01; TD27.MT; [B106] |
30502-28E21 |
US $81.22 |
||
| replacement | |||||
|
30502
|
30502
30502-0W720 Bearing-Clutch Release9202--01 ~ 9301--01; TD27.MT; [B106] |
30502-0W720 |
US $81.22 |
||
|
30514
|
30514
30514-03E01 SPRING-HOLDER,CLUTCH RELEASE BEARING8608--01 ~ 8912--01; TD27.MT |
30514-03E01 |
US $4.03 |
||
|
30514
|
30514
3051403E10 SPRING-HOLDER,CLUTCH RELEASE BEARING8912--01 ~ 9301--01; TD27.MT |
3051403E10 |
from US $2 |
||
|
30515
|
30515
3051403E11 SPRING-HOLDER,CLUTCH RELEASE BEARING8912--01 ~ 9301--01; TD27.MT |
3051403E11 |
from US $2.09 |
||
|
30515
|
30515
30515-03E01 SPRING-HOLDER,BEARING SLEEVE8608--01 ~ 8912--01; TD27.MT |
30515-03E01 |
US $4.90 |
||
|
30531
|
30531
30531-02N00 Lever-Withdrawal, Clutch8608--01 ~ 9301--01; TD27.MT |
30531-02N00 |
US $57.46 |
||
|
30534
|
30534
3053403E00 SPRING-RETAINER,WITHDRAWAL LEVER8608--01 ~ 9301--01; TD27.MT |
3053403E00 |
from US $1.85 |
||
|
30537
|
30537
30537-02N00 Pin-Ball, Withdrawal Lever8608--01 ~ 8806--01; TD27.MT |
30537-02N00 |
US $4.18 |
||
|
30537
|
30537
30537-02N01 Pin-Ball, Withdrawal Lever8806--01 ~ 9301--01; TD27.MT |
30537-02N01 |
US $5.04 |
||
|
30542
|
30542
30542-02N00
Cover-Dust, Withdrawal Lever
8608--01 ~ 9301--01; TD27.MT |
30542-02N00 |
— | ||
| replacement | |||||
|
30542
|
30542
3054202N10 Cover-Dust, Withdrawal Lever8608--01 ~ 9301--01; TD27.MT |
3054202N10 |
from US $14.55 |
||
|
30542
|
30542
3054331G10 Clip-Dust Cover, Clutch8608--01 ~ 9301--01; TD27.MT |
3054331G10 |
from US $4.57 |
||
|
30542E
|
30542E
3054331G10 Clip-Dust Cover, Clutch8608--01 ~ 9301--01; TD27.MT |
3054331G10 |
from US $4.57 |
||
|
32005
|
32005
32005-K1011 Switch Assy-Reverse Lamp8608--01 ~ 9301--01; TD27.MT |
32005-K1011 |
US $40.75 |
||
|
32100
|
32100
32101-36G00 Case Assy-Transmission8608--01 ~ 8811--01; TD27.MT |
32101-36G00 |
US $397.90 |
||
|
32100
|
32100
32101-80G00 Case Assy-Transmission8811--01 ~ 9301--01; (TD27+TD27T).MT; |
32101-80G00 |
US $406.39 |
||
|
32100
|
32100
0164200021
PLUG-THREAD
8608--01 ~ 9210--01; TD27.MT |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD8608--01 ~ 9210--01; TD27.MT |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
8608--01 ~ 9210--01; TD27.MT |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD8608--01 ~ 9210--01; TD27.MT |
33312-33G0B |
US $4.85 |
||
|
32103
|
32103
32103U8400
Plug-Drain
8608--01 ~ 9301--01; TD27.MT |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain8608--01 ~ 9301--01; TD27.MT |
32103-U840B |
US $7.35 |
||
|
32103
|
32103
32103-01A01
Plug-Drain
8608--01 ~ ; 4WD |
32103-01A01 |
— | ||
| replacements | |||||
|
32103
|
32103
3210301A0A
Plug-Drain
8608--01 ~ ; 4WD |
3210301A0A |
— | ||
|
32103
|
32103
32103-01A02 Plug-Drain8608--01 ~ ; 4WD |
32103-01A02 |
US $6.79 |
||
|
32110
|
32110
32111-36G00 Cover Assy-Front8608--01 ~ 8706--01; TD27.MT |
32111-36G00 |
US $43.63 |
||
|
32110
|
32110
32111-36G01
Cover Assy-Front
8706--01 ~ 9301--01; TD27.MT |
32111-36G01 |
— | ||
| replacement | |||||
|
32110
|
32110
32111-25NC0 Cover Assy-Front8706--01 ~ 9301--01; TD27.MT |
32111-25NC0 |
US $41.17 |
||
|
32110
|
32110
32135-58S60 Bolt-Fixing, Front Cover8608--01 ~ 9301--01; TD27.MT; |
32135-58S60 |
US $1.73 |
||
|
32110A
|
32110A
32135-58S60 Bolt-Fixing, Front Cover8608--01 ~ 9301--01; TD27.MT; |
32135-58S60 |
US $1.73 |
||
|
32112
|
32112
32112-08U00
Gasket-Front Cover
9207--01 ~ 9301--01; TD27.MT |
32112-08U00 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover9207--01 ~ 9301--01; TD27.MT |
3211208U01 |
from US $6.49 |
||
|
32112
|
32112
32112-V5001
Gasket-Front Cover
8608--01 ~ 9207--01; TD27.MT |
32112-V5001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover8608--01 ~ 9207--01; TD27.MT |
3211208U01 |
from US $6.49 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover8608--01 ~ 9301--01; TD27.MT |
32114Y4000 |
US $3.19 |
||
