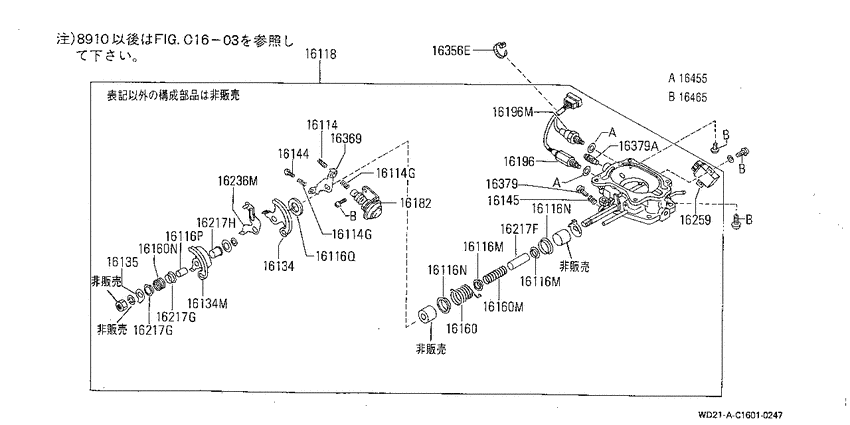

Carburetor (1987-10-01 ~ 1989-10-01; "スロットルチャンバー部分 構成部品; VG30) Diagram Nissan TERRANO
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- VG30I
- drive
- 4WD
- transmission
- AT
- grade
- SE
- body
- W/2D
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16114
|
16114
16183-12G05 Screw-Adjusting8710--01 ~ 8910--01; VG30 |
16183-12G05 |
US $4.90 |
||
|
16114
|
16114
16145-12G05 Spring-Screw, Adjust8710--01 ~ 8910--01; VG30 |
16145-12G05 |
US $3.31 |
||
|
16114G
|
16114G
16145-12G05 Spring-Screw, Adjust8710--01 ~ 8910--01; VG30 |
16145-12G05 |
US $3.31 |
||
|
16114G
|
16114G
16145-12G05 Spring-Screw, Adjust8710--01 ~ 8910--01; VG30 |
16145-12G05 |
US $3.31 |
||
|
16116M
|
16116M
16116-12G02
Sleeve-B
8710--01 ~ 8910--01; VG30 |
16116-12G02 |
— | ||
|
16116M
|
16116M
16116-12G02
Sleeve-B
8710--01 ~ 8910--01; VG30 |
16116-12G02 |
— | ||
|
16116N
|
16116N
16116-12G03
Sleeve-B
8710--01 ~ 8910--01; VG30 |
16116-12G03 |
— | ||
|
16116N
|
16116N
16116-12G03
Sleeve-B
8710--01 ~ 8910--01; VG30 |
16116-12G03 |
— | ||
|
16116P
|
16116P
16116-12G04
Sleeve-Inner
8710--01 ~ 8910--01; VG30 |
16116-12G04 |
— | ||
|
16116Q
|
16116Q
16116-12G10 Sleeve-Inner8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16116-12G10 |
US $7.63 |
||
|
16118
|
16118
16110-12G65 Throttle Body8710--01 ~ 8910--01; VG30.AT |
16110-12G65 |
US $698.09 |
||
|
16118
|
16118
16110-12G75 Throttle Body8710--01 ~ 8910--01; *VG30.AT; ASCDﾂｷ ﾖｳ |
16110-12G75 |
US $698.09 |
||
|
16134
|
16134
16134-12G60 Lever-Throttle8710--01 ~ 8910--01; VG30.AT |
16134-12G60 |
US $7.06 |
||
|
16134
|
16134
16079-12G00 Grommet-Throttle8710--01 ~ 8910--01; VG30 |
16079-12G00 |
US $9.65 |
||
|
16134
|
16134
16134-12G10 Lever-Throttle8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16134-12G10 |
US $7.06 |
||
|
16134M
|
16134M
16134-12G10 Lever-Throttle8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16134-12G10 |
US $7.06 |
||
|
16135
|
16135
16135-12G10 Iacv-Ficd Lever8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16135-12G10 |
US $15.55 |
||
|
16144
|
16144
16144-12G05 Screw-Adjust, Idle8710--01 ~ 8910--01; VG30 |
16144-12G05 |
US $4.03 |
||
|
16145
|
16145
16145-12G00 Spring-Screw, Adjust8710--01 ~ 8910--01; VG30 |
16145-12G00 |
US $5.90 |
||
|
16160
|
16160
16160-02F00 Spring-Throttle Return8710--01 ~ 8910--01; VG30 |
16160-02F00 |
US $8.93 |
||
|
16160
|
16160
16160-02F01 Spring-Throttle Return8710--01 ~ 8910--01; VG30 |
16160-02F01 |
US $11.23 |
||
|
16160
|
16160
16160-12G10 Spring-Throttle Secondary8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16160-12G10 |
US $3.46 |
||
|
16160M
|
16160M
16160-02F01 Spring-Throttle Return8710--01 ~ 8910--01; VG30 |
16160-02F01 |
US $11.23 |
||
|
16160N
|
16160N
16160-12G10 Spring-Throttle Secondary8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16160-12G10 |
US $3.46 |
||
|
16182
|
16182
16182-12G05 Idle Speed Control-Fi Pot8710--01 ~ 8910--01; VG30 |
16182-12G05 |
US $79.34 |
||
|
16196
|
16196
16196-12G00 Iacv-Ficd Solenoid Valve8710--01 ~ 8910--01; VG30 |
16196-12G00 |
US $63.36 |
||
|
16196
|
16196
16196-12G02
Iacv-Ficd Solenoid Valve
8710--01 ~ 8910--01; VG30 |
16196-12G02 |
— | ||
|
16196M
|
16196M
16196-12G02
Iacv-Ficd Solenoid Valve
8710--01 ~ 8910--01; VG30 |
16196-12G02 |
— | ||
|
16217F
|
16217F
16116-12G01 Sleeve-B8710--01 ~ 8910--01; VG30 |
16116-12G01 |
US $7.34 |
||
|
16217G
|
16217G
16116-12G11 Collar8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16116-12G11 |
US $6.05 |
||
|
16217G
|
16217G
16116-12G11 Collar8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16116-12G11 |
US $6.05 |
||
|
16217H
|
16217H
16116-12G12 Collar8710--01 ~ 8910--01; *VG30; ASCDﾂｷ ﾖｳ |
16116-12G12 |
US $2.45 |
||
|
16236M
|
16236M
16063-12G05
Lever Assy
8710--01 ~ 8910--01; VG30 |
16063-12G05 |
— | ||
|
16259
|
16259
22620-12G10 Throttle Position Switch8710--01 ~ 8910--01; VG30 |
22620-12G10 |
US $72.58 |
||
|
16356E
|
16356E
16276-12G00 Clip-Harness8710--01 ~ 8910--01; VG30 |
16276-12G00 |
US $12.53 |
||
|
16369
|
16369
16082-12G05 Lever-Dashpot8710--01 ~ 8910--01; VG30 |
16082-12G05 |
US $11.09 |
||
|
16379
|
16379
16144-12G00 Screw-Adjusting8710--01 ~ 8910--01; VG30 |
16144-12G00 |
US $3.46 |
||
|
16379
|
16379
16144-W1410
Screw-Adjusting
8710--01 ~ 8910--01; VG30 |
16144-W1410 |
— | ||
|
16379A
|
16379A
16144-W1410
Screw-Adjusting
8710--01 ~ 8910--01; VG30 |
16144-W1410 |
— | ||
|
16455
|
16455
16455-12G00 Gasket Kit8710--01 ~ 8910--01; VG30 |
16455-12G00 |
US $29.23 |
||
| replacement | |||||
|
16455
|
16455
16455-12G01 Gasket Kit8710--01 ~ 8910--01; VG30 |
16455-12G01 |
US $29.23 |
||
|
16455
|
16455
16455-12G01 Gasket Kit8710--01 ~ 8910--01; VG30 |
16455-12G01 |
US $29.23 |
||
|
16465
|
16465
16465-03G15 Screw & Washer Kit-A8710--01 ~ 8910--01; VG30 |
16465-03G15 |
US $22.03 |
||
