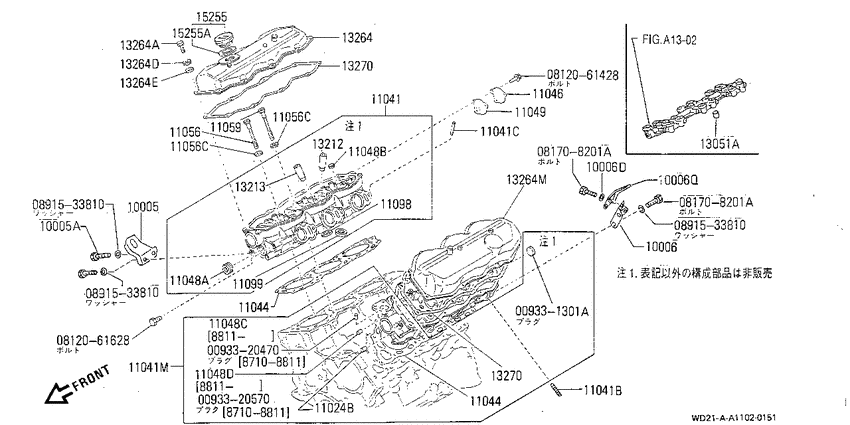

Cylinder - head & ﾛﾂｶ- ｶﾊﾞ- (1987-10-01 ~ 1989-10-01; VG30) Diagram Nissan TERRANO
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- VG30I
- drive
- 4WD
- transmission
- AT
- grade
- SE
- body
- W/2D
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.09 |
||
|
0093320470
|
0093320470
00933-20470
PLUG-THREAD
|
00933-20470 |
— | ||
|
0093320570
|
0093320570
00933-20570
PLUG-THREAD
|
00933-20570 |
— | ||
|
0812061428
|
0812061428
0812061428
Bolt-hexagon
|
0812061428 |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
081708201A
|
081708201A
08170-8201A
Bolt-hexagon
|
08170-8201A |
— | ||
|
081708201A
|
081708201A
08170-8201A
Bolt-hexagon
|
08170-8201A |
— | ||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
10005
|
10005
10005-V5014 Slinger-Engine8710--01 ~ 8910--01; VG30 |
10005-V5014 |
US $17.71 |
||
|
10005
|
10005
01131-00072 BOLT-ENGINE SLINGER8710--01 ~ 8910--01; VG30 |
01131-00072 |
US $1.73 |
||
|
10005A
|
10005A
01131-00072 BOLT-ENGINE SLINGER8710--01 ~ 8910--01; VG30 |
01131-00072 |
US $1.73 |
||
|
10006
|
10006
10006-12G03 Slinger-Engine8710--01 ~ 8910--01; VG30 |
10006-12G03 |
US $16.27 |
||
|
10006
|
10006
01323-00011 WASHER-LOCK8710--01 ~ 8910--01; VG30 |
01323-00011 |
US $1.90 |
||
|
10006
|
10006
10006-12G04 Slinger-Engine8710--01 ~ 8910--01; VG30 |
10006-12G04 |
US $15.98 |
||
|
10006D
|
10006D
01323-00011 WASHER-LOCK8710--01 ~ 8910--01; VG30 |
01323-00011 |
US $1.90 |
||
|
10006Q
|
10006Q
10006-12G04 Slinger-Engine8710--01 ~ 8910--01; VG30 |
10006-12G04 |
US $15.98 |
||
|
11024B
|
11024B
1220521000 Plug-Taper8710--01 ~ 8910--01; VG30; L=8.0 |
1220521000 |
US $1.73 |
||
|
11041
|
11041
11041-21V10
Head Assy-Cylinder
8710--01 ~ 8910--01; VG30 |
11041-21V10 |
— | ||
|
11041
|
11041
14065-V5002 Stud8710--01 ~ 8910--01; VG30 |
14065-V5002 |
US $3.31 |
||
|
11041
|
11041
14064-V6501 Stud-Manifold8710--01 ~ 8910--01; VG30 |
14064-V6501 |
US $3.31 |
||
|
11041
|
11041
11091-21V80
Head Assy-Cylinder, Lh
8710--01 ~ 8910--01; VG30 |
11091-21V80 |
— | ||
|
11041B
|
11041B
14065-V5002 Stud8710--01 ~ 8910--01; VG30 |
14065-V5002 |
US $3.31 |
||
|
11041C
|
11041C
14064-V6501 Stud-Manifold8710--01 ~ 8910--01; VG30 |
14064-V6501 |
US $3.31 |
||
|
11041M
|
11041M
11091-21V80
Head Assy-Cylinder, Lh
8710--01 ~ 8910--01; VG30 |
11091-21V80 |
— | ||
|
11044
|
11044
11044-12G00 Gasket-Cylinder Head8710--01 ~ 8910--01; VG30; |
11044-12G00 |
from US $19.41 |
||
|
11044
|
11044
11044-12G00 Gasket-Cylinder Head8710--01 ~ 8910--01; VG30; |
11044-12G00 |
from US $19.41 |
||
|
11046
|
11046
11046-D0101 Cover-Cylinder Head8710--01 ~ 8910--01; VG30; |
11046-D0101 |
US $4.03 |
||
|
11048A
|
11048A
11052-D0102 Plug-Thread8710--01 ~ 8910--01; VG30; |
11052-D0102 |
US $4.03 |
||
|
11048B
|
11048B
11051-D0101 Plug-Thread8710--01 ~ 8910--01; VG30; |
11051-D0101 |
US $2.45 |
||
|
11048C
|
11048C
12205-21V00 Plug-Thread8811--01 ~ 8910--01; VG30; |
12205-21V00 |
US $4.18 |
||
|
11048D
|
11048D
12205-21V01 Plug-Thread8811--01 ~ 8910--01; VG30; |
12205-21V01 |
US $4.18 |
||
|
11049
|
11049
11049-D0101
Gasket-Cover, Cylinder Head
8710--01 ~ 8910--01; VG30; |
11049-D0101 |
— | ||
| replacement | |||||
|
11049
|
11049
11049-89200 Gasket-Cover, Cylinder Head8710--01 ~ 8910--01; VG30; |
11049-89200 |
US $6.94 |
||
|
11056
|
11056
11056-V5000 Bolt-Cylinder Head8710--01 ~ 8910--01; VG30; L=106 |
11056-V5000 |
US $4.03 |
||
|
11056
|
11056
11058-V5001 Washer-Plain8710--01 ~ 8910--01; VG30; |
11058-V5001 |
US $2.45 |
||
|
11056C
|
11056C
11058-V5001 Washer-Plain8710--01 ~ 8910--01; VG30; |
11058-V5001 |
US $2.45 |
||
|
11056C
|
11056C
11058-V5001 Washer-Plain8710--01 ~ 8910--01; VG30; |
11058-V5001 |
US $2.45 |
||
|
11059
|
11059
11056-21V01 Bolt-Cylinder Head8710--01 ~ 8910--01; VG30; L=127 |
11056-21V01 |
US $4.18 |
||
|
11098
|
11098
11098-V5211 Seat-Valve, Intake8710--01 ~ 8910--01; VG30 |
11098-V5211 |
US $19.15 |
||
|
11099
|
11099
11099-V5210 Seat-Valve, Exhaust8710--01 ~ 8910--01; VG30 |
11099-V5210 |
US $20.45 |
||
|
13051A
|
13051A
1102220100 Collar-Camshaft Bracket8710--01 ~ 8910--01; VG30; |
1102220100 |
US $2.91 |
||
|
13212
|
13212
13212-V5011 Guide-Valve, Intake8710--01 ~ 8910--01; VG30 |
13212-V5011 |
US $23.18 |
||
|
13213
|
13213
13213-V5010 Guide-Valve, Exhaust8710--01 ~ 8910--01; VG30 |
13213-V5010 |
US $23.18 |
||
|
13264
|
13264
13264-12G60 Cover Assy-Valve Rocker8710--01 ~ 8910--01; VG30 |
13264-12G60 |
US $145.44 |
||
| replacement | |||||
|
13264
|
13264
13264-12G61
Cover assy-valve rocker
8710--01 ~ 8910--01; VG30 |
13264-12G61 |
— | ||
|
13264
|
13264
01411-00181 BOLT-ROCKER COVER8710--01 ~ 8910--01; VG30 |
01411-00181 |
US $1.73 |
||
|
13264
|
13264
13268-D0102
Washer
8710--01 ~ 8910--01; VG30 |
13268-D0102 |
— | ||
| replacement | |||||
|
13264
|
13264
1326829N0A Washer8710--01 ~ 8910--01; VG30 |
1326829N0A |
from US $3.35 |
||
|
13264
|
13264
13268-D0104
Tray-Rocker Cover Washer
8710--01 ~ 8910--01; VG30 |
13268-D0104 |
— | ||
| replacement | |||||
|
13264
|
13264
13268D010C Tray-Rocker Cover Washer8710--01 ~ 8910--01; VG30 |
13268D010C |
from US $1.07 |
||
|
13264
|
13264
13265-12G60 Cover Assy-Valve Rocker8710--01 ~ 8910--01; VG30 |
13265-12G60 |
US $192.96 |
||
|
13264A
|
13264A
01411-00181 BOLT-ROCKER COVER8710--01 ~ 8910--01; VG30 |
01411-00181 |
US $1.73 |
||
|
13264D
|
13264D
13268-D0102
Washer
8710--01 ~ 8910--01; VG30 |
13268-D0102 |
— | ||
| replacement | |||||
|
13264D
|
13264D
1326829N0A Washer8710--01 ~ 8910--01; VG30 |
1326829N0A |
from US $3.35 |
||
|
13264E
|
13264E
13268-D0104
Tray-Rocker Cover Washer
8710--01 ~ 8910--01; VG30 |
13268-D0104 |
— | ||
| replacement | |||||
|
13264E
|
13264E
13268D010C Tray-Rocker Cover Washer8710--01 ~ 8910--01; VG30 |
13268D010C |
from US $1.07 |
||
|
13264M
|
13264M
13265-12G60 Cover Assy-Valve Rocker8710--01 ~ 8910--01; VG30 |
13265-12G60 |
US $192.96 |
||
|
13270
|
13270
13270V5000 Gasket-Rocker Cover8710--01 ~ 8910--01; VG30 |
13270V5000 |
from US $9.31 |
||
|
13270
|
13270
13270V5000 Gasket-Rocker Cover8710--01 ~ 8910--01; VG30 |
13270V5000 |
from US $9.31 |
||
|
15255
|
15255
15255-D0104 Cap Assy-Oil Filler8710--01 ~ 8807--01; VG30 |
15255-D0104 |
US $16.35 |
||
|
15255
|
15255
15255-D5500 Cap Assy-Oil Filler8807--01 ~ 8910--01; VG30 |
15255-D5500 |
US $11.81 |
||
|
15255
|
15255
15270D0103 Packing-Oil Filler Cap8710--01 ~ 8910--01; VG30 |
15270D0103 |
from US $1.78 |
||
|
15255A
|
15255A
15270D0103 Packing-Oil Filler Cap8710--01 ~ 8910--01; VG30 |
15270D0103 |
from US $1.78 |
||
