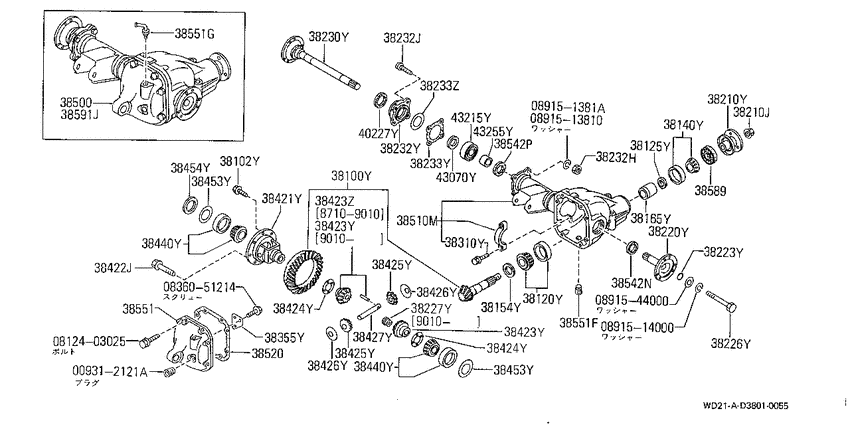

Front final drive (1989-10-01 ~ ; フアイナルドライブ; VG30E.4WD) Diagram Nissan TERRANO
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- VG30E
- drive
- 4WD
- transmission
- MT
- grade
- SE/W
- body
- W/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
0812403025
|
0812403025
08124-03025
Bolt-hexagon
|
08124-03025 |
— | ||
|
0836051214
|
0836051214
08360-51214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51214 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
38100Y
|
38100Y
38100-F3500 Gear Set-Final Drive8910--01 ~ ; VG30E.MT; 35/8=4.375 |
38100-F3500 |
US $573.48 |
||
| replacement | |||||
|
38100Y
|
38100Y
38100-F3580 Gear Set-Final Drive8910--01 ~ ; VG30E.MT; 35/8=4.375 |
38100-F3580 |
US $598.30 |
||
|
38102Y
|
38102Y
3810212S00 Bolt-Drive Gear8910--01 ~ ; VG30E |
3810212S00 |
from US $1.85 |
||
|
38120Y
|
38120Y
3812061000 Bearing-Drive Pinion, Rear8910--01 ~ ; VG30E |
3812061000 |
from US $32.66 |
||
|
38125Y
|
38125Y
3812561001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.81 |
3812561001 |
US $4.85 |
||
|
38125Y
|
38125Y
3812661001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.83 |
3812661001 |
US $4.71 |
||
|
38125Y
|
38125Y
3812761001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.85 |
3812761001 |
US $4.85 |
||
|
38125Y
|
38125Y
38128-61001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.87 |
38128-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
3812961001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.89 |
3812961001 |
US $4.42 |
||
|
38125Y
|
38125Y
3813061001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.91 |
3813061001 |
US $4.85 |
||
|
38125Y
|
38125Y
3813161001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.93 |
3813161001 |
US $4.85 |
||
|
38125Y
|
38125Y
38132-61001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.95 |
38132-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
38133-61001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.97 |
38133-61001 |
US $4.18 |
||
|
38125Y
|
38125Y
3813461001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.99 |
3813461001 |
US $4.85 |
||
|
38125Y
|
38125Y
3813561001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=4.01 |
3813561001 |
US $4.85 |
||
|
38125Y
|
38125Y
38136-61001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=4.03 |
38136-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
38137-61001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=4.05 |
38137-61001 |
US $4.18 |
||
|
38125Y
|
38125Y
38138-61001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=4.07 |
38138-61001 |
US $3.46 |
||
|
38125Y
|
38125Y
38139-61001 Washer-Adjust, Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=4.09 |
38139-61001 |
US $4.85 |
||
|
38140Y
|
38140Y
3812013201 Bearing-Drive Pinion, Front8910--01 ~ ; VG30E |
3812013201 |
US $49.22 |
||
|
38154Y
|
38154Y
38154-P6017 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.09 |
38154-P6017 |
from US $8.25 |
||
|
38154Y
|
38154Y
38154-P6018 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.12 |
38154-P6018 |
US $8.78 |
||
|
38154Y
|
38154Y
38154-P6019 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.15 |
38154-P6019 |
US $8.78 |
||
|
38154Y
|
38154Y
38154-P6020 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.18 |
38154-P6020 |
US $8.30 |
||
|
38154Y
|
38154Y
38154-P6021 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.21 |
38154-P6021 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6022 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.24 |
38154-P6022 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6023 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.27 |
38154-P6023 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6024 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.30 |
38154-P6024 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6025 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.33 |
38154-P6025 |
US $10.08 |
||
|
38154Y
|
38154Y
38154P6026 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.36 |
38154P6026 |
US $10.08 |
||
|
38154Y
|
38154Y
38154P6027 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.39 |
38154P6027 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6028 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.42 |
38154-P6028 |
US $9.52 |
||
|
38154Y
|
38154Y
38154-P6029 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.45 |
38154-P6029 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6030 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.48 |
38154-P6030 |
from US $10.08 |
||
|
38154Y
|
38154Y
38154-P6031 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.51 |
38154-P6031 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6032 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.54 |
38154-P6032 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6033 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.57 |
38154-P6033 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6034 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.60 |
38154-P6034 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6035 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.63 |
38154-P6035 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6036 Washer-Adjust, Drive Pinion8910--01 ~ ; VG30E; ｾﾝﾀｸ T=3.66 |
38154-P6036 |
US $9.52 |
||
|
38165Y
|
38165Y
3816561001 Spacer-Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ L=56.00 |
3816561001 |
US $11.35 |
||
|
38165Y
|
38165Y
38165B4000 Spacer-Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ L=54.50 |
38165B4000 |
US $12.67 |
||
|
38165Y
|
38165Y
38165B4001 Spacer-Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ L=54.80 |
38165B4001 |
US $12.67 |
||
|
38165Y
|
38165Y
38165B4002 Spacer-Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ L=55.10 |
38165B4002 |
US $15.26 |
||
|
38165Y
|
38165Y
38165-B4003 Spacer-Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ L=55.40 |
38165-B4003 |
US $14.54 |
||
|
38165Y
|
38165Y
38165-B4004 Spacer-Drive Pinion Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ L=55.70 |
38165-B4004 |
US $14.54 |
||
|
38210J
|
38210J
38216-U3000
Nut
8910--01 ~ ; VG30E |
38216-U3000 |
— | ||
| replacement | |||||
|
38210J
|
38210J
38216-U301A Nut-Drive Pinion8910--01 ~ ; VG30E |
38216-U301A |
US $4.99 |
||
|
38210Y
|
38210Y
38210-21G10 Flange Assy-Companion8910--01 ~ 9107--01; VG30E |
38210-21G10 |
US $69.12 |
||
|
38210Y
|
38210Y
38210-21G15 Flange Assy-Companion9107--01 ~ ; VG30E |
38210-21G15 |
US $84.41 |
||
|
38220Y
|
38220Y
38220-46G00 Flange Assy-Side8910--01 ~ ; VG30E |
38220-46G00 |
US $259.20 |
||
|
38223Y
|
38223Y
3822321000 Seal-O Ring, Side Flange8910--01 ~ ; VG30E |
3822321000 |
US $0.58 |
||
| replacement | |||||
|
38223Y
|
38223Y
33125Z5002
O ring
8910--01 ~ ; VG30E |
33125Z5002 |
— | ||
|
38226Y
|
38226Y
38226-21G00 Bolt-Fix Side Flange8910--01 ~ 9410--01; VG30E |
38226-21G00 |
US $4.18 |
||
|
38226Y
|
38226Y
38226-23G00 Bolt-Fix Side Flange9410--01 ~ ; VG30E |
38226-23G00 |
US $3.46 |
||
|
38227Y
|
38227Y
38227-21G00 Nut-Lock, Side Flange9010--01 ~ ; VG30E |
38227-21G00 |
US $4.18 |
||
|
38230Y
|
38230Y
38230-46G00 Shaft Assy-Side, Differential8910--01 ~ ; VG30E |
38230-46G00 |
US $263.52 |
||
|
38232H
|
38232H
0122500161 NUT-FIX PROPELLER SHAFT8910--01 ~ ; VG30E |
0122500161 |
US $3.06 |
||
|
38232J
|
38232J
01111-00281 BOLT-FIX PROPELLER SHAFT8910--01 ~ ; VG30E |
01111-00281 |
US $3.06 |
||
|
38232Y
|
38232Y
38232-01G00 Retainer-Extension Tube8910--01 ~ ; VG30E |
38232-01G00 |
US $62.38 |
||
|
38233Y
|
38233Y
3823301G10 Shim-Adjust, Bearing8910--01 ~ ; VG30E |
3823301G10 |
US $7.49 |
||
|
38233Z
|
38233Z
3823301G11 Shim-Adjust, Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.1 |
3823301G11 |
US $3.46 |
||
|
38233Z
|
38233Z
38233-01G12 Shim-Adjust, Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.2 |
38233-01G12 |
US $4.18 |
||
|
38233Z
|
38233Z
3823301G13 Shim-Adjust, Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.3 |
3823301G13 |
US $4.18 |
||
|
38233Z
|
38233Z
38233-01G14 Shim-Adjust, Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.4 |
38233-01G14 |
US $4.18 |
||
|
38310Y
|
38310Y
38315-N3100 Bolt-Bearing Cap8910--01 ~ ; VG30E |
38315-N3100 |
US $4.71 |
||
|
38355Y
|
38355Y
38355-01G00 Defense-Gear Oil8910--01 ~ ; VG30E |
38355-01G00 |
US $4.75 |
||
|
38421Y
|
38421Y
38420-12S10 Case Set-Differential8910--01 ~ ; VG30E |
38420-12S10 |
US $751.90 |
||
|
38422J
|
38422J
38434-10V00 Bolt-Coupling, Differential Case9504--01 ~ ; VG30E |
38434-10V00 |
US $2.45 |
||
|
38422J
|
38422J
38434-P9400 Bolt-Coupling, Differential Case8910--01 ~ 9504--01; VG30E; |
38434-P9400 |
US $2.45 |
||
|
38423Y
|
38423Y
38423B4000 Gear-Side8910--01 ~ ; VG30E |
38423B4000 |
US $49.25 |
||
|
38423Y
|
38423Y
38423B4000 Gear-Side8910--01 ~ ; VG30E |
38423B4000 |
US $49.25 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear8910--01 ~ ; VG30E; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate8910--01 ~ ; VG30E |
38425-B4000 |
US $41.47 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate8910--01 ~ ; VG30E |
38425-B4000 |
US $41.47 |
||
|
38426Y
|
38426Y
38426-P9300 Washer-Thrust, Pinion Mate8910--01 ~ ; VG30E |
38426-P9300 |
from US $2.04 |
||
|
38426Y
|
38426Y
38426-P9300 Washer-Thrust, Pinion Mate8910--01 ~ ; VG30E |
38426-P9300 |
from US $2.04 |
||
|
38427Y
|
38427Y
38427-P9300 Shaft-Pinion Mate8910--01 ~ ; VG30E |
38427-P9300 |
from US $64.37 |
||
|
38440Y
|
38440Y
38440-N3100 Bearing-Differential Side8910--01 ~ 9301--01; VG30E |
38440-N3100 |
US $40.18 |
||
|
38440Y
|
38440Y
38440N3110 Bearing-Differential Side9301--01 ~ ; VG30E |
38440N3110 |
US $32.66 |
||
|
38440Y
|
38440Y
38440-N3100 Bearing-Differential Side8910--01 ~ 9301--01; VG30E |
38440-N3100 |
US $40.18 |
||
|
38440Y
|
38440Y
38440N3110 Bearing-Differential Side9301--01 ~ ; VG30E |
38440N3110 |
US $32.66 |
||
|
38453Y
|
38453Y
38453N3100 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.00 |
38453N3100 |
from US $9.90 |
||
|
38453Y
|
38453Y
38453N3101 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.05 |
38453N3101 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3102 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.10 |
38453N3102 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3103 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.15 |
38453N3103 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3104 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.20 |
38453N3104 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3105 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.25 |
38453N3105 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3106 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.30 |
38453N3106 |
from US $9.56 |
||
|
38453Y
|
38453Y
38453N3107 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.35 |
38453N3107 |
from US $9.86 |
||
|
38453Y
|
38453Y
38453N3108 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.40 |
38453N3108 |
from US $9.64 |
||
|
38453Y
|
38453Y
38453N3109 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.45 |
38453N3109 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3110 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.50 |
38453N3110 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3111 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.55 |
38453N3111 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3112 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.60 |
38453N3112 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3100 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.00 |
38453N3100 |
from US $9.90 |
||
|
38453Y
|
38453Y
38453N3101 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.05 |
38453N3101 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3102 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.10 |
38453N3102 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3103 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.15 |
38453N3103 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3104 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.20 |
38453N3104 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3105 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.25 |
38453N3105 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3106 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.30 |
38453N3106 |
from US $9.56 |
||
|
38453Y
|
38453Y
38453N3107 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.35 |
38453N3107 |
from US $9.86 |
||
|
38453Y
|
38453Y
38453N3108 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.40 |
38453N3108 |
from US $9.64 |
||
|
38453Y
|
38453Y
38453N3109 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.45 |
38453N3109 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3110 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.50 |
38453N3110 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3111 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.55 |
38453N3111 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3112 Shim-Adjust, Side Bearing8910--01 ~ ; VG30E; ｾﾝﾀｸ T=2.60 |
38453N3112 |
from US $9.73 |
||
|
38454Y
|
38454Y
38454-N3100 Spacer-Differential Side8910--01 ~ 9211--01; VG30E |
38454-N3100 |
US $54.29 |
||
|
38454Y
|
38454Y
38454-N3160 Spacer-Differential Side9211--01 ~ ; VG30E |
38454-N3160 |
from US $27.35 |
||
|
38500
|
38500
38500-46GC7 Final Drive Assy-Front8910--01 ~ ; W.VG30E.MT; RC43 35/8=4.375 |
38500-46GC7 |
US $3,318 |
||
|
38510M
|
38510M
38310-46G25 Carrier Compl-Gear, W/extension Tube8910--01 ~ ; VG30E |
38310-46G25 |
US $589.06 |
||
|
38520
|
38520
38320-01G03 Gasket-Gear Carrier9205--01 ~ 9212--01; VG30E |
38320-01G03 |
US $178.56 |
||
|
38520
|
38520
38320-21G02 Gasket-Gear Carrier9212--01 ~ ; VG30E |
38320-21G02 |
US $29.23 |
||
|
38520
|
38520
38353-21G00 Gasket-Gear Carrier8910--01 ~ 9205--01; VG30E |
38353-21G00 |
US $29.23 |
||
| replacement | |||||
|
38520
|
38520
38320-21G01
Gasket-gear carrier
8910--01 ~ 9205--01; VG30E |
38320-21G01 |
— | ||
|
38542N
|
38542N
38342N3100 Seal-Oil, Side Flange8910--01 ~ ; VG30E |
38342N3100 |
from US $4.92 |
||
|
38542P
|
38542P
43252H1000 Seal-Oil, Rear Axle Shaft8910--01 ~ ; VG30E |
43252H1000 |
from US $5.04 |
||
|
38551
|
38551
38350-21G00 Cover-Front, Final Drive8910--01 ~ ; VG30E |
38350-21G00 |
US $93.02 |
||
|
38551
|
38551
32103-U8401
Plug-Drain
8910--01 ~ ; VG30E |
32103-U8401 |
— | ||
| replacement | |||||
|
38551
|
38551
32103U840A Plug-Drain8910--01 ~ ; VG30E |
32103U840A |
from US $5.55 |
||
|
38551
|
38551
38356-01G00 Breather-Final Drive8608--01 ~ 8708--01; ALL |
38356-01G00 |
US $10.37 |
||
|
38551
|
38551
38356-01G10 Breather-Final Drive8708--01 ~ ; ALL; |
38356-01G10 |
US $12.20 |
||
|
38551F
|
38551F
32103-U8401
Plug-Drain
8910--01 ~ ; VG30E |
32103-U8401 |
— | ||
| replacement | |||||
|
38551F
|
38551F
32103U840A Plug-Drain8910--01 ~ ; VG30E |
32103U840A |
from US $5.55 |
||
|
38551G
|
38551G
38356-01G00 Breather-Final Drive8608--01 ~ 8708--01; ALL |
38356-01G00 |
US $10.37 |
||
|
38551G
|
38551G
38356-01G10 Breather-Final Drive8708--01 ~ ; ALL; |
38356-01G10 |
US $12.20 |
||
|
38589
|
38589
38189-21G00
Seal-Oil, Drive Pinion
8910--01 ~ 9107--01; VG30E |
38189-21G00 |
— | ||
| replacement | |||||
|
38589
|
38589
C818921G00 SEALOIL DRIVE8910--01 ~ 9107--01; VG30E |
C818921G00 |
US $10.86 |
||
|
38589
|
38589
38189-21G15
Seal-Oil, Drive Pinion
9107--01 ~ 9301--01; VG30E |
38189-21G15 |
— | ||
| replacement | |||||
|
38589
|
38589
3818921G17 Seal-Oil, Drive Pinion9107--01 ~ 9301--01; VG30E |
3818921G17 |
from US $7.66 |
||
|
38589
|
38589
38189-21G16 Seal-Oil, Drive Pinion9301--01 ~ ; VG30E |
38189-21G16 |
US $8.50 |
||
| replacement | |||||
|
38589
|
38589
3818921G17 Seal-Oil, Drive Pinion9301--01 ~ ; VG30E |
3818921G17 |
from US $7.66 |
||
|
38591J
|
38591J
17351-H1801 Connector-3 Way8910--01 ~ ; VG30E |
17351-H1801 |
US $20.88 |
||
|
40227Y
|
40227Y
4022731G00 Seal-Grease, Side Shaft8910--01 ~ ; VG30E |
4022731G00 |
from US $9.59 |
||
|
43070Y
|
43070Y
4307001L00 Spacer-Rear Axle Bearing8910--01 ~ ; VG30E |
4307001L00 |
from US $3.02 |
||
|
43215Y
|
43215Y
43215H5000 Bearing-Rear Axle, Outer8910--01 ~ ; VG30E |
43215H5000 |
from US $37.33 |
||
|
43255Y
|
43255Y
43255H1000 Collar-Bearing8910--01 ~ ; VG30E |
43255H1000 |
from US $16.07 |
||
