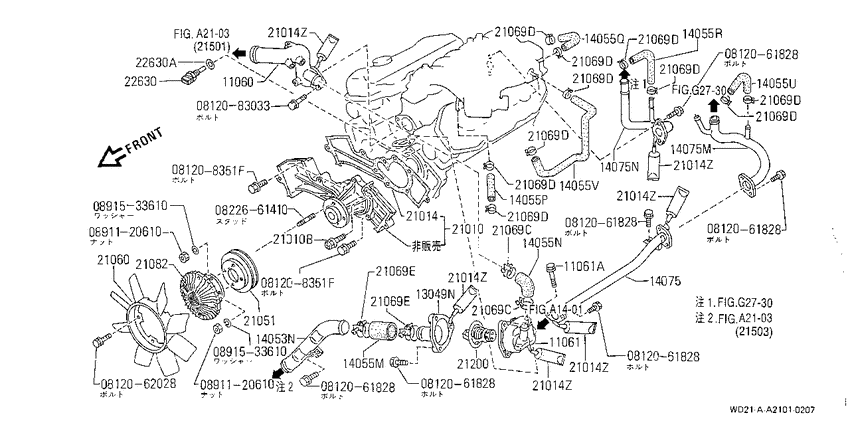

water pump & ｻ-ﾓｽﾀﾂﾄ (1989-10-01 ~ ; VG30E) Diagram Nissan TERRANO
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- VG30E
- drive
- 4WD
- transmission
- MT
- grade
- SE/W
- body
- W/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812062028
|
0812062028
08120-62028
Bolt-hexagon
|
08120-62028 |
— | ||
| replacement | |||||
|
0812062028
|
0812062028
081X0-62028 Bolt-hexagon |
081X0-62028 |
US $2.49 |
||
|
0812083033
|
0812083033
08120-83033
Bolt-hexagon
|
08120-83033 |
— | ||
| replacement | |||||
|
0812083033
|
0812083033
08120-8302F
Bolt-hexagon
|
08120-8302F |
— | ||
|
081208351F
|
081208351F
08120-8351F Bolt-hexagon |
08120-8351F |
US $0.57 |
||
|
081208351F
|
081208351F
08120-8351F Bolt-hexagon |
08120-8351F |
US $0.57 |
||
|
0822661410
|
0822661410
0822661410 STUD |
0822661410 |
from US $0.59 |
||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
11060
|
11060
11060-21V00 Outlet-Water8910--01 ~ ; VG30E |
11060-21V00 |
US $68.06 |
||
|
11061
|
11061
11061-02P01 Housing-Thermostat8910--01 ~ ; VG30E |
11061-02P01 |
US $45.07 |
||
|
11061
|
11061
0112100631 BOLT8910--01 ~ ; VG30E |
0112100631 |
US $3.06 |
||
|
11061A
|
11061A
0112100631 BOLT8910--01 ~ ; VG30E |
0112100631 |
US $3.06 |
||
|
13049N
|
13049N
1304942L00 Inlet-Water8910--01 ~ ; VG30E |
1304942L00 |
US $14.64 |
||
|
14053N
|
14053N
13048-12G11 Pipe-Water8910--01 ~ ; VG30E |
13048-12G11 |
US $79.14 |
||
|
14055M
|
14055M
14055V5010 Hose-Water8910--01 ~ 9310--01; (W/2D+W/4D).VG30E; |
14055V5010 |
from US $9.94 |
||
|
14055N
|
14055N
1405512P00 Hose-Water8910--01 ~ ; VG30E |
1405512P00 |
from US $8.94 |
||
|
14055P
|
14055P
14056-88G01 Hose-Water8910--01 ~ ; VG30E; |
14056-88G01 |
US $12.10 |
||
| replacement | |||||
|
14055P
|
14055P
1405679E00 HOSE-WATER8910--01 ~ ; VG30E; |
1405679E00 |
from US $12.33 |
||
|
14055Q
|
14055Q
14056-85E01 HOSE-WATER9310--01 ~ ; VG30E |
14056-85E01 |
US $12.24 |
||
|
14055Q
|
14055Q
14056-88G02 Hose-Water8910--01 ~ 9310--01; VG30E; |
14056-88G02 |
US $18.86 |
||
|
14055R
|
14055R
14056-10V11 Hose-Water9310--01 ~ ; VG30E |
14056-10V11 |
US $9.22 |
||
|
14055R
|
14055R
14056-88G03 Hose-Water8910--01 ~ 9310--01; VG30E; |
14056-88G03 |
US $13.82 |
||
|
14055U
|
14055U
14056-88G05 Hose-Water8910--01 ~ ; VG30E; |
14056-88G05 |
US $18.86 |
||
|
14055V
|
14055V
14056-88G00 Hose-Water8910--01 ~ ; VG30E |
14056-88G00 |
US $24.95 |
||
|
14075
|
14075
14075-V5002
Pipe Assy-Heater Return, Front
8910--01 ~ ; VG30E |
14075-V5002 |
— | ||
|
14075
|
14075
14053-88G01
Pipe Assy-Heater Return, Rear
8910--01 ~ ; VG30E; |
14053-88G01 |
— | ||
|
14075
|
14075
14053-88G00 Pipe Assy-Heater Feed8910--01 ~ ; VG30E; |
14053-88G00 |
US $48.67 |
||
|
14075M
|
14075M
14053-88G01
Pipe Assy-Heater Return, Rear
8910--01 ~ ; VG30E; |
14053-88G01 |
— | ||
|
14075N
|
14075N
14053-88G00 Pipe Assy-Heater Feed8910--01 ~ ; VG30E; |
14053-88G00 |
US $48.67 |
||
|
21010
|
21010
21010-12G26
Pump Assy-Water
8910--01 ~ ; VG30E; [B106] |
21010-12G26 |
— | ||
| replacement | |||||
|
21010
|
21010
21010-12G28 Pump assy-water8910--01 ~ ; VG30E; [B106] |
21010-12G28 |
US $211.26 |
||
|
21010
|
21010
21012-V5011 Bolt8910--01 ~ ; VG30E |
21012-V5011 |
from US $6.34 |
||
|
21010B
|
21010B
21012-V5011 Bolt8910--01 ~ ; VG30E |
21012-V5011 |
from US $6.34 |
||
|
21014
|
21014
21014-12G00 Gasket-Water Pump8910--01 ~ ; VG30E |
21014-12G00 |
US $9.07 |
||
| replacement | |||||
|
21014
|
21014
21014-12G01
Gasket-water pump
8910--01 ~ ; VG30E |
21014-12G01 |
— | ||
|
21014
|
21014
KA76015000
Gasket-Liquid
9310--01 ~ ; VG30E; [K504] |
KA76015000 |
— | ||
|
21014
|
21014
KP510-00150 Gasket-Liquid8910--01 ~ 9310--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
21014Z
|
21014Z
KA76015000
Gasket-Liquid
9310--01 ~ ; VG30E; [K504] |
KA76015000 |
— | ||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8910--01 ~ 9310--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
21014Z
|
21014Z
KA76015000
Gasket-Liquid
9310--01 ~ ; VG30E; [K504] |
KA76015000 |
— | ||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8910--01 ~ 9310--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
21014Z
|
21014Z
KA76015000
Gasket-Liquid
9310--01 ~ ; VG30E; [K504] |
KA76015000 |
— | ||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8910--01 ~ 9310--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
21014Z
|
21014Z
KA76015000
Gasket-Liquid
9310--01 ~ ; VG30E; [K504] |
KA76015000 |
— | ||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8910--01 ~ 9310--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
21014Z
|
21014Z
KA76015000
Gasket-Liquid
9310--01 ~ ; VG30E; [K504] |
KA76015000 |
— | ||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8910--01 ~ 9310--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
21014Z
|
21014Z
KA76015000
Gasket-Liquid
9310--01 ~ ; VG30E; [K504] |
KA76015000 |
— | ||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8910--01 ~ 9310--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
21051
|
21051
21051V5000 Pulley-Fan & Water Pump8910--01 ~ ; VG30E |
21051V5000 |
US $81.50 |
||
|
21060
|
21060
21060-88G00 Fan-Cooling8910--01 ~ 9310--01; (W/2D+W/4D).VG30E; |
21060-88G00 |
US $102.53 |
||
| replacement | |||||
|
21060
|
21060
21060-88G0A
Fan-cooling
8910--01 ~ 9310--01; (W/2D+W/4D).VG30E; |
21060-88G0A |
— | ||
|
21069C
|
21069C
24220-10V10 Clamp-Hose8910--01 ~ ; VG30E |
24220-10V10 |
US $3.31 |
||
| replacement | |||||
|
21069C
|
21069C
2422010V1B
CLAMPHOSE
8910--01 ~ ; VG30E |
2422010V1B |
— | ||
|
21069C
|
21069C
24220-10V10 Clamp-Hose8910--01 ~ ; VG30E |
24220-10V10 |
US $3.31 |
||
| replacement | |||||
|
21069C
|
21069C
2422010V1B
CLAMPHOSE
8910--01 ~ ; VG30E |
2422010V1B |
— | ||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069D
|
21069D
16439-56S00
Clamp-Hose
8910--01 ~ ; VG30E |
16439-56S00 |
— | ||
| replacement | |||||
|
21069D
|
21069D
1643956S0A Clamp-Hose8910--01 ~ ; VG30E |
1643956S0A |
from US $2.04 |
||
|
21069E
|
21069E
01555-00301
CLAMP-HOSE
8910--01 ~ 9310--01; (W/2D+W/4D).VG30E |
01555-00301 |
— | ||
| replacement | |||||
|
21069E
|
21069E
0155500941 CLAMP-HOSE8910--01 ~ 9310--01; (W/2D+W/4D).VG30E |
0155500941 |
from US $1.76 |
||
|
21069E
|
21069E
01555-00301
CLAMP-HOSE
8910--01 ~ 9310--01; (W/2D+W/4D).VG30E |
01555-00301 |
— | ||
| replacement | |||||
|
21069E
|
21069E
0155500941 CLAMP-HOSE8910--01 ~ 9310--01; (W/2D+W/4D).VG30E |
0155500941 |
from US $1.76 |
||
|
21082
|
21082
21082-88G00 Coupling Assy-Fan8910--01 ~ 9310--01; (W/2D+W/4D).VG30E; [B106] |
21082-88G00 |
US $584.81 |
||
|
21200
|
21200
21200V5015 Thermostat Assy8910--01 ~ ; VG30E; 76.5C |
21200V5015 |
US $52.81 |
||
|
22630
|
22630
22630-V5010
Engine Coolant Temperature Sensor
8910--01 ~ ; VG30E |
22630-V5010 |
— | ||
| replacement | |||||
|
22630
|
22630
2263051E02 ENGINE COOLANT TEMPERATURE SENSOR8910--01 ~ ; VG30E |
2263051E02 |
from US $38.79 |
||
|
22630
|
22630
22636N4200 Gasket-Temperature Sensor8910--01 ~ ; VG30E |
22636N4200 |
from US $1.33 |
||
|
22630A
|
22630A
22636N4200 Gasket-Temperature Sensor8910--01 ~ ; VG30E |
22636N4200 |
from US $1.33 |
||
