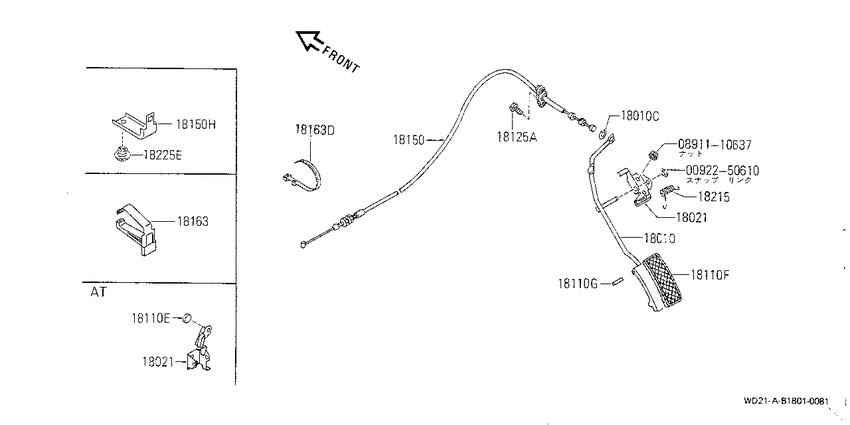

ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1989-10-01 ~ ; VG30E) Diagram Nissan TERRANO
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- VG30E
- drive
- 4WD
- transmission
- MT
- grade
- SE/W
- body
- W/2D
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
18010
|
18010
18010-15G00 Lever Assy-Pedal8608--01 ~ 8708--01; ALL |
18010-15G00 |
US $27.07 |
||
|
18010
|
18010
18010-15G10 Lever Assy-Pedal9211--01 ~ 9301--01; V +(W/2D+W/4D).VG30E.MT |
18010-15G10 |
US $32.11 |
||
|
18010
|
18010
18221D0100 Washer-Nylon8608--01 ~ 9411--01; ALL |
18221D0100 |
US $0.97 |
||
|
18010C
|
18010C
18221D0100 Washer-Nylon8608--01 ~ 9411--01; ALL |
18221D0100 |
US $0.97 |
||
|
18021
|
18021
18021-01F00 Bracket-Pedal Lever8608--01 ~ 8708--01; ALL |
18021-01F00 |
US $50.98 |
||
|
18021
|
18021
18021-50G00 Bracket-Pedal Lever8910--01 ~ 9411--01; VG30E.MT |
18021-50G00 |
US $18.29 |
||
|
18021
|
18021
18021-01F00 Bracket-Pedal Lever8608--01 ~ 8708--01; ALL |
18021-01F00 |
US $50.98 |
||
|
18021
|
18021
18021-50G00 Bracket-Pedal Lever8910--01 ~ 9411--01; VG30E.MT |
18021-50G00 |
US $18.29 |
||
|
18110F
|
18110F
18110-01F00
Pad-Accelerator Pedal
8608--01 ~ 9211--01; ALL |
18110-01F00 |
— | ||
|
18110F
|
18110F
18110-01G00
Pad-Accelerator Pedal
9211--01 ~ 9411--01; V +W/2D +W/4D |
18110-01G00 |
— | ||
|
18110G
|
18110G
32293-73200 Pin-Retaining8608--01 ~ 9411--01; ALL |
32293-73200 |
US $0.86 |
||
|
18125A
|
18125A
01121-03301 BOLT8705--01 ~ 9411--01; ALL |
01121-03301 |
US $2.21 |
||
|
18150
|
18150
18201-25G10 Wire Assy-Accelerator8910--01 ~ 9301--01; (W/2D+W/4D).VG30E |
18201-25G10 |
US $72.58 |
||
|
18150
|
18150
18201-43G00 Wire Assy-Accelerator8608--01 ~ 8610--01; ALL |
18201-43G00 |
US $86.40 |
||
|
18150
|
18150
18201-43G01 Wire Assy-Accelerator8610--01 ~ 8705--01; ALL |
18201-43G01 |
US $86.40 |
||
|
18150
|
18150
18201-43G02 Wire Assy-Accelerator8705--01 ~ 8708--01; ALL; |
18201-43G02 |
US $86.40 |
||
|
18150
|
18150
18201-57G00 Wire Assy-Accelerator9301--01 ~ 9411--01; VG30E |
18201-57G00 |
US $80.21 |
||
|
18150
|
18150
18221-88G00 Clip-Wire, Accelerator8910--01 ~ 9411--01; (W/2D+W/4D).VG30E |
18221-88G00 |
US $7.34 |
||
|
18150
|
18150
18225-43G00 Clip-Wire, Accelerator8608--01 ~ 8811--01; ALL |
18225-43G00 |
US $29.95 |
||
|
18150H
|
18150H
18221-88G00 Clip-Wire, Accelerator8910--01 ~ 9411--01; (W/2D+W/4D).VG30E |
18221-88G00 |
US $7.34 |
||
|
18150H
|
18150H
18225-43G00 Clip-Wire, Accelerator8608--01 ~ 8811--01; ALL |
18225-43G00 |
US $29.95 |
||
|
18163
|
18163
18221-88G00 Clip-Wire, Accelerator9411--01 ~ ; (W/2D+W/4D).VG30E |
18221-88G00 |
US $7.34 |
||
|
18163
|
18163
18225-89910 Clip8910--01 ~ 9411--01; VG30E |
18225-89910 |
US $13.18 |
||
|
18215
|
18215
18215-30F00 Spring-Return8910--01 ~ 9411--01; VG30E |
18215-30F00 |
US $13.25 |
||
|
18215
|
18215
18215-H5001 Spring-Return8608--01 ~ 8708--01; ALL |
18215-H5001 |
US $5.90 |
||
|
18225E
|
18225E
0165801481 PLUG8910--01 ~ 9411--01; (W/2D+W/4D).VG30E |
0165801481 |
US $3.18 |
