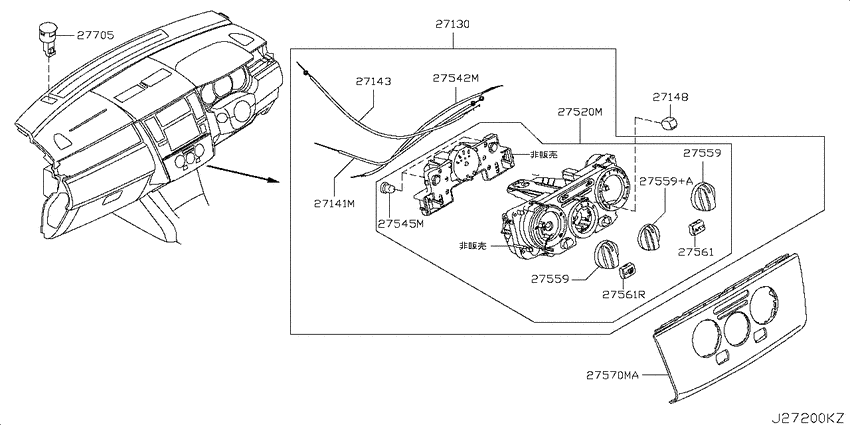

Control unit (2008-01-01 ~ ; ﾏﾆｭｱﾙｴｱｺﾝ; HB) Diagram Nissan TIIDA/TIIDA LATIO
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 4WD
- transmission
- AT
- grade
- 15M4
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27130
|
27130
27500-1A102 Control Assy0409--01 ~ 0512--01; *HB.(15M+15M4); [K116] |
27500-1A102 |
US $1,158.29 |
||
|
27130
|
27130
27500-1A60C Control Assy0512--01 ~ 0612--01; *HB.MR18DE +*HB.(15M+15M4); [K116] |
27500-1A60C |
US $1,274.12 |
||
|
27130
|
27130
27500-1A60D Control Assy0512--01 ~ 0612--01; *HB.MR18DE +*HB.(15M+15M4); [K116] |
27500-1A60D |
US $1,158.29 |
||
|
27130
|
27130
275001JY0A Control Assy0801--01 ~ ; HB.(15M+15M4) |
275001JY0A |
US $842.52 |
||
|
27130
|
27130
275001JY1A Control Assy0801--01 ~ ; *HB.(15M+15M4) |
275001JY1A |
US $702.34 |
||
|
27130
|
27130
27500-ED000 Control Assy0409--01 ~ 0512--01; HB.MR18DE +HB.(15M+15M4+15G) |
27500-ED000 |
US $702.34 |
||
|
27130
|
27130
27500ED001 Control Assy0409--01 ~ 0512--01; HB.MR18DE +HB.(15M+15M4+15G) |
27500ED001 |
US $702.34 |
||
|
27130
|
27130
27500-EU10A Control Assy0512--01 ~ 0612--01; HB.MR18DE +HB.(15M+15M4+15G); [B325] |
27500-EU10A |
US $842.52 |
||
|
27130
|
27130
27500-EU10B Control Assy0512--01 ~ 0612--01; HB.MR18DE +HB.(15M+15M4+15G); [B325] |
27500-EU10B |
US $842.52 |
||
|
27130
|
27130
27510-ED000 Control Assy0409--01 ~ 0612--01; *HB.(15M+15M4) |
27510-ED000 |
US $390.82 |
||
|
27130
|
27130
27500-1A103 Control Assy0409--01 ~ 0512--01; *HB.(15M+15M4); [K116] |
27500-1A103 |
US $1,158.29 |
||
|
27130
|
27130
27500-1A60C Control Assy0512--01 ~ 0612--01; *HB.MR18DE +*HB.(15M+15M4); [K116] |
27500-1A60C |
US $1,274.12 |
||
|
27130
|
27130
27500-ED200 Control Assy0409--01 ~ 0512--01; *HB |
27500-ED200 |
US $702.34 |
||
|
27130
|
27130
27500-ED201 Control Assy0409--01 ~ 0512--01; *HB |
27500-ED201 |
US $702.34 |
||
|
27130
|
27130
27500-EU00A Control Assy0512--01 ~ 0612--01; *HB |
27500-EU00A |
US $702.34 |
||
|
27130
|
27130
27500-EU00B Control Assy0512--01 ~ 0612--01; *HB |
27500-EU00B |
US $702.34 |
||
|
27130
|
27130
0145100581 SCREW0409--01 ~ 0512--01; HB.HR15DE |
0145100581 |
from US $0.78 |
||
|
27141M
|
27141M
27541-ED000 Cable-Control, Mode Door0409--01 ~ 0612--01; *HB.(15M+15M4) |
27541-ED000 |
US $24.91 |
||
|
27143
|
27143
27540-ED000 Cable-Control, Air Intake Door0409--01 ~ 0612--01; *HB.(15M+15M4) |
27540-ED000 |
US $11.95 |
||
|
27148
|
27148
27560AX001 Knob-Control0409--01 ~ 0612--01; *HB.(15M+15M4) |
27560AX001 |
US $1.68 |
||
|
27148
|
27148
27560-ED200 Knob-Control0409--01 ~ 0512--01; *HB.(15M+15M4) |
27560-ED200 |
US $6.34 |
||
|
27148
|
27148
27560-EU00A Knob-Control0512--01 ~ 0612--01; *HB |
27560-EU00A |
US $6.34 |
||
|
27520M
|
27520M
27520-ED000 Base-Control0409--01 ~ 0612--01; *HB.(15M+15M4) |
27520-ED000 |
US $370.99 |
||
|
27542M
|
27542M
27542-ED000 Cable-Temperature Control0409--01 ~ 0612--01; *HB.(15M+15M4) |
27542-ED000 |
US $14.40 |
||
|
27545M
|
27545M
27545-ED000 Lamp Assy-Heater Control0409--01 ~ 0612--01; *HB.(15M+15M4) |
27545-ED000 |
from US $4.03 |
||
|
27559
|
27559
27559-ED000 Knob-Dial0409--01 ~ 0612--01; *HB.(15M+15M4) |
27559-ED000 |
US $8.21 |
||
|
27559
|
27559
27559-ED010 Knob-Dial0409--01 ~ 0612--01; *HB.(15M+15M4) |
27559-ED010 |
US $8.21 |
||
|
27559
|
27559
27559-ED000 Knob-Dial0409--01 ~ 0612--01; *HB.(15M+15M4) |
27559-ED000 |
US $8.21 |
||
|
27559
|
27559
27559-ED010 Knob-Dial0409--01 ~ 0612--01; *HB.(15M+15M4) |
27559-ED010 |
US $8.21 |
||
|
27559+A
|
27559+A
27559-ED010 Knob-Dial0409--01 ~ 0612--01; *HB.(15M+15M4) |
27559-ED010 |
US $8.21 |
||
|
27561
|
27561
27568-1JY0A Button-Air Conditioner0801--01 ~ ; HB.MR18DE +HB.(15M+15M4+15G) |
27568-1JY0A |
US $5.90 |
||
|
27561
|
27561
27568AX011 Button-Air Conditioner0409--01 ~ 0612--01; *HB.(15M+15M4) |
27568AX011 |
US $8.78 |
||
|
27561
|
27561
275A2-ED200 Button-Air Conditioner0409--01 ~ 0512--01; *HB.(15M+15M4) |
275A2-ED200 |
US $8.78 |
||
|
27561
|
27561
275A0-1JY0A Button-Air Conditioner0801--01 ~ ; *HB.4WD +*HB.(15S+15M) |
275A0-1JY0A |
US $5.90 |
||
|
27561
|
27561
275A3-ED000 Button-Air Conditioner0409--01 ~ 0512--01; *HB.(15M+15M4); [B325] |
275A3-ED000 |
US $8.78 |
||
|
27561
|
27561
27568-ED000 Button-Air Conditioner0409--01 ~ 0512--01; *HB.(15M+15M4) |
27568-ED000 |
US $12.10 |
||
|
27561
|
27561
27567-1JY1A Button-Oat0801--01 ~ ; *HB.(15M+15M4) |
27567-1JY1A |
US $10.37 |
||
|
27561
|
27561
275A5-1JY0A Button-Oat0801--01 ~ ; *HB.4WD +*HB.(15S+15M) |
275A5-1JY0A |
US $6.91 |
||
|
27561
|
27561
27566-1JY0A Button-Defroster0801--01 ~ ; HB.MR18DE +HB.(15M+15M4+15G) |
27566-1JY0A |
US $8.78 |
||
|
27561
|
27561
27566-AX001 Button-Defroster0409--01 ~ 0612--01; *HB.(15M+15M4) |
27566-AX001 |
US $8.78 |
||
|
27561
|
27561
27566-ED000 Button-Defroster0409--01 ~ 0512--01; *HB.(15M+15M4) |
27566-ED000 |
US $4.85 |
||
|
27561
|
27561
27566-1JY1A Button-Defroster0801--01 ~ ; HB.MR18DE +HB.(15M+15M4+15G) |
27566-1JY1A |
US $8.78 |
||
|
27561
|
27561
275A1-ED000 Button-Fan0409--01 ~ 0512--01; *HB.(15M+15M4) |
275A1-ED000 |
US $8.21 |
||
|
27561
|
27561
275A1-ED200 Button-Fan0409--01 ~ 0512--01; *HB.(15M+15M4) |
275A1-ED200 |
US $8.21 |
||
|
27561
|
27561
27567-1JY0A Button-Recirc0801--01 ~ ; *HB.4WD +*HB.(15S+15M) |
27567-1JY0A |
US $10.37 |
||
|
27561
|
27561
27567-ED000 Button-Recirc0409--01 ~ 0512--01; *HB.(15M+15M4) |
27567-ED000 |
US $6.91 |
||
|
27561
|
27561
27567ED010 Button-Recirc0409--01 ~ 0512--01; *HB.(15M+15M4) |
27567ED010 |
US $6.91 |
||
|
27561
|
27561
27561-1JY0A Button-Auto Air Conditioner0801--01 ~ ; HB.MR18DE +HB.(15M+15M4+15G) |
27561-1JY0A |
US $8.21 |
||
|
27561
|
27561
27561-ED000 Button-Auto Air Conditioner0409--01 ~ 0512--01; *HB.(15M+15M4) |
27561-ED000 |
US $8.21 |
||
|
27561
|
27561
275A4-1JY0A Button-Mode0801--01 ~ ; HB.MR18DE +HB.(15M+15M4+15G) |
275A4-1JY0A |
US $8.21 |
||
|
27561
|
27561
275A4-ED000 Button-Mode0409--01 ~ 0512--01; *HB.(15M+15M4) |
275A4-ED000 |
US $8.21 |
||
|
27561
|
27561
275A4-ED200 Button-Mode0409--01 ~ 0512--01; *HB.(15M+15M4) |
275A4-ED200 |
US $8.21 |
||
|
27561R
|
27561R
27566-1JY0A Button-Defroster0801--01 ~ ; HB.MR18DE +HB.(15M+15M4+15G) |
27566-1JY0A |
US $8.78 |
||
|
27561R
|
27561R
27566-AX001 Button-Defroster0409--01 ~ 0612--01; *HB.(15M+15M4) |
27566-AX001 |
US $8.78 |
||
|
27561R
|
27561R
27566-ED000 Button-Defroster0409--01 ~ 0512--01; *HB.(15M+15M4) |
27566-ED000 |
US $4.85 |
||
|
27561R
|
27561R
27566-1JY1A Button-Defroster0801--01 ~ ; HB.MR18DE +HB.(15M+15M4+15G) |
27566-1JY1A |
US $8.78 |
||
|
27570MA
|
27570MA
27570-1A102 Finisher Assy-Control0409--01 ~ 0512--01; *HB.(15M+15M4); [K116] |
27570-1A102 |
US $88.70 |
||
|
27570MA
|
27570MA
27570-ED010 Finisher Assy-Control0409--01 ~ 0512--01; HB.(15M+15M4+15G) |
27570-ED010 |
US $57.02 |
||
|
27570MA
|
27570MA
27570-ED011 Finisher Assy-Control0409--01 ~ 0512--01; HB.(15M+15M4+15G) |
27570-ED011 |
US $57.02 |
||
|
27705
|
27705
277215L300 Sensor Assy-Sun0409--01 ~ 0612--01; HB.MR18DE +HB.(15M+15M4+15G) |
277215L300 |
US $16.13 |
||
|
27705
|
27705
27705-AZ100 Sensor0409--01 ~ 0512--01; *HB.(15M+15M4) |
27705-AZ100 |
US $53.42 |
