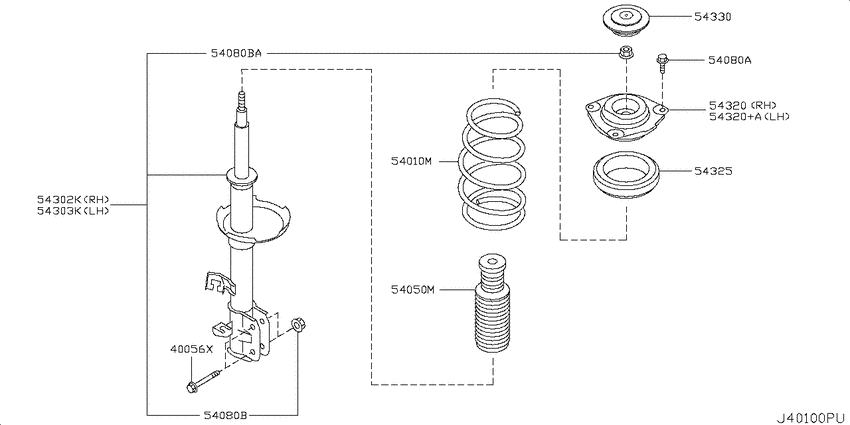

Front suspension (2005-12-01 ~ 2006-12-01; ｽﾄﾗｯﾄ､ｽﾌﾟﾘﾝｸﾞ & ﾏｳﾝﾃｨﾝｸﾞ; 4WD.HR15DE) Diagram Nissan TIIDA/TIIDA LATIO
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 4WD
- transmission
- AT
- grade
- 15M4
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40056X
|
40056X
40056-EN010 Bolt-Knuckle Arm0409--01 ~ 0612--01; 4WD.HR15DE |
40056-EN010 |
US $4.18 |
||
|
40056X
|
40056X
40056EN01A Bolt-Knuckle Arm0801--01 ~ ; 4WD.HR15DE |
40056EN01A |
from US $4.18 |
||
|
54010M
|
54010M
54010-1A12A Spring-Front0801--01 ~ ; *HR15DE.15M4; [K116] |
54010-1A12A |
US $76.03 |
||
|
54010M
|
54010M
540103U800 Spring-Front0409--01 ~ 0612--01; 4WD.HR15DE |
540103U800 |
US $75.74 |
||
|
54050M
|
54050M
54050AZ100 Bumper Assy-Bound0409--01 ~ 0612--01; 4WD.HR15DE |
54050AZ100 |
from US $23.42 |
||
|
54080A
|
54080A
54459-AX005 Bolt0409--01 ~ 0612--01; 4WD.HR15DE |
54459-AX005 |
US $4.18 |
||
|
54080A
|
54080A
54459EN00A Bolt0801--01 ~ ; 4WD.HR15DE |
54459EN00A |
US $5.12 |
||
|
54080B
|
54080B
54588-ED000 Nut0409--01 ~ 0612--01; 4WD.HR15DE |
54588-ED000 |
US $3.46 |
||
|
54080B
|
54080B
54588ED00A Nut0801--01 ~ ; 4WD.HR15DE |
54588ED00A |
from US $2.09 |
||
|
54080B
|
54080B
0122300301 NUT0409--01 ~ 0612--01; 4WD.HR15DE |
0122300301 |
from US $2.02 |
||
|
54080BA
|
54080BA
0122300301 NUT0409--01 ~ 0612--01; 4WD.HR15DE |
0122300301 |
from US $2.02 |
||
|
54302K
|
54302K
54302-ED025 Strut Kit-Front Suspension, Rh0409--01 ~ 0612--01; 4WD.HR15DE; COINED 54302-ED001 |
54302-ED025 |
US $208.80 |
||
|
54302K
|
54302K
E4302-1A11B Strut Kit-Front Suspension, Rh0801--01 ~ ; *HR15DE.15M4; [K116] |
E4302-1A11B |
US $224.93 |
||
|
54302K
|
54302K
E4302EU51A
Strut Kit-Front Suspension, Rh
0801--01 ~ ; 4WD.HR15DE |
E4302EU51A |
— | ||
| replacement | |||||
|
54302K
|
54302K
E4C02EU51A Strut Kit-Front Suspension, Rh0801--01 ~ ; 4WD.HR15DE |
E4C02EU51A |
US $252.28 |
||
|
54303K
|
54303K
54303-ED025 Strut Kit-Front Suspension, Lh0409--01 ~ 0612--01; 4WD.HR15DE; COINED 54303-ED001 |
54303-ED025 |
US $208.80 |
||
|
54303K
|
54303K
E4303-1A11B Strut Kit-Front Suspension, Lh0801--01 ~ ; *HR15DE.15M4; [K116] |
E4303-1A11B |
US $224.93 |
||
|
54303K
|
54303K
E4303EU51A
Strut Kit-Front Suspension, Lh
0801--01 ~ ; 4WD.HR15DE |
E4303EU51A |
— | ||
| replacement | |||||
|
54303K
|
54303K
E4C03-EU51A Front0801--01 ~ ; 4WD.HR15DE |
E4C03-EU51A |
US $300.52 |
||
|
54320
|
54320
54320ED001
Insulator Assy-Strut Mounting
0409--01 ~ 0612--01; 4WD.HR15DE |
54320ED001 |
— | ||
| replacement | |||||
|
54320
|
54320
54320-1FE0A Insulator Assy-Strut Mounting0409--01 ~ 0612--01; 4WD.HR15DE |
54320-1FE0A |
US $55.35 |
||
|
54320
|
54320
54321ED001 Insulator Assy-Strut Mounting0409--01 ~ 0612--01; 4WD.HR15DE |
54321ED001 |
US $46.22 |
||
| replacement | |||||
|
54320
|
54320
54321-1FE0A Insulator Assy-Strut Mounting0409--01 ~ 0612--01; 4WD.HR15DE |
54321-1FE0A |
from US $47.68 |
||
|
54320+A
|
54320+A
54321ED001 Insulator Assy-Strut Mounting0409--01 ~ 0612--01; 4WD.HR15DE |
54321ED001 |
US $46.22 |
||
| replacement | |||||
|
54320+A
|
54320+A
54321-1FE0A Insulator Assy-Strut Mounting0409--01 ~ 0612--01; 4WD.HR15DE |
54321-1FE0A |
from US $47.68 |
||
|
54325
|
54325
54325AX000 Bearing-Strut Mounting0409--01 ~ 0608--01; 4WD.HR15DE |
54325AX000 |
US $65.81 |
||
|
54325
|
54325
54325ED00A Bearing-Strut Mounting0608--01 ~ 0612--01; 4WD.HR15DE |
54325ED00A |
from US $63.45 |
||
| replacement | |||||
|
54325
|
54325
54325-ED02A Bearing-Strut Mounting0608--01 ~ 0612--01; 4WD.HR15DE |
54325-ED02A |
from US $49.47 |
||
|
54330
|
54330
54330ED000 Cap-Front Strut Insulator0409--01 ~ 0512--01; 4WD.HR15DE |
54330ED000 |
from US $5.20 |
||
