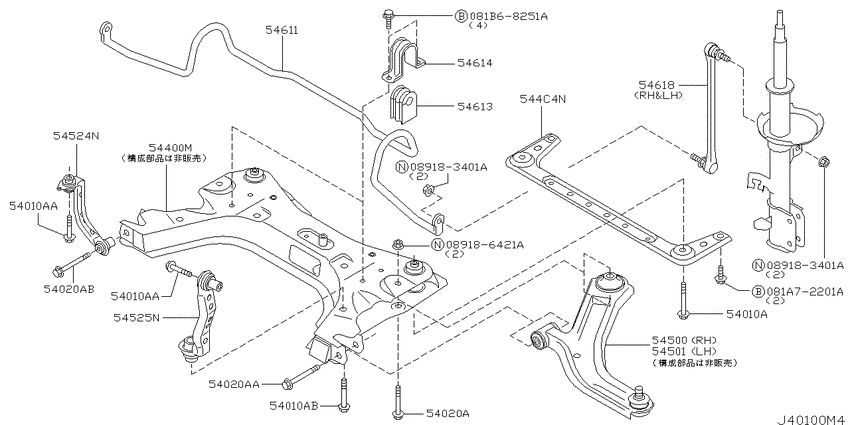

Front suspension (2004-10-01 ~ 2005-12-01; ﾒﾝﾊﾞｰ&ﾘﾝｸ; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE) Diagram Nissan TIIDA/TIIDA LATIO
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- CVT
- grade
- 15G
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A72201A
|
081A72201A
081A72201A
BOLTFLANGEHEX
|
081A72201A |
— | ||
|
081B68251A
|
081B68251A
081B68251A BOLT |
081B68251A |
US $1.64 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089186421A
|
089186421A
089186421A NUTSLOCK |
089186421A |
US $2.21 |
||
|
54010A
|
54010A
54459AX017 Bolt0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459AX017 |
US $3.46 |
||
|
54010A
|
54010A
54459AX023 Bolt0410--01 ~ 0509--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459AX023 |
US $3.46 |
||
|
54010A
|
54010A
54459-EE90A Bolt0601--01 ~ 0611--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EE90A |
US $3.46 |
||
|
54010A
|
54010A
54459EE94A Bolt0611--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459EE94A |
from US $1.76 |
||
|
54010A
|
54010A
54459-EW00A Bolt0509--01 ~ 0601--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EW00A |
US $3.46 |
||
| replacement | |||||
|
54010A
|
54010A
54459-EE90A Bolt0509--01 ~ 0601--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EE90A |
US $3.46 |
||
|
54010A
|
54010A
0112501041 BOLT0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
0112501041 |
from US $7.34 |
||
|
54010AA
|
54010AA
54459AX023 Bolt0410--01 ~ 0509--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459AX023 |
US $3.46 |
||
|
54010AA
|
54010AA
54459-EE90A Bolt0601--01 ~ 0611--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EE90A |
US $3.46 |
||
|
54010AA
|
54010AA
54459EE94A Bolt0611--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459EE94A |
from US $1.76 |
||
|
54010AA
|
54010AA
54459-EW00A Bolt0509--01 ~ 0601--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EW00A |
US $3.46 |
||
| replacement | |||||
|
54010AA
|
54010AA
54459-EE90A Bolt0509--01 ~ 0601--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EE90A |
US $3.46 |
||
|
54010AA
|
54010AA
54459AX023 Bolt0410--01 ~ 0509--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459AX023 |
US $3.46 |
||
|
54010AA
|
54010AA
54459-EE90A Bolt0601--01 ~ 0611--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EE90A |
US $3.46 |
||
|
54010AA
|
54010AA
54459EE94A Bolt0611--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459EE94A |
from US $1.76 |
||
|
54010AA
|
54010AA
54459-EW00A Bolt0509--01 ~ 0601--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EW00A |
US $3.46 |
||
| replacement | |||||
|
54010AA
|
54010AA
54459-EE90A Bolt0509--01 ~ 0601--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-EE90A |
US $3.46 |
||
|
54010AB
|
54010AB
0112501041 BOLT0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
0112501041 |
from US $7.34 |
||
|
54020A
|
54020A
54459-ED00A Bolt0410--01 ~ 0512--01; HR15DE.(15B+15S) +HR15DE.CVT |
54459-ED00A |
US $7.34 |
||
|
54020A
|
54020A
54459ED04A Bolt0611--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459ED04A |
US $8.45 |
||
|
54020A
|
54020A
54459-AX002 Bolt0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-AX002 |
US $2.45 |
||
|
54020A
|
54020A
54459AX00C Bolt0701--01 ~ 0801--01; 3HR15DE.15B.AT +HR15DE.(15S+15S) +HR15DE.CVT +MR18DE |
54459AX00C |
from US $1.41 |
||
|
54020A
|
54020A
54459-AX024 Bolt0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-AX024 |
US $4.18 |
||
|
54020A
|
54020A
54459AX02E Bolt0612--01 ~ 0801--01; 3HR15DE.15B.AT +HR15DE.(15S+15S) +HR15DE.CVT +MR18DE |
54459AX02E |
from US $1.92 |
||
|
54020AA
|
54020AA
54459-AX002 Bolt0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-AX002 |
US $2.45 |
||
|
54020AA
|
54020AA
54459AX00C Bolt0701--01 ~ 0801--01; 3HR15DE.15B.AT +HR15DE.(15S+15S) +HR15DE.CVT +MR18DE |
54459AX00C |
from US $1.41 |
||
|
54020AB
|
54020AB
54459-AX024 Bolt0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54459-AX024 |
US $4.18 |
||
|
54020AB
|
54020AB
54459AX02E Bolt0612--01 ~ 0801--01; 3HR15DE.15B.AT +HR15DE.(15S+15S) +HR15DE.CVT +MR18DE |
54459AX02E |
from US $1.92 |
||
|
54400M
|
54400M
54400-ED000 Member Compl-Front Suspension0410--01 ~ 0502--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54400-ED000 |
US $397.90 |
||
|
54400M
|
54400M
54400-EW000 Member Compl-Front Suspension0502--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54400-EW000 |
US $397.90 |
||
|
544C4N
|
544C4N
544C4ED000 Stay Assy-Front Suspension Member0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
544C4ED000 |
US $40.18 |
||
|
54500
|
54500
54500-ED00A Link Compl-Transverse, Rh0410--01 ~ 0512--01; HR15DE.(15B+15S) +HR15DE.CVT |
54500-ED00A |
US $188.64 |
||
|
54501
|
54501
54501-ED00A Link Compl-Transverse, Lh0410--01 ~ 0512--01; HR15DE.(15B+15S) +HR15DE.CVT |
54501-ED00A |
US $188.64 |
||
|
54524N
|
54524N
54524AX001 Link Compl-Front Suspension, Upper Rh0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54524AX001 |
from US $67.71 |
||
|
54525N
|
54525N
54525ED001 Link Compl-Front Suspension, Upper Lh0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54525ED001 |
US $68.11 |
||
|
54611
|
54611
54611-EW000 Stabilizer-Front0410--01 ~ 0512--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54611-EW000 |
US $174.24 |
||
|
54611
|
54611
54611EW01A Stabilizer-Front0512--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54611EW01A |
US $174.24 |
||
|
54613
|
54613
54613ED001 Bush-Stabilizer0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54613ED001 |
from US $5.42 |
||
|
54614
|
54614
54614AX400 Clamp-Stabilizer0410--01 ~ 0612--01; $HR15DE.(15B+15S) +HR15DE.CVT +MR18DE |
54614AX400 |
US $9.36 |
||
|
54618
|
54618
54618-ED000 Rod Assy-Connecting, Stabilizer0410--01 ~ 0512--01; HR15DE.(15B+15S) +HR15DE.CVT |
54618-ED000 |
US $47.52 |
||
| replacement | |||||
|
54618
|
54618
54618ED00A Rod Assy-Connecting, Stabilizer0410--01 ~ 0512--01; HR15DE.(15B+15S) +HR15DE.CVT |
54618ED00A |
US $47.52 |
||
|
54618
|
54618
54618ED00A Rod Assy-Connecting, Stabilizer0702--01 ~ 0801--01; 3HR15DE.15B.AT +HR15DE.(15S+15S) +HR15DE.CVT +MR18DE |
54618ED00A |
US $47.52 |
||
