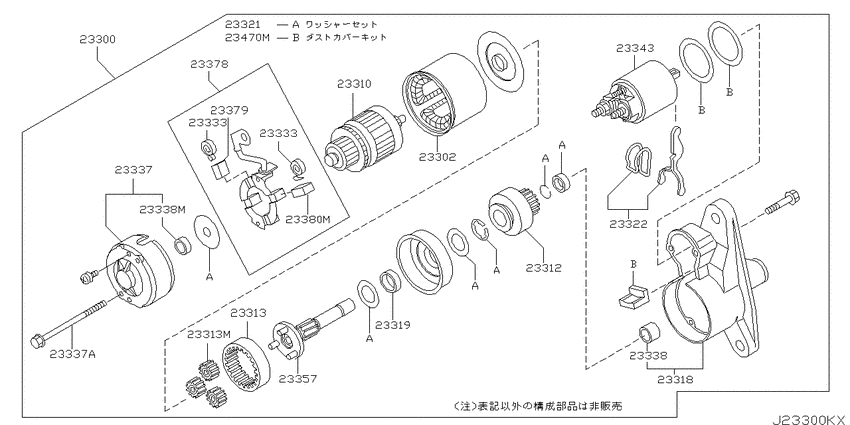

Starter motor (2008-01-01 ~ ; スターターモーター; MR18DE) Diagram Nissan TIIDA/TIIDA LATIO
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- MR18DE
- drive
- 2WD
- transmission
- CVT
- grade
- 18G
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300
|
23300
23300-EN200 Motor Assy-Starter0501--01 ~ 0612--01; MR18DE |
23300-EN200 |
US $828.36 |
||
|
23300
|
23300
23300-EN20A Motor Assy-Starter0801--01 ~ ; MR18DE |
23300-EN20A |
US $828.36 |
||
|
23300
|
23300
31377-EN203 Bolt0501--01 ~ 0612--01; MR18DE |
31377-EN203 |
US $4.18 |
||
|
23300
|
23300
31377EN20B Bolt0801--01 ~ ; MR18DE |
31377EN20B |
US $4.18 |
||
|
23300
|
23300
0122100381 NUT0501--01 ~ 0612--01; MR18DE |
0122100381 |
from US $5.85 |
||
|
23300
|
23300
0122100231 NUT0501--01 ~ 0612--01; MR18DE |
0122100231 |
US $1.73 |
||
|
23302
|
23302
23302-EN200 Yoke Assy0501--01 ~ 0612--01; MR18DE |
23302-EN200 |
US $211.68 |
||
|
23302
|
23302
23302-EN20A Yoke Assy0801--01 ~ ; MR18DE |
23302-EN20A |
US $211.68 |
||
|
23310
|
23310
23310-EN200 Armature Assy0501--01 ~ 0612--01; MR18DE |
23310-EN200 |
US $276.48 |
||
|
23312
|
23312
23312-EN200 Pinion Assy0501--01 ~ 0612--01; MR18DE |
23312-EN200 |
US $254.88 |
||
|
23312
|
23312
23312-EN20A Pinion Assy0801--01 ~ ; MR18DE |
23312-EN20A |
from US $254.88 |
||
|
23313
|
23313
23361-0M300 Gear0501--01 ~ 0612--01; MR18DE |
23361-0M300 |
US $51.55 |
||
|
23313
|
23313
23367-31U01 Planet Gear0501--01 ~ 0612--01; MR18DE |
23367-31U01 |
US $16.13 |
||
|
23313M
|
23313M
23367-31U01 Planet Gear0501--01 ~ 0612--01; MR18DE |
23367-31U01 |
US $16.13 |
||
|
23318
|
23318
23318-EN200 Case Assy-Gear0501--01 ~ 0612--01; MR18DE |
23318-EN200 |
US $101.52 |
||
|
23318
|
23318
23318-EN20A Case Assy-Gear0801--01 ~ ; MR18DE |
23318-EN20A |
US $101.52 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE0501--01 ~ 0612--01; MR18DE; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23321
|
23321
233200M300 Washer Set-Thrust0501--01 ~ 0612--01; MR18DE |
233200M300 |
US $6.34 |
||
|
23322
|
23322
233220M300 Lever Set-Shift0501--01 ~ 0612--01; MR18DE |
233220M300 |
from US $19.30 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0501--01 ~ 0612--01; MR18DE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0501--01 ~ 0612--01; MR18DE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23337
|
23337
23337-AA300 Cover Assy-Rear0501--01 ~ 0612--01; MR18DE |
23337-AA300 |
US $43.06 |
||
|
23337
|
23337
23340-EN200 Bolt-Through0501--01 ~ 0612--01; MR18DE |
23340-EN200 |
US $4.18 |
||
|
23337
|
23337
23340-EN20A Bolt-Through0801--01 ~ ; MR18DE |
23340-EN20A |
US $4.18 |
||
|
23337A
|
23337A
23340-EN200 Bolt-Through0501--01 ~ 0612--01; MR18DE |
23340-EN200 |
US $4.18 |
||
|
23337A
|
23337A
23340-EN20A Bolt-Through0801--01 ~ ; MR18DE |
23340-EN20A |
US $4.18 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover0501--01 ~ 0612--01; MR18DE |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER0501--01 ~ 0612--01; MR18DE; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23338M
|
23338M
2333897E00 BEARING-REAR COVER0501--01 ~ 0612--01; MR18DE; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-EN200 Switch Assy-Magnetic0501--01 ~ 0612--01; MR18DE |
23343-EN200 |
US $129.02 |
||
|
23343
|
23343
23343EN20A Switch Assy-Magnetic0801--01 ~ ; MR18DE |
23343EN20A |
US $129.02 |
||
|
23357
|
23357
23357-EN200 Shaft-Pinion0501--01 ~ 0612--01; MR18DE |
23357-EN200 |
US $65.23 |
||
|
23378
|
23378
23378-0M300 Holder Assy-Brush0501--01 ~ 0612--01; MR18DE |
23378-0M300 |
US $54.43 |
||
|
23378
|
23378
23378EN20A Holder Assy-Brush0801--01 ~ ; MR18DE |
23378EN20A |
US $54.43 |
||
|
23379
|
23379
23379-0M300 Brush-Minus0501--01 ~ 0612--01; MR18DE; ﾋﾀﾁ |
23379-0M300 |
US $10.08 |
||
|
23380M
|
23380M
23380-0M300 Brush-Plus0501--01 ~ 0612--01; MR18DE; ﾋﾀﾁ |
23380-0M300 |
US $15.98 |
||
|
23470M
|
23470M
23470-0M300 Cover-Dust0501--01 ~ 0612--01; MR18DE |
23470-0M300 |
US $10.08 |
||
|
23470M
|
23470M
23470EN20A Cover-Dust0801--01 ~ ; MR18DE |
23470EN20A |
US $10.08 |
