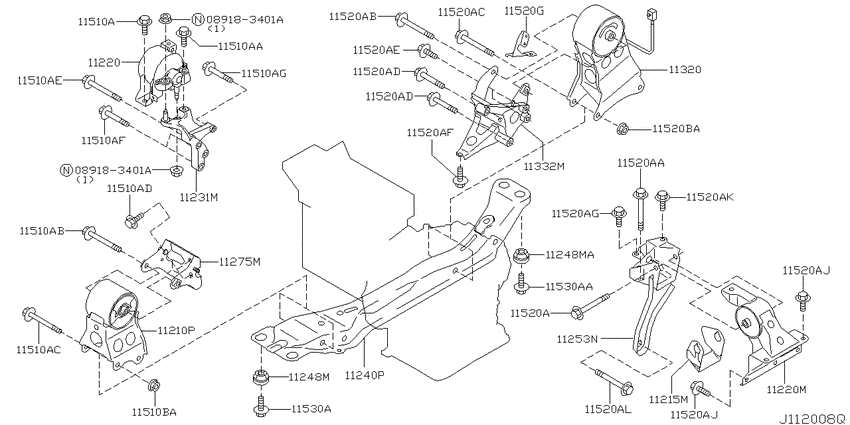

Engine & transmission mounting (2000-03-01 ~ 2002-10-01; QG18EM29) Diagram Nissan TINO
- Year
- 2000 - 2002
- Sales region
- Japan
- Engine
- QG18EM29
- transmission
- AT.CVT
- grade
- X
- body
- W
- capacity
- 5P
- gas/hyb
- HYB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.74 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.74 |
||
|
11210P
|
11210P
11270-5U301 Insulator Assy-Engine Mounting, Front Rh0003--01 ~ 0210--01; QG18EM29 |
11270-5U301 |
US $240.48 |
||
|
11215M
|
11215M
11215-5U301 Stopper-Engine Mounting0003--01 ~ 0210--01; QG18EM29 |
11215-5U301 |
US $13.68 |
||
|
11220
|
11220
11210-5U300 Insulator-Engine Mounting, Front0003--01 ~ 0210--01; QG18EM29 |
11210-5U300 |
US $240.48 |
||
|
11220
|
11220
11220-5U300 Insulator Assy-Engine Mounting, Front Lh0003--01 ~ 0210--01; QG18EM29 |
11220-5U300 |
US $103.68 |
||
|
11220M
|
11220M
11220-5U300 Insulator Assy-Engine Mounting, Front Lh0003--01 ~ 0210--01; QG18EM29 |
11220-5U300 |
US $103.68 |
||
|
11231M
|
11231M
11231-5U300 Bracket-Engine Mounting0003--01 ~ 0210--01; QG18EM29 |
11231-5U300 |
US $99.94 |
||
|
11240P
|
11240P
11240-5U300 Member Assy-Engine Mounting0003--01 ~ 0210--01; QG18EM29 |
11240-5U300 |
US $185.76 |
||
|
11248M
|
11248M
112485M300 Pad-Engine Mounting Member0003--01 ~ 0210--01; QG18EM29 |
112485M300 |
US $7.91 |
||
|
11248M
|
11248M
112484M410 Pad-Engine Mounting Member0003--01 ~ 0210--01; QG18EM29 |
112484M410 |
from US $7.31 |
||
|
11248MA
|
11248MA
112484M410 Pad-Engine Mounting Member0003--01 ~ 0210--01; QG18EM29 |
112484M410 |
from US $7.31 |
||
|
11253N
|
11253N
11253-5U300 Bracket-Engine Mounting, Lh0003--01 ~ 0210--01; QG18EM29 |
11253-5U300 |
US $123.41 |
||
|
11275M
|
11275M
11274-5U301 Bracket-Engine Mounting Block, Front0003--01 ~ 0210--01; QG18EM29 |
11274-5U301 |
US $44.21 |
||
|
11320
|
11320
11320-5U300 Insulator-Engine Mounting, Rear0003--01 ~ 0210--01; QG18EM29 |
11320-5U300 |
US $346.92 |
||
|
11332M
|
11332M
11332-5U301 Bracket-Engine Mounting, Rear0003--01 ~ 0210--01; QG18EM29 |
11332-5U301 |
US $106.56 |
||
|
11510A
|
11510A
11298-4M417 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4M417 |
US $3.46 |
||
|
11510A
|
11510A
01125-03311 BOLT0003--01 ~ 0210--01; QG18EM29 |
01125-03311 |
US $3.46 |
||
|
11510A
|
11510A
11298-5U301 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U301 |
US $3.46 |
||
|
11510A
|
11510A
11298-5U301 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U301 |
US $3.46 |
||
|
11510A
|
11510A
112984M407 Bolt0003--01 ~ 0210--01; QG18EM29 |
112984M407 |
from US $2.02 |
||
|
11510A
|
11510A
11298-4M405 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4M405 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M406 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4M406 |
US $4.03 |
||
|
11510A
|
11510A
01125-03211 BOLT0003--01 ~ 0210--01; QG18EM29 |
01125-03211 |
US $3.31 |
||
|
11510AA
|
11510AA
01125-03311 BOLT0003--01 ~ 0210--01; QG18EM29 |
01125-03311 |
US $3.46 |
||
|
11510AB
|
11510AB
11298-5U301 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U301 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-5U301 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U301 |
US $3.46 |
||
|
11510AD
|
11510AD
112984M407 Bolt0003--01 ~ 0210--01; QG18EM29 |
112984M407 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-4M405 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4M405 |
US $3.46 |
||
|
11510AF
|
11510AF
11298-4M406 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4M406 |
US $4.03 |
||
|
11510AG
|
11510AG
01125-03211 BOLT0003--01 ~ 0210--01; QG18EM29 |
01125-03211 |
US $3.31 |
||
|
11510BA
|
11510BA
0122500072 NUT0003--01 ~ 0210--01; QG18EM29 |
0122500072 |
US $1.05 |
||
|
11520A
|
11520A
11298-4U700 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4U700 |
US $3.46 |
||
|
11520A
|
11520A
0112503171 BOLT0003--01 ~ 0210--01; QG18EM29 |
0112503171 |
US $3.46 |
||
|
11520A
|
11520A
11298-5U301 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U301 |
US $3.46 |
||
|
11520A
|
11520A
11298-AD201 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-AD201 |
US $3.46 |
||
|
11520A
|
11520A
11298-5V003 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5V003 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M410 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4M410 |
US $3.46 |
||
|
11520A
|
11520A
112982J209 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J209 |
US $3.26 |
||
|
11520A
|
11520A
112982J206 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J206 |
from US $1.92 |
||
|
11520A
|
11520A
11298-5U000 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U000 |
US $3.46 |
||
|
11520A
|
11520A
112982J206 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J206 |
from US $1.92 |
||
|
11520A
|
11520A
01125-03011 BOLT0003--01 ~ 0210--01; QG18EM29 |
01125-03011 |
US $3.46 |
||
|
11520AA
|
11520AA
0112503171 BOLT0003--01 ~ 0210--01; QG18EM29 |
0112503171 |
US $3.46 |
||
|
11520AB
|
11520AB
11298-5U301 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U301 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-AD201 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-AD201 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-5V003 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5V003 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-5V003 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5V003 |
US $3.46 |
||
|
11520AE
|
11520AE
11298-4M410 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-4M410 |
US $3.46 |
||
|
11520AF
|
11520AF
112982J209 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J209 |
US $3.26 |
||
|
11520AG
|
11520AG
112982J206 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J206 |
from US $1.92 |
||
|
11520AJ
|
11520AJ
11298-5U000 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U000 |
US $3.46 |
||
|
11520AJ
|
11520AJ
11298-5U000 Bolt0003--01 ~ 0210--01; QG18EM29 |
11298-5U000 |
US $3.46 |
||
|
11520AK
|
11520AK
112982J206 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J206 |
from US $1.92 |
||
|
11520AL
|
11520AL
01125-03011 BOLT0003--01 ~ 0210--01; QG18EM29 |
01125-03011 |
US $3.46 |
||
|
11520BA
|
11520BA
0122500072 NUT0003--01 ~ 0210--01; QG18EM29 |
0122500072 |
US $1.05 |
||
|
11520G
|
11520G
24236-5U302 Bracket0003--01 ~ 0210--01; QG18EM29 |
24236-5U302 |
US $14.98 |
||
|
11530A
|
11530A
112982J220 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J220 |
US $3.46 |
||
|
11530A
|
11530A
112982J221 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J221 |
from US $1.67 |
||
|
11530AA
|
11530AA
112982J221 Bolt0003--01 ~ 0210--01; QG18EM29 |
112982J221 |
from US $1.67 |
