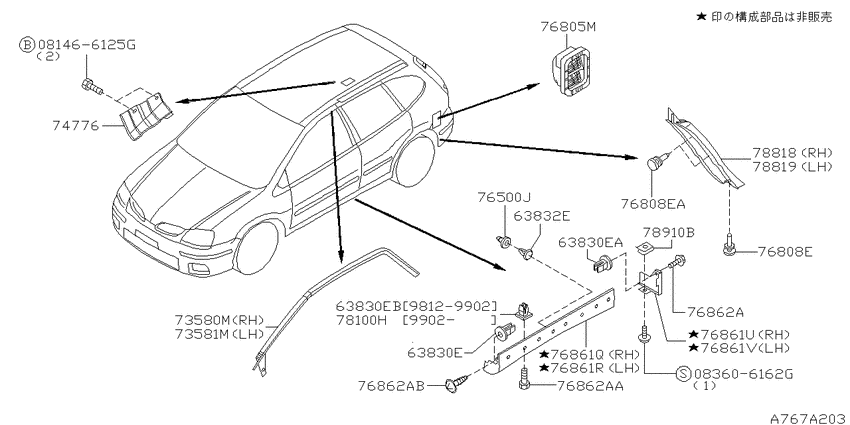

Body side fitting (1998-12-01 ~ 2000-03-01; その他; W) Diagram Nissan TINO
- Year
- 2000 - 2002
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- J
- body
- W
- capacity
- 6P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466125G
|
081466125G
081466125G
Bolt-hexagon
|
081466125G |
— | ||
|
083606162G
|
083606162G
08360-6162G
SCREWMACHINE
|
08360-6162G |
— | ||
|
63830E
|
63830E
0128100801 GROMMET-SCREW9812--01 ~ 9902--01; W |
0128100801 |
from US $1.11 |
||
|
63830E
|
63830E
0128100831 GROMMET-SCREW9812--01 ~ 9902--01; W |
0128100831 |
from US $0.89 |
||
|
63830E
|
63830E
01281-01281 GROMMET-SCREW9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
01281-01281 |
US $1.73 |
||
|
63830EA
|
63830EA
0128100831 GROMMET-SCREW9812--01 ~ 9902--01; W |
0128100831 |
from US $0.89 |
||
|
63830EB
|
63830EB
01281-01281 GROMMET-SCREW9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
01281-01281 |
US $1.73 |
||
|
63832E
|
63832E
0155304293 CLIP9812--01 ~ 0003--01; W |
0155304293 |
US $2.72 |
||
|
73580M
|
73580M
76842-4U020 Weatherstrip-Roof Drip, Rh9812--01 ~ 0003--01; W |
76842-4U020 |
US $49.97 |
||
|
73580M
|
73580M
76842-4U021 Weatherstrip-Roof Drip, Rh0004--01 ~ 0210--01; W |
76842-4U021 |
US $49.97 |
||
|
73581M
|
73581M
76843-4U020 Weatherstrip-Roof Drip, Lh9812--01 ~ 0003--01; W |
76843-4U020 |
US $49.97 |
||
|
73581M
|
73581M
76843-4U021 Weatherstrip-Roof Drip, Lh0004--01 ~ 0210--01; W |
76843-4U021 |
US $49.97 |
||
|
74776
|
74776
74776-4U001 Protector Assy-Mud9812--01 ~ 0003--01; W |
74776-4U001 |
US $14.83 |
||
|
76500J
|
76500J
7684835F00 Grommet9812--01 ~ 0003--01; W |
7684835F00 |
from US $1.30 |
||
|
76805M
|
76805M
768054U000 Duct-Drafter, Outlet Lh9812--01 ~ 0003--01; W |
768054U000 |
US $30.38 |
||
|
76808E
|
76808E
0155309611 CLIP9812--01 ~ 0003--01; W |
0155309611 |
from US $0.80 |
||
|
76808E
|
76808E
6384801G00 Clip-Harness Protector9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
6384801G00 |
from US $0.54 |
||
|
76808EA
|
76808EA
6384801G00 Clip-Harness Protector9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
6384801G00 |
from US $0.54 |
||
|
76861Q
|
76861Q
76852-4U001 Mudguard-Center, Front Rh9812--01 ~ 0003--01; W |
76852-4U001 |
US $530.15 |
||
|
76861Q
|
76861Q
76852-4U002 Mudguard-Center, Front Rh9812--01 ~ 0003--01; W |
76852-4U002 |
US $530.15 |
||
|
76861Q
|
76861Q
76852-4U003 Mudguard-Center, Front Rh9812--01 ~ 0003--01; W |
76852-4U003 |
US $530.15 |
||
|
76861Q
|
76861Q
76852-4U004 Mudguard-Center, Front Rh9812--01 ~ 0003--01; W |
76852-4U004 |
US $530.15 |
||
|
76861Q
|
76861Q
76852-4U005 Mudguard-Center, Front Rh9812--01 ~ 0003--01; W |
76852-4U005 |
US $530.15 |
||
|
76861Q
|
76861Q
76852-4U006 Mudguard-Center, Front Rh9812--01 ~ 0003--01; W |
76852-4U006 |
US $530.15 |
||
|
76861Q
|
76861Q
76852-4U007 Mudguard-Center, Front Rh9812--01 ~ 0003--01; W |
76852-4U007 |
US $530.15 |
||
|
76861Q
|
76861Q
76852-4U011 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U011 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U012 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U012 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U013 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U013 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U014 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U014 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U015 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U015 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U016 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U016 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U017 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U017 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U018 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U018 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U019 Mudguard-Center, Front Rh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76852-4U019 |
US $441.79 |
||
|
76861Q
|
76861Q
76852-4U140 Mudguard-Center, Front Rh0004--01 ~ 0210--01; W.(QG18DE+SR20DE) |
76852-4U140 |
US $370.09 |
||
|
76861R
|
76861R
76853-4U001 Mudguard-Center, Front Lh9812--01 ~ 0003--01; W |
76853-4U001 |
US $530.15 |
||
|
76861R
|
76861R
76853-4U002 Mudguard-Center, Front Lh9812--01 ~ 0003--01; W |
76853-4U002 |
US $530.15 |
||
|
76861R
|
76861R
76853-4U003 Mudguard-Center, Front Lh9812--01 ~ 0003--01; W |
76853-4U003 |
US $530.15 |
||
|
76861R
|
76861R
76853-4U004 Mudguard-Center, Front Lh9812--01 ~ 0003--01; W |
76853-4U004 |
US $530.15 |
||
|
76861R
|
76861R
76853-4U005 Mudguard-Center, Front Lh9812--01 ~ 0003--01; W |
76853-4U005 |
US $530.15 |
||
|
76861R
|
76861R
76853-4U006 Mudguard-Center, Front Lh9812--01 ~ 0003--01; W |
76853-4U006 |
US $530.15 |
||
|
76861R
|
76861R
76853-4U007 Mudguard-Center, Front Lh9812--01 ~ 0003--01; W |
76853-4U007 |
US $530.15 |
||
|
76861R
|
76861R
76853-4U011 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U011 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U012 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U012 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U013 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U013 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U014 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U014 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U015 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U015 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U016 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U016 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U017 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U017 |
US $368.16 |
||
|
76861R
|
76861R
76853-4U018 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U018 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U019 Mudguard-Center, Front Lh0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
76853-4U019 |
US $441.79 |
||
|
76861R
|
76861R
76853-4U140 Mudguard-Center, Front Lh0004--01 ~ 0210--01; W.(QG18DE+SR20DE) |
76853-4U140 |
US $370.09 |
||
|
76861U
|
76861U
76856-4U040 Mudguard-Center, Rear Rh9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
76856-4U040 |
US $112.91 |
||
|
76861V
|
76861V
76857-4U040 Mudguard-Center, Rear Lh9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
76857-4U040 |
US $112.91 |
||
|
76862A
|
76862A
0146600241 SCREW9812--01 ~ 0003--01; W |
0146600241 |
from US $1.13 |
||
|
76862A
|
76862A
01466-00103 SCREW9812--01 ~ 0003--01; W |
01466-00103 |
from US $0.63 |
||
|
76862A
|
76862A
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
76862AA
|
76862AA
01466-00103 SCREW9812--01 ~ 0003--01; W |
01466-00103 |
from US $0.63 |
||
|
76862AB
|
76862AB
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
78100H
|
78100H
768484U010 Grommet9902--01 ~ 0003--01; W |
768484U010 |
US $1.73 |
||
|
78818
|
78818
78818-4U000 Closing-Rear Bumper, Rh9812--01 ~ 0003--01; W |
78818-4U000 |
US $16.70 |
||
|
78819
|
78819
788194U000 Closing-Rear Bumper, Lh9812--01 ~ 0003--01; W |
788194U000 |
US $16.70 |
||
|
78910B
|
78910B
01241-00253 NUT-SPRING9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
01241-00253 |
US $4.18 |
