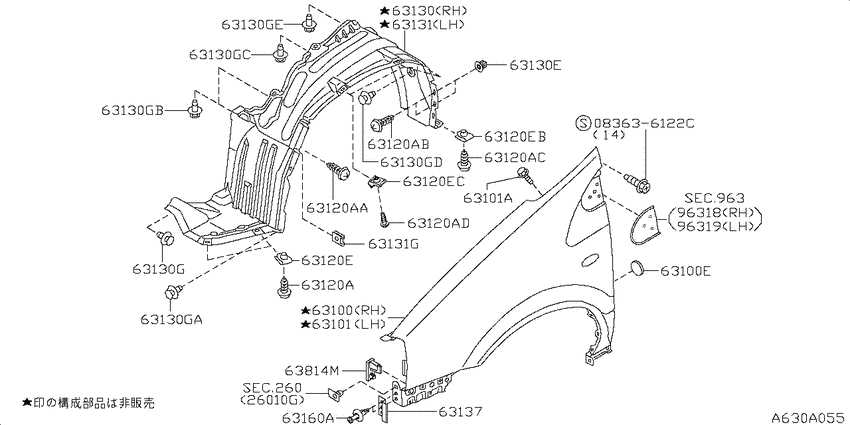

Front fender & fitting (2000-04-01 ~ 2002-10-01; W) Diagram Nissan TINO
- Year
- 2000 - 2002
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- J
- body
- W
- capacity
- 6P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122C
|
083636122C
08363-6122C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6122C |
— | ||
|
260
|
Head lamp
260
|
||||
|
260
|
Head lamp
260
|
||||
|
260
|
Head lamp
260
|
||||
|
63100
|
63100
63100-4U030 Fender-Front, Rh9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
63100-4U030 |
US $587.64 |
||
|
63100
|
63100
63100-4U035 Fender-Front, Rh9812--01 ~ 9902--01; *W.6P.QG18DE +*W.SR20DE |
63100-4U035 |
US $587.64 |
||
|
63100
|
63100
64892W5000 Unit Assy-Divider Tachometer9902--01 ~ 0003--01; W |
64892W5000 |
US $0.97 |
||
|
63100
|
63100
KU000-AT415 Paint-Touch Up9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE; [K504] |
KU000-AT415 |
US $10.51 |
||
|
63100
|
63100
KU000-AX512 Paint-Touch Up0202--01 ~ 0210--01; W; [K504] |
KU000-AX512 |
US $10.51 |
||
|
63100
|
63100
KU000-BS215 Paint-Touch Up9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE; [K504] |
KU000-BS215 |
US $10.51 |
||
|
63100
|
63100
KU000-GV115
Paint-Touch Up
9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE; [K504] |
KU000-GV115 |
— | ||
|
63100
|
63100
KU000-KL015
Paint-Touch Up
0003--01 ~ 0004--01; *W.6P.QG18DE.X +W.SR20DE.X +W.QG18EM29 +W.G; [K504] |
KU000-KL015 |
— | ||
|
63100
|
63100
KU000KL091 Paint-Touch Up9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE; [K504] |
KU000KL091 |
US $10.51 |
||
|
63100
|
63100
KU000QM115 Paint-Touch Up (Only within Japan)9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE; [K504] |
KU000QM115 |
US $10.51 |
||
|
63100
|
63100
KU000-TV115 Paint-Touch Up9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE; [K504] |
KU000-TV115 |
US $10.51 |
||
|
63100
|
63100
KU000-YV115 Paint-Touch Up9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE; [K504] |
KU000-YV115 |
US $10.51 |
||
|
63100
|
63100
KUP00QT115
Paint-Touch Up
0003--01 ~ 0004--01; *W.6P.QG18DE.X +W.SR20DE.X +W.QG18EM29 +W.G; [K504] |
KUP00QT115 |
— | ||
|
63100E
|
63100E
64892W5000 Unit Assy-Divider Tachometer9902--01 ~ 0003--01; W |
64892W5000 |
US $0.97 |
||
|
63101
|
63101
63101-4U030 Fender-Front, Lh9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
63101-4U030 |
US $587.64 |
||
|
63101
|
63101
631014U035 Fender-Front, Lh9812--01 ~ 0003--01; *W.6P.QG18DE +*W.SR20DE |
631014U035 |
US $587.64 |
||
|
63101
|
63101
01125-01501 BOLT9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
01125-01501 |
US $3.46 |
||
|
63101A
|
63101A
01125-01501 BOLT9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
01125-01501 |
US $3.46 |
||
|
63120A
|
63120A
0145100841 SCREW9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
0145100841 |
from US $0.94 |
||
|
63120A
|
63120A
0145100841 SCREW9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
0145100841 |
from US $0.94 |
||
|
63120A
|
63120A
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
63120A
|
63120A
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
63120A
|
63120A
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
63120AA
|
63120AA
0145100841 SCREW9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
0145100841 |
from US $0.94 |
||
|
63120AB
|
63120AB
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
63120AC
|
63120AC
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
63120AD
|
63120AD
0145100841 SCREW9812--01 ~ 0003--01; W |
0145100841 |
from US $0.94 |
||
|
63120E
|
63120E
768820M000 Clip9812--01 ~ 0003--01; W |
768820M000 |
from US $3.15 |
||
|
63120E
|
63120E
768820M000 Clip9812--01 ~ 0003--01; W |
768820M000 |
from US $3.15 |
||
|
63120E
|
63120E
6384835F00 Clip9812--01 ~ 0003--01; W |
6384835F00 |
from US $1.76 |
||
|
63120EB
|
63120EB
768820M000 Clip9812--01 ~ 0003--01; W |
768820M000 |
from US $3.15 |
||
|
63120EC
|
63120EC
6384835F00 Clip9812--01 ~ 0003--01; W |
6384835F00 |
from US $1.76 |
||
|
63130
|
63130
63842-4U000 Protector-Front Fender, Rh9812--01 ~ 0003--01; W |
63842-4U000 |
US $86.26 |
||
|
63130
|
63130
0128100831 GROMMET-SCREW9812--01 ~ 0003--01; W |
0128100831 |
from US $0.89 |
||
|
63130
|
63130
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130
|
63130
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130
|
63130
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130
|
63130
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130
|
63130
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130
|
63130
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130E
|
63130E
0128100831 GROMMET-SCREW9812--01 ~ 0003--01; W |
0128100831 |
from US $0.89 |
||
|
63130G
|
63130G
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130G
|
63130G
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130G
|
63130G
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130G
|
63130G
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130G
|
63130G
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130G
|
63130G
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130GA
|
63130GA
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130GB
|
63130GB
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130GC
|
63130GC
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130GD
|
63130GD
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63130GE
|
63130GE
0155309321 CLIP9812--01 ~ 0003--01; W |
0155309321 |
US $0.97 |
||
|
63131
|
63131
63843-4U000 Protector-Front Fender, Lh9812--01 ~ 0003--01; W |
63843-4U000 |
US $86.26 |
||
|
63131
|
63131
0124100941 NUT-SPRING9812--01 ~ 0003--01; W |
0124100941 |
from US $1.22 |
||
|
63131G
|
63131G
0124100941 NUT-SPRING9812--01 ~ 0003--01; W |
0124100941 |
from US $1.22 |
||
|
63137
|
63137
63852-4U000 Plate-Mudguard9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
63852-4U000 |
US $11.38 |
||
|
63137
|
63137
63853-4U000 Plate-Mudguard9902--01 ~ 0003--01; W; ﾋﾀﾞﾘ |
63853-4U000 |
US $11.38 |
||
|
63160A
|
63160A
0155309191 CLIP9812--01 ~ 0003--01; W |
0155309191 |
US $0.97 |
||
|
63814M
|
63814M
63826-4U000 Spacer-Sealing, Front Fender9812--01 ~ 0003--01; W |
63826-4U000 |
US $11.23 |
||
|
963
|
Rear view mirror
963
|
||||
|
963
|
Rear view mirror
963
|
||||
|
963
|
Rear view mirror
963
|
||||
