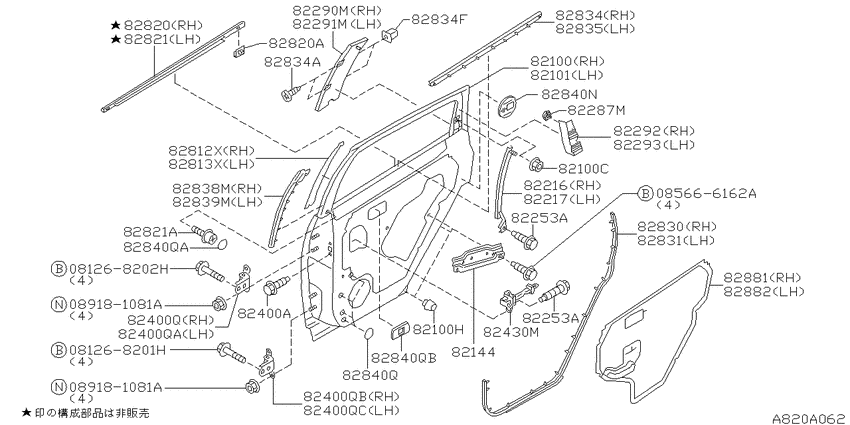

Rear door panel & fitting (2000-04-01 ~ 2002-10-01; W) Diagram Nissan TINO
- Year
- 2000 - 2002
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- J
- body
- W
- capacity
- 6P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268201H
|
081268201H
081268201H
Bolt-hexagon
|
081268201H |
— | ||
|
081268202H
|
081268202H
08126-8202H Bolt-hexagon |
08126-8202H |
US $3.06 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
82100
|
82100
H2100-4U0AM Door-Rear, Rh9812--01 ~ 0003--01; W |
H2100-4U0AM |
US $969.96 |
||
|
82100
|
82100
16132-J1700 Nut9812--01 ~ 0003--01; W |
16132-J1700 |
US $1.73 |
||
|
82100
|
82100
80872W1011 Bumper Rubber-Door9812--01 ~ 0003--01; W |
80872W1011 |
from US $3.32 |
||
|
82100C
|
82100C
16132-J1700 Nut9812--01 ~ 0003--01; W |
16132-J1700 |
US $1.73 |
||
|
82100H
|
82100H
80872W1011 Bumper Rubber-Door9812--01 ~ 0003--01; W |
80872W1011 |
from US $3.32 |
||
|
82101
|
82101
H2101-4U0AM Door-Rear, Lh9812--01 ~ 0003--01; W |
H2101-4U0AM |
US $969.96 |
||
|
82144
|
82144
82144-4U000
Frame-Rear Door Inner, Rh
9812--01 ~ 0003--01; W |
82144-4U000 |
— | ||
|
82216
|
82216
82216-4U000 Sash Assy-Rear Door, Rear Rh9812--01 ~ 0003--01; W |
82216-4U000 |
US $63.65 |
||
|
82217
|
82217
82217-4U000 Sash Assy-Rear Door, Rear Lh9812--01 ~ 0003--01; W |
82217-4U000 |
US $63.65 |
||
|
82253A
|
82253A
01121-07261 BOLT0107--01 ~ 0210--01; W |
01121-07261 |
from US $0.11 |
||
|
82253A
|
82253A
01125-00543 BOLT9812--01 ~ 0003--01; W |
01125-00543 |
US $3.31 |
||
|
82253A
|
82253A
01121-07261 BOLT0107--01 ~ 0210--01; W |
01121-07261 |
from US $0.11 |
||
|
82253A
|
82253A
01125-00543 BOLT9812--01 ~ 0003--01; W |
01125-00543 |
US $3.31 |
||
|
82287M
|
82287M
80287-AD010 Holder-Corner Cover9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
80287-AD010 |
US $2.02 |
||
|
82290M
|
82290M
82290-4U000 Cover-Rear Door Corner, Outer Rh9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
82290-4U000 |
US $53.86 |
||
|
82290M
|
82290M
82290-4U010 Cover-Rear Door Corner, Outer Rh0004--01 ~ 0210--01; W |
82290-4U010 |
US $53.42 |
||
|
82291M
|
82291M
82291-4U000 Cover-Rear Door Corner, Outer Lh9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
82291-4U000 |
US $53.86 |
||
|
82291M
|
82291M
82291-4U010 Cover-Rear Door Corner, Outer Lh0004--01 ~ 0210--01; W |
82291-4U010 |
US $53.42 |
||
|
82292
|
82292
82292-4U000 Cover-Rear Door Corner, Inner Rh9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
82292-4U000 |
US $30.10 |
||
|
82293
|
82293
82293-4U000 Cover-Rear Door Corner, Inner Lh9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
82293-4U000 |
US $30.10 |
||
|
82400A
|
82400A
80498-40U00
Bolt
9812--01 ~ 0003--01; W |
80498-40U00 |
— | ||
| replacement | |||||
|
82400A
|
82400A
80498-40U0B Bolt9812--01 ~ 0003--01; W |
80498-40U0B |
from US $0.87 |
||
|
82400Q
|
82400Q
82400-4U010 Hinge Assy-Rear Door9812--01 ~ 0003--01; W |
82400-4U010 |
US $46.80 |
||
|
82400Q
|
82400Q
82401-4U010 Hinge Assy-Rear Door9812--01 ~ 0003--01; W |
82401-4U010 |
US $46.80 |
||
|
82400Q
|
82400Q
82420-5V000 Hinge Assy-Front Door9812--01 ~ 0003--01; W |
82420-5V000 |
US $32.40 |
||
|
82400Q
|
82400Q
82421-5V000 Hinge Assy-Front Door9812--01 ~ 0003--01; W |
82421-5V000 |
US $32.40 |
||
| replacement | |||||
|
82400Q
|
82400Q
80400-4P00A
Hinge assy-front door
9812--01 ~ 0003--01; W |
80400-4P00A |
— | ||
|
82400QA
|
82400QA
82401-4U010 Hinge Assy-Rear Door9812--01 ~ 0003--01; W |
82401-4U010 |
US $46.80 |
||
|
82400QB
|
82400QB
82420-5V000 Hinge Assy-Front Door9812--01 ~ 0003--01; W |
82420-5V000 |
US $32.40 |
||
|
82400QC
|
82400QC
82421-5V000 Hinge Assy-Front Door9812--01 ~ 0003--01; W |
82421-5V000 |
US $32.40 |
||
| replacement | |||||
|
82400QC
|
82400QC
80400-4P00A
Hinge assy-front door
9812--01 ~ 0003--01; W |
80400-4P00A |
— | ||
|
82430M
|
82430M
82430-4U000 Check Link Assy-Rear Door, Rh9812--01 ~ 0003--01; W |
82430-4U000 |
US $35.28 |
||
|
82812X
|
82812X
828124U000 Tape-Rear Door Outside, Rh9812--01 ~ 9911--01; W |
828124U000 |
US $25.49 |
||
|
82812X
|
82812X
82812-4U001 Tape-Rear Door Outside, Rh9911--01 ~ 0003--01; W |
82812-4U001 |
US $25.49 |
||
|
82812X
|
82812X
82812-4U010 Tape-Rear Door Outside, Rh0004--01 ~ 0210--01; W |
82812-4U010 |
US $25.49 |
||
|
82813X
|
82813X
82813-4U000 Tape-Rear Door Outside, Lh9812--01 ~ 9911--01; W |
82813-4U000 |
US $25.49 |
||
|
82813X
|
82813X
82813-4U001 Tape-Rear Door Outside, Lh9911--01 ~ 0003--01; W |
82813-4U001 |
US $25.49 |
||
|
82813X
|
82813X
82813-4U010 Tape-Rear Door Outside, Lh0004--01 ~ 0210--01; W |
82813-4U010 |
US $25.49 |
||
|
82820
|
82820
82820-4U000 Moulding-Rear Door Outside, Rh9812--01 ~ 0003--01; W |
82820-4U000 |
US $83.95 |
||
|
82820
|
82820
82820-BU010 Moulding-Rear Door Outside, Rh0108--01 ~ 0210--01; W |
82820-BU010 |
US $99.65 |
||
|
82820
|
82820
80826-4U000 Clip-Beading9812--01 ~ 0003--01; W |
80826-4U000 |
US $6.19 |
||
|
82820A
|
82820A
80826-4U000 Clip-Beading9812--01 ~ 0003--01; W |
80826-4U000 |
US $6.19 |
||
|
82821
|
82821
82821-4U000 Moulding-Rear Door Outside, Lh9812--01 ~ 0003--01; W |
82821-4U000 |
US $83.95 |
||
|
82821
|
82821
82821-BU010 Moulding-Rear Door Outside, Lh0108--01 ~ 0210--01; W |
82821-BU010 |
US $99.65 |
||
|
82821
|
82821
01464-00181 SCREW9812--01 ~ 0003--01; W |
01464-00181 |
US $0.86 |
||
|
82821A
|
82821A
01464-00181 SCREW9812--01 ~ 0003--01; W |
01464-00181 |
US $0.86 |
||
|
82830
|
82830
82830-4U000 Weatherstrip-Rear Door, Rh9812--01 ~ 0003--01; W |
82830-4U000 |
US $78.19 |
||
|
82830
|
82830
82830-4U021 Weatherstrip-Rear Door, Rh0012--01 ~ 0210--01; W |
82830-4U021 |
US $78.19 |
||
|
82831
|
82831
82831-4U000 Weatherstrip-Rear Door, Lh9812--01 ~ 0003--01; W |
82831-4U000 |
US $78.19 |
||
|
82831
|
82831
82831-4U021 Weatherstrip-Rear Door, Lh0012--01 ~ 0210--01; W |
82831-4U021 |
US $78.19 |
||
|
82834
|
82834
82834-4U000 Weatherstrip-Rear Door Inside, Rh9812--01 ~ 0003--01; W |
82834-4U000 |
US $33.70 |
||
|
82834
|
82834
80899-50J00 Screw9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
80899-50J00 |
US $1.73 |
||
|
82834
|
82834
768819E000 GROMMET-SCREW9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
768819E000 |
US $0.86 |
||
|
82834A
|
82834A
80899-50J00 Screw9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
80899-50J00 |
US $1.73 |
||
|
82834F
|
82834F
768819E000 GROMMET-SCREW9812--01 ~ 0003--01; W.6P.QG18DE +W.SR20DE |
768819E000 |
US $0.86 |
||
|
82835
|
82835
82835-4U000 Weatherstrip-Rear Door Inside, Lh9812--01 ~ 0003--01; W |
82835-4U000 |
US $33.70 |
||
|
82838M
|
82838M
82838-4U000 Seal-Rear Door Partition, Rh9812--01 ~ 0003--01; W |
82838-4U000 |
US $36.14 |
||
|
82839M
|
82839M
82839-4U000 Seal-Rear Door Partition, Lh9812--01 ~ 0003--01; W |
82839-4U000 |
US $36.14 |
||
|
82840N
|
82840N
82840-40U00 Cover-Child Lock Lever9812--01 ~ 0003--01; W |
82840-40U00 |
US $6.91 |
||
|
82840Q
|
82840Q
64891W5000 Plug-Rubber9812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
64891W5000 |
from US $0.81 |
||
|
82840Q
|
82840Q
64892W5000 Unit Assy-Divider Tachometer9812--01 ~ 0003--01; W |
64892W5000 |
US $0.97 |
||
|
82840Q
|
82840Q
80840-4U000 Cover-Hole9812--01 ~ 0003--01; W |
80840-4U000 |
US $7.20 |
||
|
82840QA
|
82840QA
64892W5000 Unit Assy-Divider Tachometer9812--01 ~ 0003--01; W |
64892W5000 |
US $0.97 |
||
|
82840QB
|
82840QB
80840-4U000 Cover-Hole9812--01 ~ 0003--01; W |
80840-4U000 |
US $7.20 |
||
|
82881
|
82881
82860-4U000 Screen-Sealing, Rear Rh9812--01 ~ 0003--01; W |
82860-4U000 |
US $21.46 |
||
|
82882
|
82882
82861-4U000 Screen-Sealing, Rear Lh9812--01 ~ 0003--01; W |
82861-4U000 |
US $21.46 |
||
